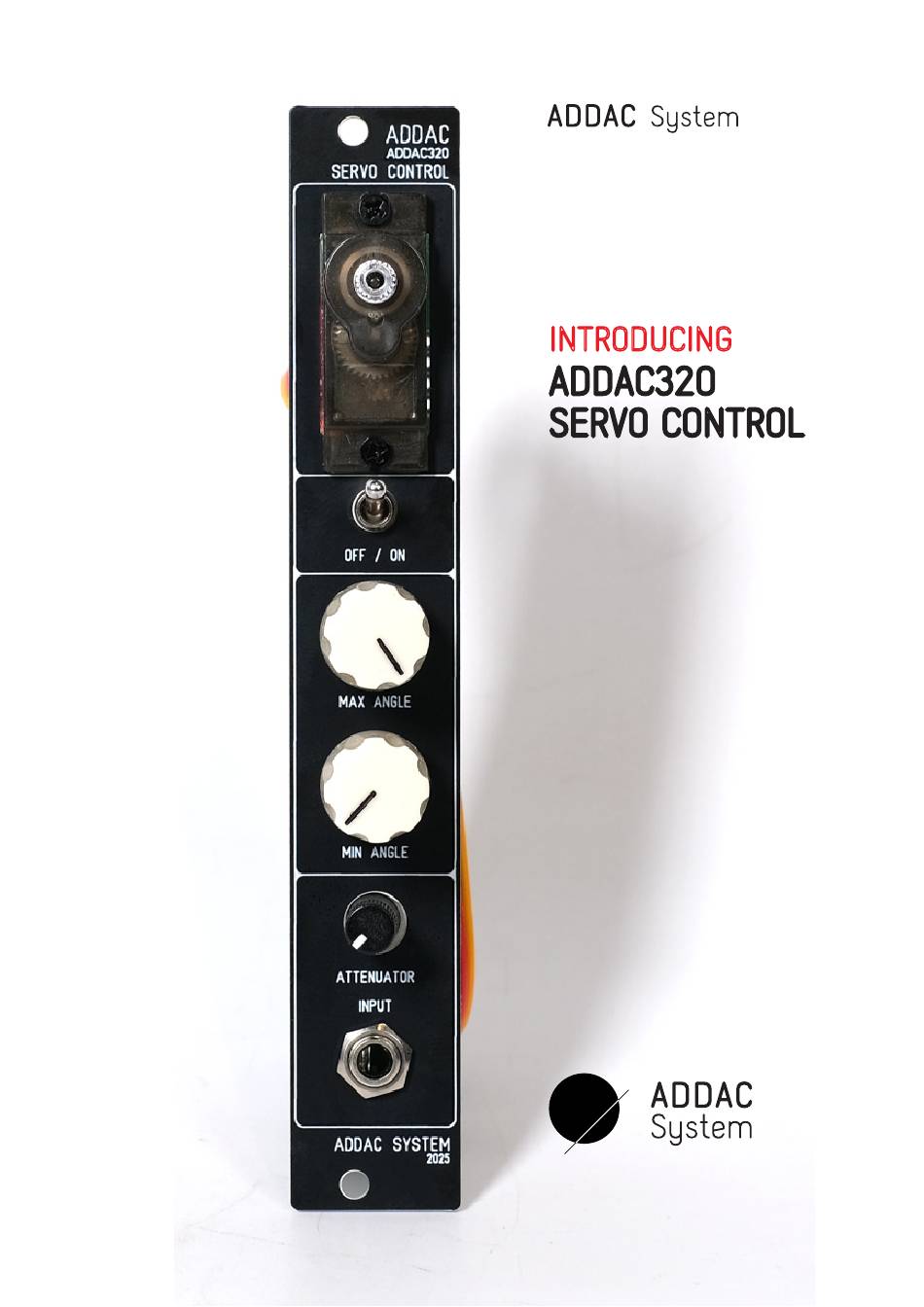

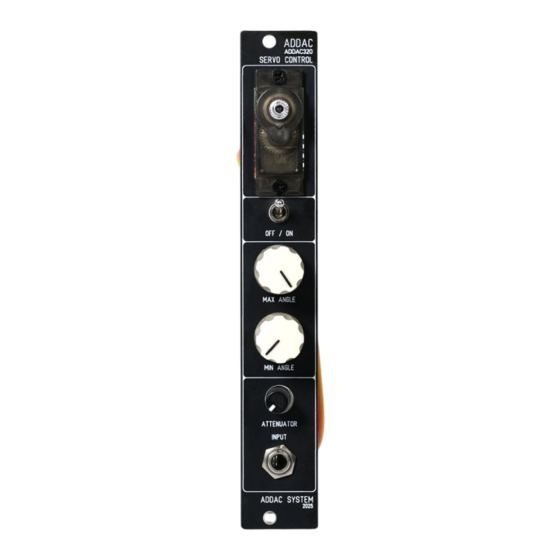

- Page 1 Instruments for Sonic Expression Est.2009 INTRODUCING ADDAC320 SERVO CONTROL USER’S GUIDE . REV01 April.2025 From Portugal with Love!
-
Page 2: Servo Control
Sets the maximum angle of the Servo Range ATTENUATOR When no CV is plugged in works as a manual Servo control, If a CV input is used then it attenuates the incoming CV. CV INPUT CV input 0 to +10 ADDAC SYSTEM page 2... -
Page 3: Operation Principle
CORRECT COUPLING PROBLEMATIC COUPLING 0º Degrees Pot Max 0º Angle 0º Degrees 0º OVER Rotation Degrees Degrees 270º Degrees MAX Rotaion 270º Degrees MAX Rotaion ADDAC SYSTEM page 3... - Page 4 If the wire has too much strain it will also affect the target knob rotation angle which will then be smaller than the servo angle. CV INPUT CV INPUT SERVO ANGLE SERVO ANGLE 270º 270º 0º 0º 500ms 166ms ADDAC SYSTEM page 3...
-
Page 5: Connection Wires
ADDAC320 module, anything from guitar pedals, drum machines or even rack gear like effect units, EQs or even compressors, this would be especially easy for those users with frames already mounted on 19’’ Racks. ADDAC SYSTEM page 4... -
Page 6: Current Consumption
100mA. At higher speeds or using Gate signals the peak current consumption can be about 250mA, if put under stress it can go up to 300mA. SIGNAL FLOW DIAGRAM CV INPUT ATTENUATOR ON / OFF SERVO MAXIMUM ANGLE SERVO MOTOR CONTROLLER MINIMUM ANGLE ADDAC SYSTEM page 5... -
Page 7: Installation
If the couplers positions are not well installed it can lead hard stops that will strain the motor gears as well as on the motor shaft being controlled. Always be careful when installing the couplers following the “everything fully CCW” rule and always remove the connecting wire if changing the module’s location on your frame. ADDAC SYSTEM page 6... - Page 8 For feedback, comments or problems please contact us at: addac@addacsystem.com ADDAC320 USER’S GUIDE Revision.01 April.2025...
