instructions carefully and familiarize yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST
1
TOP / BOTTOM RAIL
2 PCS
2
SLAT
6 PCS
3
WIDE SLAT
1 PC
4
LEFT LEG
1 PC
5
RIGHT LEG
1 PC
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.

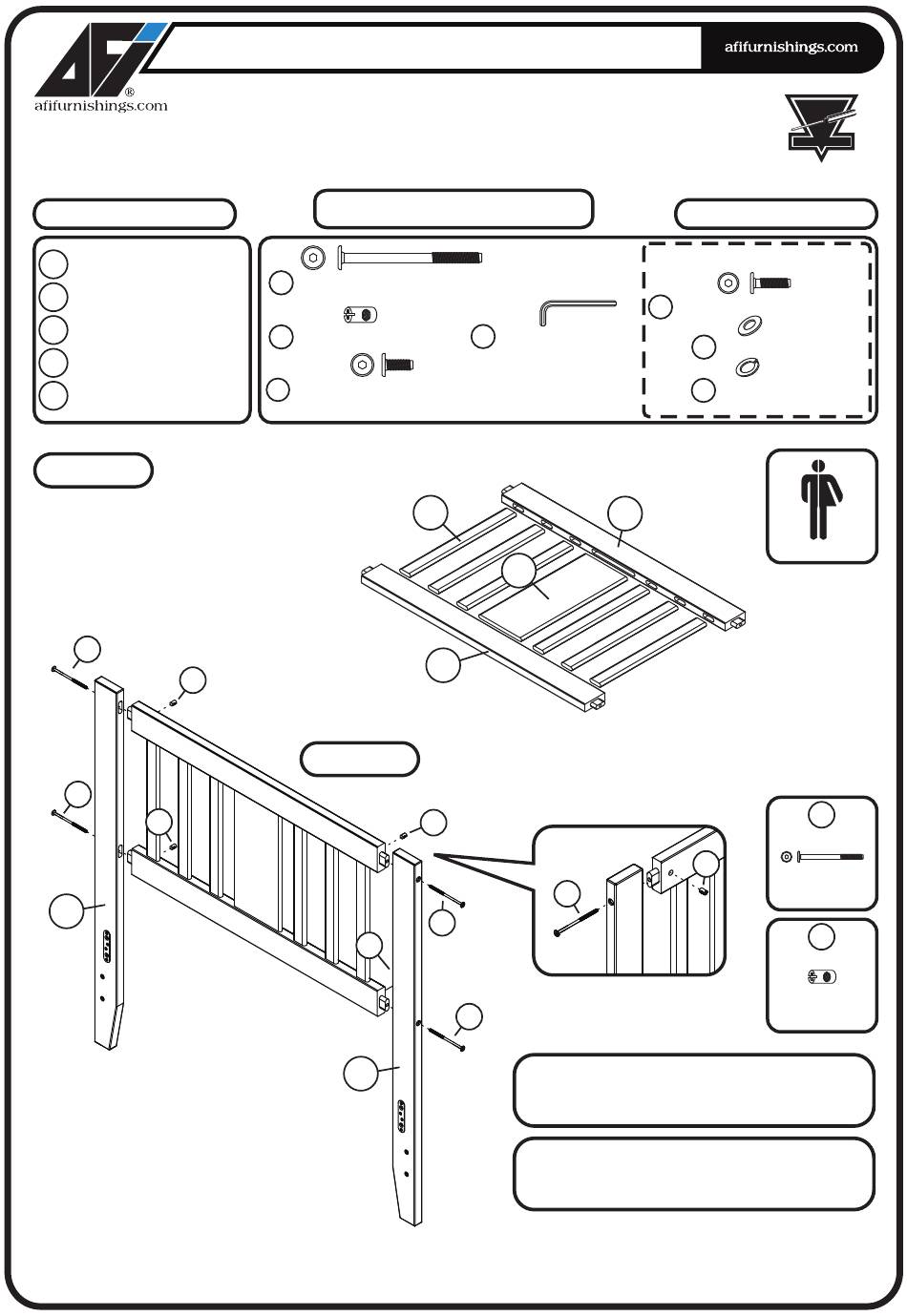

Step 1
Attach the slat (2) and wide slat (3) to the top and bottom rail (1) as shown.
A
B
A
B
4
FOR BED FRAME ASSEMBLY follow assembly instructions included with your bed frame.
If you purchased a wood headboard to attach to metal bed frame, please refer to page 2.
HEADBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your headboard, please read through these
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
A
JCB M6 X 110mm - 4 pcs
Spare - 1 pc
B
Barrel Nut - 4pcs
C
JCB M8 X 15mm ( 5/8") - 4 pcs
Assembly headboard to open bed frame
Step 2
B
5
TWIN
D
Allen wrench - 1pc
Spare - 1pc
2
3
1
Attach the left leg (4) and right leg (5) to the rail assembly
as shown. Using JCB (A) and barrel nut (B). Tighten with
Allen wrench (D).
B
BACK VIEW
A
A
A
HB-ISL-TAH
PO:
HARDWARE
HARDWARE FOR METAL BED FRAME
E
JCB M6 X 25mm (1") - 4 pcs
F
Flat washer - 4 pcs
G
Split washer - 4 pcs
1
B
CODE
ITEM
G-11892X
READY
TO
ASSEMBLE
Spare - 1 pc
Spare - 1 pc
Spare - 1 pc
Adult assembly
Adult assembly
A
JCB M6 X 110mm
B
Barrel nut
Page 1 of 2
Advertisement
Related Manuals for AFi HB-ISL-TAH
Summary of Contents for AFi HB-ISL-TAH
- Page 1 JCB M6 X 110mm Barrel nut CODE ITEM HB-ISL-TAH G-11892X FOR BED FRAME ASSEMBLY follow assembly instructions included with your bed frame. If you purchased a wood headboard to attach to metal bed frame, please refer to page 2. Page 1 of 2...
- Page 2 ATTACHING HEADBOARD TO METAL BED FRAME ASSEMBLY INSTRUCTIONS Before assembling your bed, please read through these instructions carefully and familiarize yourself with the different parts. Instructions apply for bed sizes Twin > Full > Queen Adult assembly Metal bed frames are sold separately from wood headboards. The hardware shown on this page is supplied with your wood headboard for attaching the bed frame to the headboard.
-
Page 3: Bed Frame
BED FRAME TWIN>TWIN XL READY ASSEMBLY INSTRUCTIONS Before assembling your bed frame, please read through these ASSEMBLE instructions carefully and familiarize yourself with the different parts. ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 PARTS LIST HARDWARE FOOT RAIL 1 PC... - Page 4 Step 3 Attach open bed frame to the headboard as shown below using 4 JCB M8 X 15mm bolts that are supplied with your headboard. Tighten with the Allen wrench M6 (E). JCB M8 X 15mm Step 4 Attach 2 slat kit (5) to the open bed as shown below using wood screws 1 1/4" (D). Tighten with Phillips head screw driver.
- Page 5 TRUNDLE BED TWIN ASSEMBLY INSTRUCTIONS READY Before assembling your Trundle bed, please read through these instructions carefully. Familiarize yourself with the different parts. Adult assembly ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 Phillips screwdriver Customer supplied CODE...
-
Page 6: Parts List
TWIN PARTS LIST HARDWARE 1 BOX LEFT, RIGHT, MID RAIL 3 PCS SLAT KIT WITH WEBBING 2 SETS FRONT PANEL 1 PC FRONT RAIL 1 PC BACK RAIL 1 PC Step 1 Attach the left, right and mid rails (05) to the front rail (03) using L bracket (C) and JCB M6 X 1 5/8”(A). - Page 7 TWIN Step 2 Attach the front panel (02) to the front rail (03) as shown, using JCB M6 X 5/8” (B). Tighten with the Allen wrench (E). Adult assembly JCB M6 X 5/8” Allen wrench Step 3 Lay the slat kits (06) webbing side down onto the rail assembly as shown. Attach using wood screw (D) and tighten with the Phillips head screw driver.
- Page 8 TWIN Congratulations! Your Trundle bed is now ready for use. We recommend that you periodically check that all screws are tight and all parts are secure to ensure lasting safety.
