please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726

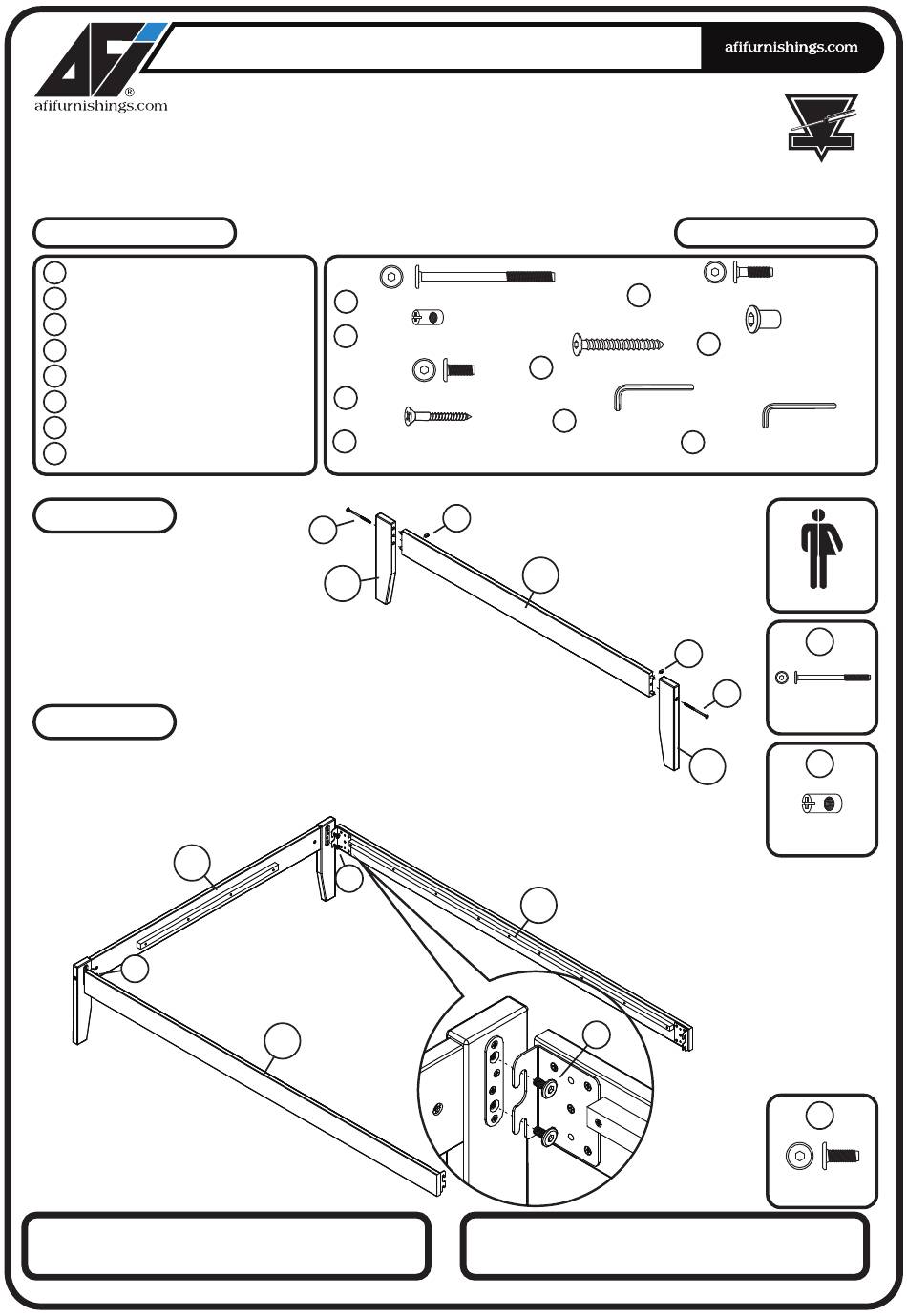

PARTS LIST
1
FOOT RAIL
2
LEFT LEG
3
RIGHT LEG
4
SIDE RAILS
5
SLAT KIT
6
SLAT SUPPORT 1
7
SLAT SUPPORT 2
8
SUPPORT LEGS
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
Step 1
Attach the legs (2) and (3)
to foot rail (1), using
JCB M6 X 110mm (A) and
barrel nut (B).
Tighten with the Allen wrench M4 (I).
Step 2
Attach side rails (4) to the foot rail (1) as shown below using JCB M8 X 15mm (C).
Tighten with Allen wrench M6 (H).
1
C
PO:
BED FRAME
ASSEMBLY INSTRUCTIONS
Before assembling your bed frame, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
1 PC
1 PC
A
JCB M6 X 110mm (4 3/8") - 2 pcs
1 PC
B
Barrel nut - 2 pcs
2 PCS
2 SETS
C
JCB M8 X 15mm ( 5/8") - 4 pcs
1 PC
1 PC
D
Wood screw(1 1/4") - 25 pcs
3 PCS
A
2
C
4
FULL
Spare - 1 pc
G
Allen Screw - 3pcs
H
Allen wrench M6 - 1pc
Spare - 2 pcs
B
1
4
C
FR-OP-ISL
HARDWARE
E
JCB M6 X 25mm(1") - 4pcs
F
Cap nut - 4pcs
I
Allen wrench M4 - 1pc
B
A
3
CODE
ITEM
G-21803X
READY
TO
ASSEMBLE
Spare - 1pc
Adult assembly
A
JCB M6 X 110mm
B
Barrel nut
C
JCB M8 X 15mm
Page 1 of 2
Advertisement
Related Manuals for AFi FR-OP-ISL
Summary of Contents for AFi FR-OP-ISL
- Page 1 JCB M6 X 110mm Attach side rails (4) to the foot rail (1) as shown below using JCB M8 X 15mm (C). Tighten with Allen wrench M6 (H). Barrel nut JCB M8 X 15mm CODE ITEM FR-OP-ISL G-21803X Page 1 of 2...
-
Page 2: Bed Frame
BED FRAME FULL READY Step 3 Step 4 ASSEMBLE Attach open bed frame to the headboard Attach support legs (8) to slat support 1 & 2 (6)(7) as as shown below using 4 JCB M8 X 15mm bolts shown below using Allen screw (G) tighten with that are supplied with your headboard. - Page 3 HEADBOARD ASSEMBLY INSTRUCTIONS READY Before assembling your headboard, please read through these instructions carefully and familiarize yourself with the different parts. ASSEMBLE ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 Instructions apply for bed sizes PARTS LIST HARDWARE FULL >...
- Page 4 ATTACHING HEADBOARD TO METAL BED FRAME ASSEMBLY INSTRUCTIONS Before assembling your bed, please read through these instructions carefully and familiarize yourself with the different parts. Instructions apply for bed sizes Twin > Full > Queen Adult assembly Metal bed frames are sold separately from wood headboards. The hardware shown on this page is supplied with your wood headboard for attaching the bed frame to the headboard.
-
Page 5: Parts List
BED DRAWER TWIN/FULL ASSEMBLY INSTRUCTIONS READY Before assembling your bed drawer, please read through these instructions carefully, familiarize yourself with the different parts. ATTENTION! If you receive a damaged or defective item, please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726 Allen wrench Adult assembly NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY. -
Page 6: Back View
TWIN/FULL Step 2 Guide the drawer bottoms (05) and drawer middle (06) in carefully so that they align inside grooves. Be sure it fits fully into the face and side groove before attaching the drawer back (04). Attach drawer center support (07) to bottom of drawer face using wood screw 1 1/4" (B). Tighten with Phillips head screw driver.
