AFi R-28582X Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. AFi Manuals
  4. Indoor Furnishing
  5. R-28582X
  6. Assembly instructions manual

AFi R-28582X Assembly Instructions Manual

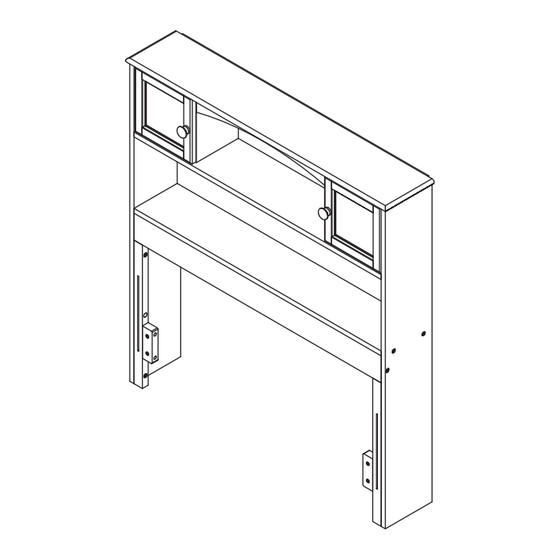

Twin, full bookcase headboard
Hide thumbs Also See for R-28582X:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Before assembling your newport captain's bookcase headboard, please
read through these instructions carefully and familiariz yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
Phillips screwdriver
Customer supplied
BOOKCASE HEADBOARD WITH METAL FRAME
HEADBOARD HARDWARE
A
JCB M6 X 1 2/8"(30mm) -
Spare -
B
JCB M6 X 1 1/2"(35mm) - 6 pcs
Spare - 1 pc
C
JCB M6 X 2"(50mm) - 4 pcs
Spare - 1 pc
D
Wooden dowel 10 X 30mm - 4 pcs
E
Wooden dowel 8 X 30mm - 12 pcs
BOOKCASE HEADBOARD
ASSEMBLY INSTRUCTIONS
ATTENTION! If you receive a damaged or defective item,
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
4
pcs
F
Metal L-Bracket - 3 pcs
1
pc
G
Wood screw 1/2" - 6 pcs
H
Wood screw 1 1/2" - 4 pcs
I
W
ooden pull -
Spare - 1 pc
J
W
ooden pull screw -
Spare - 1 pc
( TWIN, FULL )
e
Spare - 1 pc
Spare - 1 pc
2
pcs
2
pcs
CODE
ITEM
HB-NWP R-28582X
PO :
HARDWARE FOR METAL BED FRAME
K
JCB M6 X 1"( 5mm) - 6 pcs
2
Spare -
For post - 2 pcs
For metal bed frame - 4 pcs
L
Split washer - 4 pcs
Spare - 1 pc
M
Flat washer - 4 pcs
Spare - 1 pc
N
Allen wrench - 1 pc
Spare - 1 pc
READY
TO
ASSEMBLE
Adult assembly
ITEM
R-28583X
1
pc
Page 1 of 5
