AFi G-11894X Assembly Instructions Manual

please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST
1 TOP / BOTTOM RAIL
2 SLAT
3 WIDE SLAT
4 LEFT LEG
5 RIGHT LEG

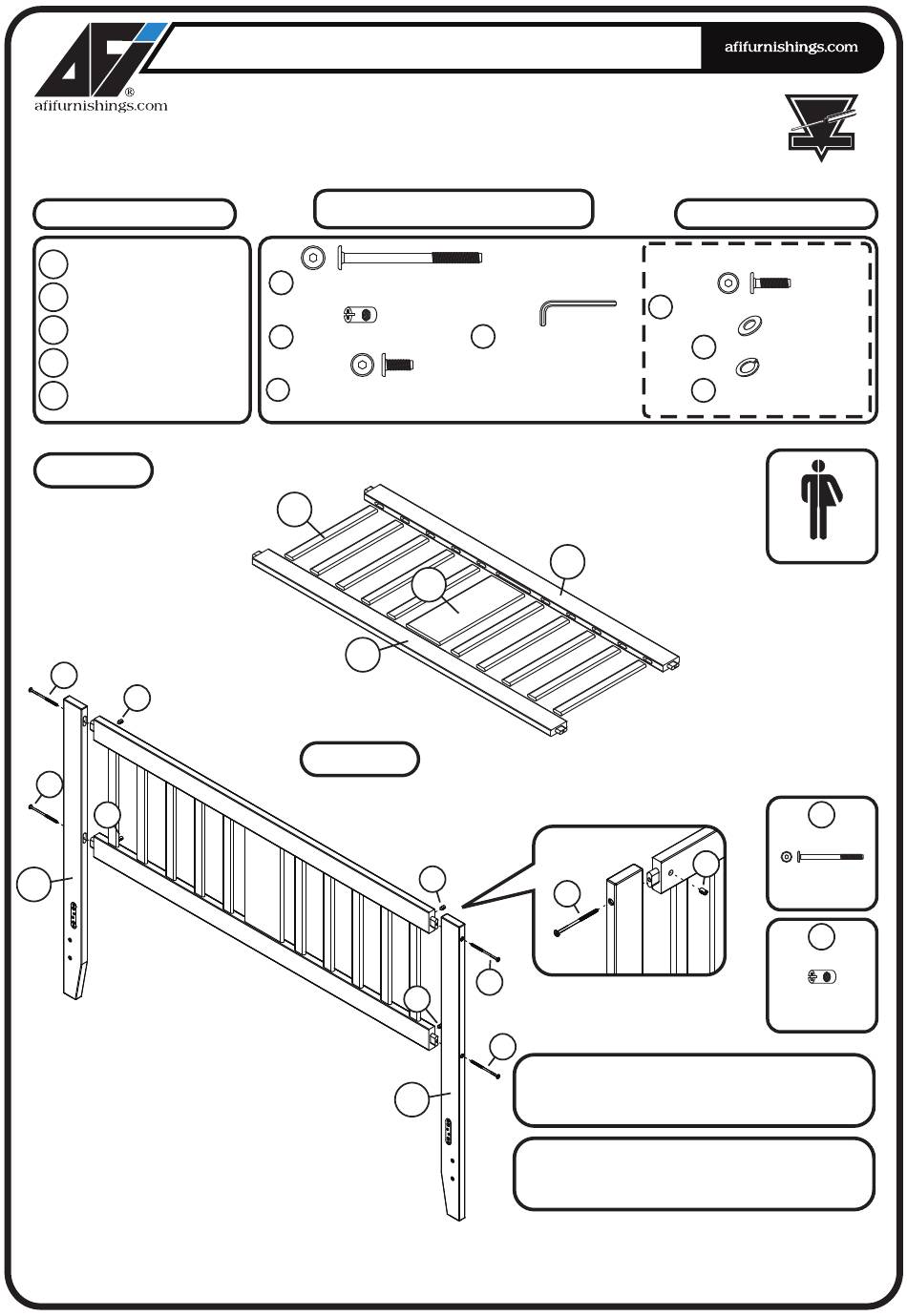

Step 1
Attach the slat (2) and wide slat (3) to the top and bottom rail (1) as shown.
A
B
A
B
4
FOR BED FRAME ASSEMBLY follow assembly instructions included with your bed frame.
If you purchased a wood headboard to attach to metal bed frame, please refer to page 2.
HEADBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your headboard, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
2 PCS
A
JCB M6 X 110mm - 4 pcs
10 PCS
1 PC
B
Barrel Nut - 4pcs
1 PC
C
JCB M8 X 15mm ( 5/8") - 4 pcs
1 PC
Assembly headboard to open bed frame
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
2
1
Step 2
QUEEN
Spare - 1 pc
D
Allen wrench - 1pc
Spare - 1pc
1
3
Attach the left leg (4) and right leg (5) to the rail assembly
as shown. Using JCB (A) and barrel nut (B). Tighten with
Allen wrench (D).
BACK VIEW
B
A
A
B
A
5
PO:
HARDWARE
HARDWARE FOR METAL BED FRAME
E
JCB M6 X 25mm (1") - 4 pcs
F
Flat washer - 4 pcs
G
Split washer - 4 pcs
B
CODE
HB-ISL-TAH G-11894X
READY
TO
ASSEMBLE
Spare - 1 pc
Spare - 1 pc
Spare - 1 pc
Adult assembly Adult assembly
A
JCB M6 X 110mm
B
Barrel nut
ITEM
