NetworX
NX- 4/8 Code Pad
User Manual
(Australian Version)
™
Series

Advertisement

loading
Need help?

Need help?

Do you have a question about the NetworX Series and is the answer not in the manual?

Questions and answers

Related Manuals for GE NetworX Series

Summary of Contents for GE NetworX Series

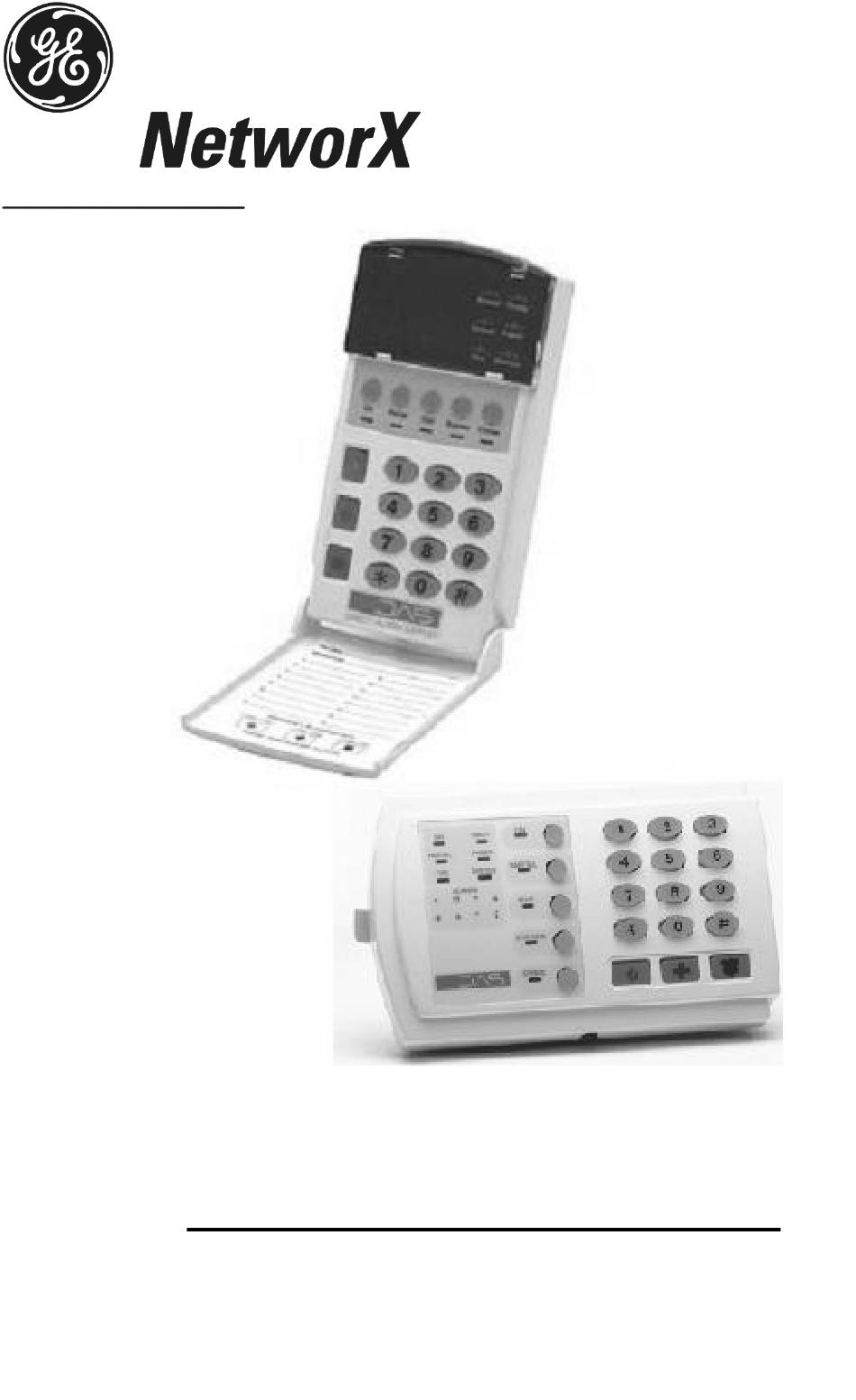

  • Page 1 ™ NetworX Series NX- 4/8 Code Pad User Manual (Australian Version)
  • Page 3 Table Of Contents • Code Pad Diagram ................Inside Front • Glossary of Terms...................2 • Understanding the Code Pad lights ..............4 • Code Pad Tones .....................5 • Fully arming the system – On mode ...............6 • Fully arming the system - Quick Arm mode...........6 •...
  • Page 4 Glossary of Terms Abort Delay: An option that allows a delay in reporting to the central station. Authority Level: The level of access an individual has when using an alarm panel. Central Station: Location where alarm data is sent during an alarm report. Chime Feature: An option that allows the code pad to sound a ding-dong whenever an entry/exit door is opened.
  • Page 5 Understanding the Code Pad Lights Armed Light The Armed light is lit when the alarm system is armed. The Armed light is ‘off’ when it is disarmed. The Armed light will flash when there has been an alarm during the previous arm cycle.
  • Page 6 Code Pad Tones • Beeps for all key presses sounds a continuous tone during the entry delay time. • Pulses when a day zone is violated while the system is disarmed. • Pulses when a fire zone has a trouble condition. •...
  • Page 7 Fully Arming the System – On mode On is used when the user is away from the premise and wants the interior protected. Listed below are the steps to arm in the On mode: 1. Close all protected doors and windows. Ready light will light when all protected zones and sensors are secure.
  • Page 8 Partially Arming the system – Partial or Home mode Home mode allows you to temporarily exclude some rooms from security arming. For example, you may wish to exclude bedrooms at night when they are in use. Home mode is also used for protecting exterior doors and windows (the home perimeter) when the user is inside.
  • Page 9 Bypassing – Individual Zones Bypassing is used to temporarily exclude one or more zones that would normally be protected. For instance, a pet may need to be left in a part of the house that is usually protected. If you wish to bypass one or more zones, this must be done while the system is in the disarmed state.
  • Page 10 Changing & Adding User Codes On occasion you may need to change your arm/disarm codes, either as a security measure or for your own convenience. User codes are 4 digits long and must be unique. The master code must be used to change and add user codes.
  • Page 11 Deleting a User Code You may be required to delete a user code, for example, when a member of the household leaves home, or the home is purchased from another family. Key Sequence Operation 1. Press [*] and [5] keys. 2.
  • Page 12 User Code Authorisation Any User Code can be assigned the master code status to allow the user to change or add other codes and provide access to other system functions. Key Sequence Operation Example shows user two [02] code change. 1.
  • Page 13 Exit mode – extend exit timer Exit mode is used when you have already armed your Security System, but need to extend your exit time. Pressing the exit button will re-start your exit time, but you may only press Exit button twice.
  • Page 14 Viewing Alarm Memory Whenever an alarm activation occurs on your system, all zones that were in alarm during that activation will be held in memory. The last alarm activation can be reviewed via the function listed below. ie. You can see which area has activated the alarm. Key Sequence Operation The alarm memory feature will...
  • Page 15 Setting System Date Key Sequence Operation Example shows setting date as Tuesday, July 5th 2001. 1. Press [*] [9] [6] keys. 2. Enter the master code. 3 Enter the day of the week (1=Sunday, 7=Saturday) 4. Enter the month code. Must be two (2) digits.
  • Page 16 Setting System Time Key Sequence Operation 1. Press [*] and [9] [7] keys. 2. Enter the master code. 3. Enter the hour code. Must be two (2) digits. Eg. [0] [9] for 9am. 4. Enter the minutes code. Must be two (2) digits. Eg. [3] [0] for 30 minutes.
  • Page 17 Program Phone Numbers You may have a requirement where, in the instance of an alarm activation, you want the panel to dial a particular phone number. Eg. Your mobile phone. There are three (3) phone numbers that can be programmed or changed. Contact your security installation company to ask if the pager or siren tone formats are selected.
  • Page 18 Viewing Telephone Numbers You may wish to check the phone numbers that have been programmed for your security system. Key Sequence Operation 1a. Press [*] and [4] [1] for phone 1 1b. Press [*] and [4] [2] for phone 2 1c.
  • Page 19 Deleting Telephone Numbers You may need to delete a phone number you have previously chosen. For example, if you cancelled a mobile phone account. Key Sequence Operation 1a. Press [*] and [4] [1] for phone 1 1b. Press [*] and [4] [2] for phone 2 1c.
  • Page 20 Changing Areas In a multi-area system it is possible to control more than one area from the one code pad by switching area views. To change the current code pad area view, follow the key sequence show below. Note that once an area view is accessed the code pad will revert to the default area view after 10 seconds unless a key is pressed, in which case it will only switch back 60 seconds from the last key press.
  • Page 21 Service Light The service light will be ‘lit’ if the security system requires service. If the service light is ‘lit’, press the [*] key followed by the [2] key to determine the service condition. One or more zone lights will illuminate indicating what service(s) is required. Call your local security installation company immediately for these problems.
  • Page 22 Emergency Evacuation Plans An emergency evacuation plan should be established for an actual fire alarm condition. For example, the following steps are recommended by the US National Fire Protection Association and can be used as a guide in establishing an evacuation plan for your building. Draw up a floor plan of your home.
  • Page 23 This document shall not be reproduced in whole or in part nor shall its contents be disclosed to any third party without prior written approval of GE Interlogix, Australia. Please refer to your security installation company for current warranty information.
  • Page 24 Zone Descriptions Security Installation Company...
