NX-108/116/124E LED keypad
User manual

Advertisement

Table of Contents

   Also See for GE NX-108E - Security NetworX NX-4 System

   Related Manuals for GE NX-108E - Security NetworX NX-4 System

   Summary of Contents for GE NX-108E - Security NetworX NX-4 System

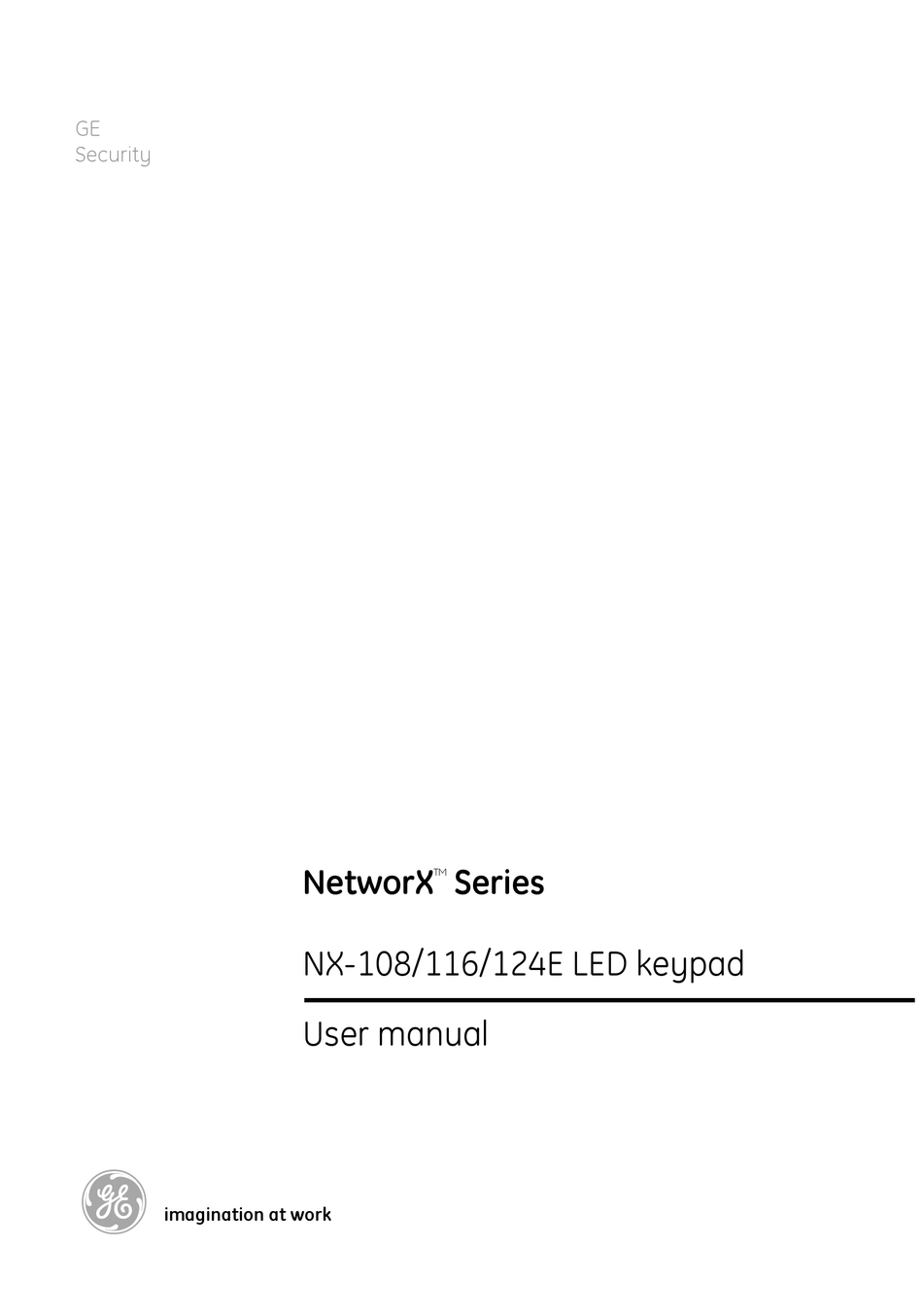

  • Page 1 Security NetworX Series NX-108/116/124E LED keypad User manual imagination at work...
  • Page 2 NX-108/116/124E User manual Page 2 10/11/05...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ..................................3 INTRODUCTION ...................................4 GLOSSARY OF TERMS ..................................5 KEYPAD DISPLAY & LED’S ................................6 ......................................6 NDERSTANDING THE LIGHTS EMERGENCY ACTIVATION KEYS ..............................8 KEYPAD FUNCTIONS ...................................9 “AWAY” ................................9 RMING YOUR SYSTEM IN THE MODE ....................................9 AKING THE SYSTEM READY TO ARM “STAY ”................................
  • Page 4: Introduction

    INTRODUCTION This manual is furnished to help you understand your security system and become proficient in its operation. All users of your security system should read and follow the instructions in this booklet and, if possible, practice on the keypad control while your professional installer is on site. Failure to do so could result in the security system not working properly.
  • Page 5: Glossary Of Terms

    GLOSSARY OF TERMS Abort Delay An option that allows a delay in reporting to the central station. Authority Level The level of access an individual has when using an alarm panel. Central Station The location where alarm data is sent during an alarm report. Chime Feature An option that allows the keypad to sound a ding-dong whenever an entry/exit door is opened.
  • Page 6: Keypad Display & Led's

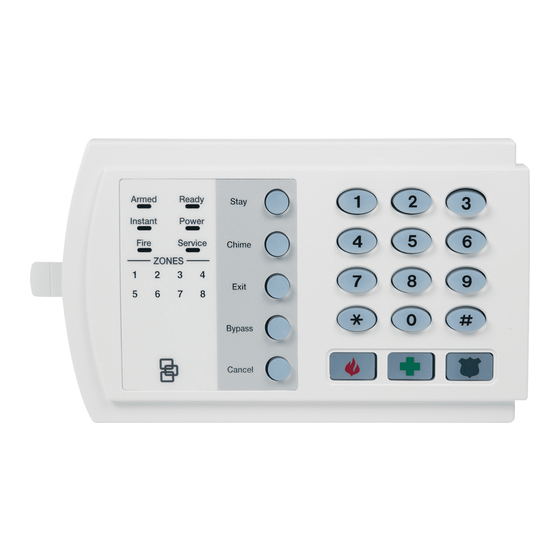

    KEYPAD DISPLAY & LED’ Understanding the lights Ready Light Power Light Service Light Armed Light Instant Light Fire Light Numeric code entry keys Pull out zone ID Tab Zone Lights 5 function keys 3 emergency activation keys Armed Light The armed light is “on” when the system is armed. The armed light is “off” when it is disarmed. The armed light will flash when there has been an alarm during the previous arm cycle.
  • Page 7 Power Light The power light is on if the primary power is on. The power light will flash if the system has a low battery condition. Ready Light The ready light is “on” when the system is ready to arm and “flashes” if ready to force arm. The ready light is “off”...
  • Page 8: Emergency Activation Keys

    Zone Light The zone lights are “off” when everything is normal. A zone light will be “on” if the zone has been bypassed. If a zone light is “flashing”, that zone is in alarm or has been faulted. If a zone light is “flashing”...
  • Page 9: Keypad Functions

    KEYPAD FUNCTIONS Arming your system in the “AWAY” mode AWAY is used when the user is away from the premise and wants the interior protected. Listed below are the steps to arm in the AWAY Mode: Step 1 Close all protected doors and windows. •...
  • Page 10: Using The Quick Arm (optional)

    Step 3 • Press the [STAY] key. • The bypass light will illuminate indicating that all interior zones are bypassed. (All interior devices will bypass automatically, giving the user freedom of movement within the interior area.) • For each interior zone bypassed, the corresponding zone light will also illuminate. If any zone(s) have been bypassed previously by the user, the light(s) corresponding to the bypassed zone(s) will illuminate, alerting the user that a zone(s) may be unprotected and can be faulted without an alarm.
  • Page 11: Cancel / Abort Feature (optional)

    CANCEL / ABORT feature (optional) The cancel light will flash during an abort delay time. If a code is entered followed by the [CANCEL] key while this light is flashing, all abortable reports will stop the communication process. NOTE: The abort feature must be enabled.
  • Page 12: Adding And Changing User Codes

    ADDING AND CHANGING USER CODES Your system must be Disarmed to add/change user codes. Step 1 Press [r]-[5]. Step 2 Enter a “Master Arm/Disarm Code”. NOTE: For partitioned systems, someone changing the code of another person must have access to all or more partitions than the user being changed. Step 3 The ready light will flash.
  • Page 13: Assigning User Code Authority Levels

    ASSIGNING USER CODE AUTHORITY LEVELS Assign authority levels to users by following the steps below. Assign user codes before assigning authority levels. Your system must be in the disarmed state to change user code authority levels. Step 1 Press [r]-[6]. Step 2 Enter a “Master Arm/Disarm Code”.
  • Page 14: Other Keypad Functions

    OTHER KEYPAD FUNCTIONS Setting the keypad tone Step 1 Press the [r] key. Step 2 Press the [0] key. Keypad is now in the “Adjust Tone” mode. Step 3 Pressing the [1] key will make the keypad sounder go to higher tones, pressing the [2] key will make the keypad sounder go to lower tones.
  • Page 15: Detector Reset Function

    Detector reset function This function is used to reset Smoke Detectors and Zone Troubles. Your system must be Disarmed to use the Reset function. Step 1 Press [r]-[7]. Resets have now been performed. The FIRE light will go off if the smoke detectors have been reset.
  • Page 16: Setting The System Date

    Setting the system date Step 1 Enter [r] [9][6]. Step 2 Enter [master code]. Step 3 Enter the “Day of Week “ 1 = Sunday 3 = Tuesday 5 = Thursday 7 = Saturday 2 = Monday 4 = Wednesday 6 = Friday Step 4 Enter the “Month Code”.
  • Page 17: Appendix A - Reference Tables

    APPENDIX A – REFERENCE TABLES IMPORTANT These reference tables on the following pages need to be completed by your installer. Keep these tables in a safe place! Installing/Service Company : ______________________________ Address : ______________________________ ______________________________ Telephone number : ______________________________ Name central station : ______________________________ Telephone number central station : ______________________________ Function codes programmed...
  • Page 18 Zone descriptions Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6 Zone 7 Zone 8 Zone 9 Zone 10 Zone 11 Zone 12 Zone 13 Zone 14 Zone 15 Zone 16 Zone 17 Zone 18 Zone 19 Zone 20 Zone 21 Zone 22...
  • Page 19 EMEA Distribution is a division of GE Security EMEA bvba COPYRIGHT ©2005 © GE Security EMEA bvba. All rights reserved. GE Security EMEA bvba grants the right to reprint this manual for internal use only. GE Security EMEA bvba reserves the right to change information without notice.
