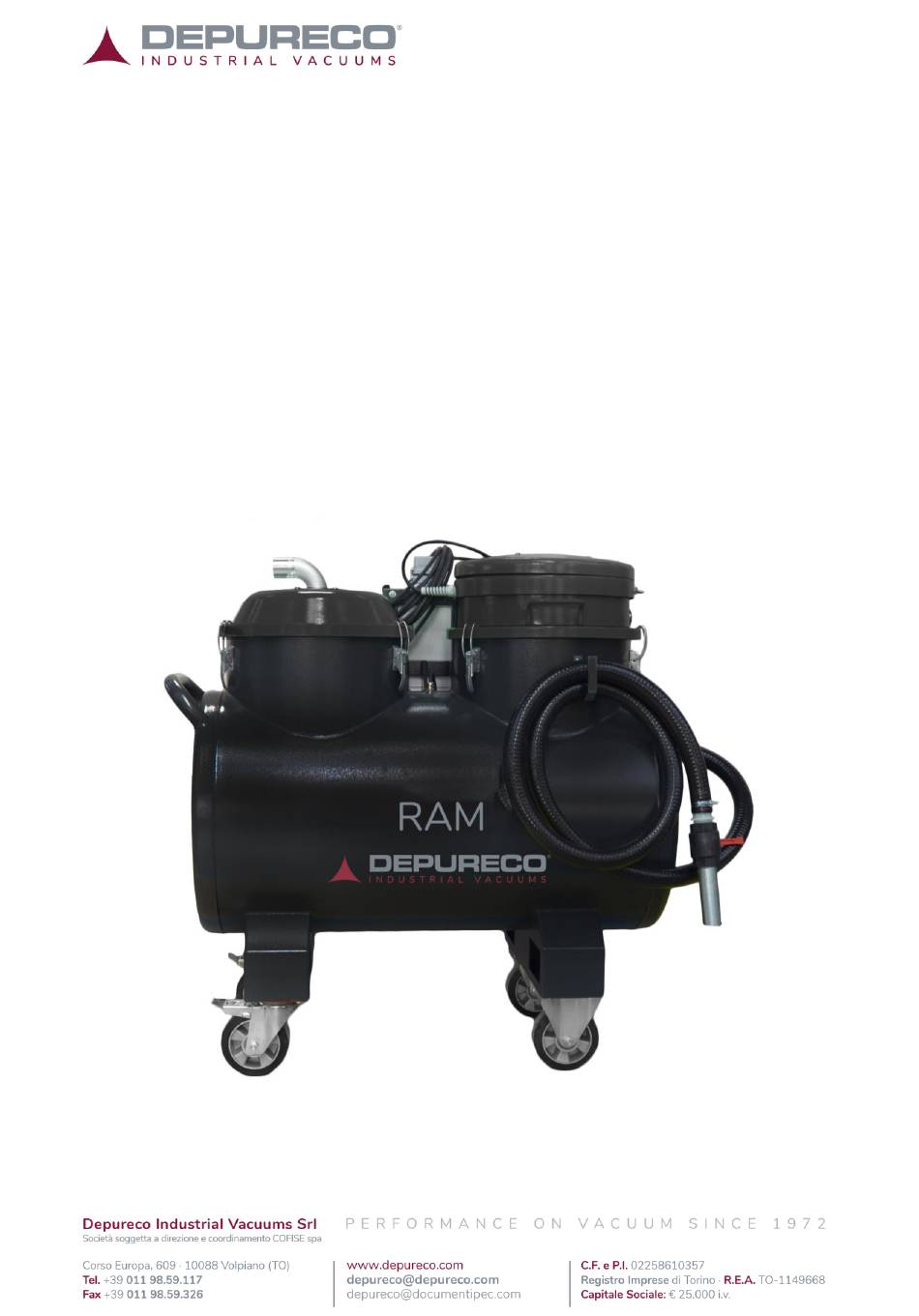

- Page 1 INSTRUCTION AND MAINTENANCE MANUAL SERIES RAM OIL 280 MP...
-
Page 2: Table Of Contents
1. INFORMATIVE SECTION Foreword........................4 Main parts ......................... 6 Optional parts......................7 Manufacturer's identification data ............... 7 Identification plate ....................7 Permitted Uses ......................7 Authorised environmental conditions ..............8 Noise level ........................ 8 Technical data ......................9 1.10 Warranty ......................... 10 2. -
Page 3: Informative Section
IMPORTANT - The DEPURECO term and logo in this document refer to and are the property of DEPURECO INDUSTRIAL VACUUMS S.r.l. This document remains the exclusive property of DEPURECO S.r.l. Full or partial reproduction by any means (graphical, electronic, etc.) is prohibited without prior authorisation from the Company... - Page 4 This manual is an integral part of the vacuum cleaner and must accompany it at all times, until its demolition. In the event it is lost or damaged, you can request another copy from DEPURECO INDUSTRIAL VACUUMS S.r.l. (henceforth shortened to DEPURECO).
-
Page 5: Main Parts
Main parts 1. Handle 2. Electrical panel 3. Cap 4. Motor head 5. Tank 6. Inlet 7. Outlet 8. Pivoting wheels 9. Fixed wheels 10. Discharge ball valve Page 6 of 38... -
Page 6: Optional Parts
Optional parts A wide range of optional accessories is available from DEPURECO depending on the intended use of the vacuum. Manufacturer's identification data DEPURECO INDUSTRIAL VACUUMS S.r.l. Corso Europa 609 - 10088 Volpiano (TO) - ITALY phone +39 011 98 59 117 - fax +39 011 98 59 326 | VAT NO. 02258610357 e-mail: depureco@depureco.com - website: www.depureco.com... -
Page 7: Authorised Environmental Conditions
Authorised environmental conditions To ensure the correct operation, the vacuum cleaner must be kept away from atmospheric agents (rain, hail, snow, fog, dust in suspension, etc.) in an area with a room temperature range between 0° and 40°C and a relative humidity no higher than 70%. The work environment must be clean and suitably lit. -
Page 8: Technical Data
1.9 Technical data U.M. RAM 280 MP Weight* Overall dimensions** 700x1450 Height 1400 Voltage I Frequency V - Hz 230 – 50/60 Power kW - HP 4,3 / 5,8 mbar Maximum vacuum m³/h Maximum air flow Noise level dB (A) Inlet diameter Liquid capacity Solid capacity... -
Page 9: Warranty
DEPURECO shall not be held liable for any injuries to persons or damage to objects caused by misuse or improper use of the vacuum. -
Page 10: Safety Section
Adequate training is crucial to this end. DEPURECO shall not be held liable for accidents or damage due to the improper use of the vacuum by untrained personnel or to failure to comply, even partially, with the occupational safety standards and intervention procedures contained in this manual. -
Page 11: Safety Recommendations
Structural damage, alterations or improper repairs can modify the protective capacity of the vacuum, thereby nullifying this certification and releasing DEPURECO from any liability. Each section lists further safety measures specific to the various functions. - Page 12 It is absolutely forbidden; For underage and non-trained people to use this vacuum cleaner. • To connect the vacuum cleaner to mains without suitable earthing. • To operate the vacuum cleaner outdoors in the presence of atmospheric precipitations. • To operate the vacuum cleaner without locking the swivelling wheel through the special brake •...
-
Page 13: Safety Plates And Symbols
Clean them using a cloth with water and soap. Do not use solvents, naphtha or petrol. Request replacements for damaged plates from DEPURECO. If a plate is located on a component that is being replaced, make sure to fit the old plate to the new component. -
Page 14: Applied Directives
Warning! The removal of safety plates from the vacuum and/or its components and packaging is strictly prohibited. DEPURECO shall not be held liable for the vacuum's safety in the event of failure to comply with this prohibition. Applied Directives The following directives apply to the vacuum cleaner described in this manual:... -
Page 15: Handling
Handling Warning! The instructions for transporting and unpacking the vacuum correctly are shown on the packaging as well. The following instructions also indicate the operations to be undertaken should the vacuum need to be re-packed or unpacked after subsequent transportation. Dimensions of packed vacuum cleaner: RAM 280 MP 75 cm... - Page 16 Cut and unwind the two packaging fixing belts remove the staples that fix the carton packaging to the pallet with the aid of a screwdriver remove the carton completely Page 17 of 38...
- Page 17 - After removing the protection wrapper, unscrew and remove, from both sides, the screws fixing the machine to the pallet. The cardboard packaging can be recycled. To protect the environment, make sure to dispose it off in specialised collection centres. Warning! Keep the pallet.
- Page 18 Find the 4 wheels and the bag containing the screws Close and lock the cap again Attention! The following operation must be carried out on a flat terrain by a forklift operator and a second person. Warning! Insert the forklift’s forks in the appropriate mountings. Attention! The forks must go completely inside the mountings.
- Page 19 Install the two fixed wheels on the opposite side of the vacuum’s handle Attention! The second person must operate outside from under the forklift Install the two pivoting wheels at the other end on the machine as shown in the picture Put the machine back on the ground Attention! Never stand under the forklift while the machine is being lowered.
- Page 20 Connect the discharge hose directly to the dedicated nozzle and fix it by using a clamp as shown in the picture Page 21 of 38...
-
Page 21: Installation
Note: the flexible hose and the relevant end-pieces and accessories are not included with the STANDARD model. Contact your dealer (or DEPURECO) for information regarding the various types of OPTIONALS that can be used on this specific model. -
Page 22: Operation Section
4. OPERATION SECTION Description of the controls Warning! The vacuum can be used solely by authorised personnel after having read these use and maintenance instructions. The user of the equipment and the maintenance technician, who carry out operations on the vacuum, must be adequately educated, informed and trained, in compliance with the occupational safety standards in force and, during the various operations, must wear personal protective equipment (PPE), such as safety footwear, gloves, protective goggles, mask, etc. -
Page 23: Operating Cycle
Operating cycle Ensure that the power cord is intact and in perfect state. Warning! Before inserting the plug, ensure that the voltage of the power supply line corresponds to the one indicated on the vacuum's identification plate. Make sure the plug is correctly inserted into the socket Make sure the hose is properly inserted and locked on the suction inlet. -
Page 24: Storage - Decommissioning
Waste disposal must take place in accordance with the laws in force in the country of use of the vacuum cleaner - for Italy Legislative Decree 152/2006 and amendments Storage – Decommissioning Remove the filter and clean it; empty the refuse collection container and store the vacuum in a place protected against weather agents with the temperature ranging between 5 and 45 °C and cover it with a nylon tarp to protect it against dust. -
Page 25: Maintenance Section
5. MAINTENANCE SECTION Warning! Special vacuum maintenance must be carried out solely by specialised technicians authorised by the DEPURECO dealer. Informative notes This section describes the checks and routine maintenance operations required to ensure proper vacuum operation. Maximum reliability and minimum maintenance costs are the result of a planned maintenance and inspection schedule carefully followed throughout the entire lifespan of the vacuum. -
Page 26: General Safety Regulations
General safety regulations Warning! All the operations described above must be carried out with the plug disconnected from the socket. Before starting any maintenance or cleaning operation, wear suitable PPE (protective clothing, goggles and/or gloves, etc.) according to the work to be done. Place a sign on the vacuum with the message: “MACHINE UNDER MAINTENANCE DO NOT START”... - Page 27 Check that the power cord and the plug are not damaged: replace them immediately if there are any signs of wear, using a cord of the same type (information c/o DEPURECO). This operation is the sole responsibility of an electrician.
-
Page 28: Replacing The Filter
Replacing the filter Warning! Wear appropriate PPE (dust mask, latex gloves, goggles, etc.). Proceed as follows to replace the filter: Switch the machine off by turning the main switch (1) to “0” Unplug the vacuum cleaner from the socket Unlock the lid (1) Remove the lid Take the filter out, wash it, or replace it if needed Page 29 of 38... - Page 29 Wash the grid basket, insert the new filter and put it in place again Reposition the lid and close it with the dedicated locking hooks EXCLUSIVELY USE FILTERS MANUFACTURED BY DEPURECO Page 30 of 38...
-
Page 30: Cleaning Or Replacing Of The Oil Proof Cartridge
5.4 Cleaning or replacing of the oil proof cartridge Proceed as follows to replace the cartridge Switch the vacuum cleaner off by turning the main switch (1) to “0” Remove the plug from the socket Unlock the vacuum’s head Lift and remove the ring holding the cartridge Page 31 of 38... - Page 31 Remove the screws and replace/clean the cartridge with a water jet Screw the cartridge back to the ring Reposition the ring inside the machine Position the vacuum’s head again and lock it with the dedicated hooks Page 32 of 38...
-
Page 32: Troubleshooting
RECOMMENDED Check for the presence of voltage in the socket Check the integrity of the socket No electric supply and the cable Contact DEPURECO’s technical assistance The vacuum cleaner will not start Red indicator light on (Maximum tank Empty the tank... -
Page 33: Scrapping
Scrapping In case of scrapping, to avoid damage to the environment, all components of the vacuum cleaner, must be disposed of responsibly, in appropriate landfills, in compliance with current legislation - for Italy Legislative Decree no. 152/2006 and subsequent amendments. (subsequent modifications and additions). -
Page 34: Maintenance Log
MAINTENANCE LOG: INTERVENTION 1: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 2: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:... - Page 35 INTERVENTION 3: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 4: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...
