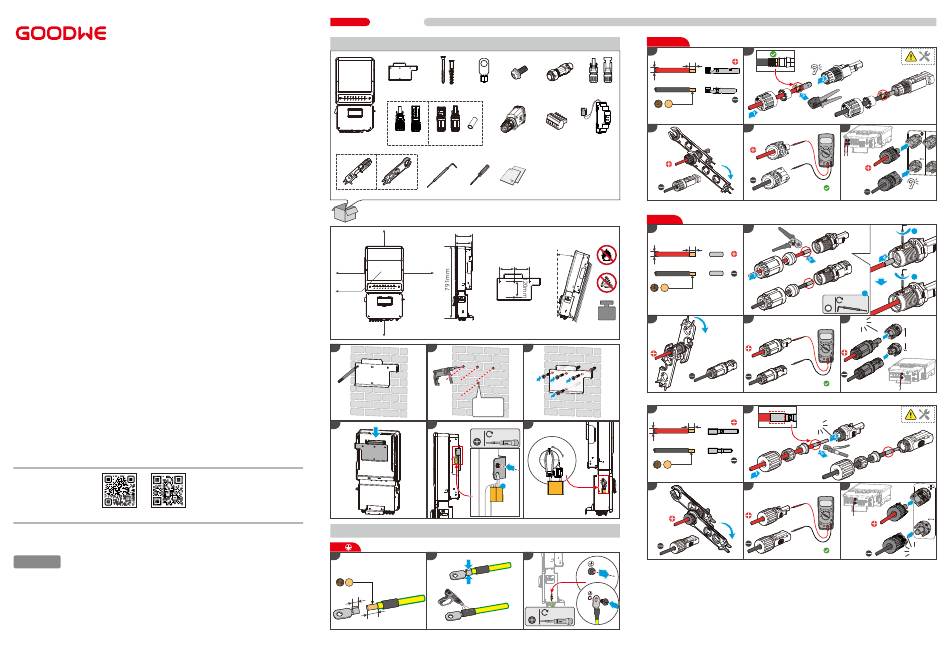

Goodwe EHB Series Quick Installation Manual

EHB Series
Hybrid Inverter
(GW5K-EHB-AU-G11 | GW8.6K-EHB-AU-G11 | GW9.99K-EHB-AU-G11)
Quick Installation Guide
Copyright ©GoodWe Technologies Co., Ltd., 2024. All rights reserved
Offical Website 340-01170-01
EN-English
• The information in this quick installation guide is subject to change due to product updates or other
reasons. This guide cannot replace the product labels or the safety precautions in the user manual
unless otherwise specified. All descriptions here are for guidance only.
• All operations should be performed by trained and knowledgeable technicians who are familiar with
local standards and safety regulations.
• Strictly follow the installation, operation, and configuration instructions in this guide and user
manual. The manufacturer shall not be liable for equipment damage or personal injury if you do
not follow the instructions.
Procedure
V1.2 2024-11-25
❶
Installation
×1
×2
N = Quantity depends on the inverter model.
415mm
≥200mm
≥300mm
1
4
GoodWe Technologies Co., Ltd.
No. 90 Zijin Rd., New District,
Suzhou, 215011, China
www.goodwe.com
service@goodwe.com
❷
Electrical Connection
PE ( )
1
• 5kW: Cu, 5-6mm²
• 8.6kW, 9.99kW: Cu, 10-12mm²
L1
L=L1+2mm
×1 ×6 ×1 ×1 ×2
2
×
×1 ×8 ×1 ×2
×1 ×1 ×1
≥500mm
192mm
175mm
≤15°
≥200mm 110mm 120mm
≥300mm
2 3
Φ:8mm
D:80mm
5 6
AU
M5 1.2-2N·m
OFF
ON
1
2
2 3
M5 1.5-2N·m
DC (MPPT)
1 2
7-8mm
Φ: 5.9-8.8mm
×N
Cu, 4-6mm 2
3 4
×1
DC (BAT)
Type I
1 2
VXC9
15mm
Φ: 6.0-9.5mm
Cu, S=10mm
2
28kg
3 4
Type Ⅱ
1 2
7-8mm
Φ: 6.5-8.5mm
Cu, S=10mm
2
3 4
PV-CZM-61100
5
MPP T1 MPP T2
≤600V
3
5
5
M5 1.5-2N·m
5
Click
BAT
80-495V
Click
YQK-70
5
BAT
80-495V Click
