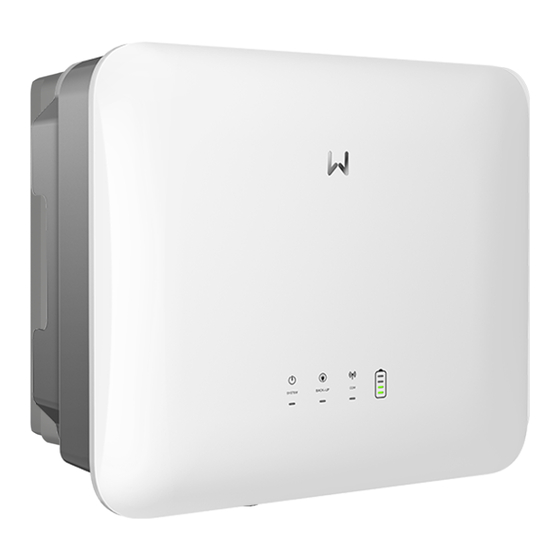

Goodwe ES Series Quick Installation Manual

Hybrid inverter, ac-coupled inverter
Hide thumbs Also See for ES Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Installation Guide
Hybrid Inverter
ES Series
(GW3000-ES-20
|
GW3600-ES-20
|
GW3600M-ES-20
|
GW5000-ES-20
|
GW5000M-ES-20
|
GW6000-ES-20
|
GW6000M-ES-20)
AC-Coupled Inverter
SBP Series
(GW3600-SBP-20
|
GW5000-SBP-20
|
GW6000-SBP-20)
V1.1-2022-08-30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES Series and is the answer not in the manual?

Questions and answers

Related Manuals for Goodwe ES Series

Summary of Contents for Goodwe ES Series

  • Page 1 Quick Installation Guide Hybrid Inverter ES Series (GW3000-ES-20 GW3600-ES-20 GW3600M-ES-20 GW5000-ES-20 GW5000M-ES-20 GW6000-ES-20 GW6000M-ES-20) AC-Coupled Inverter SBP Series (GW3600-SBP-20 GW5000-SBP-20 GW6000-SBP-20) V1.1-2022-08-30...

  • Page 2: Safety Disclaimer

    • Strictly follow the installation, operation, and configuration instructions in this guide and user manual. The manufacturer shall not be liable for equipment damage or personal injury if you do not follow the instructions. For more warranty details, please visit https://en.goodwe.com/ warranty. Safety Disclaimer...

  • Page 3: Battery Safety

    6. All labels and warning marks should be visible after the installation. Do not scrawl, damage, or cover any label on the device. 7. Do not touch the running equipment to avoid being hurt as its temperature may exceed 60℃. Do not install the equipment at a place within children's reach.

  • Page 4: Check Before Power-On

    The voltage and frequency at the connection point meet the inverter grid connection requirements. EU Declaration of Conformity GoodWe Technologies Co., Ltd. hereby declares that the inverter with wireless communication modules sold in the European market meets the requirements of the following directives: • Radio Equipment Directive 2014/53/EU (RED) •...

  • Page 5: Led Indicators

    LED Indicators Indicator Status Description The inverter is power on and in the standby mode. The inverter is starting up and in the self-check mode. The inverter is in normal operation under grid-tied or off-grid modes. BACK-UP output overload. A fault has occurred. The inverter is powered off.
  • Page 6 Hole* AC Terminal (ON-GRID) PE Terminal LED Indicators Mounting Plate Heat Sink *1: SBP series inverter: 0 x PV+/PV-; GW3000-ES-20: 1 x PV+/PV-; Others: 2 x PV+/PV-. *2: For ES series inverter only. *3: For Australia inverters only. Dimensions Dimensões...

  • Page 7: Inverter Installation

    Inverter Installation Instalação do inversor x N* N = Quantity depends on the inverter model. *1: For ES series only.
  • Page 8 Space Requirements Requisitos de espaço...
  • Page 9 Angle Requirements Requisitos de ângulos Installing the Inverter Instalar o inversor Diameter: 10mm Depth: 80mm For Australia only.
  • Page 10 Electrical Connection Ligação elétrica PE Cable Cabo PE Cooper, 4mm ≤ S ≤ 6mm AC Cable (ON-GRID&BACK-UP) Cabo CA (LIGAÇÃO À REDE E BACKUP) Type One For GW3600-ES-20, GW5000-ES-20, GW6000-ES-20, GW3600-SBP-20, GW5000-SBP-20, and GW6000- SBP-20 inverters. 12-14mm 10-15mm Cooper, 6mm ≤...
  • Page 11 0.8N·m Click Click Type Two For GW3000-ES-20, GW3600M-ES-20, GW5000M-ES-20, and GW6000M-ES-20 inverters. Cooper, 2.5mm ≤ S ≤ 4mm...
  • Page 12 DC Cable (PV) Cabo CC (FV) • For ES series only. Click 7~8mm 7~8mm ≤S≤6mm Click Click ≤ 600V...
  • Page 13 Devalan 7~8mm 7~8mm Click Click ≤ 600V...
  • Page 14 Battery Cable (BAT) Cabo de bateria (BAT) 10mm 9.5-12.5mm 10mm 9.5-12.5mm 20mm ≤ S ≤ 35mm...
  • Page 15 Communication Connection Ligação de comunicação Remote Load Control Shutdown 1: DO1+ 4: Remote 2: N/A Shutdown 3: DO1- 5: GND Generator 6: DI+ 8: DO2+ 7: DI- 9: DO2- Color EMS/PAR Orange and White RS485A (EMS) Orange RS485B (EMS) Green and White DRED or RCR 10: COM/DRM0 or REF_1 Blue...
  • Page 16 BMS or Smart Meter BMS ou contador inteligente Color Smart Meter Orange&White Orange Green&White Blue CAN_H Blue&White CAN_L Green Brown&White 485_B1 Brown 485_A1 Communication Module Módulo de comunicação WiFi Kit, Bluetooth, Wi-Fi/LAN Kit, 4G module: optional...
  • Page 17 Power On and Off Ligar e desligar a alimentação elétrica Self Consumption System (ES Inverter Scenario) Smart Meter AC Breaker Power Meter Grid Load Breaker DC Isolator PV String Battery breaker ON-GRID Loads Battery Single-pole double throw (SPDT) witch BACK-UP Loads Power On/Off Self Consumption System (SBP Inverter Scenario) Smart Meter...
  • Page 18 Commissioning and Monitoring Colocação em funcionamento e monitorização Commissioning via PV Master APP Colocação em funcionamento através da PV Master APP play PV Master App Store <10m <5m PV Master Monitoring via SEMS Portal App Monitorização através da aplicação SEMS Portal play SEMS Portal App Store...
  • Page 19 Offical Website GoodWe Technologies Co., Ltd. No. 90 Zijin Rd., New District, Suzhou, 215011, China www.goodwe.com 340-00800-01 Local Contacts service@goodwe.com...
