Order code: EQLA17
user manual

Advertisement

loading

Summary of Contents for Equinox Systems ATRIA

  • Page 1 Order code: EQLA17 user manual...
  • Page 2: Safety Instructions

    Equinox Atria Laser Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
  • Page 3: Operating Determinations

    Equinox Atria Laser Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...

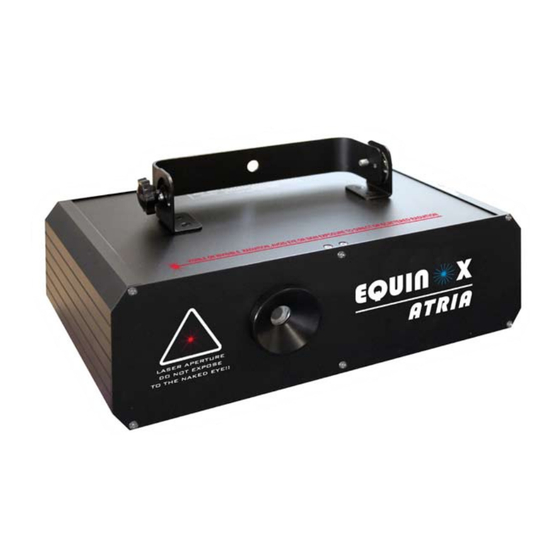

  • Page 4 Power supply: 240V - 50Hz Dimensions: 312 x 220 x 174mm Weight: 3.2Kgs Fuse: 2A Features: The Atria features 13 DMX channels and many laser patterns and images that are ideal with or without fog. Back view: Identification: 1, Key switch...
  • Page 5 2, Auto run mode To select auto pattern mode, set dip switch 1 to the ON position and all others to OFF. The Atria will now cycle through all it’s internal geometric patterns. 3, DMX mode To select DMX mode, set dip switch 10 to ON. You can now set the required DMX address using dip switches 1 to 9.
  • Page 6 Equinox Atria Laser DMX control mode DMX Control Mode Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently.
  • Page 7 DATA Cable (DMX cable) requirements (for DMX operation): • The Equinox Atria laser can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
  • Page 8 Equinox Atria Laser DMX Set Up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
  • Page 9 Equinox Atria Laser Dip Switch Reference Chart DMX Dip Switch Quick Reference Chart Dip Switch Position Dip Switch position DMX Address...
  • Page 10 Equinox Atria Laser Safety Class 3B Laser Safety Guide Warning Class 3B Lasers have the potential to harm eyesight if viewed directly and can also be harmful at long distances. Any unit that contains a laser diode has to be classified depending upon the light output that someone may be exposed to.
  • Page 11 Equinox Atria Laser Safety Licensing and Laws There are no U.K. “laser laws” or any “laser licenses” that need to be obtained in order to own or operate a laser for light show use. Detailed and specific guidance is issued by the Health and Safety Executive in the form of a book called HS(G)95 The Radiation Safety of Lasers Used for Display Purposes.
  • Page 12 Equinox Atria Laser Safety Laser Safety Officer The BS/EN60825-1 Laser Safety Standard recommends that all venues that use, or businesses that work with Class 3B laser products, should appoint a Laser Safety Officer (LSO). The Laser Safety Officer should be aware of the many safety issues when using lasers, and will also be responsible for overseeing how the laser is used.
  • Page 13 Equinox Atria Laser Safety Hazard Distances All lasers for display purposes feature a characteristic called the hazard distance for direct viewing (NOHD). The (NOHD) is distance at which viewing the laser directly is no longer considered a hazard. Note at any point between the laser unit and the calculated hazard distance, it may be hazardous to directly view the laser beams.
