Summary of Contents for BioLAB BCBH-201

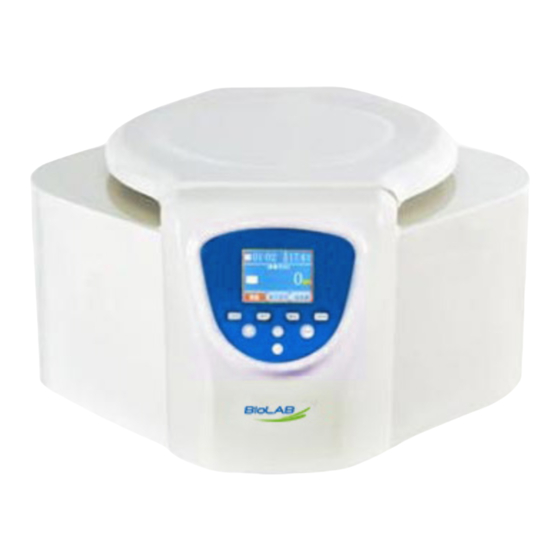

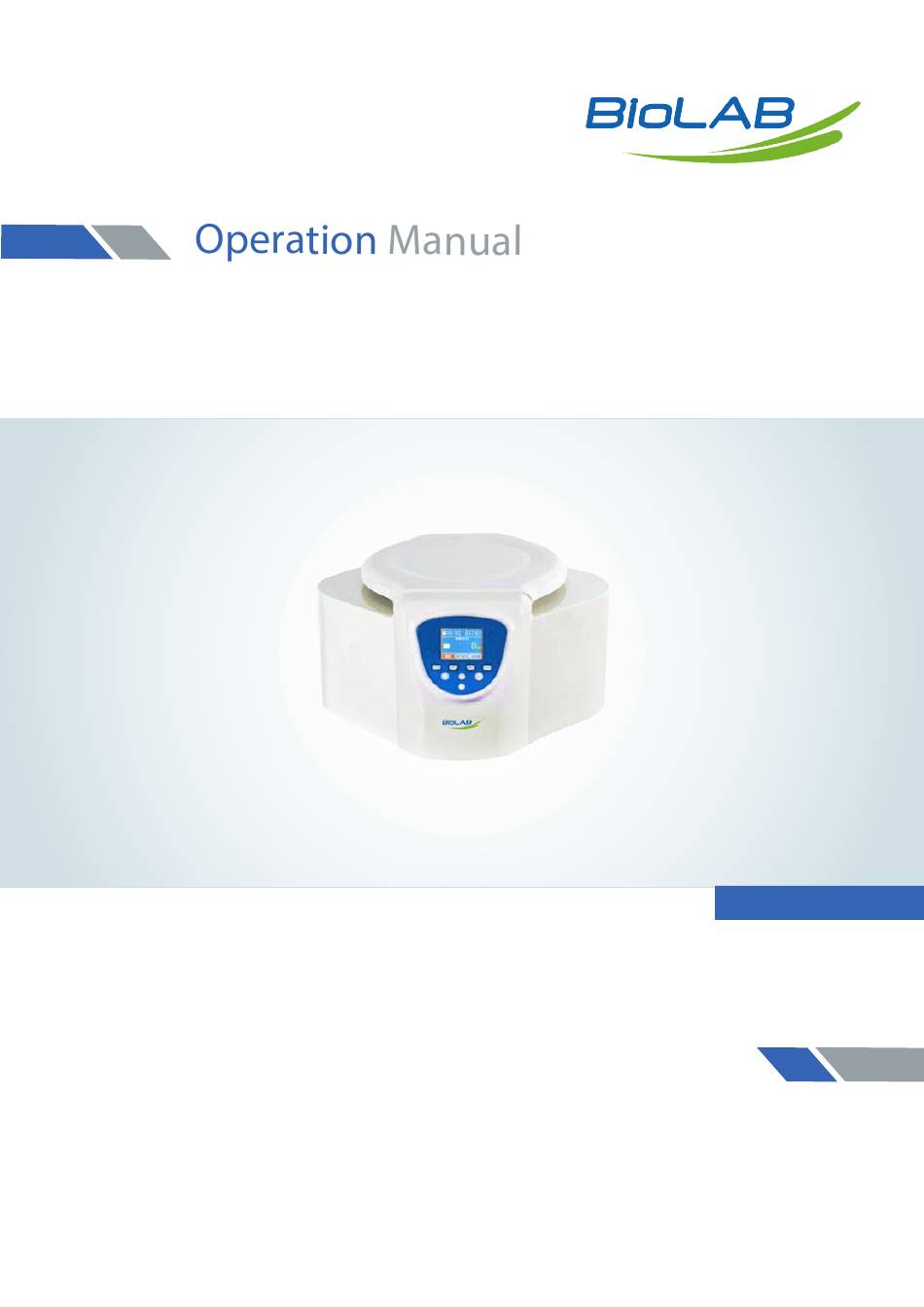

- Page 1 BCBH-201 Benchtop High Speed Centrifuge Thank you very much for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
-
Page 2: Table Of Contents
Benchtop High Speed Centrifuge BCBH-201 Index 1. Features and Applications........................03 2. Operation Principles..........................04 3. Technical Parameters..........................05 4. Rotor Parameter............................05 5. Operation Procedures...........................07 6. Safety Notice.............................12 7. Warranty Service Instruction.......................13 8. Comment Malfunctions and Obviating Methods...............13 9. Transportation and storage of the machine ................14 10. -
Page 3: Features And Applications
Benchtop High Speed Centrifuge BCBH-201 Features and Applications Benchtop High Speed Centrifuge is widely applied in biology, chemistry, medicine, agriculture and forest science, food safety, blood station and clinical test. This machine features good rigidity, high strength and corrosion proofing, owing to its high material of steel and its surface with spurt models processing. -
Page 4: Operation Principles
Benchtop High Speed Centrifuge BCBH-201 Operation Principles The centrifuge machine helps to separate, condense or purify the different density components (or particles) of the solutions by the usage of centrifugal sedimentation principal. After placing the centrifuge tubes with equivalent test solutions in the test tubes around the rotors... -
Page 5: Technical Parameters
Benchtop High Speed Centrifuge BCBH-201 Technical Parameters Maximum rotate speed: 12000r/min Maximum centrifugal force: 13800×g Maximum capacity: 6×50ml Time range: 0~99h59min Rotate speed precision: ±50r/ min Noise: ≤65dB Power: AC 220V 50HZ 15A Dimension(L×W×H): 500×440×330mm Weight: 35kg Rotor Parameters Maximum... -
Page 6: Operation Procedures
Benchtop High Speed Centrifuge BCBH-201 Operation Procedure Step 1: Place the centrifuge machine on the platform and ensure its balance. Shake the machine with hands to check out whether the machine has been placed stably or not. Step 2: Plug the supply cord into the outlet and press down the power switch (the power switch is on the right bottom of the machine). - Page 7 Benchtop High Speed Centrifuge BCBH-201 The control panel of the machine is as shown below. The diagram of the control panel. 1. The operation and time setting area. 2. The display area of the parameter numbers. 3. The operation icon.
- Page 8 Benchtop High Speed Centrifuge BCBH-201 The “STOP & OPEN”button 1. The display panel of the startup Press the “UP” or “DOWN” button to choose the proper parameter set. Attention: There are 20 sets of parameter set ranging from 00 to 19.
- Page 9 Benchtop High Speed Centrifuge BCBH-201 Press the “ SET” button to enter the rotating speed adjustment panel. Next, press the “ UP” or “ DOWN” button and press the “ SET” button again to enter the time adjustment area. The needed minutes can be chosen by pressing the “...
- Page 10 Benchtop High Speed Centrifuge BCBH-201 As it is shown below: Press the “ UP” or “ DOWN” button to choose the rotor number. Attention: Please take the real objects as the reference, and find the corresponding real rotor pictures and rotor number.
- Page 11 Benchtop High Speed Centrifuge BCBH-201 5) When finishing every step mentioned above, press the “ ENTER” button for about 2 seconds to preserve the adjusted value, and then withdraw from the adjusted state. 7) After checking out the settings mentioned above, press the “...
-
Page 12: Safety Notice
Benchtop High Speed Centrifuge BCBH-201 Safety Notice 1) This machine should not be used in the humid places with high temperature and large fugitive dust. 2) To ensure the safety and its centrifugal effect, this machine should be placed in the solid, quakeproof and horizontal platform, and all four undercarriages should be given the balanced load. -
Page 13: Warranty Service Instruction
Benchtop High Speed Centrifuge BCBH-201 Instruction: There is an emergency device on the bottom of the machine. If the sample should be taken out during the power outage, the faceplate can be uncovered by pulling the stainless wire on the bottom after the rotors stop the operation. But this device is forbidden to be used during the operation process. -
Page 14: Transportation And Storage Of The Machine
Benchtop High Speed Centrifuge BCBH-201 The obviating methods of the common malfunctions are as followed. common malfunctions causes obviating methods There is no 220V power Check the power supply. supply. The monitor doesn’t work after connecting with the power supply. -
Page 15: Unpacking And Examination Of The Machine
Benchtop High Speed Centrifuge BCBH-201 Unpacking and examination of the machine 1) Place the outer container in accordance with the “UP” sign on it, and take out the machine after unpacking the outer container. 2) Please check and examine the machine and the accessories according to the packing list. If there are any mistakes, please contact the supplier or the marketing department of the manufacturer in time. - Page 16 BIOLAB SCIENTIFIC LIMITED 91 Trafford Crescent, Markham, Ontario, L3R 7J3, Canada +1 707 533 1445 info@biolabscientific.com www.biolabscientific.com...
