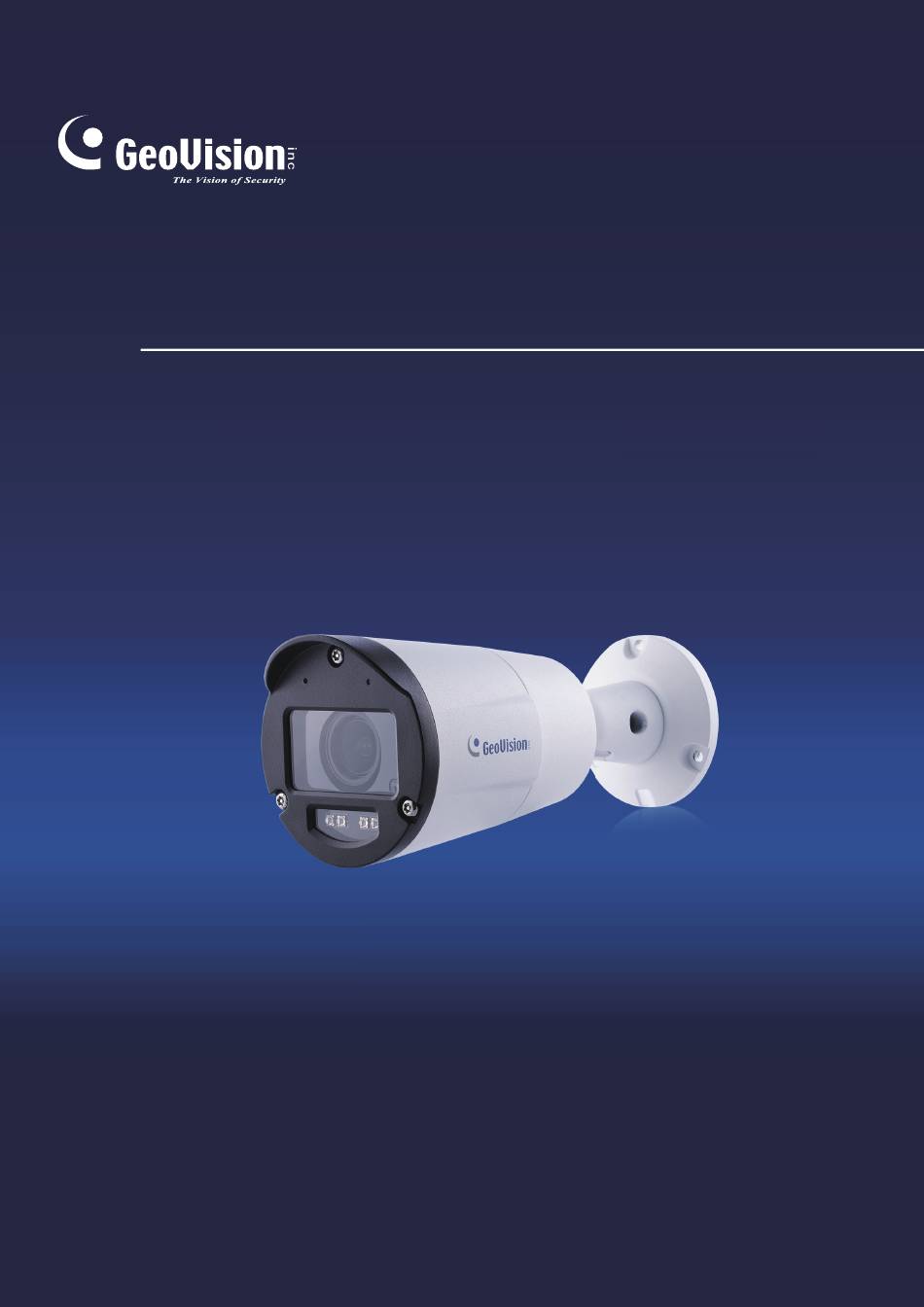

- Page 1 GV-LPR2812-DL User's Manual Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. LPR2812-UM-A...
- Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
-
Page 3: Table Of Contents
Contents Overview ........................5 Read Before Use ..................5 Regulatory Information ................5 Connect the Camera ................... 6 Note ....................... 6 Single Camera ..................... 7 Multiple Cameras ..................7 Web Interface ......................8 Log In ......................8 Transport Layer Security ................10 User Permissions for Web/HTTPS ............ - Page 4 Focus ......................19 Save & Reset ..................... 19 Duplicate ..................... 19 Image & Schedule ....................20 Overview ..................... 20 Camera Date & Time ................20 Year/Season Switch Control ..............20 Year Mode ....................20 Season Mode ..................... 21 System & Device ....................22 Camera Name....................
- Page 5 Inquire Recognized Databse ..............35 Registry Database ..................36 Push Notification..................38 Recongizing Schedule ................38 Storage......................39 License ......................40 16 Network Basic ...................... 40 Different Display Types................40 Change Network Type ................40 17 Network Advanced ....................41 Device Discovery ..................
- Page 6 Change Password ..................51 Password Not Match ................. 52 26 Language ......................52 27 Log Out ........................52...
-
Page 7: Overview
Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at GeoVision’s website (https://www.geovision.com.tw/download/product/). ⚫... -
Page 8: Connect The Camera
and comply therefore with the applicable harmonized European standards listed under the the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. -
Page 9: Single Camera
Single Camera ⚫ The IP segments, Subnet mask and default gateway must be same for both IP camera and computer. Ensuring IP camera and computer are on the same router. ⚫ Enable DHCP in router. Accessing via web browser then login with default account information (user name: admin, password: admin). -
Page 10: Web Interface
2 Web Interface Log In ⚫ In a web browser, type the IP address of the Network Camera in the address field can enter the Login Screen. Note: ⚫ This web interface will change dynamically to the appearance of a website, depending on the screen size and orientation of the device being used to view it. - Page 11 STEP 2 When using the camera for the first time, enter default username (admin) and password (admin). STEP 3 ⚫ At initial login to the device, the user must register a new account. ⚫ The default account cannot login after new account (Administrator or User) is registered.
-
Page 12: Transport Layer Security
guest, mysql, administrator, oracle. ➢ Cannot be the same as registered account username. ⚫ Password ➢ Must be 5 to 16 characters, including alphanumeric characters. ➢ Cannot begin with numbers. ➢ Cannot be single character only (ex: aaaaa). ➢ Cannot be default/bad usernames, including admin, opuser, users, guest, mysql, administrator, oracle. -
Page 13: Auto Logout
Auto Logout ⚫ For security reasons, the web will automatically log out after you have been idle for 10 minutes (600 seconds). ⚫ The 600-second countdown time is displayed at the bottom of the left menu. Clicking the Refesh button will restart the counting. -
Page 14: Auto Play Policy
Auto play Policy For security reasons, browser may prevent web from auto play stream. In this case user needs to click the play button ( ) to play the stream. 3 Live View Overview The aspect ratio of screen will be different according to video resolution on ⚫... -
Page 15: Volume
⚫ The volume slider is displayed when the Microphone button is active. [Drag the slider can adjust the Microphone volume in a range of 0~100 (Default: 50). Volume The volume slider is hidden and the last volume setting will be remembered ⚫... -
Page 16: Zoom In & Zoom Out
Zoom In & Zoom Out ⚫ Only the Optical Zoom can be maintained when page is switched to full screen. Focus ⚫ The Speed and Focus will be disabled when Continuous AF is On. When the minimum or maximum value is reached, the value does not change ⚫... -
Page 17: Image & Image Parameters
4 Image & Image Parameters Image Adjustment The adjusting result will be displayed on Image Parameters Viewer ⚫ synchronously. ⚫ When the minimum or maximum value is reached, the value does not change when the button (▲▼) is clicked. ⚫ When click the “Default”... -
Page 18: Image & Image Configs
5 Image & Image Configs ⚫ The rotate adjusting result will be displayed on viewer synchronously. ⚫ When the Power Line Frequency is auto , the camera will detect the current environment is 50Hz or 60Hz, and Exposure Time will change accordingly. 6 Image &... -
Page 19: Image & Advanced Setting
⚫ The BLC Rectangle Rules ➢ The available frame size is from 150x150 pixels to 600x600 pixels. (Default: 150x150 pixels) It cannot be scaled further if it reaches the minimum or the maximum rectangle size. ➢ The BLC rectangle can be resized to a desired rectangle by dragging the border. -
Page 20: Components
Components ⚫ Item Bar ➢ Click the main item and list down to show more detailed settings. Only one main item can be expanded at a time. ➢ The expanded main item should be collapsed automatically before expanding next one. ➢... -
Page 21: Focus
Focus ⚫ There are three Focus Modes (Infinity, Auto Focus, Macro) can be chosen. ⚫ The MF Focus and MF Speed can be set only when the Continuous AF is disabled (see 3-7 Focus). ⚫ There is no Push AF item in the drop-down menu in All Day mode. Save &... -
Page 22: Image & Schedule
8 Image & Schedule Overview Camera Date & Time ⚫ Display the current time of the camera. ⚫ The date format is based on the camera settings. Year/Season Switch Control ⚫ There are two types ( Year / Season ) of control can be switched. ➢... -
Page 23: Season Mode
➢ Click the time type to pop-up the drop-down menu to set the time range. Season Mode ⚫ Month Bar ➢ The year will be divided into four seasons. Season 1 : Dec - Feb Season 2 : Mar - May Season 3 : Jun - Aug Season 4 : Sep - Nov ➢... -
Page 24: System & Device
9 System & Device Camera Name ⚫ The camera name can contain up to 16 characters. ⚫ When the page is switched, if the value is invalid, the last valid value is returned. Date And Time The Time Zone will be disabled when clock sync is PC. ⚫... -
Page 25: System & Stream Configs
10 System & Stream Configs Web Stream This is the stream info used on Live view, but the settings in this area cannot be changed. Main Camera Stream ⚫ Up to 3 camera streams can be created. ⚫ The Save All button should be displayed for any item click or change. Second Camera Stream ⚫... -
Page 26: System & Privacy Mask
11 System & Privacy Mask ⚫ Click [Add Mask] could add a mask on center of Setting Window. The mask can be moved or overlapped using mouse cursor. Up to 8 masks can be created. If the mask has reached the maximum limit, disable [Add Mask] until masks are less than 8. -
Page 27: Priority Of Overlay & Mask
Priority of Overlay & Mask ⚫ The current settings will be placed on top in the Overlay Preview and Mask Preview. ⚫ Overlay has higher priority than Mask on the camera. Mask Preview... -
Page 28: Overlay
12 Overlay Stamp Switch button to activate or inactivate the feature of adding the date and time or text string on video. Overlay Preview ⚫ Can be previewed the overlay settings on the synced thumbnails until click the Save All button. ⚫... -
Page 29: Add Photo
Add Photo ⚫ Only one can be uploaded at a time. ⚫ If you upload a new photo, it will overwrite the old one. ⚫ Uploaded the photo have the following restrictions: ➢ The file format is bmp. ➢ The photo width and height should not exceed 384x384, the size should not exceed 1MB. -
Page 30: Speaker
Speaker Not supported. The camera only supports the microphone, not the speaker. Synchronized with The Live View The Microphone information needs to be synchronized with the Live View Page. 14 System & Digital I/O Digital Input When DI is disable = No Event. Normal State Setting Open Circuit Grounded Circuit... -
Page 31: Digital Output
Digital Output DO Normal State Setting Open Circuit Grounded Circuit Event DO = Grounded Circuit DO = Open Circuit Event State No Event DO = Open Circuit DO = Grounded Circuit IMPORTANT: To open a gate output when a detected license plate number match one in the local or GV-ASManager databse, follow the instructions in Chapter 5 Configuring the Gate Output of the Quick tart... -
Page 32: System & License Plate Recognition
15 System & License Plate Recognition Recognition Result This function displays the recognized plate number, the date and time of recognition, or any text you specify on the images of the recognition results. Overlay Text on Recognition Results: Includes a desired text or description ◼... -
Page 33: Lpr Detection
LPR Detection The camera performs license plate detection and recognition when motion is detected or an input device is triggered. Up to 8 detection areas can be defined for motion detection and license plate recognition. Detection Mode: Set the detection mode that activates the license plate ◼... - Page 34 Select Min. Height of License Plate (20~400) and click and drag on the image to define the minimum height of the license plates to be detected, from 20 to 400 pixels. Select Max. Height of License Plate (20~400) and click and drag on the image to define the maximum height of the license plates to be detected, from 20 to 400 pixels.
- Page 35 I/O Mode Setting When the I/O option is selected for Detection Mode, the following functions are available. ◼ Trigger Input: Enable the function that starts recognition when the connected input device is triggered. ◼ Do not record unrecognigized results: Not to record unrecognizied license plates. ◼...
- Page 36 RS-485 Users can enable to send or receive data through RS-485. ◼ Output Format: Select the desired recognition results to export through RS-485, including License Plate Only, License Plate and Time, and License Plate File Name. ◼ Input From: Inputs data from the GV-RU9003 UHF RFID reader.
-
Page 37: Inquire Recognized Databse
Inquire Recognized Databse Users can search for the history of a license plate number in a database stored on the memory card. Type a license plate number in the Plate Number field. The entries are case- sensitive. Specify the start and end dates and times. Click Query to look for license plate numbers on the memory card. -
Page 38: Registry Database
GV-ASManager, an access control and license plate recognition management software. Note: GV-LPR2812-DL is supported by GV-ASManager V6.1.2 or later. For details on how to connect to GV-ASManager for access control management, see Chapter 8 GV-ASManager Integration in the Quick Start Guide. - Page 39 Select a comparison type for Registry Database Comparison. The recognized license plate will trigger the output device under the selected condition: Complete (All Characters Match): The license plate matches every ◼ character of a license plate in the database. Like (One Character Mismatch): The recognized license plate matches all ◼...
-
Page 40: Push Notification
Push Notification The Push Notification function allows users to transmit LPR logs to a JSON server. Select HTTP – POST from the Notification Type, and type its URL along with its port value within URL. Select whether to attach LPR recognition pictures with recognition results. -
Page 41: Storage
Storage The recognition results or images are stored on the camera’s attached memory card. The images are stored in JPEG compressed format. ◼ Enable saving results on a memory Card: Enable this option to save recognition results or images to the memory card. ◼... -
Page 42: License
License The License page displays the country and version of the recognition engine currently installed. The camera can only have the recognition engine of one country at any given time. To change the nation of the recognition engine: Contact our sales representatives to request changing the nation of your recognition engine. -
Page 43: Network Advanced
➢ The progress bar and percentage are displayed to show the current progress ⚫ When the camera network settings have been changed, user may need to discover and connect camera again 17 Network Advanced Device Discovery 18 Network IEEE 802.1X Click the Reset button to enable IEE 802.1Xt settings. -
Page 44: Switch To Eap-Ttls / Peap
Switch To EAP-TTLS / PEAP ⚫ Drop Menu and select ⚫ All the necessary fields must be filed in. ⚫ All input boxes formatted correctly ⚫ Click [ Save All ] button Refresh ⚫ There are two ways to update the file list : ➢... -
Page 45: Notification - Camera Log
19 Notification – Camera Log Setting (Default) There are three types (Device Log, Access Log and Detection Log) of logs can ⚫ be recorded. Log List ⚫ Display the log according to the conditions made from “Date & Time” in order. ⚫... -
Page 46: Notification - Event Setting
20 Notification – Event Setting All defined events will be listed in the Event List with item, trigger, notify, schedule, enable and operation. Add New Event ⚫ Up to 16 events could be added. ⚫ Click the ( Add ) button ⚫... -
Page 47: Edit Event
Edit Event ⚫ Click the edit button ( ) or double-click list to edit the event items of the event settings. Delete the Event ⚫ The Delete button can be used at the top. ⚫ Tap the Delete button. ⚫ Click [Cancel] to close this message or [OK] to delete the event setting. -
Page 48: Notification - Trigger Source
21 Notification - Trigger Source Each trigger source has a switch on right side. Click the switch could enable or disable the trigger. 22 Notification - Notify Setting Notify Method The forms will be different based on ”Method Type”. ⚫ Email CC List Flow ➢... -
Page 49: Storage
23 Storage Note: GV-LPR2812-DL does not have a recording function. The SD card only stores LPR captured photos and logs. SD Card ⚫ Status Detect Display Activated No Card / Format Error Disk Full \ Not Healthy \ Recording Full ⚫... - Page 50 ⚫ Settings for Recording Capacity If the SD card capacity is less than 4096MB, recording capacity setting will be disabled and recording function will also be disabled. ⚫ SD Card Re-detect While camera reboot with SD card inserted, or SD card is inserted while camera is running, camera will detect the SD card capacity...
-
Page 51: Administration
24 Administration Firmware Update ⚫ IMPORTANT: For camera firmware upgrade, refer to the Technical Notice Backup & Restore ⚫ The backup file should be named with a prefix “CAM_Backup_” and a date/time suffix “yyyyMMdd_HHmmss” (Ex: CAM_Backup_20191010_080000). ⚫ Restore Flow Chart ➢... -
Page 52: Ssh Server
SSH Server ⚫ The SSH default is enabled, the default account is root and password is the same as default administrator. ( See section 2.1 for Default User Name & Password ) ⚫ Port: The Internet Assigned Numbers Authority (IANA) suggests the range 49152 to 65535 (215+214 to 216−1) for dynamic or private ports (Please refer to https://en.wikipedia.org/wiki/Ephemeral_port ) ⚫... -
Page 53: Change Password
➢ Upload file ◆ The network must be connected ◆ Click to cancel the action 25 Password Change Password ⚫ Key in Current Password ⚫ Key in New Password & Confirm New Password ⚫ Click [ Save or Cancel ] to Leave without saving... - Page 54 Password Not Match ⚫ When "New Password" and "Confirm New Password" are different, follow the rule below. ➢ Click "New Password", delete the text in the two tables of "New Password" and "Confirm New Password”. ➢ Click "Confirm New Password" to delete only the text in the "Confirm New Password”.
