Page 1 GV-IPCam H.264 User's Manual Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
Page 3 The GV-IPCAM H.264 has a series of models designed to meet different needs. This Manual is designed for the following models and firmware versions: Firmware Model Model Number Version Fixed Lens GV-BX110D V1.07 Varifocal Lens GV-BX120D Varifocal Lens V1.0 Box Camera GV-BX220D Varifocal Lens V1.0...
Page 4 GV-VD120D (IK10+, Transparent Cover) GV-VD121D Varifocal (IK10+, Smoked Cover) GV-VD122D Lens (Transparent Cover) GV-VD123D (Smoked Cover) GV-VD220D (IK10+, Transparent Cover) GV-VD221D Vandal Proof Varifocal (IK10+, Smoked Cover) V1.02 Camera GV-VD222D Lens (Transparent Cover) GV-VD223D (Smoked Cover) GV-VD320D (IK10+, Transparent Cover) GV-VD321D Varifocal (IK10+, Smoked Cover)
Page 5: Table Of Contents
Chapter 2 Box Camera ............ 4 2.1 Packing List................5 2.2 Features..................6 2.3 Options..................7 2.4 Overview ..................8 2.4.1 GV-BX110D .................8 2.4.2 GV-BX120D / 220D / 320D ..........10 2.5 Focus Adjustment ..............11 2.6 Accessory Installation .............. 12 2.6.1 C-Mount Lenses..............12 2.6.2 Infrared Illuminators (Optional)...........14...
Page 6 3.5 Installing the Camera ............... 21 3.6 Focus Adjustment ..............22 Chapter 4 Bullet Camera ..........23 4.1 Packing List................24 4.2 Features................... 25 4.3 Options..................26 4.4 Overview ................... 26 4.5 Installation................27 4.5.1 Connecting to the Data Cable ..........29 4.5.2 Adjusting the Angles............32 4.5.3 Adjusting Lens and Inserting a Micro SD Card....35 4.5.4 Installing the Sun-Shield Cover ..........38...
Page 7 5.8.7 Auto Pan Settings ...............65 5.8.8 System Configuration ............68 Chapter 6 PT Camera............. 69 6.1 Packing List................69 6.2 Features................... 70 6.3 Options..................71 6.4 Installation................71 6.5 Overview .................. 72 6.6 Focus Adjustment ..............74 6.7 I/O Terminal Block ..............75 6.7.1 Pin Assignment ..............75 6.8 PT Control................
Page 8 9.2 Functions Featured on the Main Page........99 9.2.1 The Live View Window .............100 9.2.2 The Control Panel of the Live View Window ....102 9.2.3 Snapshot of Live Video ............105 9.2.4 Video Recording...............105 9.2.5 Picture-in-Picture and Picture-and-Picture View ....106 9.2.6 Alarm Notification .............109 9.2.7 Video and Audio Configuration.........111 9.2.8 Remote Configuration ............112 9.2.9 Camera Name Display .............112...
Page 9 10.3.3 Center V2 ...............145 10.3.4 VSM ................147 10.3.5 ViewLog Server..............149 10.3.6 RTSP / 3GPP ..............150 10.4 Monitoring ................151 10.5 Recording Schedule............. 153 10.5.1 Recording Schedule Settings .........153 10.5.2 I/O Monitoring Settings...........154 10.6 Remote ViewLog..............155 10.7 Network................156 10.7.1 LAN ................156 10.7.2 Advanced TCP/IP............158 10.7.3 IP Filter Settings .............161 10.7.4 SNMP Settings ...............162...
Page 10 Chapter 12 Advanced Applications ......180 12.1 Upgrading System Firmware ..........180 12.1.1 Using the Web Configuration Interface......181 12.1.2 Using the IP Device Utility ..........182 12.2 Backing Up and Restoring Settings ........184 12.3 Restoring to Factory Default Settings ........186 12.4 Verifying Watermark ............
Page 11 15.1.2 Activating the GView Function ........216 15.1.3 Connecting to the IP Camera .........217 15.1.4 Playing Back the Recordings from the IP Camera ..219 15.1.5 Other Functions..............220 15.2 Windows Smartphone............225 15.2.1 Installing MSView V2 / V3 ..........225 15.2.2 Activating the MSView V2 / V3 Function ......226 15.2.3 Connecting to the IP Camera .........227 15.2.4 Playing Back the Recordings from the IP Camera ..229 15.2.5 Other Functions..............230...
Page 12 Specifications: Vandal Proof Camera......268 Appendix…………………………………………………….275...
Page 13: Naming And Definition
Box Cameras under low GV-IR LED light conditions. Note that the GV-IR LED is only compatible with GV-BX110D and GV-IR LED T2 is compatible with GV-BX120D / 220D / 320D. The GV-PA191 PoE adapter is designed to...
Page 14: Note For Connecting To Gv-System
Note for Connecting to GV-System The GV-IPCAM H.264 is designed to work with GV-System, a hybrid or digital video management system. Note the following when GV-IPCAM H.264 is connected to GV-System: Normally, the images are recorded to the memory card inserted in the Box Camera, Bullet Camera, PT Camera, PTZ Camera and Vandal Proof Camera.
Page 15: Note For Firmware Upgrade
Note for Firmware Upgrade Before you upgrade the firmware, please follow these instructions: The firmware upgrade must be performed on the LAN. Stop monitoring of GV-IPCAM H.264. Stop all the remote connections including Center V2, VSM, ViewLog Server and 3GPP. Stop the connection to GV-System.
Page 17: Chapter 1 Introduction
Fixed Dome, Bullet Camera, PTZ Camera, PT Camera and Vandal Proof Camera. For details on the features of each model, please refer to the corresponding chapter. Model Model No. Description Fixed Lens 1.3 M, H.264, GV-BX110D Varifocal Lens Varifocal 1.3 M, H.264, GV-BX120D Lens Low Lux, D/N...
Page 18 10x Optical NTSC GV-PTZ010D Zoom, D1, Camera H.264, D/N 1.3 M, H.264, GV-PT110D Camera GV-VD120D (IK10+, Transparent Cover) GV-VD121D Varifocal 1.3M H.264 (IK10+, Smoked Cover) Lens Low Lux IR GV-VD122D (Transparent Cover) GV-VD123D (Smoked Cover) GV-VD220D (IK10+, Transparent Cover) GV-VD221D Vandal Varifocal (IK10+, Smoked Cover)
Page 19: System Requirement
Introduction 1.1 System Requirement To perform the GV-IPCAM H.264 operations through Web browser, ensure your PC is in good network connection, and meet this system requirement: • Microsoft Internet Explorer 7.x or later Note: For the users of Internet Explorer 8, additional settings are required.
Page 20: Chapter 2 Box Camera
Model No. Specifications Description Megapixel, Fixed Iris Fixed Lens IR, f:4 mm, F/1.5, 1/3” CS Lens 1.3 M, H.264, GV-BX110D Megapixel, Auto Iris Varifocal Lens IR, f:4 ~ 9 mm, F/1.4, 1/3” CS Lens Megapixel, Auto Iris 1.3 M, H.264, GV-BX120D Varifocal Lens IR, f:2.8 ~ 12 mm,...
Page 21: Packing List
Box Camera 2.1 Packing List • Box Camera • Terminal Block • Fixed Focal or Varifocal Megapixel Lens • C-mount Lens Adapter (BX110D only) • Bag of Six Lens Rings (GV-BX120D / 220D / 320D only) • Video Out Wire (BX120D, BX220D, BX320D Only) •...
Page 22: Features
Dual video streams from two of H.264, MJPEG and MPEG4 • Up to 15 fps at 1280 x 1024 for GV-BX110D; up to 30 fps at 1280 x 1024 for GV-BX120D; up to 30 fps at 1920 x 1080 for GV-BX220D;...
Page 23: Options
An infrared illuminator. For installation, see 2.6.3 Infrared Illuminators later in this manual. GV-IR LED Please note that for GV-BX110D, use a GV-IR LED; for GV-BX120D / 220D / 320D, use a GV-IR LED T2. The GV-PA191 is a Power over Ethernet (PoE)
Page 24: Overview
2.4 Overview 2.4.1 GV-BX110D Figure 2-1 Name Description Audio Out Connects a speaker for audio output. Audio In Connects a microphone for audio input. I/O Terminal Block For details, see 2.7 I/O Terminal Block. Resets all configurations of the GV-IPCAM Default H.264 to the default factory settings.
Page 25 Box Camera Status LED The status LED is used to reflect the system status of the camera. Status LED Description Red Light ON The system powers on and succeeds to boot up. Flashing Red and Green The camera is ready for use with network Lights connectivity.
Page 26: Gv-Bx120D / 220D / 320D
2.4.2 GV-BX120D / 220D / 320D Figure 2-2 Name Description Connects to a portable monitor for setting the focus and angle of Box Camera during Video Out initial installation. Inserts a micro SD/SDHC card to store Memory Card Slot recording data. Audio Out Connects a speaker for audio output.
Page 27: Focus Adjustment
Box Camera 2.5 Focus Adjustment There are two ways to access live images of the Box Camera for focus adjustment. One is to connect a portable monitor to the Video Out port on the rear panel of the Box Camera. The other is to connect the Box Camera to the network and access its live images.
Page 28: Accessory Installation
Mount the supplied C-mount lens adapter / lens ring to the camera, and then attach the lens onto the camera body. GV-BX110D Install the supplied C-mount lens adapter to extend focal length of GV- BX110D as illustrated below.
Page 29 Box Camera GV-BX120D / 220D / 320D The supplied C-mount lens rings for GV-BX120D / 220D / 320D include 3 sizes in thickness: • 0.188 mm (transparent color) x 2 • 0.125 mm (black color with a glossy surface) x 2 •...
Page 30: Infrared Illuminators (Optional)
2.6.2 Infrared Illuminators (Optional) If you use an infrared (IR) illuminator with I/O function, follow the steps below to install it. Connect the infrared illuminator to the terminal block on the camera. See 2.7 The I/O Terminal Block. Access the Web interface of the camera. Select Video and Motion, select Video Settings, select Streaming 1 and set the IR Check Function option to be Trigger by Input (for GV-IR LED) or Trigger IR by D/N (GV-IR LED T2).
Page 31: I/O Terminal Block
Figure 2-3 Output N/O The GV-BX110D only supports the input device of Wet Contact, 7V ~ 30V. For the output point, please check if your output device meets the following Absolute Maximum Ratings before connecting it to the output point.
Page 32 GV-BX120D / 220D / 320D The GV-BX120D / 220D / 320D support one digital input and one digital output of dry contact. Function Digital Input Digital Output Figure 2-4 For details on how to enable an installed I/O device, see 10.2 I/O Settings.
Page 33: Chapter 3 Mini Fixed Dome
Mini Fixed Dome Chapter 3 Mini Fixed Dome The Mini Fixed Dome is a ceiling-mount device that provides panning and tilting functions. It features a built-in microphone and PoE connector. Its compact design ensures easy installation in almost any indoor environment. 3.1 Packing List •...
Page 34: Features
3.2 Features • 1.3 Megapixel Progressive Scan CMOS • Dual video streams from two of H.264, MJPEG and MPEG4 • Up to 15 fps at 1280 x 1024 • Pan and Title (Pan: -45° ~ +45°; Tilt:: 0 ~ 90°) •...
Page 35: Options
Mini Fixed Dome 3.3 Options Optional devices can expand your Mini Fixed Dome’s capabilities and versatility. Contact your dealer for more information. The GV-PA191 is a Power over Ethernet (PoE) GV-PA191 adapter designed to provide power to the IP device through a single Ethernet cable.
Page 36: Overview
3.4 Overview Figure 3-1 Name Description Resets the camera to factory default. See Default Button 12.3 Restoring to Factory Default Settings. Lens Rotates the les right/left to adjust focus. Focus Fixed Screw Loosens the screw to adjust the lens. Tilt Fixed Screw Loosens the screw to adjust tilt angle.
Page 37: Installing The Camera
Mini Fixed Dome 3.5 Installing the Camera The GV-MFD110 is exclusively designed for ceiling mount. Please make sure the installing site is shielded from rain and moisture. Take the Mini Fixed Dome and make 2 marks on the ceiling for screw anchors.
Page 38: Focus Adjustment
3.6 Focus Adjustment After you have installed the camera, follow the steps below to adjust the camera’s angle and focus base on its live view. To access the live image, , see 8. Getting Started. Unscrew the camera’s cover. Figure 3-3 Loosen the focus fixed screw, and rotate the lens clockwise or counterclockwise to adjust focus.
Page 39: Chapter 4 Bullet Camera
Bullet Camera Chapter 4 Bullet Camera The Bullet Cameras is specifically designed for outdoors and is weather- sealed and IP66 compliant. The camera also features IR LEDs for infrared illumination in night vision applications. Four models are available: Model No. Specifications Description GV-BL110D...
Page 40: Packing List
4.1 Packing List • Bullet Camera • Lens (Megapixel and Built-In 16 IR LEDs) • Self Tapping Screw x 3 • Plastic Screw Anchor x 3 • Screw Adjuster x 2 • Sun-Shield Cover Kit (1 Sun-Shield Cover, 2 Philips Head Screws, 2 Plastic Screw Spacers and 2 Hexagon Screws included) •...
Page 41: Features
Bullet Camera 4.2 Features • 1/3’’ progressive scan CMOS for GV-BL110D / 120D 1/2.5’’ progressive scan CMOS for GV-BL220D / 320D • Dual video streams from two of H.264, MJPEG and MPEG4 • Up to 30 fps at 1280 x 1024 for GV-BL120D; Up to 30 fps at 1920 x 1080 for GV-BL220D;...
Page 42: Options
4.3 Options Optional devices can expand your Bullet camera’s capabilities and versatility. Contact your dealer for more information. The GV-PA191 is a Power over Ethernet (PoE) GV-PA191 adapter designed to provide power to the IP device through a single Ethernet cable. 4.4 Overview Figure 4-1 Name...
Page 43: Installation
Bullet Camera 4.5 Installation These instructions describe the basic installation of the Bullet Camera. Slide the cable clamp to the camera base. Figure 4-2 Install the Bullet Camera to the wall. Figure 4-3 Install the related cables to the Bullet Camera. See 4.5.1 Connecting to the Data Cable.
Page 44 Adjust angles of the Bullet Camera. See 4.5.2 Adjusting Bullet Camera’s Angles. Remove the protection sticker from the camera’s cover. Loosen the camera’s cover, adjust lens and focus, and insert a micro SD card into the SD card slot. See 4.5.3 Adjusting Lens and Inserting a Micro SD Card.
Page 45: Connecting To The Data Cable
Bullet Camera 4.5.1 Connecting to the Data Cable With the 7-Pin Data Cable, you can connect the power, microphone, speaker and I/O devices to the Bullet Camera. The data cable is illustrated as below. Digital In (Red) DC 12V+ / AC 24V + (Brown) Digital Out (Orange) DC 12V- / AC 24V - (Black) GND (Yellow)
Page 46 Power Input Connection To connect the power, first you have to connect the unshielded black and brown wires of the Bullet Camera to the supplied 3-Pin Terminal Block, and then connect the 3-Pin Terminal Block to DC 12V Power Adapter. Insert the black wire of the Bullet Camera to the left-side pin of the 3- Pin Terminal Block and the brown wire to the right-side pin.
Page 47 Bullet Camera Waterproof Treatment To install the Bullet Camera outdoors, ensure to waterproof the cables. The camera’s body is waterproof, but the PoE, audio, power and I/O cables are not waterproof. Use waterproof silicon rubber or the like to apply waterproof treatment to the cables.
Page 48: Adjusting The Angles
4.5.2 Adjusting the Angles The Bullet Camera is designed to be adjustable in three shafts for easy and flexible installation. First Shaft You can adjust the camera body by 360 degrees to the right or the left. Unscrew the panning lock screw with the screw adjuster. Panning Lock Screw Screw Adjuster Figure 4-4...
Page 49 Bullet Camera Second Shaft You can adjust the camera body up and down by 90, 112.5, 135, 157.5 or 180 degrees by using the gears inside the camera body and the camera base. Unscrew the tilting lock screw with the screw adjuster. Tilting Lock Screw Screw Adjuster Figure 4-6...
Page 50 Adjust the angle of camera body to 90, 112.5, 135, 157.5 or 180 degrees. Then move the camera base to the left to combine the gears. Figure 4-8 Fasten the tilting lock screw. Third Shaft You can adjust the camera base by 360 degrees. Unscrew the base fixing screw with the screw adjuster.
Page 51: Adjusting Lens And Inserting A Micro Sd Card
Bullet Camera Adjust the angle of camera base, and fasten the base fixing screw. Figure 4-10 4.5.3 Adjusting Lens and Inserting a Micro SD Card To adjust the camera’s lens to produce a clear image and insert a micro SD card into the SD card slot, follow the steps below. Loosen the camera’s cover.
Page 52 Remove the silica gel bag. Silica Gel Bag Figure 4-12 Loosen the fixing screw. Figure 4-13...
Page 53 Bullet Camera Slightly pull out the camera module. Loosen the Focus Screw or the Zoom Screw to rotate the lens right/left to adjust focus or zoom. Insert a micro SD/SDHC card into the memory card slot. Figure 4-14 Slightly push the camera module back and fasten the fixing screw. Replace a new silica gel bag to the camera module and fasten the camera’s cover immediately.
Page 54: Installing The Sun-Shield Cover
4.5.4 Installing the Sun-Shield Cover After setting up the Bullet Camera, now you can install the sun-shield cover to the camera. Fasten the hexagon screws either on top or below the camera. Figure 4-15 Put the sun-shield cover on top of hexagon screws. Make sure to aim the rear hexagon screw at the edge of the sun-shield cover’s aperture for optimal sun-shield performance.
Page 55 Bullet Camera Fasten the philips head screws with the plastic screw spacers. Figure 4-17...
Page 56: Chapter 5 Ptz Camera
Chapter 5 PTZ Camera The GV-PTZ010D camera is a ceiling-mount device that provides panning, tilting and zooming functions. The camera is designed to monitor a wide area and also to focus on a specific part on the live view when suspicious events occur.
Page 57: Packing List
PTZ Camera 5.1 Packing List • GV-PTZ010D • Mounting Base • Mounting Cover • Wall Mount Bracket • Screw Anchor x 3 • Long Screw x 3 • Short Screw x 3 • Round Screw x 3 • DC 12V Power Adapter •...
Page 58: Features
5.2 Features • 1/4" CCD image sensor • Dual streams from H.264, MJPEG and MPEG4 • Up to 30 fps at 704 x 480 / Up to 25 fps at 704 x 576 • 10x optical zoom lens • 10x digital zoom •...
Page 59: Options
PTZ Camera 5.3 Options Optional devices can expand your PTZ camera’s capabilities and versatility. Contact your dealer for more information. The GV-PA191 is a Power over Ethernet (PoE) GV-PA191 adapter designed to provide power to the IP device through a single Ethernet cable.
Page 60: Installation
5.4 Installation The GV-PTZ010D / GV-PT110D camera is designed for indoor usage. Please make sure that the installing location is shielded from rain and moisture. There are two ways to mount the PTZ / PT camera: Ceiling Mount and Wall Mount. Ceiling Mount Use the mounting base to make 3 marks on the wall for screw anchors.
Page 61 PTZ Camera Fix the mounting base (now with the PTZ / PT camera attached) to the wall with 3 long screws. Figure 5-3 Put on the mounting cover. To fit the installation environment, you can cut the parts indicated by arrows to make an opening for wires and cables.
Page 62: Wall Mount
Wall Mount You may wall-mount GV-PTZ010D / GV-PT110D camera with or without the mounting cover. Take the wall mount bracket and make 2 marks on the wall for screw anchors. Figure 5-5 Drill the marks and insert 2 screw anchors. Insert the long screws and leave enough distance (approximately 2 mm) to hang the wall mount bracket later.
Page 63 PTZ Camera Hang the wall mount bracket on the screws and push the wall mount bracket downward. Make sure the long screws are tightened. Figure 5-7 Without Mounting Cover Attach the wall mount bracket with the PTZ / PT camera using 3 washers and 3 round screws.
Page 64 With Mounting Cover To install the mounting cover, attach the mounting base to the camera and then put on the mounting cover. See steps 3 and 5 in the Ceiling Mount section. Attach the wall mount bracket with the PTZ / PT camera using 3 round screws.
Page 65: Overview
PTZ Camera 5.5 Overview Figure 5 10...
Page 66 Name Description DC 12V / AC 24V Connects to a DV 12V or AC 24V Power Terminal Block Adapter. LAN/PoE Connects to a 10/100 Ethernet or PoE. I/O Terminal Block For details, see 5.7 I/O Terminal Block. Inserts a micro SD/SDHC card to store Memory Card Slot recording data.
Page 67: Focus Adjustment
PTZ Camera 5.6 Focus Adjustment On initial installation, it is advised that you adjust the focus for image clarity. Print out the diagram of radiating lines included on Software CD and hang up the diagram at the surveillance area. Use the Zoom In / Out and Focus In / Out buttons on the PTZ control panel from the Web interface (No.4 and 5, Figure 5-12) and adjust the PTZ camera until it displays clear radiating lines as shown in picture on the left.
Page 68: I/O Terminal Block
5.7 I/O Terminal Block The 3-pin terminal block, located on the back panel of the PTZ camera, provides the interface to one digital input and one digital output. The I/O terminal block can be used to develop applications for motion detection, event alerts via E-Mail and FTP, and center monitoring through Center V2 and VSM.
Page 69: Ptz Control
PTZ Camera 5.8 PTZ Control After you have installed the PTZ camera on network and accessed the camera’s Web interface you are ready to configure the PTZ camera. To see how to install the PTZ camera on network, see Getting Started, Chapter 8.
Page 70 Buttons on the PTZ control panel: Name Description Exit Closes the PTZ control panel. Moves the PTZ camera to 8 directions: up, Pan / Tilt Control down, left, right, left up, left down, right up and right down. Brings the camera view back to the home Home point where the camera faces front at a 90 degree angle to the base of the device.
Page 71: Automatic Focus
PTZ Camera 5.8.2 Automatic Focus When the camera view is fuzzy, you may use the auto focus feature to obtain a sharper view. On the PTZ control panel, click the Option button (No. 6, Figure 5-12) and select AF for automatic focus. 5.8.3 PTZ Camera Settings Accessing the PTZ Camera Settings To access PTZ camera settings, click the Option button (No.
Page 72 PT Speed: Determines the panning (horizontal movement) and tilting (vertical movement) speed when using the Pan / Tilt Control buttons on the PTZ control panel. The drop-down list contains 5 speed settings: 1 is the slowest and 5 the fastest. Zoom Speed: Determines the zooming speed.
Page 73: Image Settings
PTZ Camera 5.8.4 Image Settings Image Setting provides features on iris control, white balance, image orientation and other image processing tools to generate clearer images. To access these features, open the VISCA OSD Configuration dialog box and select Image Setting. [Iris] adjusts the amount of exposure.
Page 74 fixed light source. Use the slider to select from 0 to 8. A higher value produces a brighter image and a lower value produces a dimmer image. R Gain: Adjusts the red element of the live view. Use the slider to select from 0 to 8.
Page 75 PTZ Camera Freeze: Instantly freezes the live view image when On is selected. AGC: Automatic Gain Control (AGC) utilizes an electronic circuit which amplifies video signal when the signal strength falls below a given value due to lack of the light on the camera. Adjust camera sensitivity to provide clear images.
Page 76: Preset Settings
5.8.5 Preset Settings For PTZ camera to automatically move toward a point in live view, establish a Preset. A Preset is a point in live view that can be configured and saved for future use. The PTZ camera allows up to 256 Preset points. For details on the maximum number of Preset points, see 5.8.3 PTZ Camera Settings.
Page 77 PTZ Camera Renaming a Preset Point To rename a Preset point: Click the Option button (No. 6, Figure 5-12), select Preset Set and select Naming. The dialog box appears. Figure 5-15 Click the Preset point you wish to rename and type the new name in the blank at the top.
Page 78 Starting and Stopping a Preset Point To start a Preset movement, click the Option button (No. 6, Figure 5-12), select Preset Go, and select a Preset number which has been set previously. Alternatively, you may use the number pad on the PTZ control panel to enable a Preset movement: Click the Show Preset button (No.
Page 79: Sequence Settings
PTZ Camera 5.8.6 Sequence Settings For PTZ camera to automatically perform a series of movements, you can configure a Sequence. A Sequence links up more than two Preset points to form a sequence of movements. Up to 8 Sequences can be created. Configuring a Sequence After you have configured the Preset points you wish the camera to follow (for details, see 5.8.5 Preset Settings), you are ready to...
Page 80 Use the Preset drop-down list to select the Preset points for the Sequence. Use the Dwell Time drop-down list to select the staying time that the camera stays at the Preset point. The dwell time ranges from 0 to 127 seconds at an interval of 0.5 second.
Page 81: Auto Pan Settings
PTZ Camera 5.8.7 Auto Pan Settings For the PTZ camera to survey a horizontal view, establish an Auto Pan. Up to 4 sets of Auto Pan can be created. Configuring an Auto Pan To configure a horizontal movement: Adjust the angle of the camera view using the Up and Down Control buttons since any vertical movements of the camera will not be recorded by Auto Pan.
Page 82 Configuring the Speed of Auto Pan You can configure the speed for each set of Auto Pan differently: Open the VISCA OSD Configuration dialog box and select Advance. Figure 5-17 Select the Auto Pan number you wish to configure and select the Speed.
Page 83: Rebooting The Camera
PTZ Camera Starting and Stopping Autopan To start an Auto Pan, click the Option button (No. 6, Figure 5-12), select Auto and select a desired Auto Pan number. The PTZ camera will first return to the starting position of the selected Auto Pan and proceeds with the selected Auto Pan movement.
Page 84: System Configuration
5.8.8 System Configuration To configure lens settings, open the VISCA OSD Configuration dialog box and select System Configure. Figure 5-18 Zoom + AF: Automatically focuses after zooming. It is advised to use this feature with a zooming distance of at least 1 meter. Digital Zoom: Allows up to 10x Digital Zoom.
Page 85: Chapter 6 Pt Camera
PT Camera Chapter 6 PT Camera The GV-PT110D camera is a ceiling-mount device that features panning and tilting functions. The GV-PT110D is designed to monitor a wide area and to focus on a selected point on live view when suspicious events occur. 6.1 Packing List •...
Page 86: Features
• DC 12V Power Adapter • Washer x 3 • GV-PT110D Software CD • GV-PTZ110D / GV-PTZ010D Quick Start Guide • GV-NVR Software DVD • GV-NVR Quick Start Guide 6.2 Features • 1.3 megapixel progressive scan CMOS • Dual streams from H.264, MJPEG and MPEG4 •...
Page 87: Options
PT Camera 6.3 Options Optional devices can expand your PT camera’s capabilities and versatility. Contact your dealer for more information. The GV-PA191 is a Power over Ethernet (PoE) GV-PA191 adapter designed to provide power to the IP device through a single Ethernet cable. 6.4 Installation For installation procedures of the GV-PT110D, see 5.4 Installation.
Page 88: Overview
6.5 Overview Figure 6-1...
Page 89 PT Camera Name Description DC 12V / AC 24V Connects to a DV 12V or AC 24V Power Terminal Block Adapter LAN/PoE Connects to a 10/100 Ethernet or PoE. I/O Terminal Block For details, see 5.7 I/O Terminal Block. Inserts a micro SD/SDHC card to store Memory Card Slot recording data.
Page 90: Focus Adjustment
6.6 Focus Adjustment On initial installation, it is advised that you adjust the focus for image clarity. Print out the diagram of radiating lines included on Software CD and hang up the diagram at the surveillance area. Manually adjust the focus by rotating the focus ring (No.
Page 91: I/O Terminal Block
PT Camera 6.7 I/O Terminal Block The 3-pin terminal block, located on the back panel of the PT camera, provides the interface to one digital input and one digital output. The I/O terminal block can be used to develop applications for motion detection, event alerts via E-Mail and FTP, and center monitoring through Center V2 and VSM.
Page 92: Pt Control
6.8 PT Control The GV-PT110D shares similar user interfaces and features with the GV- PTZ010D camera. The supported functions are listed in the table below. Supported Function Description PT Control Panel The following buttons on the PT control panel are available: Exit, Pan / Tilt Control, Home, Option and Show Preset.
Page 93 PT Camera Figure 6-3...
Page 94 Figure 6-4...
Page 95: Chapter 7 Vandal Proof Camera
Vandal Proof Camera Chapter 7 Vandal Proof Camera The Vandal Proof Cameras are designed for outdoor usage. They are equipped with automatic infrared cut filters for day and night surveillance. Model options range from 1.3. to 3 megapixels: Model No. Specification Description GV-VD120D...
Page 96: Packing List
7.1 Packing List • Vandal Proof Camera • Screw Adjuster x 1 • Screw Anchor x 4 • Silica Gel Bag x 2 (one already placed inside the camera) • Ceiling Screw x 4 • Blue Screw x 3 • Short Screw x 4 •...
Page 97: Features
Vandal Proof Camera 7.2 Features • 1/3’’ progressive scan CMOS for GV-VD120D 1/2.5’’ progressive scan CMOS for GV-VD220D / 320D • Dual video streams from two of H.264, MJPEG and MPEG4 • Up to 30 fps at 1280 x 1024 for GV-VD120D Up to 30 fps at 1920 x 1080 for GV-VD220D Up to 20 fps at 2048 x 1536 for GV-VD320D •...
Page 98: Overview
7.3 Overview Figure 7-1 Name Description Turns on (green) when the power is on Power LED and turns off when there is no power supply. Turns on (green) when the system operates normally and turns off when Status LED system error occurs. Resets to factory default.
Page 99: Installation
Vandal Proof Camera 7.4 Installation The Vandal Proof Camera is designed for outdoors. There are three ways to install the Vandal Proof Camera: wall mount, hard-ceiling mount and in-ceiling mount. Wall Mount To install the Vandal Proof Camera on the wall, you must have purchased a wall mount bracket.
Page 100 Hang the wall mount bracket on the ceiling screws and push the wall mount bracket downward. Tighten the screws to the wall. Unpack the camera package and take out the camera body. Unscrew the housing cover Unscrew thread lock...
Page 101 Vandal Proof Camera Unscrew the inner housing Take out the camera body Secure the back cover to the wall mount bracket with four short screws and big screw caps.
Page 102 Thread the cable through the conduit entry at the bottom of the back cover. Attach the camera body to the back cover as shown in step 5 Connect the network and power cables to the camera. See 7.5 Connecting the Camera. 10.
Page 103 Vandal Proof Camera Tilt adjustment Loosen the tilt screws to tilt the camera. Rotational Adjustment Loosen the rotational screw to adjust the camera image. 12. Hold the screw adjustment cap on top of the camera view to simulate the housing cover and adjust the focus and zoom using the focus and zoom screws.
Page 104 Hard-Ceiling Mount Follow step 5 in the Wall Mount section to remove the housing cover, thread lock and back cover, and take out the camera body. Mark the position of four screw holes on the desired installation location, and drill holes in the marked locations. Drill the ellipse part if you wish to put the wires in the ceiling.
Page 105 Vandal Proof Camera Thread the cable through the conduit entry at the side of the back cover. Alternatively put the wires in the ellipse hole at the bottom of the back cover Connect the network and power cables to the camera. See 7.5 Connecting the Camera.
Page 106 Screw in a plastic clip to the blue screw, hold it with one hand and use a screw driver to rotate the blue screw until the plastic clip moves half way down. Secure a T-cap on top of the blue screw with a small screw cap and a T-cap screw.
Page 107 Vandal Proof Camera Move the blue screws out and rotate the blue screw with a screw driver until the plastic clip and the bottom of the camera body clamps the ceiling tightly Connect the network and power cables to the camera. See 7.5 Connecting the Camera.
Page 108: Connecting The Camera
7.5 Connecting the Camera The following diagram shows the I/O definitions of the Vandal Proof Camera. There are two ways to supply power to the camera: • Use a Power over Ethernet (PoE) adapter to connect the camera to the network, and the power will be provided at the same time.
Page 109: Chapter 8 Getting Started
Getting Started Chapter 8 Getting Started This section provides basic information to get the GV-IPCAM H.264 working on the network. 8.1 Installing on a Network These instructions describe the basic connections to install the GV-IPCAM H.264 on the network. Use a standard network cable to connect the camera to your network. Optionally connect a speaker and a microphone for two-way audio communication.
Page 110: Assigning An Ip Address
8.2 Assigning an IP Address Designed for use on the network, the GV-IPCAM H.264 must be assigned an IP address to for it to be accessible. Note: The camera has a default IP address of 192.168.0.10. The computer used to set the IP address must be under the same network assigned to the unit.
Page 111: Getting Started
Getting Started Select Static IP address. Type IP Address, Subnet Mask, Router/Gateway, Primary DNS and Secondary DNS in the Configure connection parameters section. Click Apply. The camera is now accessible by entering the assigned IP address on the web browser. Important: Dynamic IP Address and PPPoE should only be enabled if you know which IP address the camera will get from the DHCP server...
Page 112: Configuring The Basics
8.3 Configuring the Basics Once the camera is properly installed, the following important features can be configured using the browser-based configuration page and are discussed in the following sections in this manual: • Date and time adjustment: see 10.8.1 Date & Time Setting. •...
Page 113: Chapter 9 Accessing The Camera
Accessing the Camera Chapter 9 Accessing the Camera Two types of users are allowed to log on to the GV-IPCAM H.264: Administrator and Guest. The Administrator has unrestricted access to all system configurations, while the Guest has the access to live view and network status only.
Page 114 Click Apply. A video image, similar to the example on Figure 9-2, is now displayed in your browser. Note: To enable the updating of images in Internet Explorer, you must set your browser to allow ActiveX Controls and perform a once-only installation of GeoVision’s ActiveX component onto your computer.
Page 115: Functions Featured On The Main Page
Accessing the Camera 9.2 Functions Featured on the Main Page This section introduces the features of the Live View window and Network Status on the main page. The two features are accessible by both Administrator and Guest. Main Page of Guest Mode ▼...
Page 116: The Live View Window
9.2.1 The Live View Window Figure 9-3 No. Name Function 1 Play Plays live video. 2 Stop Stops playing video. Talks to the surveillance area from the local 3 Microphone computer. 4 Speaker Listens to the audio around the camera. Takes a snapshot of live video.
Page 117 Accessing the Camera Switches to full screen view. Right-click the image to have these options: Snapshot, Full Screen, Resolution, Zoom In, Zoom Out, PIP, 7 Full Screen PAP and Google Maps. --- See 9.2.5 Picture-in-Picture and Picture-and- Picture View for PIP and PAP views, 10.8.2 GPS Maps Settings.
Page 118: The Control Panel Of The Live View Window
9.2.2 The Control Panel of the Live View Window To open the control panel of the Live View window, click the arrow button on top of the window. You can access the following functions by using the right and left arrow buttons on the control panel. Figure 9-4 [Information] Displays the version of the camera, time of the local computer, time of the camera (host time), the number of users logging in...
Page 119 [Camera Adjustment] Allows you to adjust the image quality settings. Note that the GV-PTZ010D only contains the Gamma feature; the Image Orientation feature is only available in GV-BX110D, GV-MDF110, GV- BL110D, GV-PT110D and Vandal Proof Camera; the Saturation features are only available in GV-BX110D, GV-MFD110, GV-BL110D and GV- PT110D.
Page 120 Brightness: Adjusts the brightness of the image. Contrast: Adjusts the relative differences between one pixel and the next. Saturation: Adjusts the saturation of the image. Sharpness: Adjusts the sharpness of the image Gamma: Adjusts the relative proportions of bright and dark areas White balance: The camera automatically adjusts the color to be closest to the image you are viewing.
Page 121: Snapshot Of Live Video
Accessing the Camera Shutter Speed Balanced Quality Image Brightness Poor Good Excellent Image Clarity Poor Good Excellent Image Smoothness Excellent Good Poor [GPS] For details 10.8.2 GPS Map Settings. [Download] Allows you to install the programs from the hard drive. 9.2.3 Snapshot of Live Video To take a snapshot of live video, follow these steps: Click the Snapshot button (No.
Page 122: Picture-In-Picture And Picture-And-Picture View
9.2.5 Picture-in-Picture and Picture-and-Picture View The full screen mode provides two types of close-up views: Picture-in- Picture (PIP) and Picture-and Picture (PAP). The two views are useful to provide clear and detailed images of the surveillance area. To access this feature: •...
Page 123 Accessing the Camera Picture-and-Picture View With the Picture and Picture (PAP) view, you can create a split video effect with multiple close-up views on the image. A total of 7 close-up views can be defined. Figure 9-7 Select PAP. A row of three inset windows appears at the bottom. Draw a navigation box on the image, and this selected area is immediately reflected in one inset window.
Page 124 To delete a navigation box, right-click the desired box, select Focus Area of PAP Mode and click Delete. To exit the PAP view, right-click the image and click PAP again.
Page 125: Alarm Notification
Accessing the Camera 9.2.6 Alarm Notification After input triggers and motion detection, you can be alerted by a pop-up live video and view up to four captured images. Pop-up live Captured video images video Figure 9-8 To configure this function, click the Show System Menu button (No. 10, Figure 9-3), and select Alarm Notify.
Page 126 For this function to work, the Administrator needs to install the input device properly. See 10.2.1 Input Setting. Alert Sound: Activates the computer alarm on motion and input- triggered detection. IE Window Pops up: The minimized Live View window pops up on motion and input-triggered detection.
Page 127: Video And Audio Configuration
Accessing the Camera 9.2.7 Video and Audio Configuration You can enable the microphone and speaker for two-way audio communication and adjust the audio volume. To change audio configuration, click the Show System Menu button (No. 10, Figure 9-3), and select Video and Audio Configuration. Figure 9-10...
Page 128: Remote Configuration
9.2.8 Remote Configuration You can upgrade firmware over the Internet. Click the Show System Menu button (No. 10, Figure 9-3), and select Remote Config. The Remote Config dialog box will appear. [Firmware Upgrade] In this tab, you can upgrade the firmware over the Internet.
Page 129: Visual Ptz
Accessing the Camera 9.2.11 Visual PTZ Note this feature is only available in PTZ Camera and PT Camera. The Visual PTZ provides two types of PTZ control panels on live images for easy and direct PTZ operation. Activating Visual PTZ Click the PTZ Control button (No.
Page 130 Figure 9-13 The Visual PTZ Panel provides the following features: Name Description Shortens the apparent distance between the Zoom In camera and the view. Lengthens the apparent distance between the Zoom Out camera and the view. Focus In Adjusts the sharpness of the camera view. Focus Out Home Brings the camera to the home point.
Page 131 Accessing the Camera Setting Visual PTZ Panel Click the .button on the top left corner and select Visual PTZ, the following options will appear. PTZ Control Type: Two types of visual PTZ control panels are available. Type 1: Appears only when a movement of the cursor is detected and disappears when it is static.
Page 132: I/O Control
9.2.12 I/O Control Note this function is not available for Mini Fixed Dome. The I/O Control window provides a real-time graphic display of camera status, I/O status, and alarm events. Additionally, you can remotely force output to be triggered. Figure 9-14 •...
Page 133: Visual Automation
Accessing the Camera 9.2.13 Visual Automation Note this function is only available for Box Camera, Bullet Camera and Vandal Proof Camera. The Visual Automation allows you to change the current state of the electronic device by simply clicking on its image, e.g. turning the light ON. This feature is only available when the Visual Automation is set ahead by the Administrator.
Page 134: Network Status
9.2.14 Network Status To view the network status, in the left menu, click Network and select Status. Figure 9-16...
Page 135: Chapter 10 Administrator Mode
Administrator Mode Chapter 10 Administrator Mode The Administrator can access the system configuration through the network. Eight categories of configurations are involved in the system configuration: Video and Motion, I/O Control or Digital I/O and PTZ, Events and Alerts, Monitoring, Recording Schedule, Remote ViewLog, Network and Management.
Page 136 List of Menu Options Find the topic of interest by referring to the section number prefixed to each option. The available options vary among camera models. 10.1.1 Video Settings 10.1.2 Motion Detection 10.1.3 Privacy Mask 10.1 Video and Motion 10.1.4 Tampering Alarm 10.1.5 Visual Automation 10.2.1 Input Settings 10.2 Digital I/O and PTZ...
Page 137: Video And Motion
TV Out Note: Audio In Source is only available in BX110D, PTZ010D and PT110D. Mechanical Iris Adjustment is only available in GV-BX110D and GV-BL110D. TV Out is only available for Box Camera and Vandal Proof Camera. This section includes the video image settings and how the images can be managed through Motion Detection, Privacy Mask, Tampering Alarm and Visual Automation.
Page 138: Video Settings
10.1.1 Video Settings Figure 10-2...
Page 139 Rate 1280 x 960 15 fps 640 x 480 30 fps 320 x 240 Main 1280 x 1024 15 fps GV-BX110D 640 x 512 GV-MFD110 320 x 256 GV-BL110D 640 x 480 30 fps 320 x 240 640 x 512...
Page 140 640 x 480 320 x 240 640 x 360 16:9 448 x 252 640 x 512 320 x 256 1600 x 1200 1280 x 960 640 x 480 320 x 240 1920 x 1080 Main 1280 x 720 16:9 GV-BX220D 640 x 360 GV-BL220D 448 x 252...
Page 141 Administrator Mode 2048 x 1536 20 fps 1600 x 1200 1280 x 960 640 x 480 320 x 240 1920 x 1080 Main 1280 x 720 GV-BX320D 16:9 640 x 360 GV-BL320D 448 x 252 GV-VD320D GV-VD321D 1280 x 1024 30fps GV-VD322D 640 x 512...
Page 142 1280 x 960 15 fps 640 x 480 30 fps 320 x 240 Main 1280 x 1024 15 fps 640 x 512 GV-PT110D 320 x 256 640 x 480 4: 3 30 fps 320 x 240 640 x 512 5: 4 320 x 256 Note: The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
Page 143 Administrator Mode [Bandwidth Management] When using H.264 or MPEG4 it is possible to control the bitrate, which in turn allows the amount of bandwidth usage to be controlled. VBR (Variable Bitrate): The quality of the video stream is kept as constant as possible at the cost of a varying bitrate.
Page 144 Overlaid with date stamps: Includes date stamps on live and recorded videos. Overlaid with time stamps: Includes time stamps on live and recorded videos. Overlaid with digital input description: Includes the name of the selected input on live and recorded videos. [Watermark Setting] Enable this option to watermark all recordings.
Page 145 Administrator Mode D/N: Select Auto to allow the camera to switch automatically to monochrome images in a poorly-lit scene. You can also switch to either Black and White or Color images manually. BLC: Select On to enable Background Light Compensation (BLC). This function is used to adjust the color intensity of scenes with strong light at the background.
Page 146: Motion Detection
10.1.2 Motion Detection Motion detection is used to generate an alarm whenever movement occurs in the video image. You can configure up to 8 areas with different sensitivity values for motion detection. Figure 10-3 The default sensitivity value for the whole area is 2. To define a different sensitivity value, click Reset.
Page 147: Privacy Mask
Administrator Mode 10.1.3 Privacy Mask The Privacy Mask can block out sensitive areas from view, covering the areas with dark boxes in both live view and recorded clips. This feature is ideal for locations with displays, keyboard sequences (e.g. passwords), and for anywhere else you don’t want sensitive information visible.
Page 148: Tampering Alarm
10.1.4 Tampering Alarm Note this function is only available for Box Camera, Mini Fixed Dome, Bullet Camera and Vandal Proof Camera. The Tampering Alarm is used to detect whether a camera is being physically tampered. An alarm can be generated when the camera is moved, covered up, or out of focus.
Page 149 Administrator Mode To configure the tampering alarm: Select the Enable option. If you want the camera to ignore any movement or scene change in certain areas, click the button to drag areas on the camera view. Select the desired detection sensitivity by moving the slider. The higher the value, the more sensitive the camera is to scene changes.
Page 150: Visual Automation
10.1.5 Visual Automation Note this function is only available for Box Camera, Bullet Camera and Vandal Proof Camera. This intuitive feature helps you automate any electronic device by triggering the connected output device. When you click on the image of the electronic device, you can simply change its current state, e.g.
Page 151 Administrator Mode Click the Save Set button to apply the settings. To perform the function, see 9.2.13 Visual Automation.
Page 152: I/O Settings
10.2 I/O Settings Note the I/O function is only available for Box Camera, Bullet Camera, PTZ Camera, PT Camera and Vandal Proof Camera. After installing the I/O device, you need to enable the I/O settings on the camera. For how to install the I/O device on the camera, see the following reference sections: GV-IPCAM H.264 Reference section...
Page 153 Input On point before returning to the Input Off point. Note: The Box Camera (GV-BX110D) only supports the wet-contact input device (7V~30V). The Box Camera (GV- BX120D/BX220D/BX320D), Bullet Camera, PTZ Camera and PT Camera support dry-contact input device.
Page 154: Output Settings
10.2.2 Output Settings Select Enable to start the output device. Choose the output signal that mostly suits the device you are using: N/O (Open Circuit), N/C (Grounded Circuit), N/O Toggle, N/C Toggle, N/O Pulse or N/C Pulse. For Toggle output type, the output continues to be triggered until a new input trigger ends the output.
Page 155: Ptz Settings
Administrator Mode 10.2.3 PTZ Settings Note this function is only available in PTZ Camera and PT Camera. You can change the image settings, configure sequences, and access settings including autopan speed, motor reset, digital zoom and system default loading. For details, see Accessing the VISCA OSD Configuration in 5.8.3 PTZ Camera Settings.
Page 156: Events And Alerts
10.3 Events and Alerts For the events of motion detection or I/O trigger, the Administrator can set up two trigger actions: 1. Send a captured still image by E-mail or FTP. 2. Notify Center Monitoring Station, Center V2 or VSM, by video or text alerts.
Page 157: E-Mail
Administrator Mode 10.3.1 E-mail After a trigger event, the camera can send the e-mail to a remote user containing a captured still image. Figure 10-11 [Enable] Select to enable the e-mail function. Sever URL/IP Address: Type the URL address or IP address of the SMTP Server.
Page 158 [Need authentication to login] If the SMTP Server needs authentication, enable this option and type a valid username and password to log in the SMTP server. [E-Mail Alarm Settings] You can choose to automatically send an e-mail alert under these conditions: tampering alarm (not available for PTZ and PT Camera), disk write error (Rec Error), hard disk full (HD Full) and motion detection.
Page 159: Ftp
Administrator Mode 10.3.2 FTP You can also send the captured still image to a remote FTP server for alerts. Figure 10-12 [Upload to an FTP Server] Enable: Select to enable the FTP function. Server URL/IP Address: Type the URL address or IP address of the FTP Server.
Page 160 Alerts Interval time in minute: Specify the interval between FTP alerts. The interval can be between 0 and 60 minutes. The option is useful for the frequent event occurrence by which any event triggers during the interval period will be ignored. [Alarm Settings] Motion Detection: When a motion is detected on the camera, a still image will be sent to the FTP Server.
Page 161: Center V2
Administrator Mode 10.3.3 Center V2 After a motion or an I/O triggered event, the central monitoring station Center V2 can be notified by live videos and text alerts. For the live monitoring through Center V2, you must already have a subscriber account on Center V2.
Page 162 To enable the Center V2 connection: 1. Activate Link: Enable the monitoring through Center V2. 2. Host Name or IP Address: Type the host name or IP address of Center V2. 3. Port Number: Match the port to the Port 2 value on Center V2. Or keep the default value 5551.
Page 163: Vsm
Administrator Mode 10.3.4 VSM After a motion or an I/O triggered event, the central monitoring station VSM can get notified by text alerts. For the monitoring through VSM, you must already have a subscriber account on VSM. A camera can connect up to 2 VSM simultaneously.
Page 164 Port Number: Match the port to the Port 2 value on VSM. Or keep the default value 5609. User Name: Type a valid username to log into VSM. Password: Type a valid password to log into VSM. Click Apply. The Connection Status should display “Connected” and connected time.
Page 165: Viewlog Server
Administrator Mode 10.3.5 ViewLog Server Note this feature is only available for Box Camera, Bullet Camera, PTZ Camera, PT Camera and Vandal Proof Camera. The ViewLog Server is designed for remote playback function. This server allows you to remotely access the recorded files saved at the GV-IPCAM H.264 and play back video with the ViewLog player.
Page 166: Rtsp / 3Gpp
10.3.6 RTSP / 3GPP The 3GPP Server enables video and audio streaming to your 3G-enabled mobile phone. Figure 10-16 Activate Link: Enable the 3GPP service. RTSP/TCP Port: Keep the default value 8554, or modify it if necessary. RTP/UDP Port: Keep the default range from 17300 to 17319, or modify it if necessary.
Page 167: Monitoring
Administrator Mode 10.4 Monitoring You can start monitoring manually, by schedule or by input trigger. Note: See Note for Connecting to GV-System at the beginning of the manual. Figure 10-17 [Manual] Manually activates motion detection and I/O monitoring. Select one of the following options and then click the Start button. Select all: Manually starts both motion detection and I/O monitoring.
Page 168 [Camera Status Icon] : On standby : Enabled for motion detection and input trigger : Recording is on.
Page 169: Recording Schedule
Administrator Mode 10.5 Recording Schedule The schedule is provided to activate recording and I/O monitoring on a specific time each day. 10.5.1 Recording Schedule Settings You can set the schedule for recording. Figure 10-18 Span 1- Span 3: Set a different recording mode for each time frame during the day.
Page 170: I/O Monitoring Settings
10.5.2 I/O Monitoring Settings Note this function is only available for Box Camera, Bullet Camera, PTZ Camera, PT Camera and Vandal Proof Camera. You can set the schedule for I/O monitoring to start. Figure 10-19 Span 1- Span 3: Set different time frames during the day to enable I/O monitoring.
Page 171: Remote Viewlog
Administrator Mode 10.6 Remote ViewLog Note this function is only available for Box Camera, Bullet Camera, PTZ Camera, PT Camera and Vandal Proof Camera. With the Remote ViewLog function, you can play back the files recorded at the GV-IPCAM H.264 over TCP/IP network. For the first-time user, you need to install the Remote ViewLog program from the Software DVD.
Page 172: Network
10.7 Network The Network section includes some basic but important network configurations that enable the camera to be connected to a TCP/IP network. 10.7.1 LAN According to your network environment, select among Static IP, DHCP and PPPoE. Figure 10-20...
Page 173 Administrator Mode [LAN Configuration] Dynamic IP address: The network environment has a DHCP server. This option should only be enabled if you know which IP address the camera will get from the DHCP server, or you have obtained a domain name from the DDNS service provider that always links to the camera’s changing IP address.
Page 174: Advanced Tcp/Ip
10.7.2 Advanced TCP/IP This section provides the advanced TCP/IP settings, including DDNS Server, HTTP port, HTTPS, streaming port, UPnP and QoS. Figure 10-21...
Page 175 DHCP Server or ISP (in xDSL connection) has changed. Before enabling the following DDNS function, the Administrator should have applied for a Host Name from the DDNS service provider’s website. There are 2 providers listed in the camera: GeoVision DDNS Server and DynDNS.org. To enable the DDNS function: Enable: Enable the DDNS function.
Page 176 Certificate and Private Key files and type the password if the .pem files are protected by password. Click Apply. The Web interface will be restarted and you will need to log in again. Note: The .pem file format is supported by Certificate and Private Key. [GV-IPCAM Streaming Port Settings] The VSS port enables connecting the camera to the GV-System.
Page 177: Ip Filter Settings
Administrator Mode 10.7.3 IP Filter Settings The Administrator can set IP filtering to restrict access to the camera. Figure 10-22 To enable the IP Filter function: Enable IP Filtering: Enable the IP Filter function. Filtered IP: Type one IP address or a range of IP addresses you want to restrict the access.
Page 178: Snmp Settings
10.7.4 SNMP Settings Note this function is only available in GV-BL120D / 220D / 320D and Vandal Proof Camera. The Simple Network Management Protocol (SNMP) allows you to monitor the status of the camera through SNMP network management software. Figure 10-23 Select Enable SNMPv1 SNMPv2c to enable the function.
Page 179 Administrator Mode To enable Read only community, type a community string to allow read-only access to the camera from the SNMP software. For a more secured connection, select Enable SNMPv3 to enable SNMP version 3. To enable access to SNMPv3 Read/Write community, type a community string.
Page 180: Management
10.8 Management The Management section includes the settings of data and time and user account. You can also view the firmware version and execute certain system operations. 10.8.1 Date & Time Settings The date and time settings are used for date and time stamps on the image. Figure 10-24...
Page 181 Administrator Mode [Date & Time on GV-IP Camera] Displays the current date and time on the camera. [Time Zone] Sets the time zone for local settings. Select Enable Daylight Saving Time to automatically adjust the camera for daylight saving time. Type the Start Time and End Time to enable the daylight saving function.
Page 182: Gps Maps Settings
10.8.2 GPS Maps Settings The Maps Settings allows you to see the location of your GV-IPCAM H.264 on Google maps, without a GPS device. To see the location of your camera on maps: It is required to sign up for a Google Maps API key before using the Google Maps.
Page 183 Administrator Mode Click Open. A warning message appears. Figure 10-27 Right-click the warning message and select Allow Blocked Content. The map will be displayed. The icon indicates the location of your camera. At the upper right corner you have options to view different map formats, such as Satellite and Hybrid.
Page 184: Storage Settings
10.8.3 Storage Settings Note this function is only available for Box Camera, Bullet Camera, PTZ Camera, PT Camera and Vandal Proof Camera. Based on Linux ext3 file system, the GV-IPCAM H.264 supports memory cards for video and audio recordings. You need to format the memory card by using the following Storage Settings.
Page 185 Administrator Mode [Disk Information] This section shows the details of the attached storage device. [Partition Information] This section shows the partition details of the attached storage device. To add a memory card: Insert the memory card to the camera. Click the Format button. After the format is complete, the partition information will display.
Page 186: User Account
10.8.4 User Account You can change the login name and password of Administrator and Guest. The default Administrator login name and password are admin; the default Guest login name and password are guest. To allow a Guest user log in without entering name and password, select Disable authentication for guest account.
Page 187: Log Information
Administrator Mode 10.8.5 Log Information The log information contains dump data that is used by service personnel for analyzing problems. Figure 10-31...
Page 188: Tools
10.8.6 Tools You can execute certain system operations and view the firmware version. Figure 10-32 [Host Settings] Enter a descriptive name for the camera. [Firmware Update] This field displays the firmware version of the camera. [System Settings] Load Default: Clicking the Load Default button to restore factory default settings.
Page 189 Administrator Mode Current Chipset Temperature inside the Camera: This function is available except for GV-BX110D and GV-MFD110. Displays the chipset temperature inside the camera. [Reboot] Clicking the Reboot button will make the camera perform software reset.
Page 190: Chapter 11 Recording And Playback
Chapter 11 Recording and Playback Note this chapter and the function is only available for Box Camera, Bullet Camera, PTZ Camera, PT Camera and Vandal Proof Camera. The GV-IPCAM H.264 can record video and audio directly to the memory card. You can play back the recorded files on the GV-System or over the TCP/IP network.
Page 191: Playback
Recording and Playback 11.2 Playback These methods are available to play back the video files recorded at the GV-IPCAM H.264: • Playback by using the memory card by connecting it directly to the GV-System through a memory card reader • Playback by using the Remote ViewLog function over the TCP/IP network •...
Page 192 Run ViewLog. Click the Advanced button , select Reload Database and click Video Server/Compact DVR. This dialog box appears. Figure 11-2 Click Add to assign the hard drive. Click OK to load the data to the ViewLog for playback. Note: IFS Driver supports Windows NT/2000/XP/Windows 7. For Windows 7, refer to ftp://geo-demo- japan.dipmap.com/Technotice/GV_IP_Devices/Run_IFS_Driver_Win7.pdf...
Page 193: Playback Over Network
Recording and Playback 11.2.2 Playback over Network With the Remote ViewLog function, you can play back the files recorded at the GV-IPCAM H.264 over TCP/IP network. The camera needs to allow the remote access with ViewLog Server activated. See 10.3.6 ViewLog Server. For the first-time user, run the Remote ViewLog program from the Software CD.
Page 194: Access To The Recorded Files Through Ftp Server
11.2.3 Access to the Recorded Files through FTP Server The built-in FTP Server allows you to download the recorded files saved on the memory card. You can play back the downloaded files of AVI format with any multimedia player. For details to download files, see [Act as FTP Server], 10.3.2 FTP.
Page 195 Recording and Playback On the Date Tree, select the date of Daylight Saving Time. A separate DST subfolder will be displayed as illustrated below. Figure 11-4 On the Video Event list, select desired events, and click the Play button to start. Note: The playback function is only compatible with the GV-System of version 8.3 and later.
Page 196: Chapter 12 Advanced Applications
WARNING: The interruption of power supply during updating causes not only update failures but also damages to the camera. In this case, please contact your sales representative and send your device back to GeoVision for repair.
Page 197: Using The Web Configuration Interface
Advanced Applications 12.1.1 Using the Web Configuration Interface In the Live View window, click the Show System Menu button (No. 8, Figure 9-3) and select Remote Config. This dialog box appears. Figure 12-1 Click the Browse button to locate the firmware file (.img) saved at your local computer.
Page 198: Using The Ip Device Utility
12.1.2 Using the IP Device Utility The IP Device Utility provides a direct way to upgrade the firmware to multiple units of GV-IPCAM H.264. Note the computer used to upgrade firmware must be under the same network of the camera. Insert the Software CD, select IP Device Utility, and follow the onscreen instructions to install the program.
Page 199 Advanced Applications Double-click one camera in the list. This dialog box appears. Figure 12-3 Click the Firmware Upgrade tab. This dialog box appears. Figure 12-4 Click the Browse button to locate the firmware file (.img) saved at your local computer. If you like to upgrade all the cameras in the list, select Upgrade all devices.
Page 200: Backing Up And Restoring Settings
12.2 Backing Up and Restoring Settings With the IP Device Utility included in the Software CD, you can back up the configurations in the GV-IPCAM H.264, and restore the backup data to the current camera or import it to another camera. To back up the settings: Run IP Device Utility and locate the desired camera.
Page 201 Advanced Applications To restore the settings: In Figure 12-3, click the Import Settings tab. This dialog box appears. Figure 12-6 Click the Browse button to locate the backup file (.dat). Select Upgrade all devices to import the settings into the same type of device in the same LAN.
Page 202: Restoring To Factory Default Settings
Please refer to the corresponding section of your camera type and follow the steps to restore factory default settings. Box Camera: GV-BX110D Unplug the power cable and the network cable to start. Press and hold the Default button (No. 4, Figure 2-1) on the back panel of the camera.
Page 203 Advanced Applications Mini Fixed Dome: Unplug the network cable to start. Unscrew the camera’s cover. Press and hold the Default button (No. 1, Figure 3-1). Power on the camera using the network cable. Wait until the network status LED turns off. This may take about 40 seconds. Soon after the network status LED turns off, release the Default button.
Page 204 Release the Default button and the process of loading default values is completed. Slightly push the camera module back and fasten the Fixing Screw. Replace a new Silica Gel Bag and fasten the camera’s cover immediately. PTZ and PT Camera There are two types of default settings: camera default settings and system default settings.
Page 205 Advanced Applications To load system default settings Unplug the power cable or the network cable (if it is also used as the power supply). Press and hold the Default button (No. 10, Figure 5-10). Power on the camera using the.power cable or the PoE cable. Hold the Default button until the two network LEDs fade.
Page 206 Vandal Proof Camera Unplug the power cable and the network cable to start. Use a pin to press and hold the Default button on the inner housing. Power on the camera using the power cable or the PoE cable. When the status LED turns on and off twice, release the default button and the process of loading default is completed.
Page 207: Verifying Watermark
Advanced Applications 12.4 Verifying Watermark The watermark is an encrypted and digital signature embedded in the video stream during the compression stage, protecting the video from the moment of creation. Watermarking ensures that an image is not edited or damaged after it is recorded. To enable the watermark function, see [Watermark Setting], 10.1.1 Video Settings.
Page 208: Running Watermark Proof
12.4.2 Running Watermark Proof Install Watermark Proof from the Software CD. After installation, a WMProof icon is created on your desktop. Double-click the created icon. The Water Mark Proof window appears. Click File from the menu bar, select Open and locate the recording (.avi).
Page 209: The Watermark Proof Window
Advanced Applications 12.4.3 The Watermark Proof Window Figure 12-7 The controls in the window: No. Name Description Open File Opens the recording. First Frame Goes to the first frame of the file. Play Plays the file. Previous Frame Goes to the previous frame of the file. Next Frame Goes to the next frame of the file.
Page 210: Chapter 13 Dvr Configurations
Chapter 13 DVR Configurations The GV-System provides hybrid solution, integrating the digital videos from IP cameras with other analog videos. For the digital videos, the GV-System provides the complete video management, such as video viewing, recording, playback, alert settings and almost every feature of the system. Following is the integration specifications: IP Camera Compatible version of GV-System...
Page 211 DVR Configurations • The maximum number of streams which the GV-IPCAM H.264 allows varies according to its type: Resolution GV-IPCAM H.264 Max. No. of Streams 1.3 M BX110D, MFD110, BL110D PTZ010D, PT110D BX120D, BL120D, VD120D, 1.3 M VD121D, VD122D, VD123D BX220D, BL220D, VD220D, VD221D, VD222D, VD223D BX320D, BL320D, VD320D,...
Page 212: Setting Up An Ip Camera
13.1 Setting up an IP Camera To set up the GV-IPCAM H.264 on the GV-System, follow these steps: On the main screen, click the Configure button, select General Setting, select Camera / Audio Install and click IP Camera Install. This dialog box appears. Figure 13-2 •...
Page 213 DVR Configurations Type the IP address, username and password of the IP camera. Select the camera brand and device from the drop-down lists. This dialog box appears. Figure 13-4 The GV-System will automatically query for the IP camera, and the status will be indicated as “Standby”.
Page 214 Resolution Supported Camera Firmware Main Stream Sub Stream Version (H.264) (MPEG4) GV-BX110D V1.00 to 1280 x 1024 320 x 240 GV-MFD110 V1.06 GV-BL110D V1.07 1280 x 1024 320 x 256 GV-BX120D V1.00...
Page 215 DVR Configurations GV-BX320D V1.00 GV-BL320D 2048 x 1536 320 x 240 GV-VD320D GV-VD321D V1.02 GV-VD322D GV-VD323D GV-PT110D V1.07 1280 x 1024 320 x 256 GV-PTZ010D-N V1.07 704 x 480 352 x 240 GV-PTZ010D-P V1.07 704 x 576 325 x 288 Figure 13-5 Port: Video streaming port number.
Page 216 Stream Number: You may have the option of single streaming only or both single and dual streaming. Codec type: You may have the option of MPEG4, JPEG, or H.264. If the selected camera supports dual streaming, the preview codec and recording codec can be set differently. Resolution: Select resolutions for preview and recording.
Page 217: Previewing Video And Setting Audio
DVR Configurations 13.1.1 Previewing Video and Setting Audio To preview video and activate audio, make sure the IP camera is connected, right-click the desired IP camera on the connection list and select Preview & Audio Setting. This dialog box appears. Figure 13-7 [Preview selected camera] Drop-down List: Select the desired camera for live preview.
Page 218 [Audio Setting] Monitor Sensitivity: Adjust the sensitivity of the audio that will be detected. The higher the value, the more sensitive the system is to the surrounding sound. Gain Control: Increase or decrease the gain of the microphone. Round-the-Clock Audio: Enables round-the-clock audio recording. The Rec Audio option must also be selected to enable this function.
Page 219 DVR Configurations Live-view key frame only: This option is available when the video codec of the IP camera is set to MPEG4 or H.264. You can choose to view the video of key frames instead of all frames on the live view. This option is related to the GOP setting of the IP camera.
Page 220: Remote Monitoring With Multi View
13.2 Remote Monitoring with Multi View You can use the Multi View to monitor and manage the GV-IPCAM H.264. 13.2.1 Connecting to the IP Camera On the Multi View window, click the Edit Host button. The Edit Host window appears. To create a host, click the New button.
Page 221: Remote Monitoring With E-Map
DVR Configurations 13.3 Remote Monitoring with E-Map You can use the Remote E-Map to monitor and manage the GV-IPCAM H.264. 13.3.1 Creating an E-Map for the IP Camera With the E-Map Editor, you can create an E-Map for the GV-IPCAM H.264. The E-Map Editor is available in the two applications: Main System and E- Map Server.
Page 222: Connecting To The Ip Camera
Click OK to save the settings. Expand the created host folder. Drag and drop the icons of camera and I/O devices onto the imported E-Map. Close the E-Map Editor. Click Yes when you are promoted to save the file. For details on creating an E-Map file on the E-Map Server, see “E-Map Server”, E-Map Application, DVR User’s Manual on the Surveillance System Software DVD.
Page 223: Chapter 14 Cms Configurations
CMS configurations Chapter 14 CMS Configurations This section introduces the related settings to enable connecting to the GV- IPCAM H.264 in the central monitoring stations Center V2, VSM and Dispatch Server. 14.1 Center V2 The Center V2 can monitor and manage the camera and I/O devices connected to the GV-IPCAM H.264.
Page 224 • To set the appropriate port connecting to the IP camera, click the Preference Settings button, select System Configure, click the Network tab, and select Accept connections from GV-Compact DVR, Video Server & IP Cam. Keep default port 5551, or modify it to match the Center V2 port on the IP camera.
Page 225 CMS configurations Manual close channel: Closes the triggered camera view manually. Close the camera view when motion stopped: Closes the triggered camera view automatically when motion stops. Post Motion: Specify the duration of the camera view remaining on the monitoring window after a motion stops. Camera send by I/O trigger will monitor: Specify the duration of the camera view remaining on the monitoring window when an I/O device is triggered.
Page 226: Vsm
14.2 VSM The VSM can monitor and manage the camera and I/O devices connected to the GV-IPCAM H.264. TCP/ IP IP Camera Text Data IP Camera Figure 14-4 • To set the appropriate port connecting to the IP camera, click Configure on the window menu, and select System Configure to display this dialog box.
Page 227: Dispatch Server
CMS configurations 14.3 Dispatch Server The Dispatch Server can manage the camera and I/O devices connected to the GV-IPCAM H.264, and distribute them to the Center V2. TCP/ IP Center V2 IP Camera Video Data Text Data Dispatch Server IP Camera Center V2 Figure 14-6...
Page 228 • To set the appropriate port connecting to the IP camera, click the Server Setting button on the toolbar, and select Allow GV IP devices to login as subscriber from port. Keep the default port as 5551, or modify it to match the Center V2 port on the IP camera. Figure 14-7 For further information on how to mange the video received from the IP camera, see GV-CMS Series User’s manual.
Page 229: Chapter 15 Mobile Phone Connection
Mobile Phone Connection Chapter 15 Mobile Phone Connection Using a PDA, Smartphone or 3G-enabled mobile phone, you can receive live video streaming from the GV-IPCAM H.264. The chart below lists the GV mobile applications supporting the GV-IPCAM H.264. Handheld Video Settings on OS Supported Default Port Device View...
Page 230 3GPPv7, Mobile phones with TCP Port: 8554 MSViewV2/V3, 3GPP players supporting UDP Port: SSViewV3 and RTSP 17300~17380 GViewV2 Supported Data Port: 8866 GV-AView V1 Android V2.2 HTTP Port: 80 VSS Port: 10000 Chart 1 Note: For the 3G-enabled mobile phone, you can receive live video from the camera without installing any GV mobile applications.
Page 231: Pda
GView V2 should be installed on a PDA device with Microsoft Windows Mobile operating system. Download and install Microsoft PDA Viewer V2 from http://www.geovision.com.tw/english/5_4.asp to the computer. Follow the on-screen instructions to complete the installation. The default installation directory is C:\Microsoft PDA Viewer V2.
Page 232: Activating The Gview Function
15.1.2 Activating the GView Function To allow remote access to the GV-IPCAM H.264, you must select 3GPPv7, MSViewV2/V3, SSViewV3 and GViewV2 Supported to be the connection type in the Connection Template field on the Video Settings page. See “Connection Template” in 10.1.1 Video Settings for details. Figure 15-1...
Page 233: Connecting To The Ip Camera
Mobile Phone Connection 15.1.3 Connecting to the IP Camera Once GView V2 is installed on your PDA, you can use it to monitor your GV-IPCAM H.264. Make sure your PDA has wireless LAN adapter properly in place with access to the Internet. Execute GView V2 on your PDA.
Page 234 Click the button located at the lower left corner. The login screen appears. Figure 15-3 Enter the IP address of your camera, port value (default value is 10000), a username and a password. Then click OK. Once the connection is established, the live image will appear.
Page 235: Playing Back The Recordings From The Ip Camera
Mobile Phone Connection 15.1.4 Playing Back the Recordings from the IP Camera To play back the recordings from the GV-IPCAM H.264, follow these steps: Enable the ViewLog Server on the camera. Keep the connection port to be 5552 or modify it if necessary. See 10.3.6 ViewLog Server for details.
Page 236: Other Functions
15.1.5 Other Functions In addition to live view and playback, GView V2 offers these functions: viewing / controlling I/O devices, PTZ control, adjusting image quality, and starting / stopping recording. On the live view screen, click the buttons on the toolbar to have the desired functions.
Page 237 Mobile Phone Connection Click it to start or stop recording. Click it to display the camera status. The supervisor is given the highest priority to control the PTZ camera and is not restrained by the 60-second time limit. When the supervisor logs in, the Timer shows 999.
Page 238 Figure 15-7 Button Description Click it to view the log of input triggers. Click it to display and force the connected output devices. Viewing Input-Triggered Events All input triggers are logged on the Alarm list. Click the “I” button to view the list of trigger events.
Page 239 Mobile Phone Connection Forcing Outputs To force any connected output devices, click the “O” button to, and click the desired number. The numbers on the toolbar indicate the connected output devices. Figure 15-9 Controlling PTZ Cameras To control the PTZ camera, use the drop-down list to select the desired camera, and click the button on the live view screen (Figure 15-5).
Page 240 Button Description Click it to return to the previous page. Use these buttons to move the PTZ camera to the left, up, down and right Click it to return to home. Viewing Camera Status To view the camera status, click the button on the live view screen (Figure 15-5).
Page 241: Windows Smartphone
15.2.1 Installing MSView V2 / V3 Download and install Microsoft Smartphone Viewer V2 or Microsoft Smartphone Viewer V3 from http://www.geovision.com.tw/english/5_4.asp to the computer. Follow the on-screen instructions to complete the installation. The default installation directory is C:\SmartPhone Viewer V2 or C:\SmartPhone Viewer V3.
Page 242: Activating The Msview V2 / V3 Function
15.2.2 Activating the MSView V2 / V3 Function To allow remote access to the GV-IPCAM H.264, you must select 3GPPv7, MSViewV2/V3, SSViewV3 and GViewV2 Supported to be the connection type in the Connection Template field on the Video Settings page. See “Connection Template”...
Page 243: Connecting To The Ip Camera
Mobile Phone Connection 15.2.3 Connecting to the IP Camera The following operations may vary slightly for different modules. Execute MSViewV2.exe or MSViewV3.exe on your Smartphone. Figure 15-13 Click Type and then Live. Figure 15-14...
Page 244 On the login screen, enter the IP address of your camera, port value (default value is 10000), a username and a password. Then click Control and select Connect. Figure 15-15 Once the connection is established, the live image will appear. You can use the scroll key on your Smartphone to navigate camera channels.
Page 245: Playing Back The Recordings From The Ip Camera
Mobile Phone Connection 15.2.4 Playing Back the Recordings from the IP Camera To play back the recordings from the GV-IPCAM H.264, follow these steps: Enable ViewLog Server on the camera. Keep the connection port to be 5552 or modify it if necessary. See 10.3.6 ViewLog Server for details.
Page 246: Other Functions
15.2.5 Other Functions In addition to live view, MSView V2 or MSView V3 offers these functions: zooming in/out a camera view, rotating images and controlling outputs. Select the Control option to have these features.
Page 247: Symbian Smartphone
15.3.1 Installing SSView V3 To install SSView Version 3 for Nokia S60 2nd and 3rd Edition: Download and install Symbian Smartphone Viewer V3 from http://www.geovision.com.tw/english/5_4.asp to the computer. Follow the on-screen instructions to complete the installation. The default installation directory is C:\Symbain SmartPhone Viewer V3.
Page 248: Activating The Ssview V3 Function
15.3.2 Activating the SSView V3 Function To allow remote access to the GV-IPCAM H.264, you must select 3GPPv7, MSViewV2/V3, SSViewV3 and GViewV2 Supported to be the connection type in the Connection Template field on the Video Settings page. For details, see “Connection Template” in 10.1.1 Video Settings. Figure 15-18...
Page 249: Connecting To The Ip Camera
Mobile Phone Connection 15.3.3 Connecting to the IP Camera The following operations may vary slightly for different modules. Execute SSView on your Smartphone. When the message SSView V3 appears, select Options, and select Live Connect. The login screen appears. Figure 15-19 Enter the IP address of your camera, port value (default value is 10000), a username and a password.
Page 250: Quick Connection
15.3.4 Quick Connection The IP addresses of connected servers can be stored for quick connection in the future. Press the [<] and [>] buttons on the mobile device to select the desired camera for connection. 15.3.5 Playing Back the Recordings from the IP Camera To play back the recordings from the GV-IPCAM H.264, follow these steps: Enable ViewLog Server on the camera.
Page 251: Other Functions
Mobile Phone Connection Enter the IP address of your camera, port value (default value is 5552), a username and a password. Then click Options and select Video Server. Select the desired video recording from the event list for playback. 15.3.6 Other Functions In addition to live view, SSView offers these functions: changing camera channels, zooming in a camera view, rotating images and controlling outputs.
Page 252: Mobile Phone
15.4 3G Mobile Phone Without installing any GV applications, you can use a 3G mobile phone to access GV-IPCAM H.264 directly. 15.4.1 Activating the 3G Mobile Phone Function To allow remote access to the GV-IPCAM H.264, follow the steps below: Select 3GPPv7, MSViewV2/V3, SSViewV3 and GViewV2 Supported to be the connection type in the Connection Template field on the Video Setting page.
Page 253: Connecting To The Ip Camera
Mobile Phone Connection 15.4.2 Connecting to the IP Camera Open the Internet browser in the mobile phone, and enter the IP address of your camera, a user name and a password. Then click Apply to connect. Figure 15-24 After the connection is established, an image similar to this example appears.
Page 254 Select the desired channel. Its live image will appear. Figure 15-26 Note: Currently the 3GPP application does not support remote playback and I/O control.
Page 255: Android Smartphone
Mobile Phone Connection 15.5 Android Smartphone GV-AView V1 is a remote view application for Android smartphone. You can access the GV-IPCAM H.264 using Android version 2.2. For the supported operating system version, see Chart 1. Download GV-AView V1 from Android Market and i, and after installing the application., Tthe GV-AView icon will appear on the desktop.
Page 256: Connecting To Gv-Ipcam H.264
15.5.1 Connecting to GV-IPCAM H.264 Double-tap the GV-AView icon on the main page. Figure 15-28 Press the Menu button on the mobile phone and then tap the Add button . The login page appears. Figure 15-29...
Page 257 Mobile Phone Connection Type the name, IP address, port number, user name and password of the GV IP device. You can press the Menu button on the mobile phone and tap the Version button to see the version information or tap the Address Book button to see the address book.
Page 258 The following function buttons are available on the bottom of the screen. Snapshot : Saves the current image in the mobile device. PTZ Control : Enables the PTZ function. A message will appear asking if you want to use Gesture Detector to control PTZ. Tap OK if you want to be able to drag across the live view screen to control the PTZ function in addition to using the PTZ control buttons on the bottom of the screen.
Page 259: Specifications: Box Camera
Specifications: Box Camera Specifications: Box Camera Camera GV-BX110D 1/3" progressive scan CMOS GV-BX120D Image Sensor GV-BX220D 1/2.5” progressive scan CMOS GV-BX320D GV-BX110D 1280 (H) x 1024 (V) GV-BX120D Picture Elements GV-BX220D 1920 (H) x 1080 (V) GV-BX320D 2048 (H) x 1536 (V) 1 Lux (1/60 sec), 0.1 Lux (1/5...
Page 260 (Balanced, Speed Priority, Quality Priority) Shutter GV-BX120D Speed Manual (1/5 ~ 1/8000 sec), Automatic GV-BX220D GV-BX320D White Balance Manual (2800K ~ 8500K), Automatic Fixed Focal Lens (GV-BX110D Only) Megapixel IR Support Iris Fixed Iris Focal Length 4.0 mm ± 5% Aperture F/1.5...
Page 261 Specifications: Box Camera Varifocal Lens Megapixel IR Support Iris DC Drive GV-BX110D 4 ~ 9 mm GV-BX120D 2.8 ~ 12 mm Focal Length GV-BX220D 2.8 ~ 8.5 mm GV-BX320D 3.1 ~ 8 mm GV-BX110D F/1.4 GV-BX120D Max. Aperture GV-BX220D GV-BX320D F/1.2...
Page 262 Video Codec H.264, MPEG4, MJPEG Dual Streams from two of H.264, MPEG4 Video Streaming and MJPEG 15 fps at 1280 x 1024, GV-BX110D 30 fps at 640 x 512 GV-BX120D 30 fps at 1280 x 1024 Frame Rate GV-BX220D 30 fps at 1920 x 1080...
Page 263 1280 x 960, 640 x 480, 320 x 240 Main Stream 1280 x 1024, 640 x 512, 320 x 256 GV-BX110D 640 x 480, 320 x 240 Stream 640 x 512, 320 x 256 1280 x 960, 640 x 480, 320 x 240...
Page 264 DC drive Local Connectors Micro SD / SDHC memory card slot Storage TV-Out BNC connector 5-pin terminal block, pitch GV-BX110D 3.5 mm / 0.14 in GV-BX120D Digital I/O 3-pin terminal block, pitch GV-BX220D 2.5 mm / 0.1 in GV-BX320D 1 LED with two colors...
Page 265 0°C ~ 50°C / 32 °F ~ 122 °F Humidity 10% to 90% (no condensation) Power Source 12V DC / PoE 7.2 W (max. 600 mA at 12V GV-BX110D GV-BX120D Power Consumption 5 W (max. 416 mA at 12V GV-BX220D GV-BX320D...
Page 266 Web Interface Installation Management Web-based configuration Firmware upgrade through Web Browser or Maintenance Utility Camera live view, video recording, change video quality, bandwidth control, image Access from Web Browser snapshot, digital I/O control, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese /...
Page 267: Specifications: Mini Fixed Dome
Specifications: Mini Fixed Dome Specifications: Mini Fixed Dome Camera Image Sensor 1/3" progressive scan CMOS Picture Elements 1280 (H) x 1024 (V) Min. 1.5 Lux (1/60 sec), 0.2 Lux (1/5 sec), Color Illumination (30 IRE, F/1.8, AGC-On, slow shutter-Off) Manual (1/5 ~ 1/4000 sec), Automatic Shutter Speed (Balanced, Speed Priority, Quality Priority) White Balance...
Page 268 Auto Exposure, Auto White Balance, Brightness, Contrast, Sharpness, Image Setting Gamma, Monochrome, Reverse, Rotate 180°, Flicker-less 50/60 Hz Audio Codec G.711 Note: The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). Network Interface 10/100 Ethernet...
Page 269 Specifications: Mini Fixed Dome General Operating Temperature 0°C ~ 50°C / 32°F ~ 122°F Humidity 10% - 90% (no condensation) Power Source Power Consumption 5.8 W Regulatory CE, FCC, RoHS compliant Dimensions ø 106 x 54.4 mm / 4.2 x 2.1 in Weight 212 g / 0.47 lb Web Interface...
Page 270: Specifications: Bullet Camera
Specifications: Bullet Camera Camera GV-BL110D 1/3" progressive scan CMOS GV-BL120D Image Sensor GV-BL220D 1/2.5’’ progressive scan CMOS GV-BL320D GV-BL110D 1280 (H) x 1024 (V) GV-BL120D Picture Elements GV-BL220D 1920 (H) x 1080 (V) GV-BL320D 2048 (H) x 1536 (V) 1 Lux (1/60 sec), 0.1 Lux (1/5 GV-BL110D sec), (30 IRE, F/1.3, AGC-On, slow shutter-Off)
Page 271 Specifications: Bullet Camera Manual (2800K ~ 8500K), GV-BL110D Automatic GV-BL120D White Balance GV-BL220D Manual, Automatic GV-BL320D Lens Megapixel Day / Night support F/1.3 ± 5% Max. Aperture Focal Length 3.6 ~ 9 mm Diagonal 93° (W) ~ 38° (T) ± 5° BL110D Horizontal 73°...
Page 272 Operation Video Codec H.264, MPEG4, MJPEG Dual Streams from two of H.264, MPEG4 Video Streaming and MJPEG 15 fps at 1280 x 1024 GV-BL110D 30 fps at 640 x 512 GV-BL120D 30 fps at 1280 x 1024 Frame Rate GV-BL220D 30 fps at 1920 x 1080 GV-BL320D 20 fps at 2048 x 1536...
Page 273 Specifications: Bullet Camera Video Resolution 1280 x 960, 640 x 480, 320 x 240 Main Stream GV-BL110D 1280 x 1024, 640 x 512, 320 x 256 640 x 480, 320 x 240 Stream 640 x 512, 320 x 256 1280 x 960, 640 x 480, 320 x 240 Main 16:9 1280 x 720, 640 x 360, 448 x 252...
Page 274 Network Interface 10/100 Ethernet HTTP, HTTPS, TCP, UDP, SMTP, FTP, Protocol DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA and SNMP Note: HTTPS and SNMP are available in GV-BL120D/220D/320D only. Mechanical Lens Mounting ø 14 mm Power 3-pin terminal block Ethernet RJ-45 1 In (RCA female for microphone) Audio...
Page 275 Specifications: Bullet Camera Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PSE PoE Power Supply Type End-Span PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts Web Interface Installation Management Web-based configuration Firmware upgrade through Web Browser Maintenance or Utility Camera live view, video recording, change...
Page 276: Specifications: Ptz Camera
Specifications: PTZ Camera Camera Model Name GV-PTZ010D-N GV-PTZ010D-P Image Sensor 1/4" CCD image sensor Picture Elements 704 (H) x 480 (V) 704 (H) x 576 (V) Color 2.5 Lux (50 IRE, F/1.8) Min. Illumination 0.07 Lux (50 IRE, F/1.8) Manual (1/60 ~ Manual (1/50 ~ Shutter Speed 1/120,000 sec),...
Page 277 Specifications: PTZ Camera Operation Model Name GV-PTZ010D-N GV-PTZ010D-P Video Format NTSC Video Codec H.264, MPEG4, MJPEG Dual Streams from two of H.264, Video Streaming MPEG4 and MJPEG 704 x 480 704 x 576 Main Stream 704 x 240 704 x 288 Video 352 x 240 352 x 288...
Page 278 Mechanical Power 2-pin terminal block Ethernet RJ-45 1 In (Using a built-in or an externally connected microphone) Connectors Audio 1 Out (Stereo phone jack, 3.5 mm / 0.14 in) Local Storage Micro SD / SDHC memory card slot Digital I/O 3-pin terminal block LED Indicator 2 LEDs: Power and Status...
Page 279 Specifications: PTZ Camera Power over Ethernet IEEE 802.3af Power over Ethernet / PoE Standard PoE Power Supply Type End-Span Per Port 48V DC, 350mA. Max. 15.4 PoE Power Output watts Web Interface Installation Management Web-based configuration Firmware upgrade through Web Maintenance Browser or Utility Camera live view, video recording,...
Page 280: Specifications: Pt Camera
Specifications: PT Camera Camera Image Sensor 1/3" progressive scan CMOS Picture Elements 1280 (H) x 1024 (V) 1.5 Lux (1/60 sec) Color 0.2 Lux (1/5 sec) (30 IRE, F1.5, AGC- Min. On, slow shutter-Off) Illumination 0 Lux (1/60 sec) (50 IRE, F/1.5, AGC- On, slow shutter-Off) IR ON Manual (1/5 ~ 1/4000 sec), Automatic...
Page 281 Specifications: PT Camera Focus Manual (w/lock) Operation Zoom None Iris Fixed Operation Video Codec H.264, MPEG4, MJPEG Dual Streams from two of H.264, Video Streaming MPEG4 and MJPEG 1280 x 960, 640 x 480, 320x 240 Main Stream 1280 x 1024, 640 x 512, 320 x 256 Video Resolution 640 x 480, 320x 240...
Page 282 Mechanical Power 2-pin terminal block Ethernet RJ-45 1 In (Using a built-in or an externally connected microphone) Audio Connectors 1 Out (Stereo phone jack, 3.5 mm / 0.14 Local Storage Micro SD / SDHC memory card slot Digital I/O 3-pin terminal block LED Indicator 2 LEDs: Power and Status Camera Angle Adjustment...
Page 283 Specifications: PT Camera Power over Ethernet IEEE 802.3af Power over Ethernet / PoE Standard PoE Power Supply Type End-Span Per Port 48V DC, 350mA. Max. 15.4 PoE Power Output watts Web Interface Installation Management Web-based configuration Firmware upgrade through Web Maintenance Browser or Utility Camera live view, video recording,...
Page 284 Specifications: Vandal Proof Camera Camera GV-VD120D GV-VD121D 1/3" progressive scan CMOS GV-VD122D GV-VD123D GV-VD220D Image GV-VD221D Sensor GV-VD222D GV-VD223D 1/2.5’’ progressive scan CMOS GV-VD320D GV-VD321D GV-VD322D GV-VD323D GV-VD120D GV-VD121D 1280 (H) x 1024 (V) GV-VD122D GV-VD123D Picture Elements GV-VD220D GV-VD221D 1920 (H) x 1080 (V) GV-VD222D GV-VD223D...
Page 285 Specifications: Vandal Proof Camera GV-VD320D GV-VD321D 2048 (H) x 1536 (V) GV-VD322D GV-VD323D 0.15 Lux (1/30 sec), 0.08 Lux (1/5 GV-VD120D Color sec) GV-VD121D GV-VD122D 0 Lux IR ON GV-VD123D GV-VD220D 1 Lux (1/30 sec), 0.5 Lux (1/5 GV-VD221D Color Min.
Page 286 Lens Megapixel Day / Night Support F/1.3 ± 5% Max. Aperture Focal Length 2.7 ~ 9 mm GV-VD120D Diagonal 126° (W) ~ 38.2° (T) ± 5° GV-VD121D Horizontal 98.5° (W) ~ 29.8° (T) ± 5° GV-VD122D Vertical GV-VD123D 78.7° (W) ~ 23.9° (T) ± 5° GV-VD220D Diagonal 101°...
Page 287 Specifications: Vandal Proof Camera Operation H.264, MPEG4, MJPEG Video Codec Dual Streams from two of H.264, MPEG4 and Video Streaming MJPEG GV-VD120D GV-VD121D 30 fps at 1280 x 1024 GV-VD122D GV-VD123D GV-VD220D GV-VD221D Frame 30 fps at 1920 x 1080 Rate GV-VD222D GV-VD223D...
Page 288 Video Resolution 1280 x 960, 640 x 480, 320 x 240 Main Stream 16:9 1280 x 720, 640 x 360, 448 x 252 GV-VD120D 1280 x 1024, 640 x 512, 320 x 256 GV-VD121D GV-VD122D 640 x 480, 320 x 240 GV-VD123D Sub Stream 16:9 640 x 360, 448 x 252...
Page 289 Specifications: Vandal Proof Camera Mechanical Lens Mounting ø 14 mm Rotation Axis 3-axis (pan / tilt / roll) Power 2-pin terminal block Ethernet RJ-45 1 In (RCA female for microphone) Audio 1 Out (RCA female for speaker) Connectors Digital I/O I/O Wires Auto Iris DC Drive...
Page 290 Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PSE PoE Power Supply Type End-Span PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts Web Interface Installation Management Web-based configuration Firmware upgrade through Web Browser or Maintenance Utility Camera live view, video recording, change...
Page 291 Appendix Appendix A. Supported Lenses for Box Camera Provider Model No. RV0409D.IR Fujian Forecam Optics RV0515D.IR RV0820D.IR EVD03618F-IR EVD04218F-IR EVD06018F-IR EVETAR EVD08018F-IR EVD12018F-IR EVD16018F-IR Pentax TS3VP213ED-M...
Page 292 B. Settings for Internet Explore 8 If you use Internet Explorer 8, it is required to complete the following setting. Set the Security to Medium-high (default). Enable Allow previously unused ActiveX controls to run without prompt. Disable Only allow approved domains to use ActiveX without prompt.
Page 293 Appendix C. RTSP Protocol Support The GV-IPCAM H.264 can support RTSP protocol for video streaming. For the RTSP command, enter: rtsp://<IP of the GV-IPCAM H.264:8554/<CH No.>.sdp For example, rtsp://192.168.3.111:8554/CH001.sdp Note the RTSP streaming provides source video images only.

This manual is also suitable for:

Gv-bx120d Gv-mfd110 Gv-bl110d Gv-bx220d Gv-bl120d Gv-bl220d ... Show all

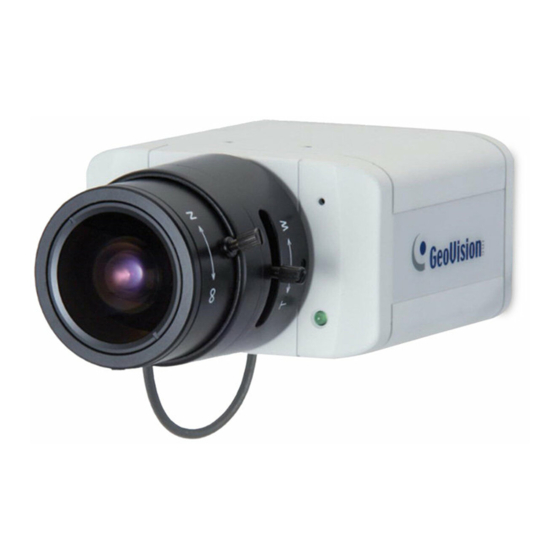

GeoVision GV-BX110D User Manual

Naming and Definition

Options

Note for Connecting to GV-System

Note for Firmware Upgrade

Chapter 1 Introduction

Chapter 2 Box Camera

Chapter 3 Mini Fixed Dome

Chapter 4 Bullet Camera

Chapter 5 PTZ Camera

Chapter 6 PT Camera

Chapter 7 Vandal Proof Camera

Chapter 8 Getting Started

Chapter 9 Accessing the Camera

Chapter 10 Administrator Mode

Chapter 11 Recording and Playback

Chapter 12 Advanced Applications

Chapter 13 DVR Configurations

Chapter 14 CMS Configurations

Chapter 15 Mobile Phone Connection

Specifications: Box Camera

Specifications: Mini Fixed Dome

Specifications: Bullet Camera

Specifications: PTZ Camera

Quick Links

Need help?

Questions and answers

Related Manuals for GeoVision GV-BX110D

Summary of Contents for GeoVision GV-BX110D
