DS1098-038D

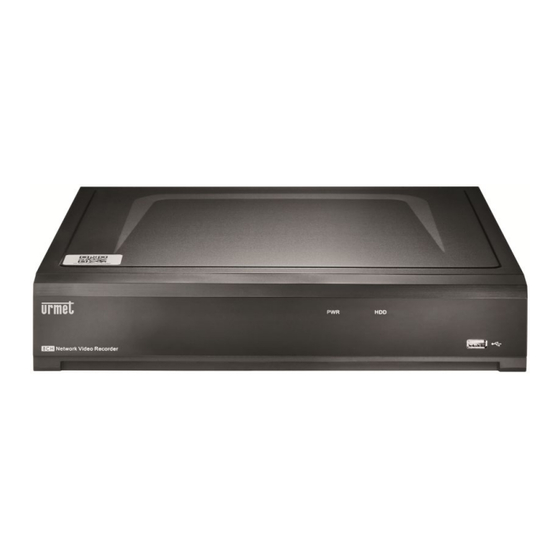

NVR H.265 WITH HDMI

NVR 4K H.265 SERIES PRO

4 channels Ref. 1098/324P

8 channels Ref. 1098/328P

16 channels Ref. 1098/326P

USER MANUAL

Mod.

1098

Table of Contents

Need help?

Do you have a question about the 1098/324P and is the answer not in the manual?

Questions and answers

Summary of Contents for urmet domus 1098/324P

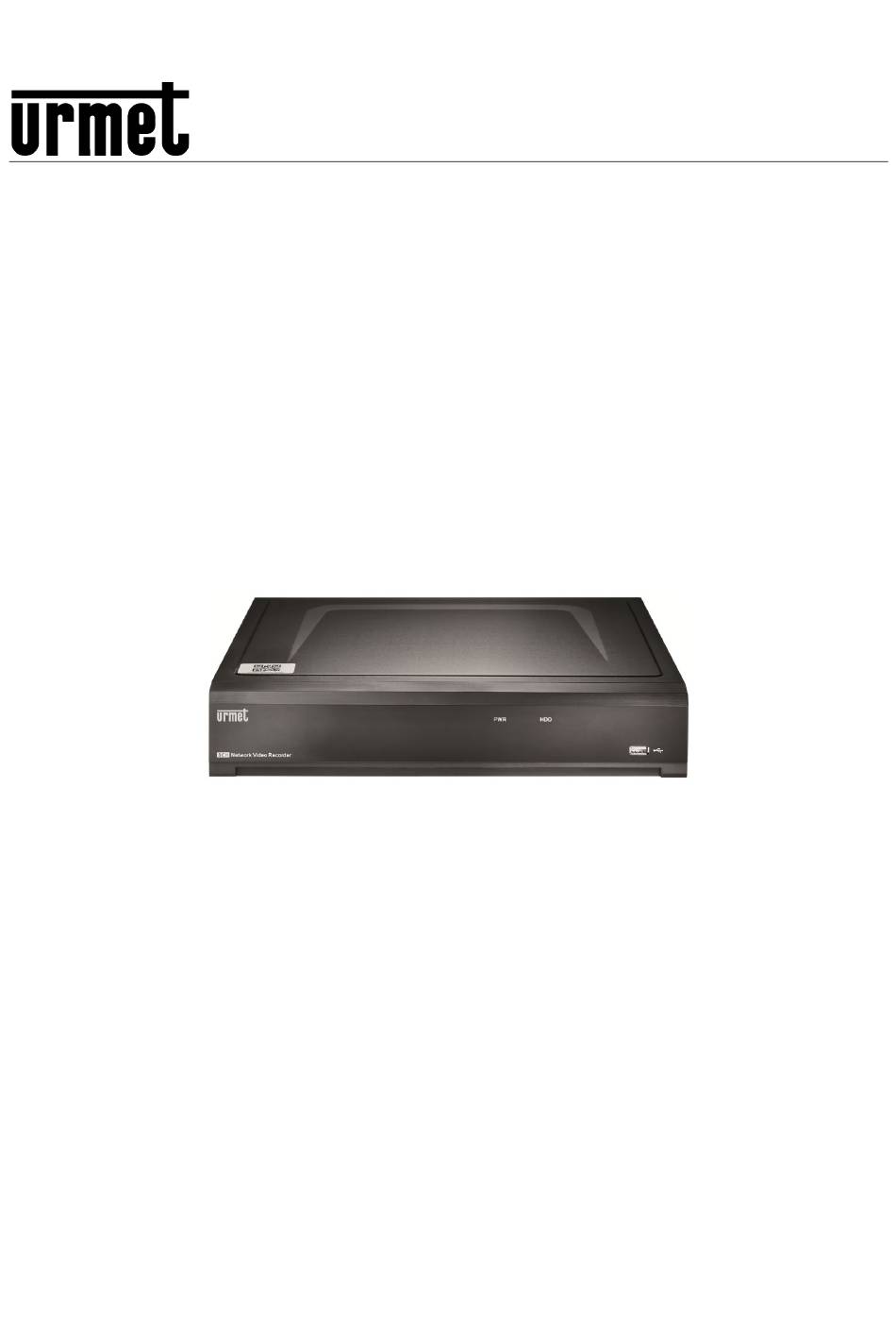

Page 1 Mod. 1098 DS1098-038D NVR H.265 WITH HDMI NVR 4K H.265 SERIES PRO 4 channels Ref. 1098/324P 8 channels Ref. 1098/328P 16 channels Ref. 1098/326P USER MANUAL...
Page 2: Table Of Contents
Privacy and Copyright ............................8 Description of the parts ........................... 9 Front panel ..........................9 Front panel NVR Ref. 1098/324P, 1098/328P, 1098/326P................9 Rear panel ..........................9 Rear panel NVR Ref. 1098/324P ........................9 Rear Panel NVR Ref.1098/328P ........................9 Rear panel NVR Ref.
Page 3 Voice Prompts ..............................46 3.6.9.1 File Management............................46 3.6.9.2 Loop Management ............................47 Deterrence ..............................48 Siren ................................50 Disarming ............................... 50 AI ............................52 Setup ................................52 3.7.1.1 Face Detection ............................52 3.7.1.2 PD & VD Pedestrian & Vehicle Detection ....................53 3.7.1.3 PID Perimeter Intrusion Detection .......................
Page 4 Platform Access ............................131 3.9.6.1 Onvif ................................131 3.9.6.2 RTMP ................................ 131 3.9.6.3 Event push ..............................132 3.10 Device ........................... 133 Disk Manage ..............................133 3.10.1.1 Disk Manage ............................. 133 3.10.1.2 S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) information ........135 Cloud ................................
Page 5 Network ................................ 208 Device ................................212 System ................................. 214 Local Setting ......................... 222 Logout ........................... 223 NVR Specifications Ref. 1098/324P-1098/328P-1098/326P (Pal format) .......... 224 Maximum recording time ........................225 Recording alarm setting ........................226 Troubleshooting ........................... 226 Maintenance ............................227...
Page 6: General Information
Thank you for purchasing this product. This quick start guide was written to help you set up the NVR Series PRO URMET S.p.A, Ref. 1098/324P - Ref. 1098/328P - Ref. 1098/326P models rapidly and easily. Carefully read this manual which contains information for correct, safe use.
Page 7: Opening The Package
Power supply unit • INPUT ⇒ 100-240 Vac 50/60Hz OUTPUT 48Vcc 3.75A for Ref.1098/326P ⇒ 48Vcc 2A for Ref. 1098/328P ⇒ 48Vcc 1.2A for Ref. 1098/324P ⇒ • Shuko plug Italian plug • • One mouse • LAN CAT.5 network cable Quick Guide •...
Page 8: Warnings
PRIVACY AND COPYRIGHT The digital video recorder Series PRO Ref. 1098/324P - Ref. 1098/328P - Ref. 1098/326P is a device for CCTV  systems. Recording of images is subject to the laws in force in your country. Recording of images protected by copyright is forbidden.
Page 9: Description Of The Parts
DESCRIPTION OF THE PARTS FRONT PANEL NVR stands for Network Video Recorder Equipment. FRONT PANEL NVR REF. 1098/324P, 1098/328P, 1098/326P. Writing or Number Symbol Function and description indicator Power indicator The green LED on means that the NVR is powered correctly.
Page 10: Rear Panel Nvr Ref. 1098/326P
REAR PANEL NVR REF. 1098/326P SENSOR/ALARM FUNCTIONS Alarm input: Connect signal [-] of the sensor to pin G (GND) and the signal [+] to the input of channel 1...16 as  alarm device. Alarm output: Connect to the two ports marked with “ALARM OUT” ...
Page 11: Osd Nvr Menu Settings
OSD NVR MENU SETTINGS After having plugged in the NVR, the system will run the initialisation procedures during which the following image will appear: At the end of the boot-up, the NVR will switch to Live view. FIRST NVR LOGIN The first time the NVR is switched on, the password must be set immediately to safeguard your privacy.
Page 12: Live Interface And Pop-Up Menu
NOTE: If you forget your password, you can reset it via the hole (RESET) located at the rear of the NVR. Pressing it should last 10 seconds after which there is an audible warning (3 beeps) and the device restarts. This operation will also reset the device to factory settings.
Page 13: Taskbar
This icon indicates the hard disk (HDD) is full. This icon indicates the hard disk (HDD) is read-only. This icon indicates that the hard disk drive (HDD) was not found. Preview Playback events: This displays a pop-up window or event bar on the LIVE Preview (with playback which can be called from each event preview, video intelligence and alarm, detected by NVR).
Page 14: Shutdown / Reboot / Lock Screen Menu
Click to zoom into the channel. When the icon appears, press and hold the left button of your mouse to drag the area you want to zoom into. Click to adjust the image colour of the channel. You can adjust the HUE, BRIGHT, CONTRAST, SATURATION & SHARPNESS of the image.
Page 15 Note: Administrator has full authority over Main Menu operations and has an authority to limit common user’s operation.  DS1098-038D...
Page 16: Ptz Control
PTZ CONTROL After finishing the PTZ setup, you can use the PTZ function to control your PTZ camera. Left-click on a channel in the Live Viewing screen to open the Camera Quick Toolbar and select the PTZ control icon PTZ control panel will be displayed. Icon Description Channel...
Page 17: Cruise Set
CRUISE SET Open Auto Cruise function on PTZ setting menu if you want to setup cruise function (system default: off), and set up Cruise channel, Cur point and total quantity and stop time etc. How to set a preset point: Total: Set up preset point quantity.
Page 18: To Search For A Tag Record Event
Warning: User can select [General], [Sub-periods] and [Smart] options on the [Search] page and set the Tag event record. TO SEARCH FOR A TAG RECORD EVENT Click on Start Menu Setup  Search  Tag on the Tag event search page, then set Start Time, End Time, and Channel. Click on to view the list of event tags.
Page 19 Playback: Click on to play the Tag recording event. Edit: Click on to modify the Tag name. Delete: Click on to delete the Tag recording event. DS1098-038D...
Page 20: Main Menu
MAIN MENU All the NVR functions can be accessed from the Main Menu. If you have not logged in (main menu locked mode), you will need to enter Username and Password as shown in the following figure: For System Login press Unlock button. Pressing the Pattern button will allow access to the main menu via the unlocking pattern if it was set during the first access.
Page 21: Ip Channels
3.4.1.1 IP Channels The IP cameras are configured by selecting IP Channels on the side menu. Click on [Search] to search IP cameras from local network. Press [Add All] to quickly add IP cameras present in the NVR LAN (the IP address is assigned automatically is this case).
Page 22: Switch Mode
Camera Mode: Select camera mode (Auto, Normal, Fisheye). • Connect with default password: If selected, allows you to set the password in the NVR as the default for the • camera as well. Bind Channel: Allows you to set which NVR's channel to bind the camera to. •...
Page 23 Auto Mode: In this mode, the channel automatically connects to the IPC on all POE interfaces of the NVR.  The user cannot delete or add the network IPC to the channel. Right-click to select a channel to edit the camera profile in Auto or Manual Mode. RTSP function The RTSP (acronym of Real Time Streaming Protocol) is used to view the video mainstreams/substreams of an IP camera connected to the NVR on a web page of the PC or on the local monitor, through the RTSP port.
Page 24 It is possible to select the PoE channel priority between manually added camera or PoE camera. If Remember My Option is not selected, the option is only valid once. In case you need to reset the NVR (reset default) because you forgot the access password, you can recover the cameras in the following way: 1-Access the Channel menu screen ...
Page 25 3- You can choose if you want to continue using the current camera password (the NVR can display the password for each camera) re-assign administrator password cameras. DS1098-038D...
Page 26: Poe Power
POE Power 3.4.1.2 Power over Ethernet or POE is the mode for powering electronic equipment through the network wire. The POE Power section deals with the management of camera power through Ethernet ports. DS1098-038D...
Page 27: Live
LIVE This page of the Display menu can be used to configure the parameters related to the <Live> screen of the NVR. As shown in the following figures, the available options may be different if an IP camera (figure on the right) is being configured. Channel: This displays the channel name.
Page 28 NOTE: The available options may differ according to the IP camera model.  Channel: Channel name. • Setup: Click on the icon on the setup page. • Select a channel to be configured. Select the desired integrated IR cut filter mode to ensure the camera works correctly in D/N.
Page 29: Ptz
This menu can be used to configure the PTZ (Pan-Tilt-Zoom) settings for the dome camera 3.4.4.1 PTZ To control PTZ cameras, click on PTZ (which stands for Pan Tilt and Zoom) to open the page shown in the following figure. On each channel, you can set the communication protocol, the speed and other information, as shown below: Channel: Channel name •...
Page 30: Motion
Note: The area of privacy zones you had set will be invisible in both live view & recording video. MOTION This menu allows you to configure motion detection parameters. When a movement is detected by one or more cameras, the NVR will alert you to a potential threat at your home. It does this by sending you an email alert with an attached image from the camera to use as a reference (if this option is enabled) and/or sending push notifications via the mobile app.
Page 31: Pir
Motion Detection Area: The whole screen is marked for motion detection (red blocks) as default. If you want to disable the motion detection on a certain area, click on the grid cursor and then drag the mouse to highlight the scope to deselect the area into transparent blocks.
Page 32: Roi
Click on to set the system to automatic motion detection of PIR function. You can set an area for motion detection PIR function by clicking on: To configure PIR Alarm, see "PIR Notification” The ROI function allows you to configure certain parameters related to an area of particular interest. For example, it is possible to choose to save a high-resolution video stream for a portion of the image while leaving a lower resolution for the remaining part of the image.
Page 33: Thermal
THERMAL To select Thermal in the side menu to setup a thermal camera. Under Alarm in the bottom right-hand corner, it is possible to set the type of action to be performed upon a thermal alarm (buzzer/alarm output/alarm time/recording/etc.). DS1098-038D...
Page 34: Record Settings
RECORD SETTINGS This subsection describes the configuration of the recording options made available by the NVR: Encode  Record  Capture  ENCODE This menu can be used to configure the quality of video recording or network transmission images. As a rule, Mainstream defines the recording video quality which will be saved on the HDD, while Substream defines the video quality which is being viewed via remote access (e.g.
Page 35: Record
Audio: you can enable/exclude audio recording for each channel. • NOTE: In CBR Predefined Bit Rate Mode, the bitrate (data transfer speed) changes automatically and accordingly with frame rate value selected for each IP channel with protocols other than ONVIF. RECORD This subsection describes the configuration of the recording options made available by the NVR.
Page 36 Channel: This can be used to select the channel to set the recording parameters. • Normal: A green time slot indicates that normal recording is set for the channel for the time slot • Motion: A yellow time slot indicates that the channel records only when a motion is detected during the time slot. •...
Page 37: Capture
CAPTURE This subsection of the Parameters menu can be used to configure the parameters dedicated to the acquisition of images in alarm conditions and to the programming of the time slots during which the function must be active. 3.5.3.1 Capture The Capture item is used to configure the parameters for recording images in an alarm condition;...
Page 38: Alarm Configuration
Motion: A yellow time slot indicates that the channel records only when a motion is detected during the time slot. • IO (I/O): A red time slot indicates that the channel records only when the input is triggered during the time slot. •...
Page 39: Pir Notification
PIR NOTIFICATION This is an optional function which appears if the camera supports the PIR sensor; PIR alarm devices with external sensor must be connected. Select PIR in the side menu to open a page where to define the methods and actions to be taken in case of PIR alarm detection.
Page 40 Show the IP channel • ：：configure monitor area for PIR • You can set an area for motion detection PIR function by clicking on: • Copy: This can be used to copy current channel parameters to any other channel or to all channels. •...
Page 41: I/O Alarm Settings
I/O ALARM SETTINGS On this page, it is possible to configure alarm notification from an input of the NVR's I/O interface. Alarm In: Displays the NVR's alarm input number. • Alarm Type: Set the input type between NC (Normally Closed), NO (Normally Open) and OFF (Off). •...
Page 42: Thermal
THERMAL Read the description under the following figures for this menu page: At this point, the alarms can be set according to the different states. Here is a brief description: Channel: you can select the channel for thermal camera. • Buzzer: This can be used to program the time of the auditory signal generated when a thermal alarm is detected •...
Page 43: Combination Alarm
COMBINATION ALARM Combined alarm and notification can be set per channel. Here is a brief description: Channel: This can be used to select the channel with which the fuction of combination alarm is associated. • Enable Alarm: Enables the combined alarm. •...
Page 44: Ptz Linkage
Voice Prompts: This menu allows voice prompts to be set according to time periods: each alarm can support up • to 12 time periods. You can also choose the IP channels to which to associate the uploaded voice messages. Copy: This can be used to copy current channel parameters to any other channel or to all channels. •...
Page 45: Exception
EXCEPTION This menu can be used to set the event type (e.g. full HDD, disk error, video loss) for which you want to be alerted about by the NVR. Here is a brief description: • Event Type: Select the event type from the following options: No Space on Disk: When an HDD is full.
Page 46: Alarm Schedule
ALARM SCHEDULE This function can be used to program the alarm notifications (Alarm Out, Buzzer, Push, FTP Upload, Cloud Upload) for each channel. Here is a brief description: Alarm Out: This can be used to set the alarm output program in case of an event. •...
Page 47: Loop Management
Import Files: import a file locally (supports MP3, WMA and WAV audio formats) • • Local Conversion: enter the text content to be converted into an audio file and automatically save to the hard disk. Internet Server Conversion: enter the text content that will be sent to the network server for conversionbe to •...
Page 48: Deterrence
DETERRENCE The deterrence function allows you to configure certain actions to deter and report abnormal behaviour detected by the camera. This function is only supported for Deterrence cameras. Channel: Camera name. Setup: Press to set the parameters of the deterrence function. Channel: Select the camera you wish to configure.
Page 49 Deterrence Schedule: by pressing on you can access the hourly schedule of the deterrence function. Apply: To save the settings. Default: to reset settings to factory defaults. DS1098-038D...
Page 50: Siren
SIREN The siren function allows you to configure the acoustic warning of abnormal behaviour detected by the camera. This function is only supported for cameras with a siren. Channel: Select camera. Enable: Press to enable the function. Siren Type: Set the type of the siren. Siren Volume: Set the intensity of the siren sound.
Page 51 Apply: To save the settings. Default: to reset settings to factory defaults. DS1098-038D...
Page 52: Setup
This section can be used to set up intelligent analysis, i.e. systems which generate descriptions of what is happening in the video stream. The submenu is: Detection Setup Recognition Alarm Configuration Statistics SETUP 3.7.1.1 Face Detection This function detects the faces of moving people appear in a predefined area. For the function to be valid, it is necessary to select the acknowledgement of the facial recognition service information.
Page 53: Pd & Vd Pedestrian & Vehicle Detection
Channel: Select the channel you want to configure. • IVA Lines: Enable or disable the IVA Lines. • Snap Mode: This can be used to select Real Time mode / Optimal mode / Interval mode. By selecting Interval mode, • you can set Snap Num 1 ~ 3 and change the Snap interval time Apply Mode: This can be used to configure the vision for recognition: •...
Page 54 • Channel: This can be used to select the channel to be configured. • Switch: Enable/Disable the PD & VD function. • Level: Level (Low/Middle/High - Low/Middle/High). Low level is recommended for detecting long-range objects. High level is recommended for detecting short-range objects. •...
Page 55: Pid Perimeter Intrusion Detection
Min Pixel: set range 32~1080, default is 64. • Max Pixel: set range 320~1080, default is 640. • Sensitivity: sets the sensitivity level. Level 1 represents the minimum sensitivity level, level 100 is the maximum • sensitivity level Detection Type: Allows detection of vehicles and/or persons •...
Page 56 Choose a Rule Number. This is the number of the PID area. A maximum of 4 areas can be set for the PID function.  Enable detection in Rule Enable.  Choose Rule Type.  AB: The NVR will only detect action from side A to side B; BA: The NVR will only detect action from side B to side A;...
Page 57: Lcd Line Crossing Detection
LCD Line Crossing Detection 3.7.1.4 This function detects people, vehicles or other objects crossing a predefined virtual line; when the alarm is triggered, certain actions can be taken. Channel: select the channel to be configured • Switch: enable or disable the LCD function. •...
Page 58: Cc Cross Counting
Warning: o Lines must not be too close to the edges of the camera image, as this may prevent the alarm from being triggered when the target crosses them. o Lines must not be too short, as this may prevent the alarm from being triggered when the target crosses them outwards. CC Cross Counting 3.7.1.5 This function counts the movement of objects and people across virtual lines.
Page 59 Select the type of object that you want to detect in Detection Target. Choose a Rule Number. This is the maximum number of lines that can be drawn. Maximum 4 lines. Enable detection in Rule Enable. Choose Rule Type. Using the mouse, click on 2 points on the camera image to draw a virtual line. From side A to side B, this is an input; from side B to side A, this is an output.
Page 60: Hm Heat Map
HM Heat Map 3.7.1.6 This menu allows you to set the rules for the areas with the most visitors. Switch: enables and disables the heat map function. Setup: Press to draw the virtual area on the image. Channel: Select the channel to be configured. Rule Number: Select the rule number representing the number of heat map detection areas.
Page 61: Cd Crowd Density Detection
CD Crowd Density Detection 3.7.1.7 This menu allows you to set the rules for detecting crowding in a specific area. Switch: Enables and disables the crowd detection function. Sensitivity: A value between 1 and 4 can be chosen. The higher the value the more sensitive the detection will be. Setup: Press to draw the virtual area on the image.
Page 62: Qd Queue Length Detection
QD Queue Length Detection 3.7.1.8 This menu allows you to set the rules for detecting the length and dwell time of the queue in a specific area. Switch: Enables and disables the crowd detection function. Sensitivity: A value between 1 and 4 can be chosen. The higher the value the more sensitive the detection will be. Setup: Press to draw the virtual area on the image.
Page 63: Lpd License Plate Detection
LPD License Plate Detection 3.7.1.9 This menu allows rules to be set for detecting the number plate reading of vehicles in a database or unknown vehicles. The number plate information of the unknown vehicle can also be backed up. Switch: Enables and disables the number plate reading detection function. Setup: Press to draw the virtual area on the image.
Page 64: Rsd Rare Sound Detection
Detection Target: Two types of number plate can be chosen: European number plate or American number plate. Detection Mode: Two detection modes can be chosen, static mode or motion mode. - Motion Mode: captures the number plate of the moving vehicle. - Static Mode: Captures the number plate of stationary vehicles.
Page 65: Sod Stationary Object Detection
Channel: Choose the channel to be configured. Sensitivity: The higher the value, the more sensitive the detection. The value can be set from 1 to 100. Detection Target: Three types of sounds can be chosen: baby crying, dog barking and gunshot. - Baby Crying Sound: Check the box to activate cry detection - Dog Barking: Check the box to activate barking dog detection.
Page 66 - Choose a Rule Number. This is the number of the SOD area. A maximum of 4 areas can be set for the SOD function. - Enable detection in Rule Enable. - Choose Rule Type. Legacy: The NVR will only detect abandoned objects; Removed: The NVR will only detect lost objects;...
Page 67: Sound Detection
Sound Detection 3.7.1.12 This function allows the sound to be detected. - Channel: select the channel to be configured - Switch: enable or disable the Sound Detection function - Rise: enable or disable the Sound Detection Rise function - Rise Sensitivity: Configure between 0 and 100; default value is 50. - Sound intensity: configure between 0 and 100;...
Page 68: Intrusion
Warning: This function may not be available. Check whether your camera model supports the function. Intrusion 3.7.1.14 This menu allows to configure the smart video analisi function of intrusion in un predefinied area. Available in the cameras with firmware version 8.2.4 or higher. - Channel: Select the channel to be configured.
Page 69: Region Entrance
object characteristics and the higher the accuracy of the alarm. The level can be set from 1 to 4. The detection object similarity requirements corresponding to each level are: 1%~80%, 2%~60%, 3%~40% and 4%~20%. - IVA Lines: Allows you to choose whether or not to show the detection frame. - Detection Target: There are three types of objects that can be detected: Pedestrian: Only detects pedestrians.
Page 70: Region Exiting
Selecting Setup: - Channel: Select the desired channel. - Target Validity: Indicates the similarity between the object and the set detection type. The alarm is only activated when the set similarity is reached or exceeded. The higher the set level and the higher the similarity requirement, the more obvious the required object characteristics and the higher the accuracy of the alarm.
Page 71 Selecting Setup: - Channel: Select the desired channel. - Target Validity: Indicates the similarity between the object and the set detection type. The alarm is only activated when the set similarity is reached or exceeded. The higher the set level and the higher the similarity requirement, the more obvious the required object characteristics and the higher the accuracy of the alarm.
Page 72: Fire Detection
Fire Detection 3.7.1.17 This menu allows to enable the fire detection function on a thermal camera. Enable: enables or disables fire detection. Sensitivity: Sets the sensitivity of the fire detection. The lower the sensitivity, the higher the temperature to trigger the fire detection alarm.
Page 73 Display Temperature Info On Optical Channel: Display temperature information on the optical channel. When enabled, the temperature measurement area and the monitored temperature are displayed simultaneously on the optical channel live view screen. Display Max. Temperature: Display the maximum temperature. When turned on, the maximum temperature will be displayed in the preview screen, and the switch for displaying temperature information needs to be turned on first.
Page 74 Area setting: Set temperature measurement area: 1. Click Add to add temperature rules, the maximum number of temperature rules is 20. 2. Select a temperature rule and enable it by Enable. 3. Customize the name of the rule in the Name column. 4.
Page 75: Schedule
Alarm Rules: Alarm rules. There are the following alarm rules, including Above (Max.Temperature): The maximum temperature is greater than. Below (Max.Temperature): The maximum temperature is less than. Above (Min.Temperature): The minimum temperature is greater than. Below (Min.Temperature): The minimum temperature is less than. Above (Average.Temperature): The average temperature is greater than.
Page 76: Face Database Management
Device/Channel: This indicates the device/camera whose information is being displayed. • • Face Recognition Model: This indicates the Face Recognition model implemented on the device. FD Model: This indicates the Face Detection model implemented on the device. • Enable Face Recognition: This can be used to enable Face Recognition on the device. •...
Page 77 - Backup Database: to make a backup of the database, save a file as *.db in the External Storage Device or USB Disk. - Group Name: Allow List/Block List/Stranger lists are defined in advance, you can click on the group name to change the name of the new group or add a new group.
Page 78 - Import: Click on Import to access the setup page. You can select Local Storage Device or External Storage Device Click on Local Storage Device to select a face image from the HDD Then select OK: DS1098-038D...
Page 79 External Storage Device: Or click on - Export: To export an image click on External Storage Device, select a face image from the HDD, then click OK: DS1098-038D...
Page 80: License Plate Management
- Add Group: Click on , then select OK - Enable: The default setting is enable, if a group is not used it can then be disabled. License Plate Management 3.7.2.3 Allows you to set the list of number plates that are allowed and forbidden to drive through and also add customised groups. Enable: enables the desired LPD group.
Page 81 Press the Import button to manually enter the data for the individual number plate. Press the Export button to export the entire group data to an external drive. Press the Move To... button to check the plate data box and transfer it to another group. Press the Delete button to select the plate data box and delete it from the group.
Page 82: Alarm
Press the Import/Modify button to add a group and edit the licence plate data. When more than 5000 data are added, the message Add data has reached the upper limit of the group is displayed. Press the Import from local button to locally import licence plate data from the capture database. Select date, duration and channels and press on Search to search for number plates saved by the device in that time period.
Page 83: Face Recognition
3.7.3.2 FR Face Recognition Click on Alarm to define the parameters for face recognition alarms: Group Name: Select the group whose alarms you want to configure. • Enable Alarm: The default value is enabled. This does not need to be a group. If is not used it can be disabled. •...
Page 84: Ad Attribute Detection
o Voice Prompts: when the alarm is triggered, the audio file is played (The IP camera must support the voice message function). Alarm Schedule: • The program must be configured to activate the intelligent function. The program will be active in 24 hours x 7 days.
Page 85: Lpr License Plate Recognition
Send Email: if enabled allows an email notification to be sent after the alarm has been triggered. It is necessary to configure the e-mail data in the Remote Setup menu under E-mail Network. HTTP listening: enables notifications to be sent to an HTTP server. Voice Prompts: when the alarm is triggered the audio file is played (The IP camera must support the voice message function).
Page 86: Pd & Vd Pedestrian & Vehicle Detection
Press Save to store the desired time settings. 3.7.3.5 PD & VD Pedestrian & Vehicle Detection Click on Alarm to define the parameters for the alarms for human recognition and vehicle detection: Channel: Select the channel you want to configure •...
Page 87: Pid (Perimeter Intrusion Detection)
Post Rec.: Set the duration of recording after the alarm event. You can set 30 seconds, 1,2,5 minutes. • Show Message: The letter “S” will be appear on the screen when the function is triggered. • Send Email: If an alarm is triggered, an email will be sent to the preset email account. •...
Page 88: Lcd (Line Crossing Detection)
LCD (Line Crossing Detection) 3.7.3.7 This menu allows the configuration of LCD notifications. Channel: Channel name Buzzer: allows you to set the duration of the buzzer in the event of an alarm. Alarm Out: If enabled, allows the alarm output to be switched after the alarm has been triggered. Latch Time: Set the alarm time, a time period of 10s, 20s, 40s and 1 min is allowed.
Page 89: Cd (Crowd Density Detection)
Channel: Channel name Buzzer: allows you to set the duration of the buzzer in the event of an alarm. Alarm Out: If enabled, allows the alarm output to be switched after the alarm has been triggered. Latch Time: Set the alarm time, a time period of 10s, 20s, 40s and 1 min is allowed. Record: Press on and select the channel to be recorded after alarm activation.
Page 90: Qd (Queue Length Detection)
QD (Queue Length Detection) 3.7.3.10 This menu allows the configuration of QD notifications. Channel: Channel name Buzzer: allows you to set the duration of the buzzer in the event of an alarm. Alarm Out: If enabled, allows the alarm output to be switched after the alarm has been triggered. Latch Time: Set the alarm time, a time period of 10s, 20s, 40s and 1 min is allowed.
Page 91: Rsd (Rare Sound Detection)
Channel: Channel name Buzzer: allows you to set the duration of the buzzer in the event of an alarm. Alarm Out: If enabled, allows the alarm output to be switched after the alarm has been triggered. Latch Time: Set the alarm time, a time period of 10s, 20s, 40s and 1 min is allowed. Record: Press on and select the channel to be recorded after alarm activation.
Page 92: Sod Stationary Object Detection
SOD Stationary Object Detection 3.7.3.13 This menu allows you to configure the notifications of the SOD function. Channel: Channel name Buzzer: allows you to set the duration of the buzzer in the event of an alarm. Alarm Out: If enabled, allows the alarm output to be switched after the alarm has been triggered. Latch Time: Set the alarm time, a time period of 10s, 20s, 40s and 1 min is allowed.
Page 93: Video Tampering
Channel: Channel name Buzzer: allows you to set the duration of the buzzer in the event of an alarm. Alarm Out: If enabled, allows the alarm output to be switched after the alarm has been triggered. Latch Time: Set the alarm time, a time period of 10s, 20s, 40s and 1 min is allowed. Record: Press on and select the channel to be recorded after alarm activation.
Page 94: Intrusion
Intrusion 3.7.3.16 This menu allows you to configure the notifications of intrusion function. Channel: Channel name Buzzer: allows you to set the duration of the buzzer in the event of an alarm. Alarm Out: If enabled, allows the alarm output to be switched after the alarm has been triggered. Latch Time: Set the alarm time, a time period of 10s, 20s, 40s and 1 min is allowed.
Page 95: Region Exiting
Channel: Channel name Buzzer: allows you to set the duration of the buzzer in the event of an alarm. Alarm Out: If enabled, allows the alarm output to be switched after the alarm has been triggered. Latch Time: Set the alarm time, a time period of 10s, 20s, 40s and 1 min is allowed. Record: Press on and select the channel to be recorded after alarm activation.
Page 96: Fire Detection
Fire Detection 3.7.3.19 This menu allows to setup the notifications for fire detection function. Channel: Name of the thermal channel. Buzzer: allows the duration of the buzzer to be set in the event of an alarm. Alarm Out: If enabled, allows the alarm output to be switched after the alarm has been triggered. Latch Time: Set the alarm time, a time period of 0-5s, 10s, 20s, 40s and 60s is allowed.
Page 97: Statistics
Alarm Out: If enabled, allows the alarm output to be switched after the alarm has been triggered. Latch Time: Set the alarm time, a time period of 0-5s, 10s, 20s, 40s and 60s is allowed. Record: The channels to be recorded in case of thermal alarm can be set. Post Recording: You can set the duration of recording after the alarm has been triggered.
Page 98: Cc Cross Couting Statistics
press to show calendar, then you can select the date desidered. Press Export to save the data to a U disk. CC Cross Couting Statistics 3.7.4.3 People and vehicle counting statistics can be displayed on the basis of a specific time period and represented in diagram form. Channel: Select the desired channel.
Page 99 Channel: Select the desired channel. Date: Select the date of the search. Report Type: Select from Daily Report, Weekly Report, Monthly Report, Annual Report. Start Hour: Select the start hour. End Hour: Select the End Hour. Press on Search to search for results. Export: The result is exported to an external USB drive.
Page 100: Ai Scenario
AI SCENARIO In this section you can set up intelligent analysis scenarios. CROSS COUNTING It is an AI application based on cross-counting functions that helps to control the attendance of customers/visitors/vehicles in public places such as restaurants, parks, zoos, theatres, museums and car parks. Channel 3.8.1.1 Enables real-time counting and display of results through a single camera.
Page 101: Group
Group 3.8.1.2 Allows statistics and results to be displayed in real time per group. Mainly used for large venues with multiple camera-monitored entrances. Group: allows you to select the camera group whose information you wish to view. Live: Displays the preview screen and status of the channels appearing in the group.
Page 102: Search
Search 3.8.1.3 Allows you to search separately for statistical data by channel or group. Select the channel or group to search for, set the search duration by day, week, month or year and select the type of search (Person/Vehicle/Motion). Press on the search icon the results will appear on the right side of the window.
Page 103 Press on to add a new image; press on to delete added images one at a time. Check the Keep Aspect Ratio box if you wish to display an image with the original aspect ratio, or uncheck the box if you wish the image to stretch and appear full screen.
Page 104: Face Attendance
FACE ATTENDANCE This menu manages the attendance screen, which can record both attendance and results in real time. Name of the face presence interface (GUI Theme) Press up to access the face search interface (Face Attendance) in playback and select face images in the face group as default.
Page 105 Groups: select faces from the desired database. Press on to access the AI face database management interface. GUI Theme: Set the name that will be displayed on the face presence GUI. On Duty Time: Set the service start time. Off Duty Time: Set the service end time. Email configuration: Press on to set the conditions for sending the face presence result by e-mail.
Page 106: Object Classification
Day: sends the attendance results of the previous day once a day. ♦ Week: Sends attendance results once a week. It is possible to choose the week of which to send the e-mail. For example: ♦ if you set Monday as the day to send the email, the attendance record that is sent will be from the previous Monday to Sunday.
Page 107 Press on to access the configuration page. GUI Theme: Name displayed on the interface. Statistics: The statistics time period can be set between 1, 2, 3, 4, 5, 6, 7 days, week, month and year. Channel: Select the channels whose statistics you want to view. Display the current date and time.
Page 108: Network Configuration
NETWORK CONFIGURATION The Network section of the Parameters menu can be used to access all the NVR settings for accessing the Internet and the local area network (LAN), the email notification functions, the use of a DDNS (Dynamic DNS) etc. The submenu is: General Settings DDNS...
Page 109: Pppoe
Internal PoE Interface: You can set the NVR in switch mode. If the IP camera is in a different network, this option • allows you to connect them if the IP address, mask and gateway have been set. To enable the function you mast check the PoE DHCP Server box.
Page 110: Port Configuration
3.9.1.4 Port Configuration Web Port: This is the port that will be used to connect remotely to the NVR (i.e., via the Web Client). If the default • port 80 is already used by other applications, you must change it. Client Port: This is the port that the NVR will use to send information.
Page 111 DS1098-038D...
Page 112: Email
A DDNS account can be requested free of charge from the websites www.3322.org, www.changeip.com or www.no-ip.com or a DDNS account can be requested for a charge on the website www.dyndns.org. You can register on the DDNS Service website to obtain a domain name, a user name and a password. The options to configure are: Server: Select the DDNS provider.
Page 113: Email Schedule
Interval: If there are attachments in the notification email (images taken during an alarm), it will take longer to send • the email to the recipients. During this time, no further reports can be sent. This option allows you to set this interval; possible values: 1 min, 3 min, 5 min, 10 min.
Page 114 Enable: Check Enable to configure the Whitelist and Blacklist. • Enable Whitelists: The Whitelist is enabled by default; first check Enable, then set Start Address and End • Address of the Whitelist. : You can set Single Add, then click OK, the Edit Address list is shown below. Edit: Click on to change Start Address and End Address;...
Page 115: Voice Assistant (Beta Version)
: You can set Single Add, and then click on . The Edit Address list is shown below. Edit: Click on to change Start Address and End Address; you can set one or more addresses for Single Add. • Delete: Click on .
Page 116: Voice Assistant With Amazon Fire Tv Stick
Voice Assistant with Amazon Fire TV Stick 3.9.5.1 Input your Amazon account, and the click Bind button to connect to bind your Amazon account. To choose the video stream you want to cast to your TV monitor. Go to Channel – Live menu, and give a Channel Name which is easy to call to the channel(s) you want to cast to your TV monitor. Connect the Fire TV Stick to your TV monitor, and power on it.
Page 117 To use your existing profile or add a new profile and login your Amazon account which is same as the one you bind to the HVR. Search cand install Amazon Alexa to your mobile phone from app store, and then login with the Amazon account which is same as the one you bind to the HVR.
Page 118 Touch “More”, and then touch “Skills & Games”. Touch the search icon on the right top corner. DS1098-038D...
Page 119 Input the keyword: smart camera view, and search. Touch the “Smart Camera View” in the search result list. DS1098-038D...
Page 120 Touch “ENABLE TO USE”. You would need to link your Amazon account. Sign in the Amazon account which is same as the one you bind to the HVR. Touch “Done” after the skill is successfully linked. Touch “DISCOVER DEVICES” and wait a moment for the app to search the cameras. Touch Next when the devices were found and connected.
Page 121 Choose one of the devices and then touch SET UP DVICE. You can add the camera to a group or skip. Repeat the previous setup to add all cameras and then touch Done to finish. DS1098-038D...
Page 122 All added cameras will be listed in the Devices. Touch the Cameras icon to check all added cameras. Press and hold on the voice button on the remote controller of the fire TV stick, and speak the command clearly. The command could be like: Show the XXX camera / Show XXX.
Page 123 Wait for a while, you will see the real time images from the Office camera in your TV monitor. DS1098-038D...
Page 124: Voice Assistant With Google Chromecast
If you want to quit the camera live view, speak “Stop”. If you have changed the channel name, you would need to discover and add the camera again. Voice Assistant with Google Chromecast 3.9.5.2 Input your Google account, and the click Bind button to connect to bind your Google account. To choose the video stream you want to cast to your TV monitor.
Page 125 Search and install Google Home app to your mobile phone from app store. Run the installed Google Home app, touch OK to allow the app to use your local network and Bluetooth and then touch Get Started. To login your Google account which is same as the one you bind to the HVR. Touch “Get Started”...
Page 126 The app will automatically try to search devices from your local network. Choose Chromecast / Google TV. Make sure your Chromecast is turned on already, then touch Next. Your Chromecast will be found. Touch Next to connect. Confirm the code by touching Yes. Choose a location for your Chromecast, then touch Next.
Page 127 Choose the Wi-Fi network for your Chromecast and input the Wi-Fi password to connect. Make sure the Wi-Fi you choose is the same one with your mobile phone and is in the same local network with your HVR. Touch Continue to next step. Touch No Thanks or Sign Up to login your google account.
Page 128 Now the Chromecast has been added to your Google Home. Touch the + icon on the left top corner. Indoor, then choose Set up device. Choose “Work with Google”, touch the search icon on the right top corner and then input “smart camera view”. Touch on “Smart Camera View”...
Page 129 Wait for a while, the Smart Camera View application will be linked to the Google Home. Now the available cameras in your HVR will be displayed. Choose one of the cameras and then touch Next button. Choose a home & location for the cameras step by step. DS1098-038D...
Page 130 Repeat the previous step to add all cameras. Search and install Google Assistant app to your mobile phone from app store. Run the Google Assistant, login your google account which is same as the one you bind to the HVR. Now, you’re able to stream your camera to your TV monitor by using text or voice command, like “Show/play the *** Camera on XXX TV”, in which *** is the channel name of the camera, XXX is your TV’s name.
Page 131: Platform Access
PLATFORM ACCESS Onvif 3.9.6.1 This function is mainly used to connect third-party platforms, such as ECMS/NVMS, via the Onvif protocol. Enable：Check the box to enable the function. Authentication：Set the type of login authentication. The options are Digest_sha256, Digest, Digest/WSSE, WSSE. Choose one of these options to suit your third-party platform.
Page 132: Event Push
Event push 3.9.6.3 Event push can be implemented in two modes: HTTP push mode and UDP push mode. The HTTP push mode involves the POST and GET methods. The UDP push mode provides for unicast, multicast and broadcast methods. Push HTTP: Enable: enables or disables the event push function.
Page 133: Device
3.10 DEVICE This section can be used to access the configuration and control functions of the devices and services available on the NVR. Click on "Device" (HDD) at the top to open the following subsections: Disk  Cloud   DISK MANAGE In this section, you can configure the internal HDD function.
Page 134 No: This indicates that the HDD was not reconfigured by the system. • • Serial No.: This shows the serial number of the HDD. Model: The model of the HDD is shown. • Firmware: The code of the firmware installed on the hard disk is reported •...
Page 135: Self-Monitoring, Analysis And Reporting Technology) Information
3.10.1.2 S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) information This function can be used to display technical information about the hard disk installed inside the NVR. You can also run a test (three types are available) to evaluate and detect possible disk errors. It can be used to control the S.M.A.R.T.
Page 136: Cloud
CLOUD The NVR can transfer the images and videos, captured by the cameras in case of alarm, to a Cloud storage service via Dropbox and Google Drive, a free service which allows you to easily store and share snapshots and have them always at hand when you need them.
Page 137: Ftp Schedule
Video Stream Type: Select the stream type (i.e., mainstream, substream) for videos sent to the FTP server. • • Max Package Interval: Select the interval for sending pictures/videos to the FTP server. Directory Name: Name of the folder in which to transfer the recorded images or motion alarms. •...
Page 138: System
3.11 SYSTEM This section allows you to configure the functional parameters of the system. To access it, press "System" at the top of the screen. The following subsections will appear in the menu below: General Settings Multi-User Settings Maintenance Settings IP Camera Maintain Information GENERAL...
Page 139: Date And Time
3.11.1.2 Date and Time Date and Time: The date and time can be set. Static: Check this box if you wish to enter the date and time manually. NTP: The NTP (Network Time Protocol) function allows the NVR to automatically synchronise its clock with a time reference server.
Page 140: Output Configuration
Output Configuration 3.11.1.4 This menu can be used to configure the video output parameters. Video Output: Select the output options: • LIVE-OUT can be used to configure the main output parameters. Select LIVE-OUT from the Video Output drop-down menu. SEQ Mode: Select the video channels to be viewed when the NVR is in sequence mode. •...
Page 141: Privacy Statement
Cursor Acceleration: This can be used to adjust the speed at which the mouse cursor moves. • Transparency: Click and hold the cursor on the left or right to change the transparency level of the menu bar and • main menu on the screen. Adjust accordingly. Privacy statement 3.11.1.5 This screen shows the text of the privacy policy explaining how to handle personal information.
Page 142: Changing Password
Changing Password To change the password for administrator or user accounts, click on the User Edit icon . The password consists of at least eight characters and may consists of a digits and letters. Enter your new password a second time to confirm it, then click on Save to save it.
Page 143: Setting User Permissions
Click on the field next to Confirm to re-enter the password. • Click on Save. For authentication, you will need to enter the Administrator password. • Setting User Permissions The administrator account is the only one with total control of all system functions. You can enable/exclude access to certain menus and functions for each user account.
Page 144: Load Default
Log Searching and Backing Up: Click on the field by the side of Start Date & Start Time to select the starting date and time of the displayed • calendar search. Click on the field next to End Date & End Time to select the end date and time of the search from the displayed •...
Page 145: Reset Button
Select all items to reset or check Select All to select all items. Click on Apply to load the default settings for the selected items. Reset Button 3.11.3.3 Put flag on Format HDD, it is possible to erase the recording when the RESET button is pressed to reset to factory settings (Load Default).
Page 146: Upgrade
3.11.3.4 Upgrade This function can be used you to update the NVR firmware. Copy the firmware file (.sw file) to the USB flash drive and insert it into the USB port of the NVR. Click on the Select File button to select the firmware file on the USB flash drive, then click on OK. Click on the Upgrade button to start the system upgrade.
Page 147: Auto Reboot
Load Settings: Once you have created the system settings export, you can import them to another NVR. Click on • the Load Settings button to access the system settings file that you want to import from the USB flash drive. For authentication, you will need to enter the Administrator password.
Page 148: Ip Camera Maintain
Camera Debug: Choose the camera to save. Camera Channel: Set the channel. Log Duration: Set the duration of the debug log. SSH Service: The SSH (Secure Shell) network protocol can be enabled. IP CAMERA MAINTAIN This menu can be used to update the IP camera firmware and restore its default settings. 3.11.4.1 Upgrade Select the IP camera the firmware of which you want to update.
Page 149: Reboot Ipc
3.11.4.3 Reboot IPC This function allows you to reboot the IP camera. Select the IP camera to reboot and click on ; a message will prompt you to enter your password. • Enter the password and click on the “Authenticate” button to reboot the IPC. •...
Page 150: Format Ipc
Format IPC 3.11.4.5 This function can detect the SD memory card installed inside an IP camera with API protocol, and if the box is checked, the card can be formatted directly by the HVR. INFORMATION This menu can be used to view system information, channel information, logging information and network status. 3.11.5.1 Information This menu can be used to view system information, such as device ID, device model name, IP address, MAC address, firmware version and more.
Page 151: Channel Information
3.11.5.2 Channel Information This can be used to view channel information for each connected camera, such as pseudonym, mainstream and substream recording specifications, motion detection status and privacy mask. 3.11.5.3 Record Info This can be used to view the recording information for each connected camera, such as bitrate, flow type, recording resolution and frame rate (Fps).
Page 152: Network State
3.11.5.4 Network State This can be used to view the network information. 3.12 PLAYBACK & BACKUP The Search function can be used to search and play back previously recorded videos and snapshots stored on the NVR hard disk. You can select to play back videos that match the recording program, manual recordings or motion events only. The Backup function allows you to save important events (both video and snapshots) to a USB flash drive.
Page 153 Enlarge video playback full screen Rewind, x2, x4, x8 and x16 (clicking repeatedly on the button) Slow motion playback, 1/2, 1/4 and 1/8 speed, 1/16 speed (by repeatedly clicking the button) Play Pause Play one frame at a time. Click once to play a frame of the video Stop Fast forward, x2, x4, x8 and x16 (clicking repeatedly on the button) Digital Zoom: Click to zoom out, then click and scroll through a camera image during playback to zoom out on the...
Page 154: Search & Play Video In General
SEARCH & PLAY VIDEO IN GENERAL This menu can be used to search and play back recordings based on the selected date. Select a date from the calendar to search for video recordings. 2. Select a search type. 3. Check the channels to be searched or check Channel to search for all connected channels. 4.
Page 155 The backup drive menu appears. Go to the folder where you want to save the backup files. 10. Click on OK to start. The progress bar on the bottom of the window shows the status of backup operation. DS1098-038D...
Page 156: Event Search, Playback & Backup
EVENT SEARCH, PLAYBACK & BACKUP The event search can be used to view a list of video recordings, with the channel, start/end time and type of recording appropriately summarized. You can also quickly save events to a USB flash drive. Search, playback and backup of events: Select the date and time to search.
Page 157: Event Playback Control
Detailed view: This can be used to view the details of the events. In the latter mode, you can block video events so that they are not overwritten on the hard disk. Click on the icon to block events or on the to unblock them.
Page 158: Sub-Periods Playback
SUB-PERIODS PLAYBACK Sub-period playback allows you to play back multiple normal and motion event recordings from a single channel simultaneously. With normal and event recordings, the video is split evenly, depending on the split-screen mode selected. For example, if the video lasts one hour and split-screens x 4 mode has been selected, each split-screen will play for 15 minutes.
Page 159: Smart
SMART Sub-period playback allows you to play back multiple normal and motion event recordings from a single channel simultaneously. With normal and event recordings, the video is split evenly, depending on the split-screen mode selected. For example, if the video lasts one hour and split-screens x 4 mode has been selected, each split-screen will play for 15 minutes.
Page 160: Tag
For more information, see section “Tag Setup” EXTERNAL FILE This function can be used to search and play back external files on a USB flash drive or USB DVD Writer. PICTURE SEARCH & VIEW This function can be used to search, play back and copy snapshots to a USB flash drive or USB DVD Writer. Search, playback and backup of images: Select the date and time to search.
Page 161 Click on the icons at the bottom right of the menu to browse the image pages or to enter the page you wish to consult. You can change the display of the list by clicking the icons below, which are visible at the bottom left of the screen: Thumbnails view.
Page 162: Picture Preview Control
3.12.8.1 Picture Preview Control Image list: The images can be selected here. Click on the button to save the selected images to a USB flash drive or CD/DVD media. Click on the button to see the images in a slideshow. Press the button to exit the preview control window and return to the image search window.
Page 163: Face
1. Select the channel to search among the active ones, select the Month, Day, Year. 2. The videos which match the search criteria are displayed as a list. You can click on one of the images to enlarge it. 3. Video playback area. This section allows you to search, play and copy video by making your choice based on the desired intelligent analysis function (Faces/Targets/People&Vehicles/PID&LCD/Repeat Viewers/Face Attendance).
Page 164 Click on and select the Local Storage Device or External Storage Device. Click Local Storage Device to select a face image. Then select OK: Select to access the menu: 2. Area in which the videos which match the search and recognition criteria set are shown. 3.
Page 165 Press on Load Map to display the U disk and select the map to be added. Select the Edit box to drag the IP camera icon to the desired location. Press on to select the face from the local or U-disk library and press in the search field (only supports searching for a face) to search for the IP camera that has detected the face.
Page 166: License Plate
License Plate 3.12.10.2 In this section, video details can be viewed and exported once the number plate detection alarm has been activated and the event has been recorded. Time: Set the time period for querying the number plate detection event. The date can be set by pressing License Plate: Filter and query based on licence plate information.
Page 167: Human & Vehicle Detection
Custom Playback: Press to set the duration of event playback. The maximum limit that can be set is 10 minutes. Press twice or drag in the bottom left corner to play the event video. Human & Vehicle Detection 3.12.10.3 In this section it is possible to search for information on persons and vehicles by setting the date, time, camera and type of detection desired.
Page 168: Intrusion
Intrusion 3.12.10.5 In this section it is possible to search for information on people and vehicles that are present in a predefined area by setting the date, time, camera and type of object desired. Region Entrance 3.12.10.6 In this section you can search for information on people and vehicles that have entered a predefined area by setting the date, time, camera and type of object.
Page 169: Region Exiting
Region Exiting 3.12.10.7 In this section it is possible to search for information on people and vehicles that have left a predefined area by setting the date, time, camera and type of object. Repeat Visitors 3.12.10.8 In this section it is possible to search and count the number of times the same face has been detected. Select the desired date and time.
Page 170: Face Attendance
Face Attendance 3.12.10.9 In this section, it is possible to check if a person has turned up at the appointed time and thus determine if they are late or leaving early. 1. Channels: Select the camera for face presence. 2. Select Mode: Select the face image of presence, By Group or By Person: - By Group: Select face images through the face group.
Page 171 Here are the attendance details, including the first and last appearance. Press on to perform playback in the bottom left corner. Press on Export to save the record file of the searched attendance information to the U-disk. Press on Send Email to send the searched attendance information file to the mail address set in the device menu. DS1098-038D...
Page 172: Video Player To View Backup Videos On Pc
VIDEO PLAYER TO VIEW BACKUP VIDEOS ON PC This section allows you to play the backup files using to a powerful video player (to download from Urmet website). PC users must install the software "VideoPlayer_x.x.xx_xx_xx_xx.exe". Minimum system requirements: • Intel Pentium 4 or higher •...
Page 173 1. Play List Add file Delete file Select the playback mode: play a single file and stop playback; play all listed files in sequence; repeat one file; repeat multiple files. Filter by file name 2. Hide/Show Play List Click to open the files or load a folder. 3.
Page 174: Remote Access Via Web Client
REMOTE ACCESS VIA WEB CLIENT The Web Client can be used to remotely access the NVR via PC at any time. Before accessing the Web Client, ensure that the NVR Internet settings are configured correctly. BASIC SYSTEM ENVIRONMENT REQUIREMENTS The minimum hardware and OS requirements for the Web Client are as follows. Component Minimum Recommended...
Page 175 After the first login of the NVR from the Web interface, enter your custom Password and confirm. After installing the plug-in, close and launch the browser again, then repeat step 1 to open the login page. Enter your username and password to access the Web Client. Note: For Google Chrome, use version V41 or lower.
Page 176: Web Client Manager
3. Click on "Continue" --> "Install". Enter the user name and the password for the Mac. Click on "Install Software" --> "Close" to finish the installation. 4. Close and re-open Safari, then repeat step 1 to open the Web Client login page. WEB CLIENT MANAGER The Web Client supports full control of the NVR with the administrator account.
Page 177: Live Interface
Note: The default password is empty if the NVR password is not enabled. The system can be used by the administrator to enable and set a new password; for instructions, see section 3.4.8.4 - [Main Menu SystemUsers]. LIVE INTERFACE This is the first screen that opens after the Web Client access procedure. Here you can open/close the live preview, manually record video on the local computer, take screen snapshots, perform PTZ control, adjust the colours, etc.
Page 178 AI Alarm • Color • PTZ Interface (Only for cetain models) Direction controls: press on the corresponding arrow to move the camera. Zoom: Click on -/+ to zoom in or out. Focus: Click on -/+ to adjust the focus. 3D position: cloick on to zoom one detail of the imagine AutoFocus: Click on autofocus to focus the camera automatically.
Page 179: Playback
Original Proportions: To show the Live video playing in its original proportions. Stretch: To stretch the Live video feed to fit the full area of each channel on the screen. To enlarge the Web Client full screen. Manual Recording: Click to start manual recording for all displayed channels. Click again to stop recording.
Page 180 Select the day on which to search for recordings on the calendar. The days with the recordings will be underlined in red. Choose the video stream you want to search and play. In case of playback of Substream recordings, check that you have set the NVR for recording with Dualstream, as shown in section "Record Settings"...
Page 181: Playback Control Buttons
Check the channels to search for recordings. Click on Search. The records that match the search criteria will be displayed in the timeline. Click on the play button. PLAYBACK CONTROL BUTTONS Play the recordings Pause Stop Go Forward One Frame: Move one frame at a time through playback. Only available if Synchronous playback has not been checked.
Page 182: Channel Configuration
Select the files to download and press the Start Download button to begin; the download progress will appear. Press the Stop Download button to stop downloading. Playback Speed: Click to select the playback speed. Play All Channels: Click to play all channels selected for the search. Only available if Synchronous playback has not been checked.
Page 183 POE Power: this page allows you to check the POE ports used and the power delivered to each port. 5.6.2.2 Live: the name, position, channel preview and the respective parameters can be modified. If the Show Time parameter is set to <disable>, the current time of the NVR system will not be shown in Live mode. 5.6.2.3 Image Control (if supported by IP camera model): It is possible to set the parameters of the IP camera.
Page 184 5.6.2.4 PTZ: allows the PTZ parameters of the camera to be set. This function is only supported for cameras with PTZ control. 5.6.2.5 Video Cover: Up to four privacy zones can be selected for each channel, as shown below. For detailed parameters, see the OSD Menu section of the NVR.
Page 185 5.6.2.7 Motion detection: This can be used to configure the sensitivity and set the area. The detailed parameters must be coherent with the local setting of the NVR. 5.6.2.8 PIR Detection: this can be used to configure the sensitivity and set the area for PIR detection. The detailed parameters must be coherent with the local setting of the NVR This function is only supported for PIR sensor cameras.
Page 186: Record
RECORD Click on the <Record> option to access its sub-options: Encode, Record, Capture. 5.6.3.1 Encode: user can set Mainstream (Main Stream), Substream (Sub Stream), Mobile Stream (Stream mobile) and Audio parameters, as shown in the following figure: 5.6.3.2 Record Record: You can set Channel, Record, Stream mode and Pre-record. DS1098-038D...
Page 187 Schedule: recordings can be scheduled: green color indicates Normal record; yellow indicates Motion detection, blue indicates Thermal record and purple indicates PIR Detection. 5.6.3.3 Capture: sub-menu Capture: you can automatically acquire images according to the program or set the parameters manually. Capture Schedule: recordings can be scheduled: green color indicates Normal record;...
Page 188 This section can be used to set up intelligent analysis, i.e. systems which generate descriptions of what is happening in the video stream. IMPORTANT: AI functionality must be supported by the camera. 5.6.4.1 Setup This section describes the features of the devices which are performing the intelligent analysis and can be used to enable: Face Detection: The detection of faces of people moving within a predefined area.
Page 189 Perimeter Intrusion Detection: For a detailed description of the parameters refer to PID section of this manual. Line Crossing Detection: For a detailed description of the parameters refer to LCD section of this manual. Cross Counting: For a detailed description of the parameters refer to CC section of this manual. DS1098-038D...
Page 190 Heat Map: For a detailed description of the parameters refer to HM section of this manual. Crowd Density Detection: For a detailed description of the parameters refer to CD section of this manual. Queue Lenght Detection: For a detailed description of the parameters refer to QD section of this manual. DS1098-038D...
Page 191 For a detailed description of the parameters refer to LPD section of this manual. License Plate Detection: Rare Sound Detection: For a detailed description of the parameters refer to RSD section of this manual. For a detailed description of the parameters refer to SOD section of this manual. Stationary Object Detection: DS1098-038D...
Page 192 For a detailed description of the parameters refer to the Sound Detection section of this manual. Sound Detection: Video Tampering: For a detailed description of the parameters refer to the Video Tampering section of this manual. DS1098-038D...
Page 193 Intrusion: for a detailed description of the parameters, please refer to the Intrusion section of this manual. Region Entrance: for a detailed description of the parameters, please refer to the Region Entrace section of this manual. Region Exiting: for a detailed description of the parameters, please refer to the Region Exiting section of this manual. DS1098-038D...
Page 194 AI Schedule: allows the weekly programming of the functions. 5.6.4.2 Recognition Model Configuration: This section describes the features of the devices which are performing the intelligent analysis. For a detailed description of the parameters of this function, refer to Model section of this manual. Database Management: This section describes the features of the devices which are performing the intelligent analysis.
Page 195 License Plate Management: This section describes the features of devices that perform licence plate reading. For a detailed description of the parameters of this functionality please refer to the License Plate Management section of this manual. 5.6.4.3 Alarm: This section defines the parameters for Alarms (Buzzer, Latch Time, Post Reconding etc.) for AI functions. For a detailed description of the parameters of this function, refer to Alarm section this manual.
Page 196 License Plate Recognition: this section describes the possible actions related to the recognition of license plate. For a detailed description of the parameters of this function, refer to Alarm section of this manual. Pedestrian and Vehicle Detection: this section describes the possible actions related to human or vehicle recognition. For a detailed description of the parameters of this function, refer to Alarm section of this manual.
Page 197 Line Crossing Detection: this section describes the possible actions related to line crossing events. For a detailed description of the parameters of this function, refer to Alarm section of this manual. Cross Counting: this section describes the possible actions related to line crossing events. For a detailed description of the parameters of this function, refer to Alarm section of this manual.
Page 198 Queue Length Detection: this section describes the possible actions related to queue detection events. For a detailed description of the parameters of this function, refer to Alarm section of this manual. License Plate Detection: this section describes the possible actions related to license plate detection events. For a detailed description of the parameters of this function, refer to Alarm section of this manual.
Page 199 Stationary Object Detection: this section describes the possible actions related to stationary object detection events. For a detailed description of the parameters of this function, refer to Alarm section of this manual. Sound Detection: this section describes the possible actions related to sound detection events. For a detailed description of the parameters of this function, refer to Alarm section of this manual.
Page 200 Intrusion: this section describes the possible actions related to intrusion detection. Please refer to the Alarm section of this manual for a detailed description of the parameters of this functionality. Region Entrance: this section describes the possible actions related to region entrance detection. Please refer to the Alarm section of this manual for a detailed description of the parameters of this functionality.
Page 201 5.6.4.4 Statistics: in this section the statistics of various functionalities are implemented. For a detailed description of the parameters of this function, refer to statistics section of this manual. Face Detection: this section describes the statistics related to facial recognition. For a detailed description of the parameters of this function, refer to statistics section of this manual.
Page 202 Heat Map Statistics: this section describes the statistics related to the heat map functionality. For a detailed description of the parameters of this function, refer to Alarm section of this manual. DS1098-038D...
Page 203: Alarm Set (Allarme)
ALARM SET (ALLARME) The notifications can be set (e.g. Buzzer, Latch Time, Post Recording, Send Email, Show Message, Full Screen, FTP Picture/Video Upload, Cloud Picture/Video Upload, Record Channel) for events such as Motion, PIR, IO Alarm, Intelligent Analysis Events, PTZ Linkage, Exception, Alarm Schedule. The detailed parameters must be coherent with the local setting of the NVR.
Page 204 5.6.5.3 PIR 5.6.5.4 Intelligent 5.6.5.5 Thermal DS1098-038D...
Page 205 5.6.5.6 Combination Alarm 5.6.5.7 PTZ Linkage 5.6.5.8 Exception DS1098-038D...
Page 206 5.6.5.9 Alarm Schedule 5.6.5.10 Voice Prompts File Management Loop Management DS1098-038D...
Page 207 5.6.5.11 Deterrence 5.6.5.12 Siren 5.6.5.13 Disarming DS1098-038D...
Page 208: Network
NETWORK 5.6.6.1 General: users can assign the static IP and perform port-forwarding for the NVR according to the different routers. PPPoE: the user can enable the relevant network protocol by setting its parameters. This is an advanced protocol that allows the NVR to connect to the network more directly, via a DSL modem;...
Page 209: Port Configuration
Port Configuration: 5.6.6.2 DDNS (DDNS): After having the DDNS service (see below), it is possible to enable the <DDNS> function in any network type (Static, DHCP and PPPoE). At this point it is possible to access the NVR via the domain name (http://domain: port No).
Page 210 Email Schedule: you can plan on time slots and on the basis of the type of event detected to send the e-mail. 5.6.6.4 HTTPS: is a security encryption protocol. You can choose between standard and customised. 5.6.6.5 IP Filter: the IP filter function can be set. The detailed parameters must be consistent with the NVR's local setting. DS1098-038D...
Page 211 5.6.6.6 Voice Assistant: the Amazon and Google voice assistant can be set up. Amazon Google 5.6.6.7 Platform Access Onvif: this function is mainly used to connect third-party platforms, such as ECMS/NVMS, via the Onvif protocol. DS1098-038D...
Page 212: Device
RTMP (Real Time Messaging Protocol): this function is mainly used to connect third-party platforms, such as ECMS/NVMS, via the RTMP protocol. Event Push Platform: this function allows you to set the protocol through which push event notifications are handled. You can choose between HTTP and UDP.
Page 213 5.6.7.2 Cloud: This can be used to set the Cloud Storage parameters for your Dropbox and Google Drive account. The detailed parameters must be coherent with the local setting of the NVR. 5.6.7.3 FTP: This function is used together with the alarm function. The captured images or alarm recording can be uploaded to the FTP server via the network.
Page 214: System
SYSTEM Click on the <System> option to access its sub-options: General, Multi-Users, Maintenance, IP Camera Maintain and Information. 5.6.8.1 General General: This page can be used to check the NVR device name and Time Out for Menu, Web session, Preview and Playback.
Page 215 DS1098-038D...
Page 216 DST Daylight Saving Time: The Daylight Saving Time (DST) function allows you to select the time difference due to daylight saving time in your local time zone or region. Output Configuration: this menu allows the video output parameters to be configured. Privacy Statement: this menu shows the privacy statement to personal data processing.
Page 217: Load Default
5.6.8.2 Multi-users: This is used to configure username and password, as shown below. The detailed parameters must be coherent with the local setting of the NVR. 5.6.8.3 Maintenance: This can be used to set the Log, Load Default, Firmware Update, Import/Export Parameters and Auto Reboot functions of the NVR.
Page 218 Reset Settings Upgrade Parameter Management DS1098-038D...
Page 219: Auto Reboot
Auto reboot Developer Mode 5.6.8.4 IP Camera Maintain: This can be used to set the Firmware Update, Load Default, Auto Reboot and Import/Export parameters functions of the IP camera (Firmware update not available for IP camera with ONVIF protocol) The detailed parameters must be coherent with the local setting of the NVR.
Page 220 Load Default IPC Reboot IPC Parameter Management DS1098-038D...
Page 221: Channel Information
Format IPC (Formatta IPC) 5.6.8.5 Information: This is used to check the device name, number and type, the MAC address, the software version, the IE version and the hardware version, as shown below. You can also read all channel information: Set Stream, Enable or Disable Status, Motion Supported, etc.
Page 222: Record Info
Record Info Network Status LOCAL SETTING Set the download destinations of the recordings and snapshots obtained through the Web Client and select the type of video file. DS1098-038D...
Page 223: Logout
Record Path: Click on to scroll through and select the folder where you want to save your manual video • recordings on your computer. Download Path: Click on to scroll through and select the folder where you want to save the download of your •...
Page 224: Nvr Specifications Ref. 1098/324P-1098/328P-1098/326P (Pal Format)
NVR SPECIFICATIONS REF. 1098/324P-1098/328P-1098/326P (PAL FORMAT) Features Functions 1098/324P 1098/328P 1098/326P Compression format Video: H.265+, H.265, H.264+, H.264, MJPEG / Audio: 8kHz*16bit ADPCM Video Inputs 16CH Video Outputs 1 CH Video Output VGA (up to 1080p), 1 CH Video Output HDMI (up to 4K)
Page 225: Important Notes
Weight ~ 2 kg ~ 2.1 kg IMPORTANT NOTES Product specifications may be subject to change without prior notice.  After replacing/adding a HDD, the operations must be performed by qualified personnel or by contacting the closest  technical centre. Contact the closest technical centre to see the complete list of compatible HDDs.
Page 226: Recording Alarm Setting
RECORDING ALARM SETTING Refer to the following table: “⊥” means “alarm only, no recording”; “AMR” means “alarm recording”; “NLR” means “normal recording”; “NOR” means “no recording”. The respective icon appears once the alarm has tripped; the following indications will appear in presence of multiple alarms. Recording modes Scheduled recording Recording alarm setting...
Page 227: Maintenance
Q: I cannot access the NVR Client. Why? A: Check that the network connection settings are correct and that the RJ-45 port contact is efficient. Check that the account and the password have been entered correctly. Q: I cannot find any recordings during playback. Why? A: Check that the HDD data line is connected correctly and that the system time is correctly set.
Page 228 DS1098-038D Technical area URMET S.P.A. Customer Service 10154 TORINO (ITALY) +39 011.19.62.00.29 VIA BOLOGNA 188/C http://www.urmet.com Tel. +39 011.24.00.000 (AUTO) e-mail: info@urmet.com +39 011.24.00.300 - 323 MADE IN CHINA DS1098-038D...
