产品介绍 Introduction
FS-SR8 是一款采用 ANT 协议的 8 通道接收机, 支持单双向、
可设置为 PWM 转换器以扩展通道、 外置双天线、 设计小巧、
易于安装、适配多种模型使用。

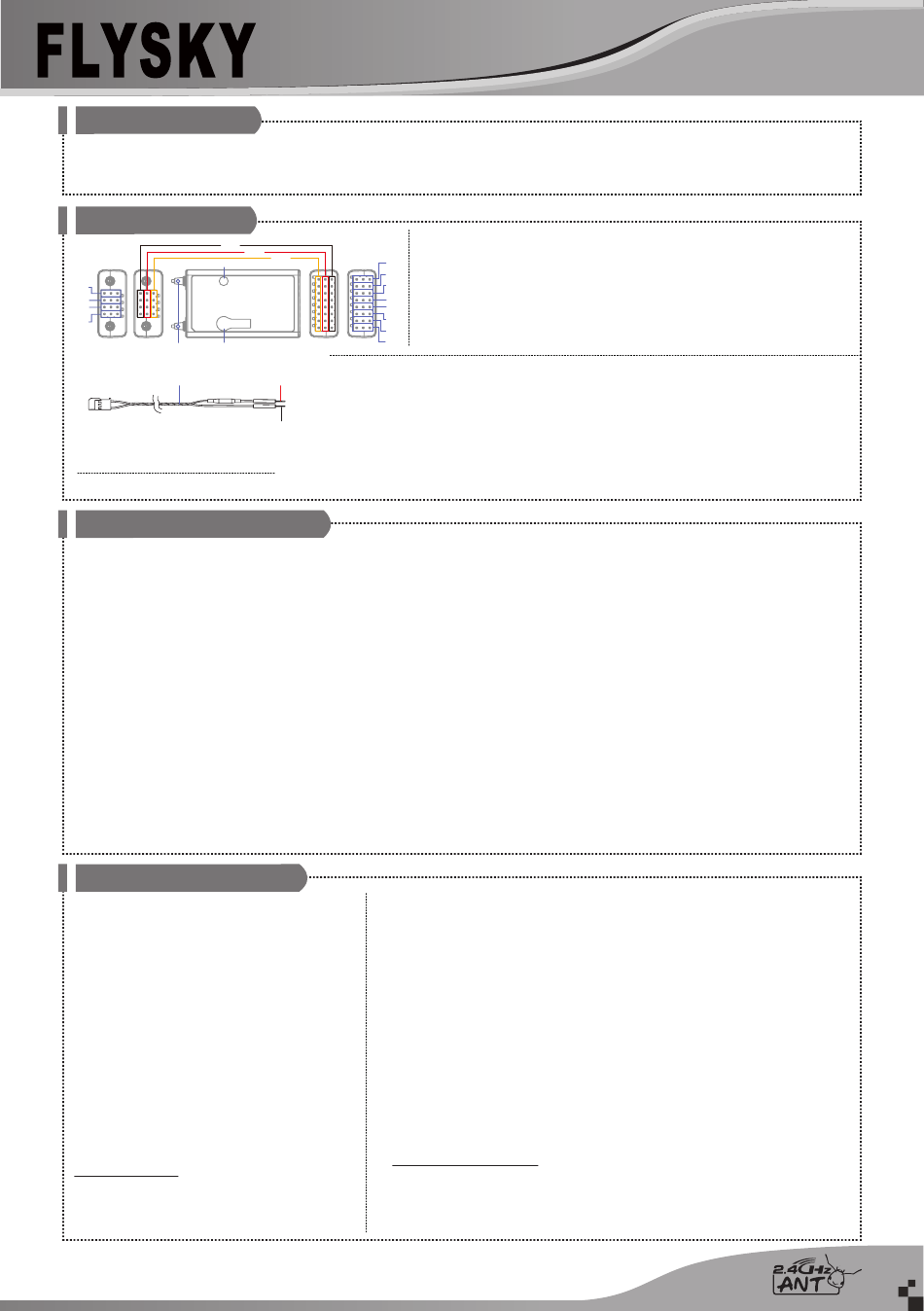

接收机概览 Overview
[13]
[16]
[12]
[11]
[10]
[9]
[18]
[17]
[19]
BVD 电压检测范围: 0~70V
BVD voltage detection range: 0~70V
产品规格 Product Specifications
• 产品型号:FS-SR8
• 适配发射机:FS-ST8( 支持 ANT 协议发射机)
• 适配模型:固定翼、直升机、滑翔机、三角翼、
多轴、穿越机、工程车、打窝船、机器人、车模
• PWM 通道数:8
• 无线频率:2.4GHz ISM
• 发射功率:小于 20dBm
• 无线协议:ANT
• 通道分辨率:4096 级
• 天线类型:双天线
• 遥控距离:> 1000 米 ( 空旷无干扰空中距离 )
• 工作电压:3.5~9V/DC
• 输出数据:PWM/PPM/i-BUS/S.BUS
• 在线更新:支持
• 温度范围:-10℃ ~ +60℃
• 湿度范围:20% ~ 95%
• 外形尺寸:44.8*26.6*11.3mm
• 机身重量:10g
• 认证:CE,FCC ID: 2A2UNSR800
PWM 转换器 PWM Converter
FS-SR8 接收机可设置为 PWM 转换器,用于扩
展通道,注意仅接收机固件版本 V1.0.5 及以上
版本支持此功能,可通过富斯遥控管家查看接
收机版本固件(旧版本固件须进行固件更新,
具体操作查看固件更新部分)。
PWM 转换器的 PWM 频率同作为接收机时的
PWM 频率,可先将 FS-SR8 接收机设置合适的
PWM 频率后(发射机端设置),再将其设置
为 PWM 转换器;可与其他接收机能输出 i-BUS/
S.BUS 的接口相连;设置成功后,接收机的
PWM 接口(通道 1- 通道 8)固定输出发射机
的通道 9- 通道 16。
PWM 转换器可通过与发射机重新对码的方式
转换为接收机,在与发射机成功对码后就可作
为接收机正常使用。
设置 PWM 转换器
设置步骤:
按住接收机对码按键并接通接收机电源,持续
按住对码按键时间须大于 5 秒小于 10 秒,接
http://www.flysky-cn.com
Copyright ©2024 Flysky Technology Co., Ltd.
FS-SR8
[1] CH1 通道接口
[2] CH2 通道接口
[14]
[15]
[3] CH3 通道接口
[8]
[7]
[4] CH4 通道接口
[6]
[5] CH5 通道接口
[5]
[6] CH6 通道接口
[4]
[3]
[7] CH7 通道接口
[2]
[1]
[1] CH1
[9] BIND Connector
[20]
[2] CH2
[10] BVD/VCC(Battery Voltage Detection/
[3] CH3
Power Supply Connector)
[4] CH4
[11] SENS
[21]
[5] CH5
[12] SERVO/S.BUS
[6] CH6
[13] - (Power Cathode)
[7] CH7
[14] + (Power Anode)
[8] CH8
[15] Signal Pin
• Product Model: FS-SR8
• Compatible Transmitters: FS-ST8 (transmitters with ANT protocol )
• Compatible Models: Fixed-wing aircraft, helicopters, gliders, delta-wing airplanes,
multicopters, racing drones, engineering vehicles, bait boats, robots or cars
• Number of PWM Channels: 8
• RF: 2.4GHz ISM
• Maximum Power: < 20dBm (e.i.r.p.) (EU)
• RF Protocol: ANT
• Resolution: 4096
• Antenna: Two antennas
• Distance: More than 1000m (Air distance without interference)
• Operating Voltage: 3.5~9V/DC
• Data Output: PWM/PPM/i-BUS/S.BUS
• Online Update: Yes
• Temperature Range: -10℃ ~ +60℃
• Humidity Range: 20% ~ 95%
• Dimensions: 44.8*26.6*11.3mm
• Weight: 10g
• Certifications: CE, FCC ID: 2A2UNSR800
The FS-SR8 receiver can be set as a PWM converter to expand channels.
Note that only receiver that firmware version is V1.0.5 and later supports
this function. The receiver firmware version can be viewed through
FlySkyAssistant (Older version of the firmware must be updated, see the
Firmware Update section for specific operations).
The PWM frequency of the PWM converter is the same as the PWM
frequency when used as a receiver. You can first set the FS-SR8 receiver to
an appropriate PWM frequency (set on the transmitter side), and then set it
as a PWM converter; it can be connected to the connector of other receivers
that can output i-BUS/S.BUS; after successful setting, the PWM connector
of the receiver (channel 1-channel 8) will output the transmitter's channel
9-channel 16.
The PWM converter can be changed back into a receiver by rebinding with
the transmitter, and can be used normally as a receiver after successful
binding with the transmitter.
PWM Converter Setting
Setting steps:
Press and hold the BIND button of the receiver and turn on the receiver at
the same time, and keep pressing the BIND button for more than 5 seconds
FS-SR8 is an 8-channel receiver using ANT protocol that can set
as PWM converter to expand channels, featuring 1 Way and 2 Way
transmission, two external antennas, compact design, easily to
install, and compatible with a variety of RC models.
[8] CH8 通道接口
[9] BIND 接口
[10] BVD/VCC 接口
[11] SENS 接口
[12] SERVO/S.BUS 接口
[13] -(电源负极)
[14] +(电源正极)
接收机 Receiver
[15] S( 信号脚)
[16] LED 灯
[17] 天线
[18] 对码按键
[19] FS-XC101 电池电压检测线
[20] 接电池正极
[21] 接电池负极
[16] LED
[17] Antenna
[18] BIND Button
[19] FS-XC101 Battery Voltage
Detection Cable
[20] Connect to Battery Anode
[21] Connect to Battery Cathode
