Introduction
FS-iA6B is a two-way receiver for multicopters, helicopters, and fixed-wing aircrafts, adopting AFHDS 2A (second-
generation enhanced automatic frequency hopping digital system). It has 8 channels and can output standard PPM
signal, PWM, i-BUS or S.BUS signal.

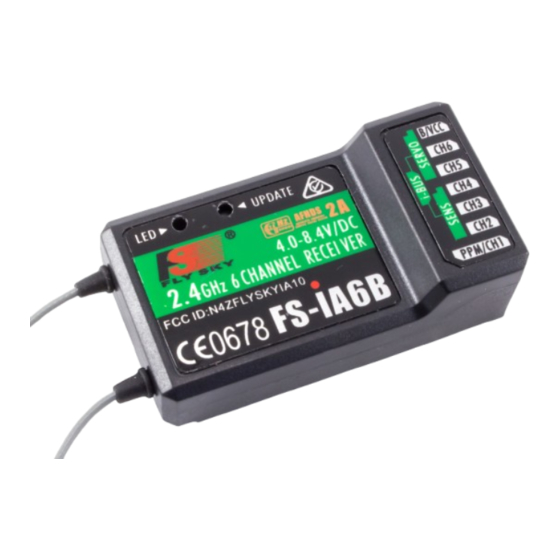

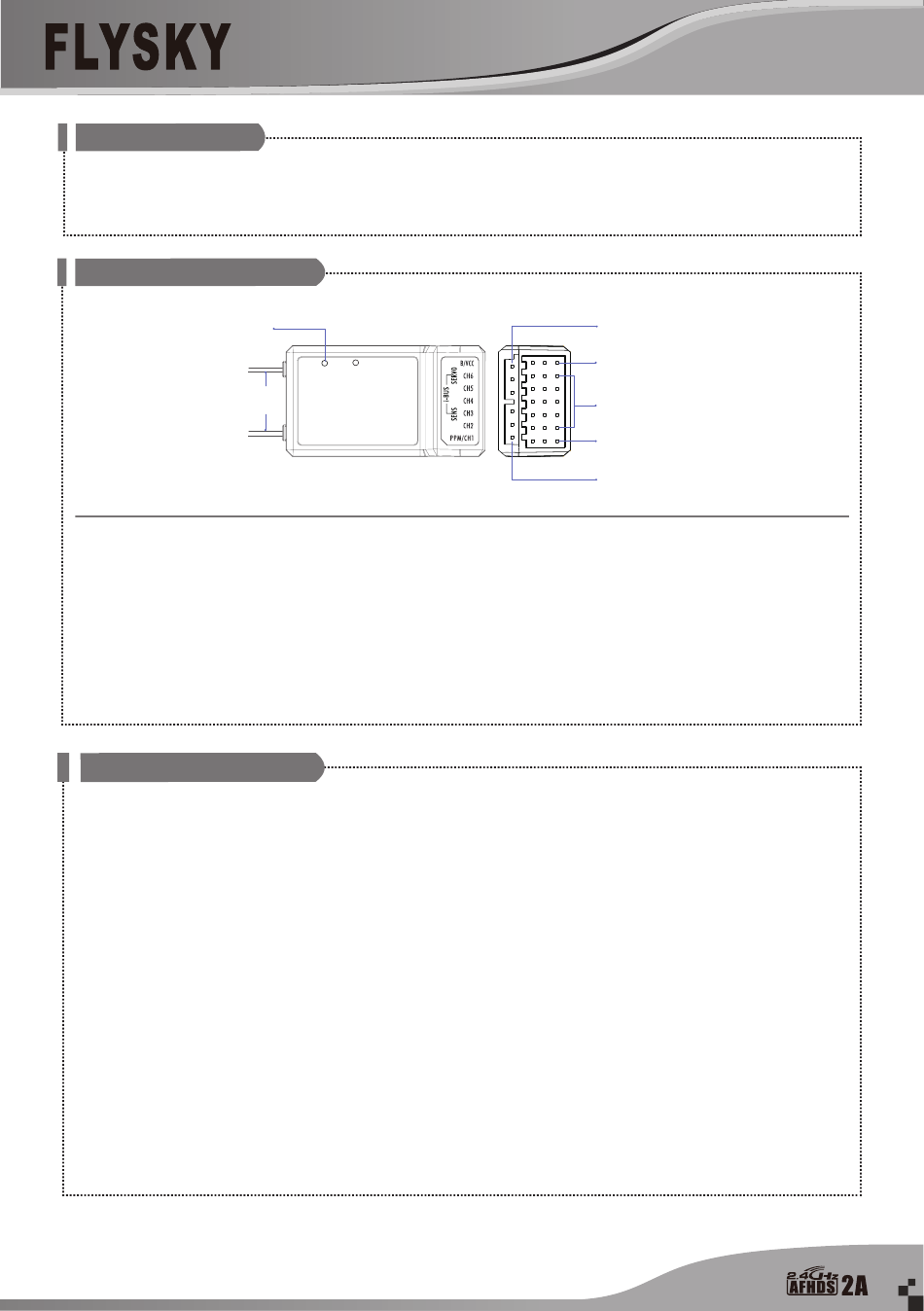

Receiver Overview
LED(Status Indicator)
Antenna
Interface introduction
PPM/CH1 Interface: Connects servo or output PPM signal.
CH 2 ~ CH6: Connects to servos, power supply or other components.
B/VCC: Used to connect the binding cable during binding, and used to connect the power cord during normal
operation.
Servo(i-BUS/S.BUS) Interface: Used to connect i-BUS receiver to expand channels. It can output i-BUS or S.BUS signal.
SENS(i-BUS) Interface: For connecting i-BUS sensors.
Product Specifications
• Product Model: FS-iA6B
• Number of PWM Channels: 6
• Compatible Models: Multicopters, Fixed-wing Aircrafts, Helicopters
• Compatible Transmitters: FS-i6S
• Data Output: PWM/PPM/i-BUS/S.BUS
• Frequency Range: 2.408-2.475GHz
• Bandwidth: 500KHz
• Number of Bands: 135
• Maximum Power: < 20dBm (e.i.r.p.) （EU）
• Receiver Sensitivity: － 92dBm
• RF Protocol : AFHDS 2A
• Modulation Type: GFSK
• Transmission Method: FHSS
• Channel Latency: <15ms
• Antenna: Two Antennas
• Input Power: 4.0-8.4V/DC
• Display: LED Indicator
• Online Update: None
• Distance : More than 300m(Ground distance without interference)
• Dimensions: 47 * 26.2 * 15 mm
• Weight: 14.9 g
• Certification: CE, RCM, FCC ID:N4ZFLYSKYIA6B
http://www.flysky-cn.com
Copyright ©2024 Flysky Technology Co., Ltd.
FS-iA6B
接收机 Receiver
Servo(i-BUS/S.BUS) Interface
B/VCC Interface
CH2-CH6 Interface
PPM/CH1 Interface
SENS(i-BUS) Interface
