Introduction

FS-X6B is a 6 channel two-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A
(Automatic Frequency Hopping Digital System) protocol with dual omnidirectional antennas for
superior noise reduction. It's compact, easy to install and boasts a rich, easy to use interface. The
FS-X6B supports 6 channel PWM output, standard 8 channel PPM output and i-BUS for up to 18
channels.

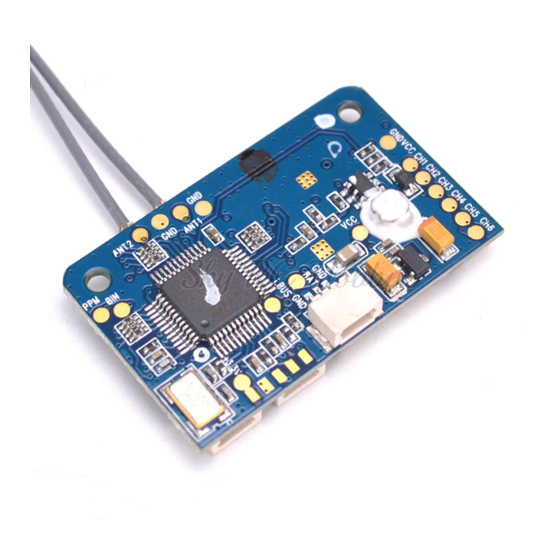

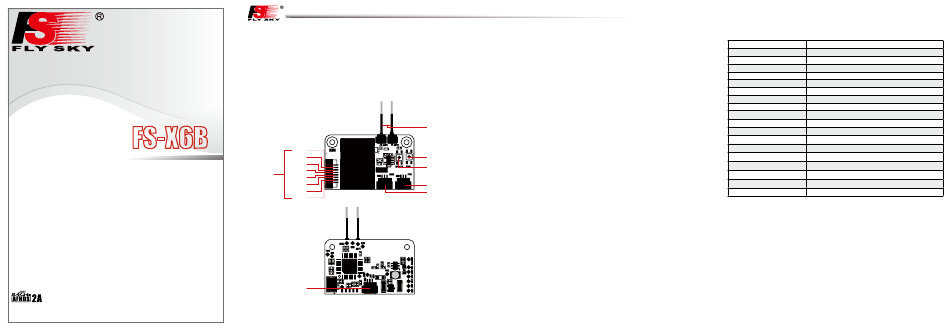

Receiver Overview

GND
VCC
CH1
PWM port
CH2
CH3
CH4
CH5
CH6

Top view

Voltage sensor port
Buttom view

Ports

These ports are for connecting the receiver to various models and flight controllers.
• PWM port:
GND, VCC. Outputs channels 1-6 PWM.
• PPM port:
Outputs 8 channel standard PPM signal.
• i-BUS port:
Outputs i-BUS signal, up to 18 channels.
• Voltage sensor port:
External power sensor (1S-4S connector) +0 to +18V.
Antenna

Binding

1. To prepare the transmitter for binding information refer to your transmitter's user manual.
Bind key
2. Power on the receiver while holding the bind button. If the reciever's LED is flashing it has
Update key
entered bind mode.
• After the successfully binding, the transmitter will automatically return to the previous menu.
If binding is successful the receiver's LED will stop flashing a remain solid.
PPM port
3. Check if all the model and receiver work as expected. If anything does not work as expected,
i-BUS port restart this procedure from the beginning.

Compatible Transmitters

The FS-X6B receiver is compatable with all AFHDS 2A Transmitters, for example FS-i10, FS-i8, FS-i6,
FS-i6S, FS-i6X, FS-i4, FS-i4X.
FS-X6B User Manual

Receiver specification

Channels 6（PWM）,8（PPM）,18（i-BUS）
Model type Multi-Rotor
RF range 2.408-2.475 GHz
Bandwidth 500 KHz
RF channel 135
RF power No more than 20 dBm
RX sensitivity -95dBm
2.4GHz system AFHDS 2A
Modulation type GFSK
Stick resolution 1024
Low voltage alarm Yes
DSC port PPM/PWM/i-BUS
Antenna length 93mm（Dual Antenna）
Power input 4.0-8.4V
On-line update Yes(Wireless)
Range >300m
Weight 4.5g
Size 36*22*7.5mm
Certification CE0678,FCC ID：N4ZX6B00
