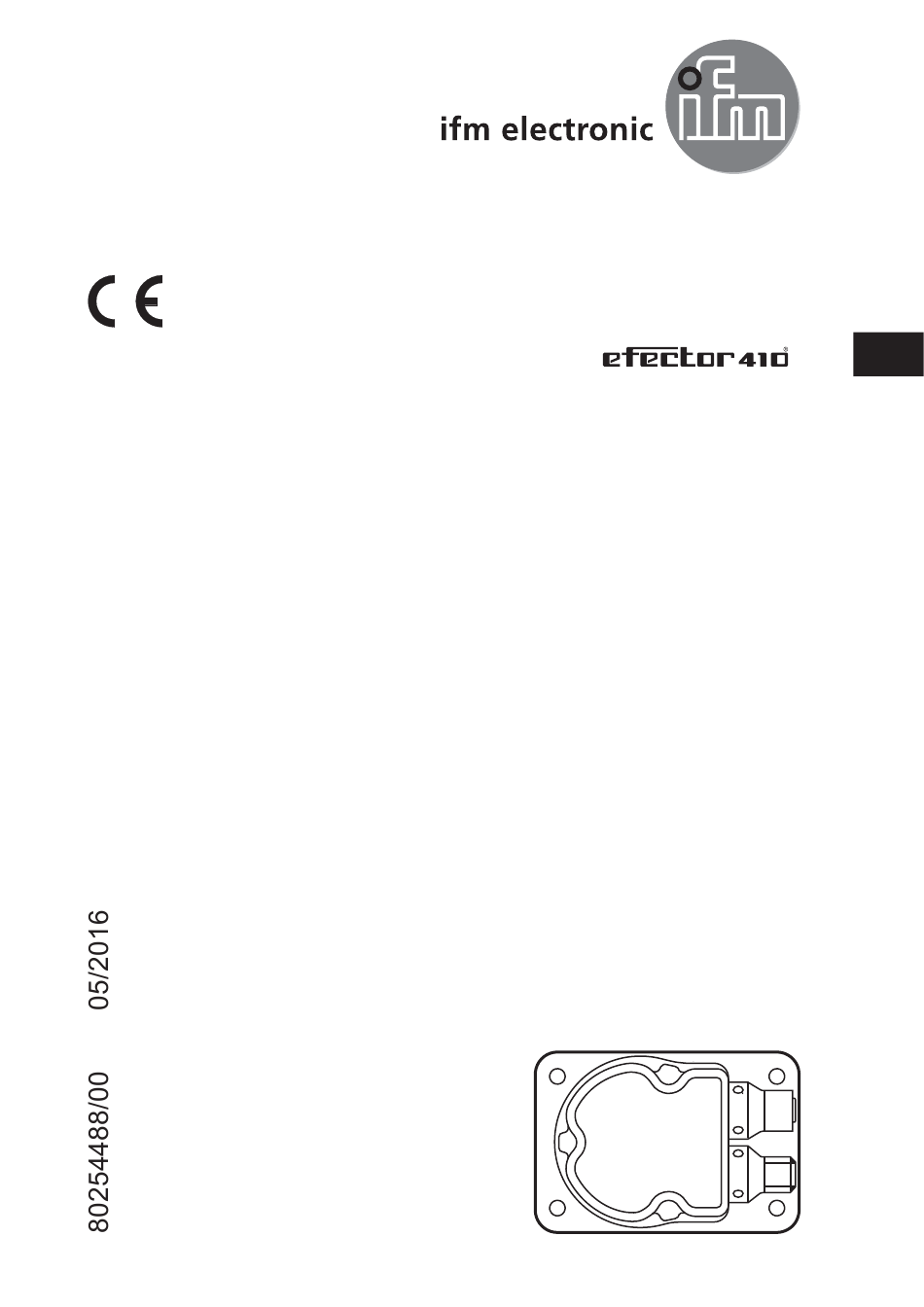

- Page 1 Installation instructions Inclination sensor JN JN2100 JN2101...
- Page 2 1 Functions and features The 2-axis inclination sensor with CANopen interface enables angle levelling and position detection of mobile machines. Typical applications are, for example, the position detection of access platforms, levelling of mobile cranes or set-up of mobile machines. 2-axis inclination sensors with a measuring range of: •...
- Page 3 The inclination sensors are fitted with two round 5-pole M12 connectors (A-coded). The pin connection corresponds to CiA DR-303-1. 1: CAN_SHLD shield 2: CAN_V+ supply voltage 24 V DC 3: CAN_GND GND 4: CAN_H H bus cable 5: CAN_L L bus cable M12 connector CAN-In 1: CAN_SHLD shield 2: CAN_V+ supply voltage 24 V DC...
