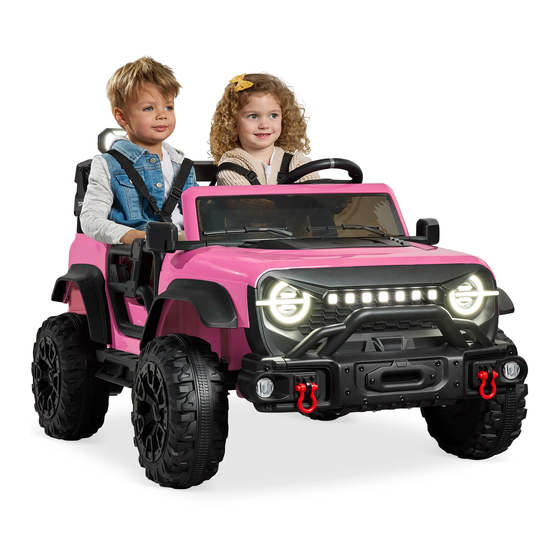

- Page 1 INSTRUCTION MANUAL 24V 2-Seater Ride On Truck SKY9414 + SKY9415 + SKY9416 + SKY9417 + SKY9418 + SKY9419 SKY9420 + SKY9421 + SKY9422 + SKY9423 + SKY9424 Ver. 1...
- Page 2 Charge for 12 hrs before initial use. After initial charge, follow the normal recommended charging time. bestchoiceproducts.com...
-
Page 3: Battery Warnings
SAFETY Please retain these instructions for future reference. This vehicle must be assembled by an adult who has read and understood the instructions in this manual. Keep the packaging and bags away from children and dispose of all packaging before use. Always use common sense and safe practices when operating this vehicle. -
Page 4: Specifications
To reduce the risk of injury, adult supervision is required. Never use on roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than two rider. •... -
Page 5: Tools Required
132 LBS 2 PERSON UP TO 45 MIN. CAPACITY ASSEMBLY ASSEMBLY TOOLS REQUIRED AA - AAA - PHILLIPS 2 ALLEN WRENCH 2 PLASTIC WRENCH 2 AA BATTERIES 2 AAA BATTERIES SCREWDRIVER (PROVIDED) (PROVIDED) (FOR STEERING WHEEL) (FOR REMOTE) HARDWARE SELF TAPPING SCREW 24 PCS PARTS... - Page 6 PARTS STEERING WHEEL WINDSHIELD SEAT 1 PC 1 PC 1 PC BACKREST LEFT TAIL FRAME RIGHT TAIL FRAME 1 PC 1 PC 1 PC REAR BRACKET FRONT LEFT FENDER FRONT RIGHT FENDER SUPPORT 1 PC 1 PC 1 PC REAR LEFT FENDER REAR RIGHT FENDER SIDE MIRROR 1 PC...
-
Page 7: Product Assembly
PARTS CHARGER REMOTE CONTROL 1 PC 1 PC PRODUCT ASSEMBLY On a flat, covered surface, place the part A ride-on body top side down, then cut the zip ties to remove the part E front axle, part F door steps, part N, part O, part P, and part Q fenders. - Page 8 PRODUCT ASSEMBLY Locate the axle mount at the rear of the part A ride-on body, then lift it upward. Remove the preassembled hardware from the mounting tines and set aside. Locate the suspension springs, lift them so they stand upright, then place the mounting tines of the rear axle mount onto the springs, then secure with the previously removed hardware.
- Page 9 PRODUCT ASSEMBLY Locate the right and left motors at the rear of the part A ride-on body, then lift them to sit on the rear axle mount. Locate the part B rear axle and remove the preassembled nuts and washers. Thread the part B rear axle through the right motor, rear axle mount, and left motor, taking care to keep the axle even on both sides.
- Page 10 PRODUCT ASSEMBLY Attach two part C wheels to the part B rear axle and use the previously removed nuts and washers to secure. Cover each wheel with one part D wheel cover. Locate the steering wheel yoke on the front of the part A ride-on body, adjust it so it sits at a 90-degree angle with the joint of the yoke pointed toward the back of the ride-on.
- Page 11 PRODUCT ASSEMBLY Locate the part E front axle, then remove the pre-attached nuts and washers on the mounting tines, and set aside. Insert the part E front axle’s mounting tines into the rectangular pipe on the part A ride-on body. Secure the axle with the previously removed hardware and be sure to thread the steering wheel yoke through the opening and secure with the previously removed nut.
- Page 12 PRODUCT ASSEMBLY Remove the pre-attached washers and nuts from the part E front axle, leave the last washer on the axle. *Keep this one, do not remove. Attach two part C wheels to the part E front axle and use the previously removed nuts and washers to secure.
- Page 13 PRODUCT ASSEMBLY Attach two part F door steps to the part A ride-on body with sixteen part 1 self-tapping screws, eight screws per step. Locate the part G steering wheel then use a Philips screwdriver to open the battery access on the part G steering wheel.
- Page 14 PRODUCT ASSEMBLY Remove the bolt on the side of the part G steering wheel’s shaft, make sure to keep the fastening nut in place. Place the part G steering wheel over the steering yoke, then replace the bolt to secure. Don’t remove the nut! Don’t remove the nut! Attach the part H windshield to the part A ride-on body, press down until secure.
- Page 15 PRODUCT ASSEMBLY Attach the part R side mirrors to the part A ride-on front body, then secure with two part 1 Attach the part R side mirrors to the part A ride-on front body, then secure with two part 1 self-tapping screws.
- Page 16 PRODUCT ASSEMBLY Attach the part J backrests to the part I seats, then secure the backrests with four part 1 self-tapping screws, two screws per backrest. Attach the part K and part L left and right tail frames to the part A ride-on body, connect the terminals in the ride-on body to the receivers in the tail frames, then press down into the ride-on body to secure.
- Page 17 PRODUCT ASSEMBLY Attach the part M rear bracket support to the part K and part L tail frames. Attach the part N, part O, part P, and part Q fenders to the part A ride-on body, press until secure.
- Page 18 PRODUCT ASSEMBLY Locate the battery cover under the seat, then connect the power terminal to the receiver to power connect the battery.
-
Page 19: Remote Control
REMOTE CONTROL INDICATOR LIGHTS STOP/PARK FORWARD TURN RIGHT REVERSE TURN LEFT SPEED SELECT Remote control operation will OVERIDE manual operation; the pedal will not work when operating • the remote control. • After a period of non-operation, the remote will go into power-saving mode. •... -
Page 20: Control Board Diagram
CONTROL BOARD DIAGRAM 11 12 13 TUNE START STOP High MODE Tune: FM radio search, press to find FM radio channels. FM: Press to enter FM Radio Mode. Mode: Press to toggle between start sound, the media player, Bluetooth, and the aux input. Forward: Press to make the car move forward when the foot pedal is pressed. -
Page 21: Charging Instructions
CHARGING INSTRUCTIONS Locate the charging connector under the seat. Disconnect the power supply from the control terminal. Connect the part S charger to the power supply, then plug the other end into a wall outlet. Charge the battery 12 hours before initial use (Do not charge for a period exceeding 20 hours). When fully charged, unplug part S charger from the wall outlet, then remove the charger from the charging port. -
Page 22: Fastening The Seatbelt
WARNINGS REGARDING BATTERIES • Do not mix alkaline, standard (carbon zinc) and rechargeable (nickel hydride) batteries. • Do not mix old and new batteries. • Non-rechargeable batteries should not be charged. • Rechargeable batteries should be charged under adult supervision only. •... -
Page 23: Troubleshooting
TROUBLESHOOTING PROBLEM REASON SOLUTION Low battery Fully charge the battery Stop use for several minutes and restart Electrical protection Vehicle does not move Completely press in switches Switch not in the correct position Battery connectors disconnected Plug in battery connectors Battery connectors disconnected Plug in battery connectors Battery does not recharge... -
Page 24: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
