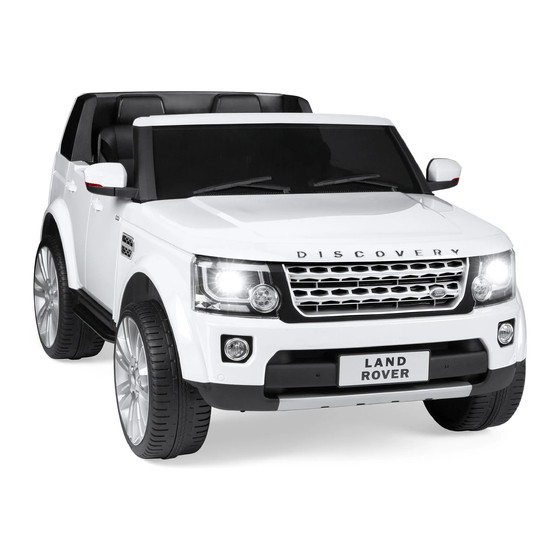

- Page 1 INSTRUCTION MANUAL Land Rover 2-Seater Ride-On with Remote SKY5271 + SKY5272 + SKY5273 + SKY5799 Ver. 2...
- Page 2 Charge for 12 hrs before initial use. After initial charge, follow the normal recommended charging time. bestchoiceproducts.com...
-
Page 3: Battery Warnings
SAFETY Please retain these instructions for future reference. This vehicle must be assembled by an adult who has read and understood the instructions in this manual. Keep the packaging and bags away from children and dispose of all packaging before use. Always use common sense and safe practices when operating this vehicle. -
Page 4: Specifications
WARNING To reduce the risk of injury, adult supervision is required. Never use on roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than two children in the vehicle at a time. •... -
Page 5: Tools Required
TOOLS REQUIRED AAA - 2 AAA BATTERIES PHILLIPS PLASTIC 128 LBS 2 PERSON APPROXIMATELY SCREWDRIVER WRENCH (FOR REMOTE) CAPACITY ASSEMBLY 45 MIN. (2, PROVIDED) (COMBINED) ASSEMBLY HARDWARE M4 x 12mm M4 x 10mm SCREW SCREW 8 PCS 2 PCS PARTS WHEEL HUBCAP STEERING WHEEL... -
Page 6: Product Assembly
PARTS BACKREST WINDSHIELD SIDE MIRRORS (L/R) 1 PC 1 PC 1 SET REMOTE CONTROL 12V CHARGER 1 PC 1 PC PRODUCT ASSEMBLY Flip vehicle over and lay it on a level surface. Remove all parts and packaging from within the vehicle body. - Page 7 PRODUCT ASSEMBLY Secure the rear bracket with four part 1 screws. Remove the nuts and washers from the rear axle. Slide the gear boxes onto the rear axle. NOTE: Make sure the rear axle is positioned evenly on the vehicle.
- Page 8 PRODUCT ASSEMBLY Slide a part A wheel onto the rear axle, then secure it by replacing a nut and washer. Snap on a part B hubcap. Repeat on the other side. NOTE: Use two plastic wrenches (one on each side) and rotate in opposite directions to tighten nuts. Remove two nuts and washers from the front axle.
- Page 9 PRODUCT ASSEMBLY Flip the car onto its wheels. Join the connector from the part C steering wheel to the corresponding connector on the steering wheel mount. Press the steering wheel into the mount until it locks in place. Snap in the part D rear frame and secure it with two part 1 screws. NOTE: Snap in the back of the rear frame and then the front.
- Page 10 PRODUCT ASSEMBLY Snap in the part E side frame set (L/R). RIGHT LEFT Within the seat, insert the connector into the corresponding input on the control module. CONTROL MODULE...
- Page 11 PRODUCT ASSEMBLY Insert the tabs on the part F seat into the designated slots and secure with two part 1 screws. Slide the part G backrest into the back of the seat until it locks in place. NOTE: Make sure to clear seatbelts out of the way during installation. Attach the part I side mirror set (L/R) to the part H windshield with two part 2 screws.
-
Page 12: Charging Instructions
CHARGING INSTRUCTIONS • Charging port is located below the seat. Insert one end of the charger into the charging port and plug the other end into a wall outlet. • Charge the battery 12 hours before initial use. • On average, you will need to charge the battery between 8 and 12 hours. Do not charge the battery for more than 20 hours. -
Page 13: Media Player
DASHBOARD DIAGRAM • Push down on the pedal to drive forward/reverse. Release the pedal to slow down and stop. Lights: Turn headlights on/o • Music: Cycle through music • MUSIC HORN LIGHTS MEDIA PLAYER FORWARD/PARK/ REVERSE LOW SPEED/HIGH SPEED; CHARGING PORT PEDAL POWER SWITCH MEDIA PLAYER... -
Page 14: Remote Control Diagram
REMOTE CONTROL DIAGRAM FREQUENCY KEY TURN LEFT FORWARD TURN RIGHT BRAKE/PARK SPEED INDICATOR REVERSE LIGHTS SPEED SELECT • Install 2 AAA batteries into the remote control. • After 10 seconds of non-operation, the remote will go into power-saving mode. Linking the remote control: Press and hold the frequency key for 2-4 seconds. -
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM REASON SOLUTION Fully charge the battery Low battery Electrical protection Stop use for several minutes and restart Vehicle does not move Completely press in switches Switch not in the correct position Plug in battery connectors Battery connectors disconnected Battery connectors disconnected Plug in battery connectors Battery does not recharge... -
Page 16: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
