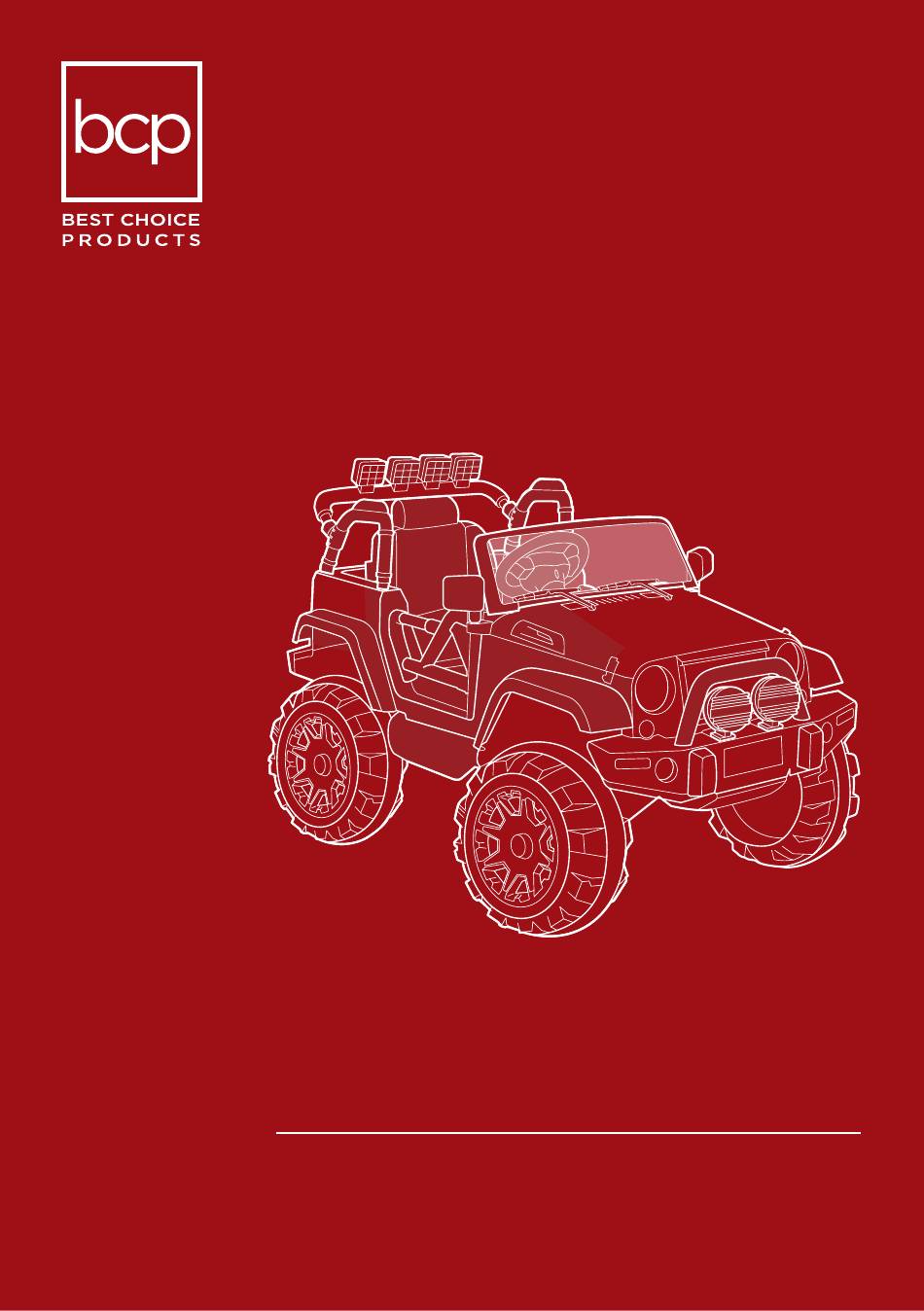

- Page 1 INSTRUCTION MANUAL Ride-On Truck with Remote SKY2856 + SKY2857 + SKY2858 + SKY5164 + SKY5165 + SKY5166 SKY6008 + SKY6748 + SKY6749 + SKY6750 + SKY6751 + SKY6752 Ver. 16...
- Page 2 Charge for 12 hrs before initial use. After initial charge, follow the normal recommended charging time. bestchoiceproducts.com...
- Page 3 SAFETY Please retain these instructions for future reference. This vehicle must be assembled by an adult who has read and understood the instructions in this manual. Keep the packaging and bags away from children and dispose of all packaging before use. Always use common sense and safe practices when operating this vehicle.
- Page 4 To reduce the risk of injury, adult supervision is required. Never use on roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than one rider. •...
- Page 5 TOOLS REQUIRED 2 PLASTIC PHILLIPS 65 LBS 1 PERSON UP TO 60MIN. SCREWDRIVER WRENCH ASSEMBLY ASSEMBLY CAPACITY (PROVIDED) HARDWARE M4 x 12mm M3 x 12mm M4 x 16mm SPRING SCREW SCREW SCREW 10 PCS 2 PCS 6 PCS 2 PCS PARTS - BOX A REAR AXLE HUB CAP...
- Page 6 PARTS - BOX A SIDE MIRROR SEAT STEERING WHEEL 1 PC 1 PC 2 PCS FRONT REFLECTOR REMOTE CONTROL CHARGER 2 PCS 1 PC 1 PC BUMPER 1 PC...
- Page 7 PARTS - BOX B REAR WHEEL FRONT WHEEL FRONT AXLE 1 PC 2 PCS 2 PCS AXLE FRAME 1 PC...
- Page 8 PRODUCT ASSEMBLY Flip the vehicle over and lay it on a level surface. Remove the brackets holding the part A rear axle, then remove the axle. Remove the nuts and washers from the rear axle. Flip the vehicle over and lay it on a level surface. Remove packaging from gear boxes and lift up the rear shocks.
- Page 9 PRODUCT ASSEMBLY Slide a part B rear wheel onto the axle and replace a nut and washer to secure the wheel. Repeat on the other side. Snap a part D hub cap onto each wheel. Use the provided plastic wrench to attach the nuts.
- Page 10 PRODUCT ASSEMBLY Remove two nuts from the bottom of the part K front axle. Slide two part 4 springs onto the part P axle frame. Attach the springs and axle frame to the front axle by replacing the two nuts. Remove the nut and washer from the steering column.
- Page 11 PRODUCT ASSEMBLY Remove two nuts and washers from the front axle. Use the provided Slide a part C front wheel onto the axle and replace a nut and plastic wrench to washer to secure the wheel. Repeat on the other side. Snap a part attach the nuts.
- Page 12 PRODUCT ASSEMBLY Insert the two part E frame pieces into the designated holes on the rear of the vehicle. Slide the part F bar light into the holes located on the frame pieces and secure it with two part 2 screws. 12 |...
- Page 13 PRODUCT ASSEMBLY Snap on the part H windshield. Snap on two part I side mirrors.
- Page 14 TOOLS REQUIRED PRODUCT ASSEMBLY Slide the two part M front reflectors onto the front of the vehicle and they will snap in place.
- Page 15 TOOLS REQUIRED PRODUCT ASSEMBLY Under the hood, join the orange connector from the battery to the corresponding connector from the control module. DASHBOARD DIAGRAM FORWARD: DRIVE FORWARD POWER SWITCH PEDAL PARK: PARK VEHICLE (PEDAL IS DISABLED) LIGHT SWITCH REVERSE: DRIVE IN REVERSE Push down on the pedal to drive forward/reverse.
- Page 16 MEDIA PLAYER • Back/Volume-: Short press to play the previous song/radio station, long press to decrease volume • Play/Pause/Seek: Play/pause music, seek radio stations • Forward/Volume+: Short press to play the next song/radio station, long press to increase volume • Mode: Press to toggle between music and FM radio FORWARD/VOLUME+ PLAY/PAUSE/SEEK...
- Page 17 CHARGING INSTRUCTIONS AND WARNINGS • Charging socket is located under the dashboard on the left side. Insert one end of the part O charger into the charging socket and plug the other end into a wall outlet (see Dashboard Diagram). •...
- Page 18 WARNINGS REGARDING BATTERIES • Do not mix alkaline, standard (carbon zinc) and rechargeable (nickel hydride) batteries. • Do not mix old and new batteries. • Non-rechargeable batteries should not be charged. • Rechargeable batteries should be charged under adult supervision only. •...
- Page 19 FCC COMPLIANCE STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This product may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 20 HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
