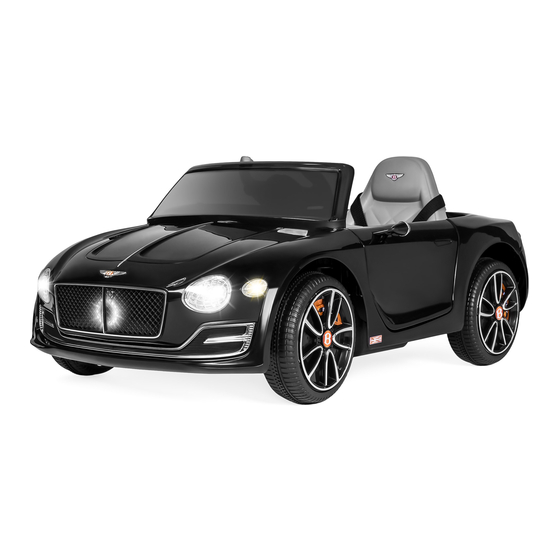

- Page 1 INSTRUCTION MANUAL Bentley EXP 12 Ride-On with Remote Control SKY4767 + SKY4768 Ver. 2...
- Page 2 Charge for 4 - 6 hrs before initial use. After initial charge, follow the normal recommended charging time. bestchoiceproducts.com...
-
Page 3: Battery Warnings
SAFETY Please retain these instructions for future reference. This vehicle must be assembled by an adult who has read and understood the instructions in this manual. Keep the packaging and bags away from children and dispose of all packaging before use. Always use common sense and safe practices when operating this vehicle. -
Page 4: User Warnings
USER WARNINGS • Never leave a child unattended. • Always sit in the seat when using this vehicle. • Keep your hands, hair, and clothes away from moving parts. • Always wear shoes when operating this vehicle. • Only one rider is allowed on the vehicle at a time •... - Page 5 TOOLS PHILLIPS PLASTIC SPANNER 2 PEOPLE APPROXIMATELY SCREWDRIVER (PROVIDED) 1 AAA BATTERY 2 AA BATTERIES ASSEMBLY 45 MIN. ASSEMBLY HARDWARE Spare parts may be included M5x18mm SCREW M4x13mm SCREW WASHER 8 PCS 2 PCS 6 PCS SPACER 4 PCS 2 PCS PARTS GEAR BOX (L/R) REAR WHEEL...
- Page 6 PARTS MOTOR HOOD STEERING WHEEL 2 PCS 1 PC 4 PCS WINDSHIELD SEAT SIDE MIRROR (L/R) 1 PC 2 PCS 1 PC 6V CHARGER REMOTE CONTROL 1 PC 1 PC...
-
Page 7: Product Assembly
PRODUCT ASSEMBLY Slide a part A gear box onto the rear axle. Route the wires from the gear box through the body of the vehicle and into the seat. Slide on a part B rear wheel and part 3 washer, then secure it with a part 4 nut. - Page 8 PRODUCT ASSEMBLY Within the seat, join the connectors from the gear boxes to the corresponding connectors. Insert the red wire into the red terminal on one of the batteries. Attach two part E motor hoods with eight part 1 screws, four screws per motor hood. Position motor hoods so the tracks face the inside &...
- Page 9 PRODUCT ASSEMBLY Remove the battery cover from the part F steering wheel, install two AA batteries, then replace the battery cover. Remove the nut and bolt from the steering wheel, slide it onto the steering mount, and then replace the nut and bolt to secure the steering wheel.
- Page 10 PRODUCT ASSEMBLY Insert two part I side mirrors, one on each side. Install the part G seat and secure it with two part 2 screws...
- Page 11 CHARGING INSTRUCTIONS AND DIAGRAM SEE STEP 2 DIAGRAM • Charging socket is located below the seat. Insert one end of the part K charger into the charging socket and plug the other end into a wall outlet. • Charge the battery 4 to 6 hours before initial use. •...
-
Page 12: Media Player
MEDIA PLAYER AUX INPUT: Plug in a music player to play music • MICROSD (TF) PORT: Play music from a MicroSD card • • USB PORT: Play music from a USB drive MICROSD (TF) PORT INCREASE VOLUME AUX INPUT DECREASE VOLUME USB PORT REMOTE CONTROL FUNCTIONS FOWARD... -
Page 13: Troublshooting
TROUBLSHOOTING Problem Reason Solution Fully charge the battery Low battery Electrical protection Stop use for several minutes and restart Vehicle does not move Completely press in switches Switch not in the correct position Plug in battery connectors Battery connectors disconnected Battery connectors disconnected Plug in battery connectors Battery does not recharge... - Page 14 FCC COMPLIANCE STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This product may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 15 Thank you for choosing us! Since 2002, Best Choice Products has been bringing customers high-quality products at the absolute lowest price. With everything ranging from instruments and toys to furniture and outdoor, we’ve got your everyday living essentials covered. We’re centered around a customer-first philosophy –...
-
Page 16: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
