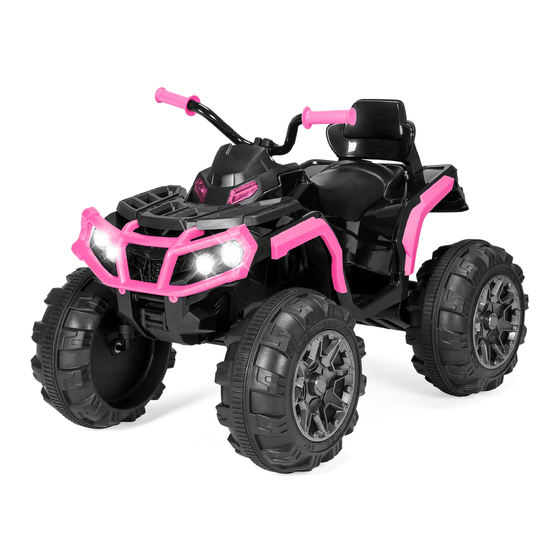

- Page 1 INSTRUCTION MANUAL 2-Speed Quad Ride-On SKY5606 + SKY5607 + SKY5608 + SKY5609 Ver. 4...
- Page 2 As shoppers, we’re always trying to find the perfect balance between quality & value. At BCP, we believe we’ve achieved that. Our diverse catalog of everyday essentials is tailored especially to our customers & guaranteed to hit that sweet spot of high quality & low price.
- Page 3 Charge for 10 – 12 hrs before initial use. After initial charge, follow the normal recommended charging time. bestchoiceproducts.com...
-
Page 4: Battery Warnings
SAFETY Please retain these instructions for future reference. This vehicle must be assembled by an adult who has read and understood the instructions in this manual. Keep the packaging and bags away from children and dispose of all packaging before use. Always use common sense and safe practices when operating this vehicle. -
Page 5: User Warnings
USER WARNINGS • Never leave a child unattended. • Always sit in the seat when using this vehicle. • Keep your hands, hair, and clothes away from moving parts. • Always wear shoes when operating this vehicle. • Only one rider is allowed on the vehicle at a time •... -
Page 6: Tools Required
TOOLS REQUIRED 65 LBS 2 PERSON APPROXIMATELY PLASTIC SPANNER PHILLIPS ASSEMBLY 45 MIN. CAPACITY (PROVIDED) (2) SCREWDRIVER ASSEMBLY HARDWARE M4 x 12mm SCREW 4 PCS PARTS FRONT AXLE REAR AXLE FRONT WHEEL 1 PC 2 PCS 1 PC HANDLEBAR REAR WHEEL HUB CAP 1 PC 2 PCS... -
Page 7: Product Assembly
PRODUCT ASSEMBLY Please retain these instructions for future reference. Flip the car over and lay it on a level surface. Attach the part A front axle with four part 1 screws. Remove the nuts/washers from the part B rear axle, then slide the rear axle through the rear gear box. Lift the rear shocks and position them into the designated slot;... - Page 8 PRODUCT ASSEMBLY Slide a part D rear wheel onto the rear axle, then replace the nut/washer to secure the wheel. Repeat on the other side. FRONT REAR Remove the nuts/washers from the front axle. Slide a washer and part C front wheel onto the front axle, then replace a nut/washer to secure the wheel.
- Page 9 PRODUCT ASSEMBLY Remove the nut and bolt from the part F handlebar, slide it onto the steering mount, and then replace the nut and bolt to secure the handlebar.
- Page 10 PRODUCT ASSEMBLY Insert the part G backrest.
- Page 11 PRODUCT ASSEMBLY Loosen the screw and remove the seat. Join the orange connector from the battery to the corresponding connector from the control module. Reattach the seat and tighten the screw.
-
Page 12: Charging Instructions
CHARGING INSTRUCTIONS Remove the seat and disconnect the orange connector joining the battery to the control module. Join the part H charger to the connector leading from the battery and plug the other end into a wall outlet. Charge battery for 8 to 12 hours, then disconnect. Reconnect the battery and control module. -
Page 13: Media Player
DASHBOARD DIAGRAM MEDIA PLAYER PEDAL HORN POWER SWITCH LIGHTS FORWARD/ REVERSE HIGH/LOW SPEED Push down on the pedal to drive forward/reverse. Release the pedal to slow down and stop. MEDIA PLAYER • AUX input: Plug in a music player to play music •... -
Page 14: Troubleshooting
TROUBLESHOOTING Problem Reason Solution Fully charge the battery Low battery Stop use for several minutes and restart Electrical protection Vehicle does not move Switch not in the correct position Completely press in switches Plug in battery connectors Battery connectors disconnected Battery connectors disconnected Plug in battery connectors Battery does not recharge... -
Page 15: California Proposition
CALIFORNIA PROPOSITION 65 WARNING: Battery posts, terminals, and related accessories can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm, and are toxic and corrosive. Wash hands after handling. For more information go to www.P65Warnings.ca.gov... -
Page 16: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Orders FAQ Chat Support Product Inquiry Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
