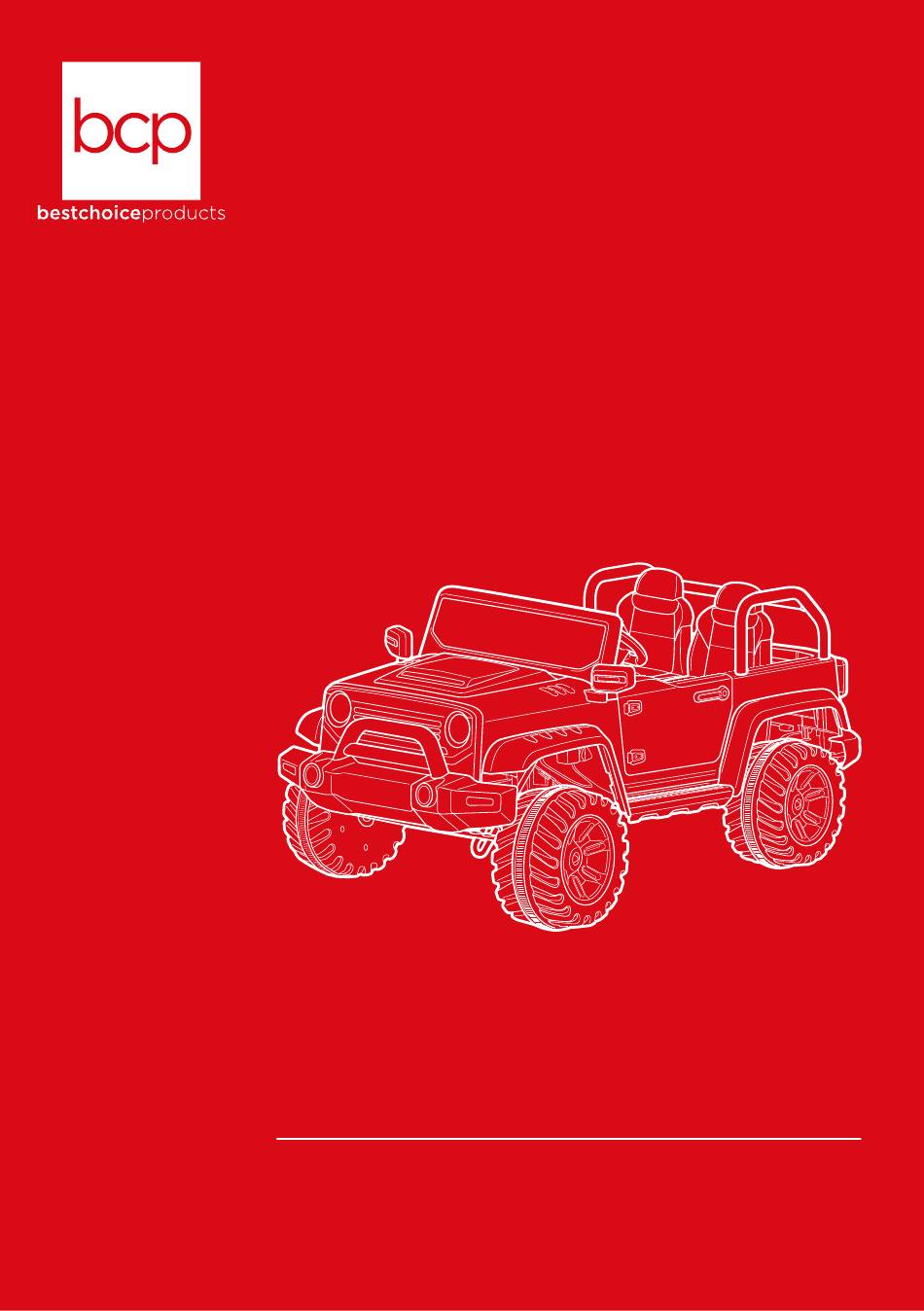

  • Page 1 INSTRUCTION MANUAL Ride-On Jeep with Dual Seats SKY5024 + SKY5025 Ver. 1...
  • Page 2 Charge for 15-18 hrs before initial use. After initial charge, follow the normal recommended charging time. bestchoiceproducts.com...

  • Page 3: Battery Warnings

    SAFETY Please retain these instructions for future reference. This vehicle must be assembled by an adult who has read and understood the instructions in this manual. Keep the packaging and bags away from children and dispose of all packaging before use. Always use common sense and safe practices when operating this vehicle.

  • Page 4: User Warnings

    USER WARNINGS The following safety hazards may result in serious injury or death: • Never leave a child unattended. • Always sit in the seat when using this vehicle. • Keep your hands, hair, and clothes away from moving parts. •...

  • Page 5: Tools Required

    TOOLS REQUIRED AAA - 2 M10 SPANNERS PHILLIPS HEAD 4 AAA BATTERIES 130 LBS 2 PERSON APPROXIMATELY (PROVIDED) SCREWDRIVER (FOR REMOTE/ CAPACITY ASSEMBLY 75 MIN. STEERING WHEEL) (COMBINED) ASSEMBLY HARDWARE SCREW WASHER 38 PCS 2 PCS 2 PCS PARTS FRONT BUMPER FRONT SIDE STEP (L/R) BUMPER (L/R)
  • Page 6 PARTS REAR AXLE WINDSHIELD/ STEERING ROD DASHBOARD 1 PC 1 PC 1 PC STEERING WHEEL SIDE MIRRORS (L/R) SEAT 1 PC 1 SET 2 PCS SIDE FRAME (L/R) MIDDLE FRAME 12V CHARGER 1 SET 1 PC 1 PC REMOTE CONTROL 1 PC Pg.

  • Page 7: Product Assembly

    PRODUCT ASSEMBLY Flip the car over and lay it on a level surface. Attach the part A front bumper with seven part 1 screws. Attach two part B front side bumpers with eight part 1 screws. Attach two part D rear side bumpers with eight part 1 screws.
  • Page 8 PRODUCT ASSEMBLY Remove the nuts/washers from the front axle. Slide a washer and part F front wheel onto the axle, then replace the nut/washer to secure the wheel. Repeat on the other side. Snap on two part H hub caps. Use the provided plastic spanner to tighten the nuts.
  • Page 9 TOOLS REQUIRED PRODUCT ASSEMBLY Open car doors to install the part K windshield/dashboard. Join the connectors to the corresponding connectors from the vehicle. Place the windshield/dashboard and secure it with two part 1 screws. Pg. 9...
  • Page 10 PRODUCT ASSEMBLY Flip the car on its side. Slide the part L steering rod into the steering gear box. Hook the top onto the tab on the front axle and secure it with a part 2 washer and part 3 pin. NOTE: Angle the steering rod while inserting it into the steering gear box.
  • Page 11 PRODUCT ASSEMBLY Insert the set of part N side mirrors (L/R). Within the seat, join the connectors from the gear boxes to the corresponding connectors, then connect the gear boxes to the battery. Pg. 11...
  • Page 12 PRODUCT ASSEMBLY LOCK UNLOCK Install two part O seats by hooking them onto the car, then secure them by turning the built-in locks. Assemble the rear frame with the part P side frame set and part Q middle frame. Insert the rear frame. Pg.

  • Page 13: Charging Instructions

    CHARGING INSTRUCTIONS • The charging port is located underneath the seat. Remove the driver’s seat and disconnect the connector from the battery. Join the connector from the part R charger to the battery and plug the other end into a wall outlet. •...

  • Page 14: Remote Control Diagram

    DASHBOARD DIAGRAM • Push down on the pedal to drive forward/reverse. Release the pedal to slow down and stop. HORN ENGINE SOUNDS REMOTE/ HIGH/LOW SPEED MANUAL CONTROL LIGHTS POWER SWITCH FORWARD/REVERSE REMOTE CONTROL DIAGRAM LED LIGHT TOGGLE SPEED FORWARD REVERSE /CONNECT TURN RIGHT TURN LEFT...

  • Page 15: Troubleshooting

    TROUBLESHOOTING PROBLEM REASON SOLUTION Low battery Fully charge the battery Electrical protection Stop use for several minutes and restart Vehicle does not move Completely press in switches Switch not in the correct position Plug in battery connectors Battery connectors disconnected Battery connectors disconnected Plug in battery connectors Battery does not recharge...

  • Page 16: Product Warranty Information

    CARING FOR YOUR RIDE-ON • Park the vehicle indoors or cover it with a tarp to protect it from wet weather. • Do not leave the vehicle in the sun for long periods of time or fading may occur. Store in shade or cover with tarp. •...
