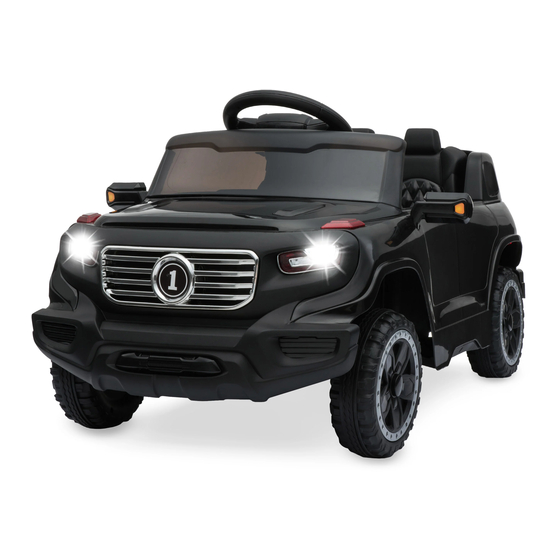

- Page 1 INSTRUCTION MANUAL 6V Ride-On SUV with Remote SKY4620 + SKY4621 + SKY4622 + SKY4623 + SKY5105 Ver. 5...
- Page 2 Charge for 18 hrs before initial use. After initial charge, follow the normal recommended charging time. bestchoiceproducts.com...
-
Page 3: Battery Warnings
SAFETY Please retain these instructions for future reference. This vehicle must be assembled by an adult who has read and understood the instructions in this manual. Keep the packaging and bags away from children and dispose of all packaging before use. Always use common sense and safe practices when operating this vehicle. -
Page 4: Specifications
WARNING To reduce the risk of injury, adult supervision is required. Never use on roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; always wear shoes, and never allow more than one rider. •... -
Page 5: Tools Required
TOOLS REQUIRED AAA - PHILLIPS 2 PLASTIC SPANNERS 2 AAA BATTERIES 44 LBS 1 PERSON APPROXIMATELY SCREWDRIVER (PROVIDED) (FOR REMOTE) ASSEMBLY 45 MIN. CAPACITY ASSEMBLY HARDWARE M4 x 13mm SCREW 2 PCS PARTS WHEEL WHEEL COVER STEERING WHEEL 4 PCS 4 PCS 1 PC WINDSHIELD... -
Page 6: Product Assembly
PRODUCT ASSEMBLY Flip the vehicle over and lay it on a level surface. Remove the nut and washer from a front wheel axle. Slide on a part A wheel and replace the nut and washer to secure the wheel. Repeat on the other side. Snap a part B wheel cover onto each wheel. Use the provided spanners to tighten Remove the nut and washer from the rear wheel axle. - Page 7 PRODUCT ASSEMBLY Flip the vehicle onto the wheels. Join the connector from the part C steering wheel to the connector from the steering wheel mount. Remove the bolt from the steering wheel, slide on the steering wheel, and then replace the bolt to secure the steering wheel to the mount.
- Page 8 TOOLS REQUIRED PRODUCT ASSEMBLY Snap on the part D windshield. Snap on the part E back frame.
- Page 9 TOOLS REQUIRED PRODUCT ASSEMBLY Snap on the part F side mirrors. Within the seat, insert the red wire into the red terminal on the battery.
- Page 10 PRODUCT ASSEMBLY Install the part G seat and secure it with two part 1 screws.
- Page 11 DASHBOARD DIAGRAM Push down on the pedal to drive forward/reverse. Release the pedal to slow down and stop. MUSIC HORN AUX INPUT: PLUG IN A MUSIC PLAYER POWER SWITCH FORWARD/REVERSE VOLUME HEADLIGHTS TOOLS REQUIRED REMOTE CONTROL DIAGRAM • Insert 2 AAA batteries into the remote control. FREQUENCY KEY TURN LEFT FORWARD...
- Page 12 CHARGING INSTRUCTIONS AND WARNINGS • Charging socket is located under the seat. Insert one end of the part I charger into the charging socket and plug the other end into a wall outlet. • Charge the battery at least 18 hours before initial use. •...
-
Page 13: Troubleshooting
CARING FOR YOUR RIDE-ON • Park the vehicle indoors or cover it with a tarp to protect it from wet weather. • Do not leave the vehicle in the sun for long periods of time or fading may occur. Store in shade or cover with tarp. -
Page 14: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This product may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 15 As shoppers, we’re always trying to find the perfect balance between quality & value. At BCP, we believe we’ve achieved that. Our diverse catalog of everyday essentials is tailored especially to our customers & guaranteed to hit that sweet spot of high quality & low price.
-
Page 16: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
