EVM User's Guide: UCC34141EVM-116
UCC34141EVM-116 Evaluation Module for Automotive and
Industrial Bias Supply Applications
Description
The UCC34141EVM-116 is intended to allow
designers to evaluate the performance characteristics
and capabilities of the UCC34141-Q1 quickly and
easily for use in automotive, isolated, gate driver bias
applications as well as a variety of isolated industrial
bias power applications. The EVM allows users to
test functions of the UCC34141-Q1 such as: Enable/
Disable (EN) of the device as well as configure
the isolated output voltage for 15V<VDD<20V, and
-5V<VEE<0V and easily apply variable loads to
the outputs. This EVM allows the user to measure
efficiency across the input voltage range and varying
output loads according to system requirements.
Another feature of the EVM is the ease of probing
during test. Test points, are strategically placed and
described according to Table
Features
• UCC34141-Q1, 1.5W, DC/DC, 5kV
converter module, configurable for single positive,
dual positive, or dual positive/negative output
voltages

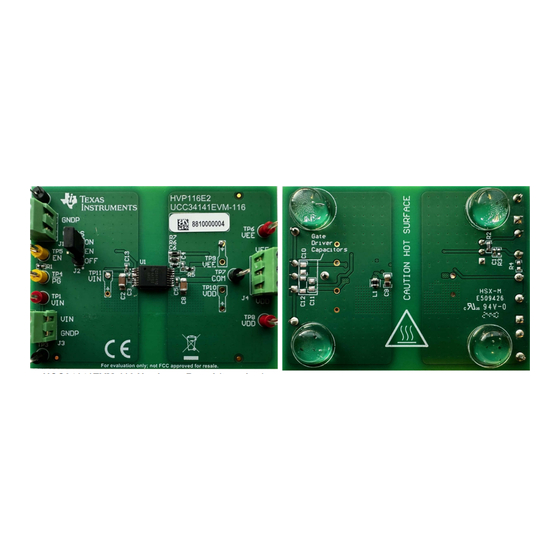

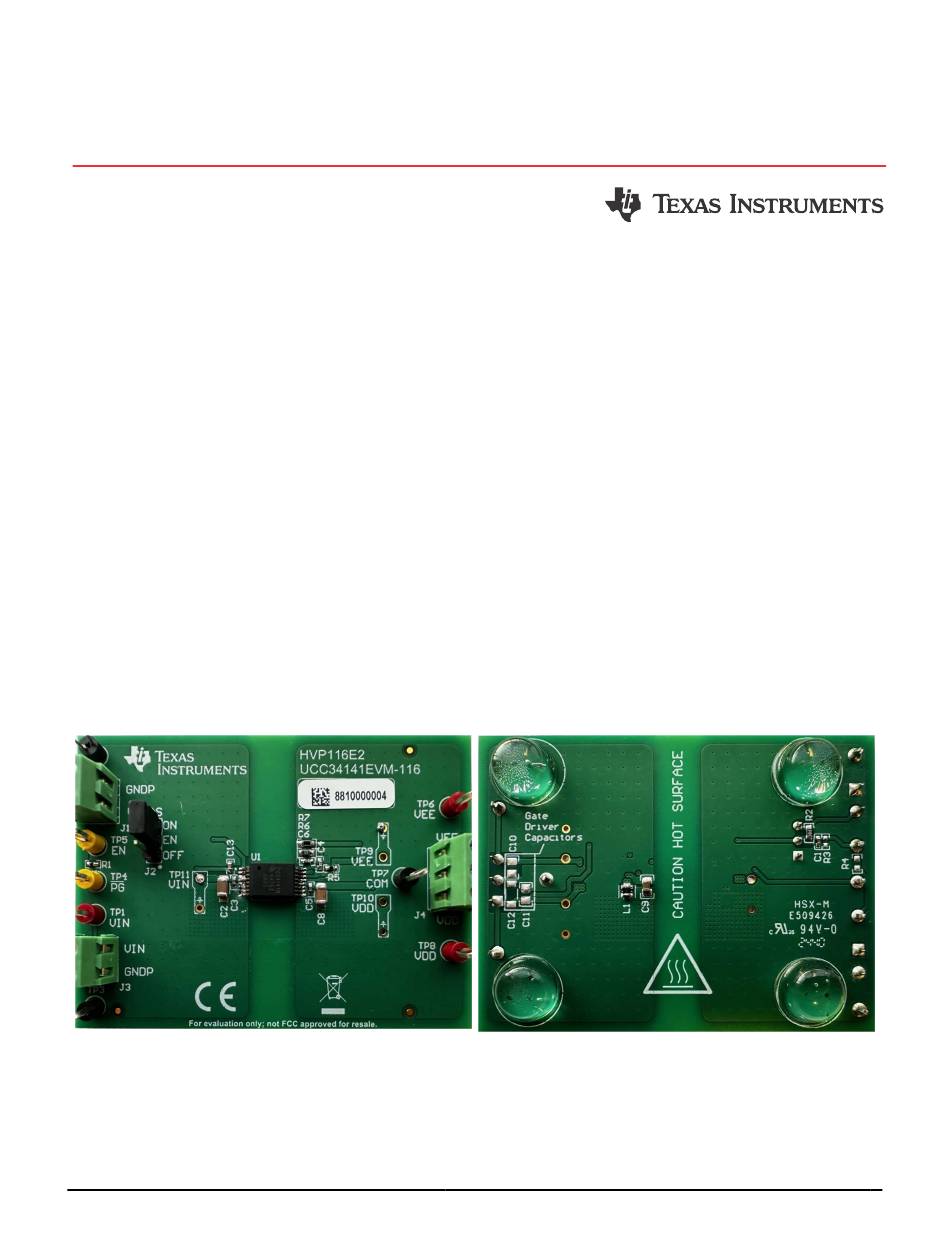

UCC34141EVM-116 Hardware Board (top view)
SLUUD88 – APRIL 2025
Submit Document Feedback
2-1.
, isolated
RMS
Copyright © 2025 Texas Instruments Incorporated
• Transformer, power stage and control, fully
integrated into a low-profile, 5.85mm × 7.5mm ×
2.6mm wide body, 16-pin SOIC package
• Evaluate UCC34141-Q1 integrated protection
features: UVLO, OVLO, short-circuit, OVP, UVP,
and thermal shutdown
• AEC-Q100, full rated power up to 105°C, <3pF
isolation capacitance, SSM frequency modulation
Applications
• Hybrid, electric and power train system (EV/HEV)
– Inverter and motor control
– On-board (OBC) and wireless charger
– DC/DC converter
• Grid infrastructure
– EV charging station power module
– DC charging (pile) station
– String inverter
• Motor drive
– AC inverter and VF drive, robot servo drive
• Industrial transport
– Off-highway vehicle electric drive
UCC34141EVM-116 Hardware Board (bottom view)
UCC34141EVM-116 Evaluation Module for Automotive and Industrial Bias
Description
1
Supply Applications
