www.ti.com
EVM User's Guide: UCC33421EVM-092
Evaluation Module for Automotive and Industrial
Applications
Description
The UCC33421EVM-092 is intended to allow
designers to evaluate the performance characteristics
and capabilities of the UCC33421-Q1 quickly and
easily for use in automotive and industrial bias
applications. The EVM allows users to test functions
of the UCC33421-Q1 such as: Enable/Fault (EN/FLT)
of the device as well as configure the isolated output
voltage for VISO=5.0V or VISO=5.5V using the SEL
pin and apply variable loads to the outputs. The EVM
allows the user to measure efficiency across the input
voltage range and vary output loads according to
system requirements.

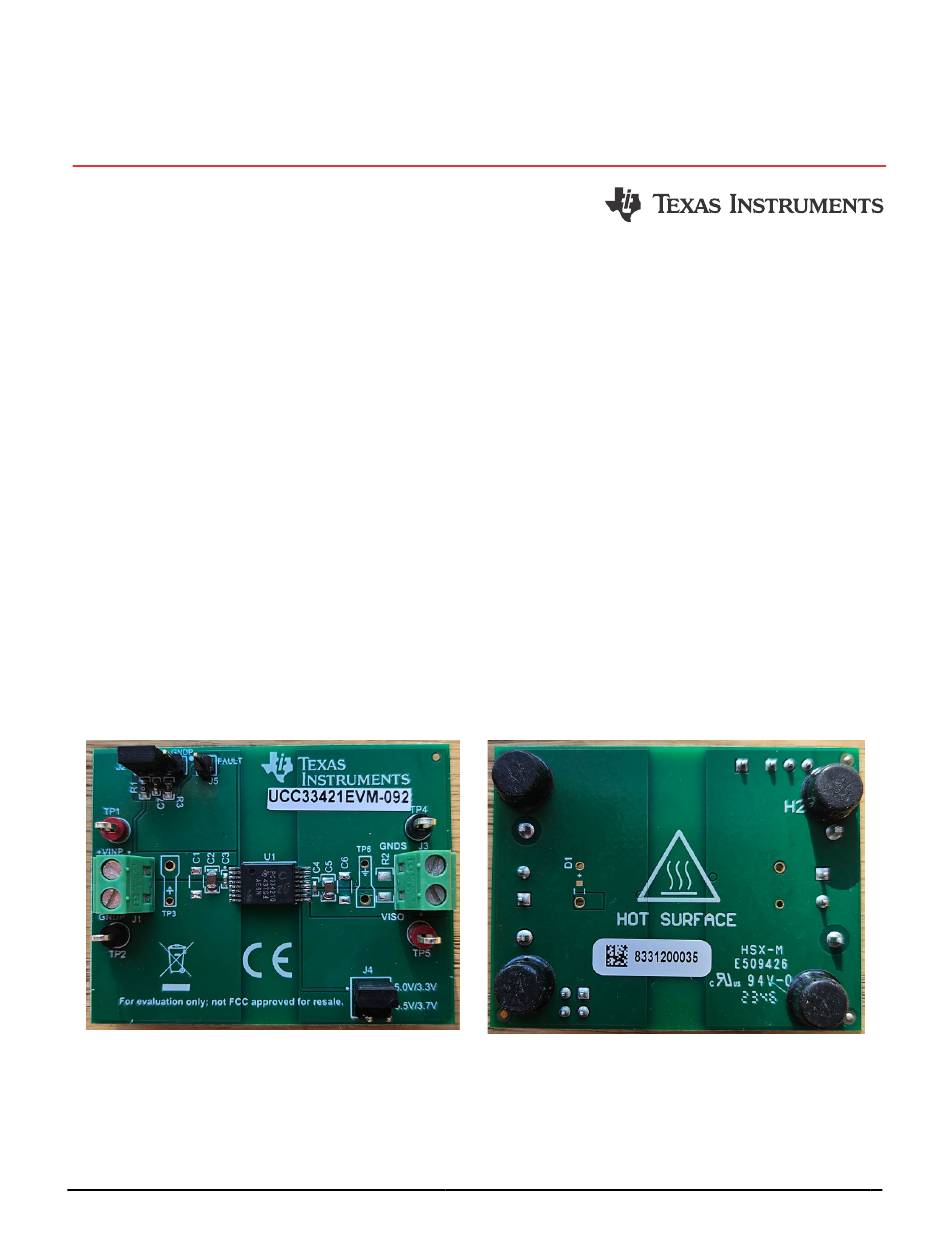

UCC33421EVM-092 (Top View)
SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024
Submit Document Feedback
Features
UCC33421-Q1 1.5W DC/DC isolated converter
module with isolated bias supply voltages
Transformer, power and control stage fully
integrated in a 5.85mmx7.50mmx2.65mm DHA-16
package
AEC-Q100, 5-kVrms isolation, protection features
and low electromagnetic emissions
EVM demonstrates an isolated bias supply used in
automotive and industrial applications
Applications
Battery-Management Systems (BMS)
HEV/EV OBC and DC/DC converters
Traction inverters
Factory automation
EV charging infrastructure
Isolated bias power for digital isolators
Isolated bias for isolated voltage and current
sensors
Isolated bias power for RS-485, RS-422 and CAN
Isolated bias power for MCU power
Evaluation Module for Automotive and Industrial Applications
Copyright © 2024 Texas Instruments Incorporated
PLC modules
UCC33421EVM-092 (Bottom View)
Description
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UCC33421EVM-092 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments UCC33421EVM-092

  • Page 1 EVM User's Guide: UCC33421EVM-092 Evaluation Module for Automotive and Industrial Applications Description Features The UCC33421EVM-092 is intended to allow • UCC33421-Q1 1.5W DC/DC isolated converter designers to evaluate the performance characteristics module with isolated bias supply voltages and capabilities of the UCC33421-Q1 quickly and •...
  • Page 2: Kit Contents

    1 Evaluation Module Overview 1.1 Introduction This user’s guide provides a description as well as directions for use of the UCC33421EVM-092 to evaluate the UCC33421-Q1 high frequency integrated transformer DC-DC converter, low-emissions, 5kV reinforced isolation module from Texas Instruments. UCC33421-Q1 comes in a minimum footprint DHA-16 package which provides high power density, 1.5W nominal power.
  • Page 3: Specification

    SYSTEM CHARACTERISTICS η Full load efficiency VINP=5.0V, VCC=5.0V, I =300mA, Ta=25ºC, C =22uF Switching frequency 64.5 SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Evaluation Module for Automotive and Industrial Applications Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 4 8. Thermal camera or thermocouple to measure U1 case temperature 2.1.2 External Connections for Easy Evaluation The UCC33421EVM-092 EVM utilizes screw terminals for easily connecting to VINP and VCC. EN connections are made through pin connectors. Connecting the appropriate ammeters and voltmeters, as shown in Figure 4‑1, allows accurate EVM efficiency measurements.
  • Page 5 VCC, secondary output voltage test point. 4.85 5.15 VCC-to-GNDS, scope probe SEL 5.0V 4.85 5.15 point. SEL 5.5V 5.34 5.67 SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Evaluation Module for Automotive and Industrial Applications Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 The EVM input (VINP, GNDP) and output nomenclature (VCC, GNDS) corresponds to what is commonly used when referring to isolated amplifiers that need to be biased from primary and secondary sides. Evaluation Module for Automotive and Industrial Applications SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7: Performance Data

    3.2 Performance Data VINP=5.0V, VCC=5.0V, T =25°C (unless otherwise noted). 3.2.1 Efficiency Data Figure 3-2. Efficiency SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Evaluation Module for Automotive and Industrial Applications Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 Implementation Results www.ti.com 3.2.2 Regulation Data Figure 3-3. Regulation vs Load Current Evaluation Module for Automotive and Industrial Applications SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 Figure 3-4. Start-up, sequence EN=5.0V → VINP=5.0V, VCC=5.0V, I =0mA Figure 3-5. Start-up, sequence EN=5.0V → VINP=5.0V, VCC=5.0V, Rload=18Ω SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Evaluation Module for Automotive and Industrial Applications Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 Figure 3-6. Inrush current , sequence VINP=5.0V → EN=5.0V, VCC=5.0V, I =0mA, Toggling EN Figure 3-7. Inrush current, sequence VINP=5.0V → EN=5.0V, VCC=5.0V, Rload=18Ω, Toggling EN Evaluation Module for Automotive and Industrial Applications SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 Figure 3-8. VCC AC Ripple, VINP=5.0V, VCC=5.0V, I =0mA Figure 3-9. VCC AC Ripple, VINP=5.0V, VCC=5.0V, I =300mA SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Evaluation Module for Automotive and Industrial Applications Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 =300mA) Figure 3-11. Load transient, VINP=5.0V, VCC=5.0V, Full load (I =300mA) to No load (I =0mA) Evaluation Module for Automotive and Industrial Applications SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 Figure 3-12. Short circuit, VINP=5.0V, VCC=5.0V 3.2.8 Thermal Performance Figure 3-13. VINP=5.0V, VCC=5.0V, I =300mA, Pout=1.5W, TA=25°C SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Evaluation Module for Automotive and Industrial Applications Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 Figure 3-14. VINP=5.0V, VCC=5.0V, I =150 mA, Pout=0.75 W, TA=25ºC Figure 3-15. VINP=5.0V, VCC=5.0V, I =0mA, Pout=0W, TA=25ºC Evaluation Module for Automotive and Industrial Applications SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 4.1 Assembly and Printed Circuit Board (PCB) The UCC33421EVM-092 is designed using a four-layer, FR4, PCB, fabricated with 1-ounce copper on all four layers. The EVM, PCB demonstrates the important use of ground planes and tented stitching vias for shielding and providing low impedance connection between GND layers.
  • Page 16 Isolated DC-DC Converter C1, C6 CAP, CERM, 10µF, 10V, +/- 10%, GCM31CR71A106KA64L MuRata X7R, AEC-Q200 Grade 1, 1206 Evaluation Module for Automotive and Industrial Applications SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17 RES, 200Ω, 5%, 0.25W, AEC-Q200 CRCW1206200RJNEA Vishay-Dale Grade 0, 1206 Zener Diode 5.94V 960mW ±2.61% PLZ6V2A-G3/H Vishay SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Evaluation Module for Automotive and Industrial Applications Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18: Additional Information

    Additional Information www.ti.com 5 Additional Information 5.1 Trademarks All trademarks are the property of their respective owners. Evaluation Module for Automotive and Industrial Applications SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 19: Revision History

    • Updated Load Transient section........................12 • Updated VCC Short-Circuit section........................• Added Thermal Performance section....................... SLUUD39A – MAY 2024 – REVISED NOVEMBER 2024 Evaluation Module for Automotive and Industrial Applications Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 20 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 21 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 22 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 23 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 24 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 25 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
