EVM User's Guide: UCC33420Q1-EVM
UCC33420EVM-080 Evaluation Module for Automotive and
Industrial Applications
Description
The UCC33420EVM-080 is intended to allow
designers to evaluate the performance characteristics
and capabilities of the UCC33420-Q1 quickly and
easily for use in automotive and industrial bias
applications. The EVM allows users to easily probe
during test and to test functions of the UCC33420-Q1
such as, Enable/Fault (EN/FLT) of the device and
configure the isolated output voltage for VISO = 5.0V
or VISO = 5.5V using the SEL pin and apply variable
loads to the outputs. The EVM allows the user to
measure efficiency across the input voltage range and
vary output loads according to system requirements.

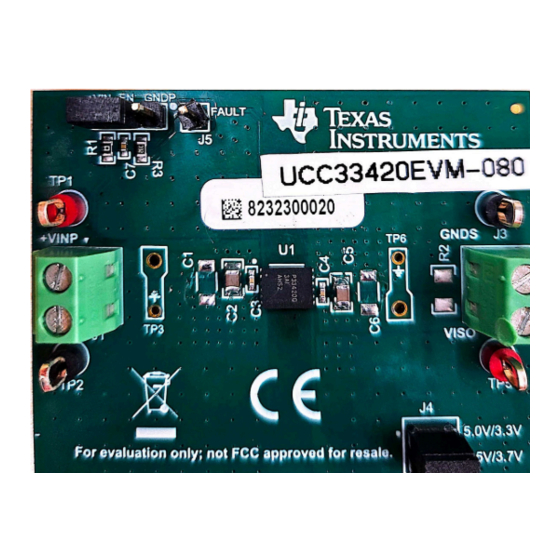

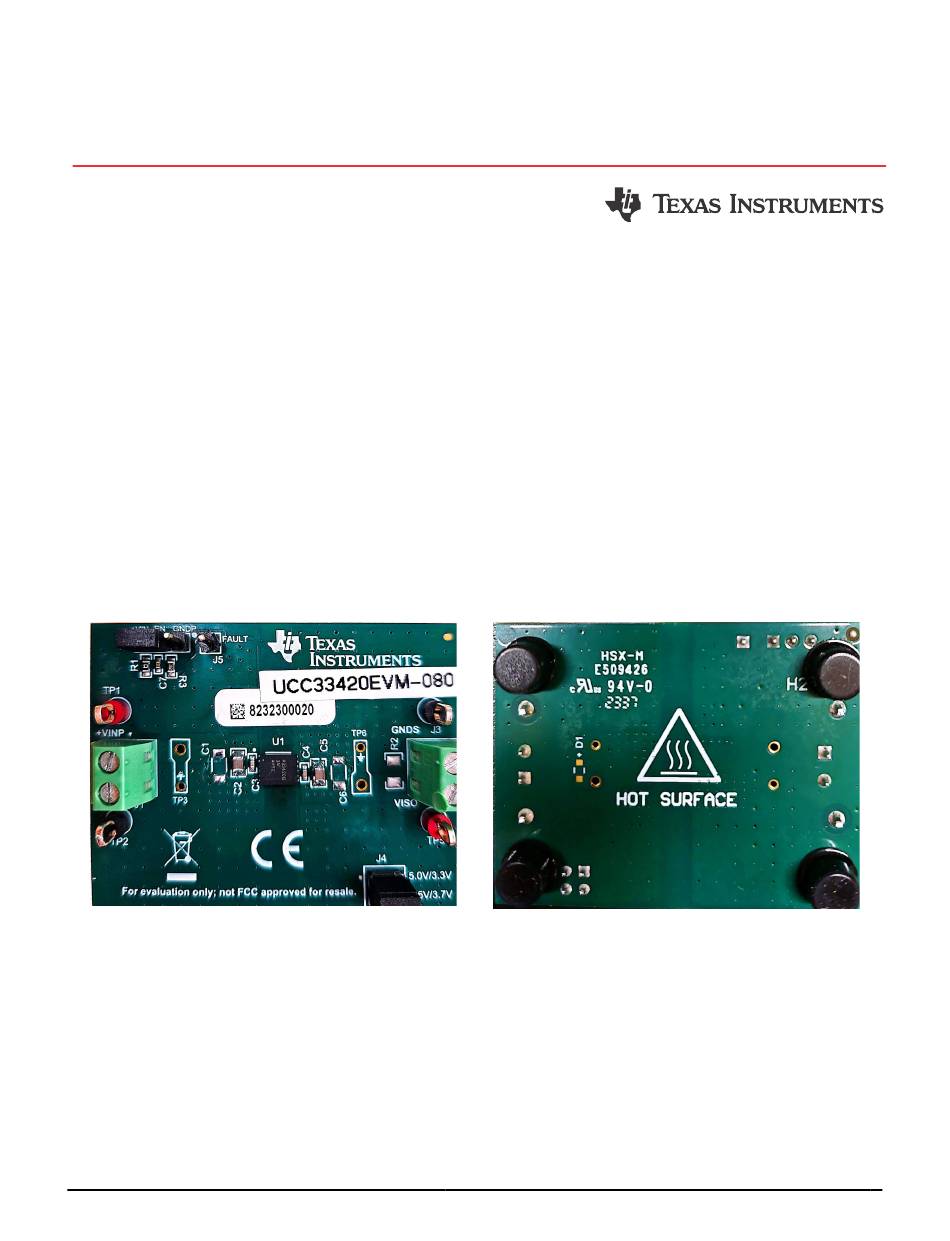

UCC33420EVM-080, HVP080E1 (Top View)
SLUUCZ9 – JANUARY 2024
Submit Document Feedback
Features
•
UCC33420-Q1 1.5W DC/DC isolated converter
module with isolated bias supply voltages
•
Transformer, power and control stage fully
integrated in a 4mmx5mmx1mm VSON-12
package with 12 pins
•
AEC-Q100, 3-kVrms isolation, protection features
and low electromagnetic emissions
•
EVM demonstrates an isolated bias supply used in
automotive and industrial applications
Applications
•
Isolated amplifiers
•
Digital isolators
•
Isolated VI sensors
•
CAN transceivers
UCC33420EVM-080, HVP080E1 (Bottom View)
UCC33420EVM-080 Evaluation Module for Automotive and Industrial
Copyright © 2024 Texas Instruments Incorporated
Description
1
Applications
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments UCC33420EVM-080
Summary of Contents for Texas Instruments UCC33420EVM-080
- Page 1 Isolated amplifiers • Digital isolators • Isolated VI sensors • CAN transceivers UCC33420EVM-080, HVP080E1 (Top View) UCC33420EVM-080, HVP080E1 (Bottom View) SLUUCZ9 – JANUARY 2024 UCC33420EVM-080 Evaluation Module for Automotive and Industrial Submit Document Feedback Applications Copyright © 2024 Texas Instruments Incorporated...
-
Page 2: Kit Contents
1 Evaluation Module Overview 1.1 Introduction This user’s guide provides a description as well as directions for use of the UCC33420EVM-080 to evaluate the UCC33420-Q1. The UCC33420-Q1 is a high efficiency, low-emissions, 3 kV isolated DC-DC converter capable of delivering 1.5 W of power in an integrated VSON-12 package. The UCC33420-Q1 delivers class- leading efficiency in power conversion from the primary to the secondary side while removing the need for external transformers or power modules commonly used in existing designs. - Page 3 0402, and 22-µF ceramic bypass capacitors close to VCC and GNDS pins. GNDS 9, 10, 11, 12 Power ground return connection for VCC. P=Power, G=Ground, I=Input, 0=Output SLUUCZ9 – JANUARY 2024 UCC33420EVM-080 Evaluation Module for Automotive and Industrial Submit Document Feedback Applications Copyright © 2024 Texas Instruments Incorporated...
- Page 4 8. Thermal camera (optional) or thermocouple to measure U1 case temperature 2.1.2 External Connections for Easy Evaluation The UCC33420EVM-080 EVM utilizes screw terminals for quickly connecting to V and VCC. EN connections are made through pin connectors. Connecting the appropriate ammeters and voltmeters, as shown in Figure 2‑1, allows accurate EVM efficiency measurements to be made.
-
Page 5: Powering The Evm
VISO, secondary output voltage test 4.85 5.15 point. VISO-to-GNDS, scope SEL 5.0V 4.85 5.15 probe point. SEL 5.5V 5.34 5.67 SLUUCZ9 – JANUARY 2024 UCC33420EVM-080 Evaluation Module for Automotive and Industrial Submit Document Feedback Applications Copyright © 2024 Texas Instruments Incorporated... - Page 6 The EVM input (VINP, GNDP) and output nomenclature (VISO, GNDS) corresponds to what is commonly used when referring to isolated amplifiers that need to be biased from primary and secondary sides. UCC33420EVM-080 Evaluation Module for Automotive and Industrial SLUUCZ9 – JANUARY 2024...
-
Page 7: Performance Data
Figure 3-1. VISO AC Ripple: Vpkpk =56 mV, VINP=5 V, VISO=5 V, ILOAD=0 mA Figure 3-2. VISO AC Ripple: Vpkpk=56 mV, VINP=5 V, VISO=5 V, ILOAD=300 mA SLUUCZ9 – JANUARY 2024 UCC33420EVM-080 Evaluation Module for Automotive and Industrial Submit Document Feedback Applications... -
Page 8: Load Transient
Figure 3-3. Load transient, VINP=5 V, VISO=5 V, No load (ILOAD=0 mA) to Full load (ILOAD=300 mA) Figure 3-4. Load transient, VINP=5 V, VISO=5 V, Full load (ILOAD=300 mA) to No load (ILOAD=0 mA) UCC33420EVM-080 Evaluation Module for Automotive and Industrial SLUUCZ9 – JANUARY 2024... - Page 9 4.2 Assembly and Printed Circuit Board (PCB) The UCC33420EVM-080 is designed using a four-layer, FR4, PCB, fabricated with 1-ounce copper on all four layers. The EVM PCB demonstrates the important use of ground planes and tented stitching vias for shielding and providing low impedance connection between GND layers.
- Page 10 Figure 4-4. PCB Top Layer, Assembly Figure 4-5. Ground Layer 2 Figure 4-6. Ground Layer 3 Figure 4-7. PCB Bottom Layer, Assembly (Mirrored View) UCC33420EVM-080 Evaluation Module for Automotive and Industrial SLUUCZ9 – JANUARY 2024 Applications Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
-
Page 11: Bill Of Materials (Bom)
Zener Diode 5.94 V 960 mW PLZ6V2A-G3/H Vishay ±2.61% 5 Additional Information 5.1 Trademarks All trademarks are the property of their respective owners. SLUUCZ9 – JANUARY 2024 UCC33420EVM-080 Evaluation Module for Automotive and Industrial Submit Document Feedback Applications Copyright © 2024 Texas Instruments Incorporated... - Page 12 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 13 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 14 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 15 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 16 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
- Page 17 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
