- Page 1 Using the UCC24612-1EVM Secondary -Side Synchronous Rectifier Controller Diode- Replacement Board User's Guide Literature Number: SLUUBP3 July 2017...
- Page 2 Any other use and/or application are strictly prohibited by Texas Instruments. If you are not suitable qualified, you should immediately stop from further use of the HV EVM.

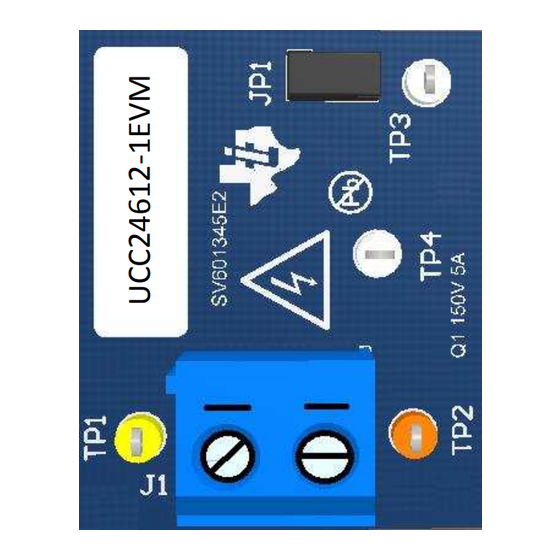

- Page 3 Using the UCC24612-1EVM Introduction The UCC24612-1EVM evaluation module (EVM) is used to convert the output rectifier of a flyback converter from a diode to a synchronous rectifier (SR) FET to investigate and evaluate the efficiency benefits of using an SR over a rectifier diode.
- Page 4 Four test points and a terminal block provide access to several important nodes in the SR control circuit. Refer to the schematic diagram of the UCC24612-1EVM in Figure 3. In a low-side rectifier application, the EVM can connect directly to the converter’s output, provided that the output voltage is in the range of 4 V...
-
Page 5: Specifications
EVM Used in a Low-Side (LS) SR Application UCC24612EVM Closed 2.2u UCC24612 Note R3 and C3 are not Populated Figure 4. UCC24612-1EVM Used in Low-Side Rectifier Application SLUUBP3 – July 2017 Using the UCC24612-1EVM Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... - Page 6 Please note that the calculations for R3 and C3 are just starting points and should be adjusted based on individual preference, performance and efficiency requirements. High-Side Operation To use the UCC24612-1EVM to replace a high-side rectifier requires removing jumper JP1 and connecting the EVM as shown in Figure 5.
- Page 7 UCC24612 Note: R3 and C3 are not Populated Figure 5. UCC24612-1EVM Used in High-Side Rectifier Application If the magnitude of voltage across TP1 and TP2 is less than 28 V please remove R2 that is populated on the EVM ( 20 kΩ) and set R2 to 0 to 10 ohms and remove 27-V Zener diode D1 from the board.
- Page 8 Application Test Data www.ti.com Application Test Data The UCC24612-1EVM was used in a synchronous rectifier in both a high side and low side application in an offline (V = 85 V to 265 V RMS), 20-V (V ), 60-W application. The controller used in this design was a UCC28740 secondary side regulated, variable-frequency flyback controller that had a maximum switching frequency of roughly 85 kHz.
- Page 9 = 3 A Figure 12. HS, V = 265 V RMS, I = 0 A Figure 13. V = 265 V RMS, I = 3 A SLUUBP3 – July 2017 Using the UCC24612-1EVM Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
-
Page 10: Evm Layout
EVM Layout www.ti.com EVM Layout Figure 14. EVM Layout Using the UCC24612-1EVM SLUUBP3 – July 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 11: List Of Materials
List of Materials www.ti.com List of Materials UCC24612-1EVM list of materials as shown in Figure Table 2. UCC24612-1EVM List of Materials DESCRIPTION PART NUMBER MANUFACTURER Capacitor, ceramic, 2.2 µF, 50 V, ±20%, X7R, 0805 C2012X7R1H225M12 Capacitor, ceramic, 1 µF, 50 V, ±10%, X7R, 0805 08055C105KAT2A Capacitor, ceramic, 330 pF, 50 V, ±10%, C0G/NP0, 0805... - Page 12 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
