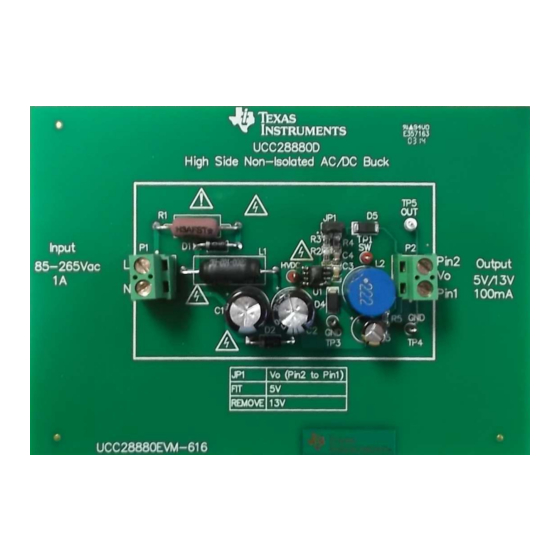

Texas Instruments UCC28880EVM-616 User Manual

High-side buck evaluation module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Using the UCC28880EVM-616
User's Guide
Literature Number: SLUUB56A
July 2014 – Revised August 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UCC28880EVM-616 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments UCC28880EVM-616

Summary of Contents for Texas Instruments UCC28880EVM-616

  • Page 1 Using the UCC28880EVM-616 User's Guide Literature Number: SLUUB56A July 2014 – Revised August 2014...
  • Page 2 SLUUB56A – July 2014 – Revised August 2014 UCC28880EVM-616 High-Side Buck Evaluation Module Introduction The UCC28880EVM-616 evaluation module is an offline high-voltage buck-type power supply that provides 13 V at a maximum output of 100 mA. The input accepts a voltage range of 85 V...
  • Page 3 C1 and C2 must be completely discharged before the EVM can be handled. Serious injury can occur if proper safety precautions are not followed. SLUUB56A – July 2014 – Revised August 2014 UCC28880EVM-616 High-Side Buck Evaluation Module Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 4: Electrical Performance Specifications

    Electrical Performance Specifications www.ti.com Electrical Performance Specifications Table 1. UCC28880EVM-616 Electrical Performance Specifications (13-V Output) PARAMETER CONDITIONS UNITS Input Characteristics Input voltage 115/230 Frequency 50/60 LINE No load power = 115 V/230 V, I = 0 mA 27/38 Input current...
  • Page 5 Electrical Performance Specifications www.ti.com Table 2. UCC28880EVM-616 Electrical Performance Specifications (5-V Output) PARAMETER CONDITIONS UNITS Input Characteristics Input Voltage 85 115/230 Frequency 50/60 LINE No Load Power = 115 V/230 V, I = 0 A 14/24 Input Current = 85 V, I...
  • Page 6 Schematic www.ti.com Schematic Figure 1. UCC28880EVM-616 Schematic UCC28880EVM-616 High-Side Buck Evaluation Module SLUUB56A – July 2014 – Revised August 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 7: Circuit Description

    Circuit Description www.ti.com Circuit Description The UCC28880EVM-616 is a non-isolated AC-to-DC high-side buck configuration with direct feedback. The EVM, on the input side, has a half-wave rectifier assembled for rectification of AC-to-DC, followed by an EMI filter. The pre-set output voltage is set to ~13 V (typical) if jumper J3 is not connected, or ~5 V (typical) when the jumper is inserted.
  • Page 8 With 5 V output, the preload is ~400 µA. A load of up to 100 mA can be applied to the output. The design of UCC28880EVM-616 is optimized for 13-V output setting. For 5-V setting, there is additional room for optimization when factors such as audible noise, output voltage ripple, stand-by power etc are considered.
  • Page 9 Figure 2 shows the basic test setup recommended to evaluate the UCC28880EVM-616. Start by applying a low DC voltage (~15 V to 20 V) into the AC input (P1). When connected correctly the output voltage is regulated to ~13 V (positive with respect to GND). Once correct output level is obtained, increase the input voltage to the desired level.

  • Page 10: Test Equipment

    Load: The UCC28880EVM-616 is capable of delivering 100 mA of output current. 50 Ω, at 1 W is the minimum value of load resistance for the 5-V output and 130 Ω at 5 W is the minimum value of load resistance for the 13-V output.
  • Page 11 11.5 230Vac 30.0 20.0 10.5 10.0 Figure 4. Efficiency for 13-V Output Figure 3. Regulation for 13-V Output SLUUB56A – July 2014 – Revised August 2014 UCC28880EVM-616 High-Side Buck Evaluation Module Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 12 115Vac 40.0 230Vac 30.0 20.0 10.0 Figure 6. Efficiency for 5-V output Figure 5. Regulation for 5-V output UCC28880EVM-616 High-Side Buck Evaluation Module SLUUB56A – July 2014 – Revised August 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 13: Output Ripple

    In, 4.27 V , 75 Ω Figure 12. VD4 at 230 V In, 4.27 V , 75 Ω SLUUB56A – July 2014 – Revised August 2014 UCC28880EVM-616 High-Side Buck Evaluation Module Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 14 In, 12.55 V , 100 mA Figure 16. VD4 at 230 V In, 12.60 V , 100 mA UCC28880EVM-616 High-Side Buck Evaluation Module SLUUB56A – July 2014 – Revised August 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 15: Evm Assembly Drawing And Pcb Layout

    EVM Assembly Drawing and PCB Layout Figure 17 Figure 18 show the design of the UCC2880EVM-616 printed circuit board. Figure 17. UCC28880EVM-616 Assembly (top view) Figure 18. UCC28880EVM-616 Layout (top layer) SLUUB56A – July 2014 – Revised August 2014 UCC28880EVM-616 High-Side Buck Evaluation Module Submit Documentation Feedback Copyright ©...

  • Page 16: List Of Materials

    List of Materials www.ti.com List of Materials Table 10. UCC28880EVM-616 List of Materials DESCRIPTION MANUFACTURER PART NUMBER Printed Circuit Board PWR616 C1, C2 Capacitor, aluminum, 4.7 µF, 450 V, ±20%, TH Kemet ESH475M450AH2AA Capacitor, ceramic, 0.1 µF, 50 V, ±10%, X7R, 0805...
  • Page 17 ADDITIONAL TERMS AND CONDITIONS, WARNINGS, RESTRICTIONS, AND DISCLAIMERS FOR EVALUATION MODULES Texas Instruments Incorporated (TI) markets, sells, and loans all evaluation boards, kits, and/or modules (EVMs) pursuant to, and user expressly acknowledges, represents, and agrees, and takes sole responsibility and risk with respect to, the following: 1.
  • Page 18 RADIO FREQUENCY REGULATORY COMPLIANCE INFORMATION FOR EVALUATION MODULES Texas Instruments Incorporated (TI) evaluation boards, kits, and/or modules (EVMs) and/or accompanying hardware that is marketed, sold, or loaned to users may or may not be subject to radio frequency regulations in specific countries.
  • Page 19 Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2014, Texas Instruments Incorporated spacer Important Notice for Users of EVMs Considered “Radio Frequency Products”...

  • Page 20: Important Notice

    IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
  • Page 21 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments UCC28880EVM-616...
