www.ti.com
EVM User's Guide: UCC21231AEVM-108
UCC21231AEVM-108 Evaluation Module
Description
The UCC21231AEVM-108 is a two copper layer
PCB containing multiple test points and jumpers to
fully evaluate the functionality of the UCC21231A
gate driver. The EVM features PWM input control,
bootstrapped high side power supply, options to use
bench top power supply, configurable dead time
options, and EN and DIS pin jumpers. The layout has
been optimized to minimize gate loop area for each
channel and placement of bypass capacitors allow for
clean and sharp signal reading with minimal noise
interference.
SLUUD26 – APRIL 2024
Submit Document Feedback
Features
•
Universal dual low-side, dual high-side or half-
bridge driver
•
Common-mode transient immunity (CMTI) greater
than 125V/ns
•
Variety of test points to help evaluate all of the gate
driver functions
•
Selectable dead time modes: overlap, interlock,
programmable

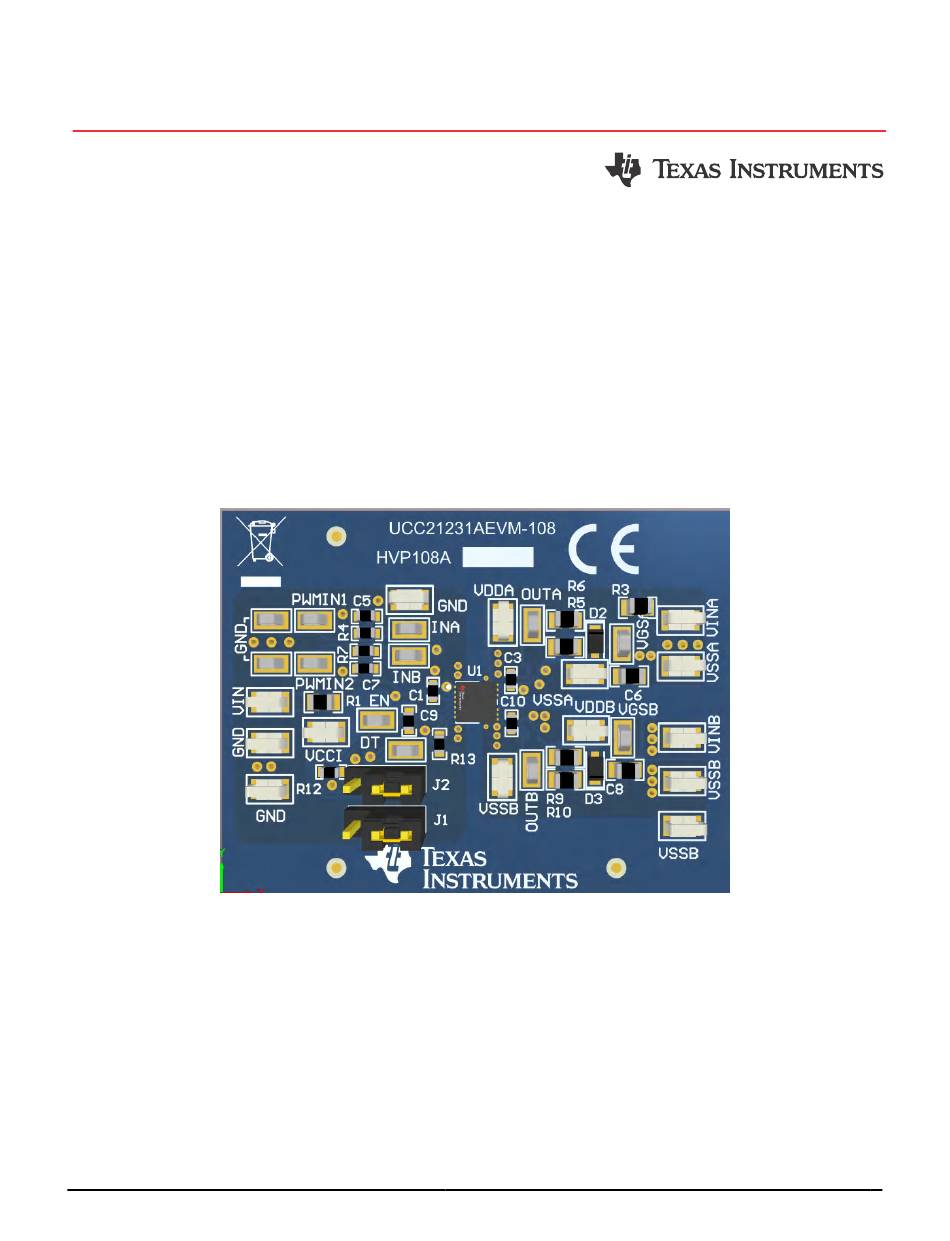

PCB (Top View)
Copyright © 2024 Texas Instruments Incorporated
UCC21231AEVM-108 Evaluation Module
Description
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments UCC21231AEVM-108
Summary of Contents for Texas Instruments UCC21231AEVM-108
- Page 1 Description EVM User's Guide: UCC21231AEVM-108 UCC21231AEVM-108 Evaluation Module Description Features The UCC21231AEVM-108 is a two copper layer • Universal dual low-side, dual high-side or half- PCB containing multiple test points and jumpers to bridge driver fully evaluate the functionality of the UCC21231A •...
-
Page 2: Kit Contents
UCC21231AEVM-108 two layer PCB 1.3 Specification UCC21231AEVM-108 primary function is to evaluate the UCC21231A dual channel gate driver. Multiple test points enable monitoring of the different input and outputs of the gate driver for thorough performance evaluation. The gate driver output can be configured to drive a capacitive loads for low voltage testing. -
Page 3: Header Information
Hardware 2 Hardware 2.1 Power Requirements Table 2-1. UCC21231AEVM-108 Electrical Specifications Description Units Enable for UCC21231A VCCI VDDB UCC21231A output bias supply voltage VDDA Switching frequency Operating junction temperature °C 2.2 Header Information Table 2-2. Headers Description Header Marker... - Page 4 TP23 Input side ground TP24 VINB Input voltage for VDDB TP25 VSSB Output side channel B ground TP26 VSSB Output side channel B ground UCC21231AEVM-108 Evaluation Module SLUUD26 – APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 5 TP21 UCC21231ADLGR VCCI VSSB TP22 1800pF 10pF VSSB VSSB TP24 VDDB VINB 20.0k VINB 220nF 1µF TP25 VSSB VSSB VSSB Figure 3-1. UCC21231AEVM-108 Schematic SLUUD26 – APRIL 2024 UCC21231AEVM-108 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
-
Page 6: Pcb Layouts
Hardware Design Files www.ti.com 3.2 PCB Layouts Figure 3-2. PCB Top Layer Figure 3-3. PCB Bottom Layer UCC21231AEVM-108 Evaluation Module SLUUD26 – APRIL 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... -
Page 7: Bill Of Materials (Bom)
Hardware Design Files 3.3 Bill of Materials (BOM) Table 3-1 lists the bill of materials for UCC21231AEVM-108. Table 3-1. Bill of Materials Designator Description Part Number Manufacturer C1, C4, C11 CAP, CERM, 1uF, 50V, +/- 10%, X7R, UMK107AB7105KA-T Taiyo Yuden... - Page 8 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 9 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 10 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 11 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 12 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
-
Page 13: Important Notice
TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
