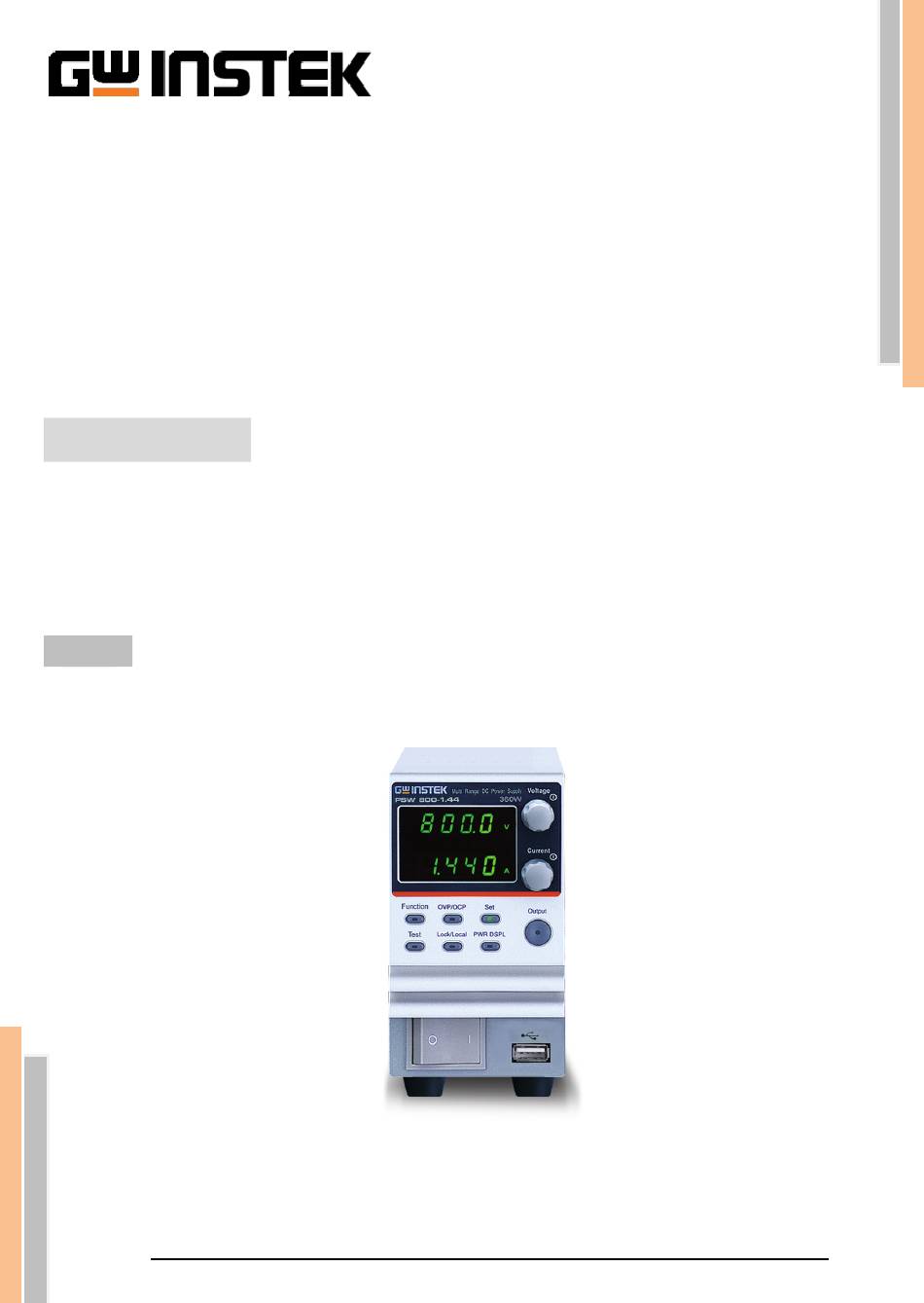

- Page 1 QUICK START GUIDE PSW Series ISO-9001 CERTIFIED MANUFACTURER...
- Page 2 This quick start guide contains proprietary information, which is protected by copyright. All rights are reserved. No part of this quick start guide may be photocopied, reproduced or translated to another language without prior written consent. The information in this quick start guide was correct at the time of printing. However we continue to improve our products and therefore reserve the right to change the specifications, equipment, and maintenance procedures at any time without notice.
-
Page 3: Afety Instructions
AFETY INSTRUCTIONS Safety Symbols These safety symbols may appear in the user manual or on the instrument. Warning: Identifies conditions or practices that could result Warning in injury or loss of life. Caution: Identifies conditions or practices that could result Caution in damage to the instrument or to other properties. -
Page 4: Etting Started
ETTING STARTED Main Features • High performance/power Performance • Power efficient switching type power supply • Low impact on load devices • Fast transient recovery time of 1ms • Fast output response time • OVP, OCP and OHP(OTP) protection Features •... -
Page 5: Front Panel Overview
Appearance Front Panel Overview 360W: PSW 30-36, 40-27, 80-13.5, 160-7.2, 250-4.5, 800-1.44 Voltage Multi-Range DC Power Supply PSW 30-36 360W Current Function OVP/OCP Output Test Lock/Local PWR DSPL Description 1. Power switch 2. Cover panel 3. Di sp la y 4. -
Page 6: Rear Panel Overview
Rear Panel Overview 360W: PSW 250-4.5, 800-1.44 360W: PSW 30-36, 40-27, 80-13.5, 160-7.2 -S N.C. +S 240V 240V 47 63Hz 500VA MAX. 47 63Hz 500VA MAX. Descrition AC input Analog control connector USB port Output terminal 6. LAN port www.gwinstek.com... - Page 7 ET UP Power Up Steps 1. Connect the power cord to the rear panel socket. 2. Press the POWER key. If used for the first time, the default settings will appear on the display, otherwise The PSW 800-4.32 recover the state right before the power was last turned OFF.
- Page 8 Before setting the OVP or OCP level: • Ensure the load is not connected. • Ensure the output is set to off. Steps 1. Press the OVP/OCP key. The OVP/OCP key lights up. 2. The OVP setting will be displayed on the top and the OCP setting (or OFF) will be displayed on the bottom.
- Page 9 OCP Level 4. Use the current knob to set the OCP level. Range 10%~110% of rated output current, OFF. 5. Press OVP/OCP again to exit. The OVP/ OCP indicator will turn off. Power switch 6. Set F-95 (Power switch trip) to 1 (to trip disable the power switch trip) or to 0 (to enable the power switch trip) and save.
- Page 10 PECIFICATIONS The specifications apply when the PSW is powered on for at leaste 30 minutes. Model 160-7.2 800-1.44 Output Rated Output Voltage Rated Output Current 1.44 Rated Output Power 360W Power Ratio Constant Voltage Mode Line regulation Load regulation Ripple and noise r.m.s.
- Page 11 Ripple and noise r.m.s. ppm/°C 200ppm/°C of rated output current, after a Temperature 30 minute warm-up. coefficient Protection Function Over voltage protection (OVP) 20-880 Setting range 16-176 Setting accuracy ± (2% of r ated output voltage) Over current protection (OCP) Setting range 0.72-7.92 0.144-1.584...
- Page 12 B etween input and chassis: DC 500Vdc. 100MΩ or more B etween input and output: Insulation resistance DC 500Vdc. 100MΩ or more B etween output and chassis: DC 1000Vdc. 100MΩ or more for PSW 800-1.44 DC 500Vdc. 100MΩ or more for PSW 600-7.2 Notes: At 85 ~ 132Vac or 170 ~ 265Vac, constant load.
-
Page 13: Eclaration Of Conformity
eclaration of Conformity GOOD WILL INSTRUMENT CO., LTD. declare that the below mentioned product satisfies all the technical relations application to the product within the scope of council: Directive: EMC; LVD; WEEE; RoHS The product is in conformity with the following standards or other normative documents ◎...
