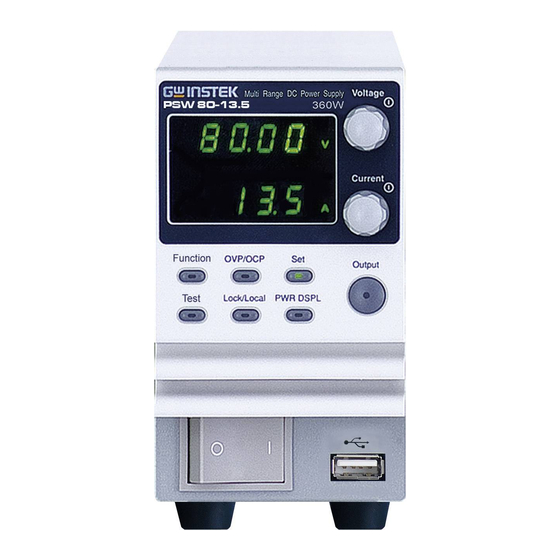

Multi-Range DC Power Supply
PSW Series
USER MANUAL
GW INSTEK PART NO. 82SW-80400ME1
ISO-9001 CERTIFIED MANUFACTURER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSW series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GW Instek PSW series

Summary of Contents for GW Instek PSW series

  • Page 1 Multi-Range DC Power Supply PSW Series USER MANUAL GW INSTEK PART NO. 82SW-80400ME1 ISO-9001 CERTIFIED MANUFACTURER...
  • Page 2 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company. The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.

  • Page 3: Table Of Contents

    SAFETY INSTRUCTIONS Table of Contents SAFETY INSTRUCTIONS ........... 5 GETTING STARTED ............9 PSW Series Overview ......10 Appearance .......... 15 Theory of Operation ......21 OPERATION ..............33 Set Up ..........35 Basic Operation ........49 Parallel / Series Operation ....62 Test Scripts ..........
  • Page 4 PSW Series User Manual LCD Display Format ......145 PSW Specifications ......146 PSW Dimensions ....... 155 Declaration of Conformity ....158 INDEX ................159...

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS AFETY INSTRUCTIONS This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to insure your safety and to keep the instrument in the best possible condition. Safety Symbols These safety symbols may appear in this manual or on the instrument.

  • Page 6: Safety Guidelines

    PSW Series User Manual Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Safety Guidelines Do not place any heavy object on the PSW.
  • Page 7 SAFETY INSTRUCTIONS Disconnect the power cord before cleaning. Cleaning the PSW  Use a soft cloth dampened in a solution of mild  detergent and water. Do not spray any liquid. Do not use chemicals containing harsh material  such as benzene, toluene, xylene, and acetone. Location: Indoor, no direct sunlight, dust free, Operation ...
  • Page 8 PSW Series User Manual Power cord for the United Kingdom When using the power supply in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED...

  • Page 9: Getting Started

    After going through the overview, please read the theory of operation to become familiar with the operating modes, protection modes and other safety considerations. PSW Series Overview ............10 Series lineup ......................10 Main Features ......................11 Accessories ........................ 12 Package Contents .....................

  • Page 10: Psw Series Overview

    PSW Series User Manual PSW Series Overview Series lineup The PSW series consists of 9 models, divided into 3 different model types covering 3 power capacities: Type I (360 Watt), Type II (720 Watt) and Type III (1080 Watt). Model name...

  • Page 11: Main Features

    GETTING STARTED Main Features High performance/power Performance  Power efficient switching type power supply  Low impact on load devices  Fast transient recovery time of 1ms  Fast output response time  OVP, OCP and OTP protection Features  Adjustable voltage and current slew rates ...

  • Page 12: Accessories

    PSW Series User Manual Accessories Standard Part number Description Accessories Region dependant User manual 4323-30600101 Power cord (Type I/II) 4320-91001101 Power cord (Type III) 63SC-XF100201 Output terminal cover: top 63SC-XF100301 Output terminal cover: bottom GTL-123 Test leads: 1x red, 1x black...
  • Page 13 GETTING STARTED PSW-005 Series operation cable for 2 units. PSW-006 Parallel operation cable for 2 units. PSW-007 Parallel operation cable for 3 units. GRA-410-J Rack mount adapter (JIS) GRA-410-E Rack mount adapter (EIA) GUG-001 GPIB to USB adapter GTL-240 USB Cable 57RG-30B00201 Large filter (Type II/III) Download...

  • Page 14: Package Contents

    PSW Series User Manual Package Contents Check the contents before using the PSW. Opening the box Main unit Power cord x1 (region Contents   dependent) (single unit) Output terminal cover  (top x1, bottom x1) Analog control  protection dummy x1 Test leads (red x1, ...

  • Page 15: Appearance

    GETTING STARTED Appearance PSW Front Panel PSW 160-14.4, PSW 80-27, PSW 30-72 (720W) Voltage Voltage Multi-Range DC Power Supply PSW 30-72 720W Display knob Current Current knob Cover panel Function OVP/OCP Output Output Test Lock/Local PWR DSPL Power Function switch keys USB A port...
  • Page 16 PSW Series User Manual The Function keys along with the Output key will Function Keys light up when a key is active. The Function key is used to Function configure the power supply. Set the over current or over OVP/OCP voltage protection levels.
  • Page 17 GETTING STARTED Power bar Indicates the current power output as a percentage. Sets the voltage. Voltage Knob Voltage Sets the current. Current Knob Current Press to turn on the output. The Output Output Output key will light up when the output is active.

  • Page 18: Rear Panel

    PSW Series User Manual Rear Panel PSW 160-14.4, PSW 80-27, PSW 30-72 (720W) Sense+ USB B Output Analog control terminal port terminal connector Sense- terminal SER.NO. LABEL Output terminal 240V 47 63Hz 1000VA MAX. AC Input PSW 160-21.6, PSW 80-40.5, PSW 30-108 PSW 160-7.2,...
  • Page 19 GETTING STARTED Standard 26 pin MIL connector Analog Control (OMRON XG4 IDC plug). Connector The analog control connector is used to monitor current and voltage output, machine status (OVP, OCP, OTP etc.), and for analog control of the current and voltage output. Use an OMRON XG5 IDC socket as the mating socket.
  • Page 20 PSW Series User Manual Type III: Line Voltage PSW 30-108/80-40.5/160-21.6 Input Voltage Input: 100~240 VAC  (Type III) Line frequency: 50Hz/60 Hz  (Automatically switchable)

  • Page 21: Theory Of Operation

    GETTING STARTED Theory of Operation The theory of operation chapter describes the basic principles of operation, protection modes and important considerations that must be taken into account before use. Operating Area Description The PSW power supplies are regulated DC Background power supplies with a high voltage and current output.
  • Page 22 PSW Series User Manual effective output is actually limited to the power limit of the unit. In this case the output current and voltage then depend purely on the load value. Below is a comparison of the operating areas of each power supply.
  • Page 23 GETTING STARTED PSW 30V Series Operating Area Type I Type II Type III 0 5 10 15 20 25 30 Po… 0 20 40 60 80 Current (A) Cur… CC and CV Mode When the power supply is operating in CC and CV mode constant current mode (CC) a constant current Description...
  • Page 24 PSW Series User Manual ), the load resistance (R ) and the critical resistance (R ). The critical resistance is determined by V . The power supply will operate in CV mode when the load resistance is greater than the critical resistance.

  • Page 25: Bleeder Control

    GETTING STARTED Slew Rate The PSW has selectable slew rates for CC and Theory CV mode. This gives the PSW power supply the ability to limit the current/voltage draw of the power supply. Slew rate settings are divided into High Speed Priority and Slew Rate Priority.

  • Page 26: Internal Resistance

    PSW Series User Manual may remain charged on the filter capacitors for some time and be potentially hazardous. In addition, bleed resistors also allow for smoother voltage regulation of the power supply as the bleed resistor acts as a minimum voltage load.
  • Page 27 GETTING STARTED Alarms The PSW power supplies have a number of protection features. When one of the protection alarms are set, the ALM icon on the display will be lit. For details on how to set the protection modes, please see page 49. Overvoltage protection (OVP) prevents a high voltage from damaging the load.
  • Page 28 PSW Series User Manual Considerations The following situations should be taken into consideration when using the power supply. When the power supply switch is first turned Inrush current on, an inrush current is generated. Ensure there is enough power available for the power...
  • Page 29 GETTING STARTED Current limit level Measured Ammeter current When the power supply is connected to a Reverse Current: regenerative load such as a transformer or Regenerative load inverter, reverse current will feed back to the power supply. The PSW power supply cannot absorb reverse current.
  • Page 30 PSW Series User Manual When the power supply is connected to a load Reverse Current: Accumulative such as a battery, reverse current may flow energy. back to the power supply. To prevent damage to the power supply, use a reverse-current- protection diode in series between the power supply and load.
  • Page 31 GETTING STARTED Grounding The output terminals of the PSW power supplies are isolated with respect to the protective grounding terminal. The insulation capacity of the load, the load cables and other connected devices must be taken into consideration when connected to the protective ground or when floating.
  • Page 32 PSW Series User Manual If the positive or negative terminal is connected Grounded output terminal to the protective ground terminal, the insulation capacity needed for the load and load cables is greatly reduced. The insulation capacity only needs to be greater than the maximum output voltage of the power supply with respect to ground.

  • Page 33: Operation

    OPERATION PERATION Set Up ................35 Line Voltage Connection – Type III Models ............35 Filter Installation ...................... 37 Power Up ........................38 Wire Gauge Considerations ..................39 Output Terminals ....................40 Using the Output Terminal Cover ................ 42 Using the Rack Mount Kit..................43 How to Use the Instrument ...................
  • Page 34 PSW Series User Manual Run Test Script ......................80 Export Test Script to USB ..................81 Remove Test Script ....................82...

  • Page 35: Set Up

    160-21.6) models use a universal power input that can be used with 100 and 200 VAC systems. To connect or replace the power cord (GW Instek part number: 4320-91001101, use the procedure below: The following procedure should only be attempted Warning by competent persons.
  • Page 36 PSW Series User Manual 4. Slide the cover off the AC terminals. 5. Remove the AC power cord wires. 1. Connect the AC power Installation cord wires to the AC input terminals. White/Blue  Neutral  Green/Green-  yellowGND ( Black/Brown ...

  • Page 37: Filter Installation

    OPERATION Filter Installation The PSW has a small filter (GW Instek part Background number, 57RG-30B00101) that must first be inserted under the control panel before operation. The small filter must be inserted for all model types (Type I/II/II). 1. Insert the small filter...

  • Page 38: Power Up

    PSW Series User Manual Power Up 1. Type I or II: Connect the Steps power cord to the rear panel socket. Type III: Connect the Page 35 power cord to the universal power input. 2. Press the POWER key. If used for the first time,...

  • Page 39: Wire Gauge Considerations

    OPERATION Wire Gauge Considerations Before connecting the output terminals to a Background load, the wire gauge of the cables should be considered. It is essential that the current capacity of the load cables is adequate. The rating of the cables must equal or exceed the maximum current rated output of the instrument.

  • Page 40: Output Terminals

    PSW Series User Manual Output Terminals Before connecting the output terminals to the Background load, first consider whether voltage sense will be used, the gauge of the cable wiring and the withstand voltage of the cables and load. The output terminals can be connected to load cables using M4 sized screws or M8 sized bolts.
  • Page 41 OPERATION 5. Choose a suitable crimp for the terminals. 6. If using voltage sense, remove the Page 59 sense terminal joining plates and connect sensing wires to the load(s). 7. Connect the positive load cable to the positive output terminal and the negative cable to the negative output terminal.

  • Page 42: Using The Output Terminal Cover

    PSW Series User Manual Using the Output Terminal Cover 1. Remove the screw holding the top cover to the Steps bottom cover. 2. Line-up the bottom cover with the notches in the output terminals. 3. Place the top terminal cover over the bottom cover.

  • Page 43: Using The Rack Mount Kit

    Reverse the procedure to remove the terminal Removal covers. Using the Rack Mount Kit The PSW series has an optional Rack Mount Background Kit (GW Instek part number: [JIS] GRA-410-J, [EIA] GRA-410-E[EIA]) that can be used to hold 6x PSW Type I models, 3x Type II models, 2x Type III models or a combination of all models (1x Type I, 1x Type II and 1x Type III).
  • Page 44 PSW Series User Manual 1. Repeatedly press the voltage knob Voltage until the last digit is highlighted. This will allow the voltage to be edited in 0.01 volt steps. 2. Turn the voltage knob till 0.05 Voltage volts is shown.

  • Page 45: Reset To Factory Default Settings

    OPERATION Reset to Factory Default Settings The F-88 configuration setting allows the PSW Background to be reset back to the factory default settings. See page 139 for the default factory settings. 1. Press the Function key. The Steps Function Function key will light up. 2.

  • Page 46: View System Version And Build Date

    PSW Series User Manual View System Version and Build Date The F-89 configuration setting allows you to Background view the PSW version number, build date, keyboard version, analog-control version, kernel build, test command version and test command build date. 1. Press the Function key. The...
  • Page 47 OPERATION 0-XX: PSW Main Program Version F-89 1-XX: PSW Main Program Version 2-XX: PSW Main Program Build On- Year. 3-XX: PSW Main Program Build On- Year. 4-XX: PSW Main Program Build On- Month. 5-XX: PSW Main Program Build On- Day. 6-XX: Keyboard CPLD version.
  • Page 48 PSW Series User Manual Keyboard CPLD Version: 0x030c Example 6-03: Keyboard CPLD Version. 7-0c: Keyboard CPLD Version. Analog CPLD Version: 0x0421 Example 8-04: Analog CPLD Version. 9-21: Analog CPLD Version. Kernel Version: 2011/05/22 Example C-20: Kernel Build On-Year. D-11: Kernel Build On-Year.

  • Page 49: Basic Operation

    OPERATION Basic Operation This section describes the basic operations required to operate the power supply. Setting OVP/OCP → from page 49  C.V. mode → from page 51  C.C. mode → from page 54  Display modes → page 57 ...
  • Page 50 PSW Series User Manual Before setting the OVP or OCP level: Ensure the load is not connected.  Ensure the output is set to off.  1. Press the OVP/OCP key. The Steps OVP/OCP OVP/OCP key lights up. 2. The OVP setting will be displayed on the top and the OCP setting (or OFF) will be displayed on the bottom.

  • Page 51: Set To C.v. Mode

    OPERATION The OVP or OCP protection can be Clear OVP/OCP OVP/OCP protection cleared after it has been tripped by holding the OVP/OCP button for 2 (hold) seconds. (Only applicable when the power switch trip setting is disabled [F-95 = 1]) Set to C.V.
  • Page 52 PSW Series User Manual 4. Use the current knob to set the F-03 Current setting. Set F-03 to 0 (CV High Speed Priority) or 2 (CV Slew Rate Priority). 0 = CV High Speed Priority F-03 2 = CV Slew Rate Priority 5.
  • Page 53 OPERATION 9. Use the Voltage knob to set the Voltage voltage. Notice the Set key becomes illuminated when Note setting the current or voltage. If the voltage or current knobs are unresponsive, press the Set key first. 10. Press the Output key. The Output Output key becomes illuminated.

  • Page 54: Set To C.c. Mode

    PSW Series User Manual Set to C.C. Mode When setting the power supply to constant current mode, a voltage limit must also be set to determine the crossover point. When the voltage exceeds the crossover point, the mode switches to C.V.
  • Page 55 OPERATION 1 = CC High Speed Priority F-03 3 = CC Slew Rate Priority 5. Press the Voltage knob to save the Voltage configuration setting. ConF will be displayed when successful. 6. If CC Slew Rate Priority was chosen as the operating mode, set F-06 (Rising Current Slew Rate) and F-07 (Falling Current Slew Rate) and save.
  • Page 56 PSW Series User Manual 9. Use the Current knob to set the Current current. Notice the Set key becomes illuminated when Note setting the current or voltage. If the voltage or current knobs are unresponsive, press the Set key first.

  • Page 57: Display Modes

    OPERATION Display Modes The PSW power supplies allow you to view the output in three different modes: voltage and current, voltage and power or current and power. 1. Press the PWR/DSPL key. The Steps PWR DSPL PWR DSPL key lights up. 2.

  • Page 58: Panel Lock

    PSW Series User Manual Panel Lock The panel lock feature prevents settings from being changed accidentally. When activated, the Lock/Local key will become illuminated and all keys and knobs except the Lock/Local key and Output key (if active) will be disabled.

  • Page 59: Remote Sense

    OPERATION Remote Sense Remote sense is used to compensate for the voltage drop seen across load cables due to the resistance inherent in the load cables. The remote sense terminals are connected to the load terminals to determine the voltage drop across the load cables. Remote sense can compensate up to 0.6 volts (compensation voltage).
  • Page 60 PSW Series User Manual 1. Connect the Sense+ terminals to the positive Parallel PSW Units potential of the load. Connect the Sense- terminals to the negative potential of the load. Page 40 PSW #1 Load Output Input Output Input Sense...
  • Page 61 OPERATION Page 40 PSW #1 Load Output Input Output Input Sense Sense PSW #2 Output Output Sense Sense 2. Operate the instrument as normal. Page 70 See the Serial Operation chapter for details. To help to minimize the oscillation due to the Wire Shielding and Load line inductance and capacitance of the load cables,...

  • Page 62: Parallel / Series Operation

    Parallel / Series Operation This section describes the basic operations required to operate the power supply in series or parallel. Operating the PSW series in parallel increases the total power output of the power supply units. When used in series, the total output voltage of the power supplies can be increased.

  • Page 63: Master-Slave Parallel Overview

    OPERATION Master-Slave Parallel Overview When connecting the PSW power supplies in Background parallel, up to 3 units can be used in parallel and all units must be of the same model. When the units are used in parallel, a number of precautions and limitations apply.
  • Page 64 PSW Series User Manual OVP/ OCP The master unit can shut down slave units  when OVP/OCP is tripped on the master unit (if the slave connector is wired for shut down on alarm). OVP/OCP can be independently tripped on ...

  • Page 65: Master-Slave Parallel Connection

    OPERATION Bleeder Control The Master unit is used to control the  bleeder settings. The bleeder resistors in all the slave units are always turned off when in parallel mode. Model Single unit 2 units 3 units Output Voltage/ PSW 30-36 Output Current 108A PSW 80-13.5...
  • Page 66 PSW Series User Manual To operate the power supplies in parallel, Analog Connector Connection connect the analog connectors on the master and slave units as shown in the diagrams below. Master with 2 slave units: 17 15 17 15 24 20...
  • Page 67 OPERATION Parallel Output Master Connection unit Slave Load unit 1 Slave unit 2 1. Ensure the power is off on all power supplies. Steps 2. Choose a master and a slave unit(s). 3. Connect the analog connectors for the master and slave unit as shown above.

  • Page 68: Master-Slave Parallel Operation

    PSW Series User Manual Master-Slave Parallel Operation Before using the power supplies in parallel, the Master-Slave Configuration master and slave units need to be configured. 1. Configure the OVP and OCP Steps Page 49 settings for the master unit. 2. For each unit, hold the Function...
  • Page 69 OPERATION Only operate the power supplies in parallel if Master-Slave Operation the units are configured correctly. 1. Turn on the master and slave units. The slave unit(s) will show a blank display. Master unit Slave units 2. Operation of all units is controlled Page 45.

  • Page 70: Master-Slave Series Overview

    PSW Series User Manual Master-Slave Series Overview When connecting PSW power supplies in Background series, up to 2 units can be used in series and all units must be of the same model. When the units are used in series, a number of precautions and limitations apply.
  • Page 71 OPERATION Remote monitoring Voltage monitoring (VMON) and current  monitoring (IMON) are only supported on the master unit. The VMON voltage represents the total  voltage of the all the serialized units. Remote Sense Please see the remote sense chapter for ...

  • Page 72: Master-Slave Series Connection

    PSW Series User Manual Model Single unit 2 units Output Voltage/ PSW 30-36 Output Current PSW 80-13.5 160V 13.5 13.5A PSW 160-7.2 160V 320V 7.2A 7.2A PSW 30-72 PSW 80-27 160V PSW 160-14.4 160V 320V 14.4A 14.4A PSW 30-108 108A 108A PSW 80-40.5...
  • Page 73 OPERATION 24 20 Master unit Slave Unit 1 A COM SER SLV IN OUTPUT ON STATUS OUT OFF/ON CONT ALM STATUS SHUTDOWN STATUS COM D COM SHUTDOWN ALM STATUS D COM STATUS COM Series Output Connection Load Master unit Slave unit 1.

  • Page 74: Master-Slave Series Operation

    PSW Series User Manual Re-attach the protection dummy plug when not in use. Master-Slave Series Operation Before using the power supplies in series, the Master-Slave master and slave units need to be configured. Configuration 1. Configure the OVP and OCP Page 49 settings for the master unit.
  • Page 75 OPERATION Only operate the power supplies in series if the Master-Slave Operation units are configured correctly. 1. Turn on the master and slave unit. The slave unit will only show the voltage of its own unit. The master unit will show the combined voltage of both units and the current.

  • Page 76: Test Scripts

    The PSW test function can store ten test scripts in memory. Each test script is programmed in a scripting language. For more information on how to create test scripts, please contact GW Instek. Test Script File Format→ from page 77 ...

  • Page 77: Test Script File Format

    OPERATION Test Script File Format The test files are saved in *.tst file format. Background Each file is saved as tXXX.tst, where XXX is the save file number 001~010. Test Script Settings Runs the chosen test script from the internal Test Run memory.

  • Page 78: Setting The Test Script Settings

    PSW Series User Manual Setting the Test Script Settings The test script settings (T-01~T-04) are set with Steps the Test key. 1. Press the Test key. The Test key Test will light up. 2. The display will show T-01 on the top and the memory no.

  • Page 79: Load Test Script From Usb

    OPERATION Press the Test key again to exit the Exit Test Test settings. The Test key light will turn off. Load Test Script from USB Before a test script can be run, it must first be Overview loaded into a one of the 10 memory save slots. Before loading a test script into memory: Ensure the script file is placed in the root ...

  • Page 80: Run Test Script

    PSW Series User Manual If the USB drive is not recognized, check to see Note that the function settings for F-20 = 1 (page 93). If not, reinsert the USB flash drive. 3. Configure T-02 (Test Load) to 1~10 Page 78...

  • Page 81: Export Test Script To Usb

    OPERATION Error messages: If you try to run a test script from Note an empty memory location “Err 003” will be displayed on the display. When a script starts to run, there is no way to abort Note the script. Pressing the Output key has no effect. If you wish to stop a test early, turn the power off.

  • Page 82: Remove Test Script

    PSW Series User Manual If the USB drive is not recognized, check to see Note that the function settings for F-20 = 1 (page 93). If not, reinsert the USB flash drive. 3. Configure T-03 (Test Export) to Page 78...
  • Page 83 OPERATION Error messages: If you try to remove a test script Note from an empty memory location “Err 003” will be displayed on the display.

  • Page 84: Configuration

    PSW Series User Manual ONFIGURATION Configuration ..............85 Configuration Table ....................85 Normal Function Settings ..................89 USB/GPIB Settings ....................93 LAN Settings ......................94 System Settings ......................95 Power On Configuration Settings ................. 96 Calibration ........................ 97...

  • Page 85: Configuration

    CONFIGURATION Configuration Configuration of the PSW power supplies is divided into five different configuration settings: Normal Function, USB/GPIB, LAN, Power ON Configuration, Calibration Settings and System Settings. Power ON Configuration differs from the other settings in that the settings used with Power ON Configuration settings can only be set during power up.
  • Page 86 PSW Series User Manual 0.01A/s~72.00A/s (PSW 30-36) 0.1A/s~144.0A/s (PSW 30-72) 0.1A/s~216.0A/s (PSW 30-108) 0.01A/s~27.00A/s (PSW 80-13.5) Rising current slew rate F-06 0.01A/s~54.00A/s (PSW 80-27) 0.01A/s~81.00A/s (PSW 80-40.5) 0.01A/s~14.40A/s (PSW 160-7.2) 0.01A/s~28.80A/s (PSW 160-14.4) 0.01A/s~43.20A/s (PSW 160-21.6) 0.01A/s~72.00A/s (PSW 30-36) 0.1A/s~144.0A/s (PSW 30-72) 0.1A/s~216.0A/s (PSW 30-108)
  • Page 87 CONFIGURATION MAC Address-3 F-32 0x00~0xFF MAC Address-4 F-33 0x00~0xFF MAC Address-5 F-34 0x00~0xFF MAC Address-6 F-35 0x00~0xFF F-36 0 = Disable, 1 = Enable DHCP F-37 0 = Disable, 1 = Enable IP Address-1 F-39 0~255 IP Address-2 F-40 0~255 IP Address-3 F-41 0~255...
  • Page 88 PSW Series User Manual 0, 1 = PSW version 2, 3 = PSW build year 4, 5 = PSW build month/day 6, 7 = Keyboard CPLD version 8, 9 = Analog-Control CPLD version A, B = Reserved Show Version F-89...

  • Page 89: Normal Function Settings

    CONFIGURATION Normal Function Settings Delays turning the output on for a designated Output ON Delay Time amount of time. The Delay indicator will light when the Delay time is not 0. Note: The Output ON Delay Time setting has a maximum deviation (error) of 20ms.
  • Page 90 PSW Series User Manual Selects High Speed Priority or Slew Rate V-I Mode Priority for CV or CC mode. The voltage or current slew rate can only be edited if CC/CV Slew Rate Priority is selected. The ISR indicator will be lit for CC Slew Rate Priority and the VSR indicator will be lit for CV Slew Rate Priority.
  • Page 91 CONFIGURATION Sets the rising current slew rate. Only Rising Current Slew Rate applicable if V-I Mode is set to CC Slew Rate Priority. F-06 0.01A/s~72.00A/s (PSW 30-36) 0.1A/s~144.0A/s (PSW 30-72) 0.1A/s~216.0A/s (PSW 30-108) 0.01A/s~27.00A/s (PSW 80-13.5) 0.01A/s~54.00A/s (PSW 80-27) 0.01A/s~81.00A/s (PSW 80-40.5) 0.01A/s~14.40A/s (PSW 160-7.2) 0.01A/s~28.80A/s (PSW 160-14.4) 0.01A/s~43.20A/s (PSW 160-21.6)
  • Page 92 PSW Series User Manual Bleeder control turns ON/OFF the bleeder Bleeder Control resistor. Bleeder resistors discharge the filter capacitors after power is turned off as a safety measure. F-09 0 = OFF, 1 = ON Turns the buzzer sound on or off. The buzzer is...

  • Page 93: Usb/Gpib Settings

    CONFIGURATION USB/GPIB Settings Displays the front panel USB-A port state. This Front Panel USB State setting is not configurable. F-20 0 = Absent, 1 = Mass Storage Displays the rear panel USB-B port state. This Rear Panel USB setting is not configurable. State 0 = Absent, 2 = USB-CDC, F-21...

  • Page 94: Lan Settings

    PSW Series User Manual LAN Settings Displays the MAC address 1~6. This setting is MAC Address- not configurable. F-30~F-35 0x00~0xFF Turns Ethernet on or off. F-36 0 = Disable, 1 = Enable Turns DHCP on or off. DHCP F-37 0 = Disable, 1 = Enable Sets the default IP address.

  • Page 95: System Settings

    CONFIGURATION Turns a web password on/off. Web Password active F-60 0 = Disable, 1 = Enable Sets the Web password. Web Password F-61 0000 ~ 9999 System Settings Returns the PSW to the factory default settings. Factory Set Value See page 139 for a list of the default settings. F-88 0 = Disable, 1 = Return to factory default settings.

  • Page 96: Power On Configuration Settings

    PSW Series User Manual Power On Configuration Settings Sets the constant voltage (CV) control mode CV Control between local and external voltage/resistance control. For external voltage control, see page 104 (External Voltage Control of Voltage Output) and page 109 (External Resistance Control of Voltage Output).

  • Page 97: Calibration

    CONFIGURATION F-93 0 = Master/Local 1 = Master/Parallel1 2 = Master/Parallel2 3 = Slave/Parallel 4 = Slave/Series Sets the external logic as active high or low. External Out Logic F-94 0= High ON, 1 = Low ON Turns the power off if enabled when the Power Switch Trip protection settings are tripped.
  • Page 98 PSW Series User Manual 1. Press the Function key. The Steps Function function key will light up. 2. The display will show F-01 on the top and the configuration setting for F-01 on the bottom. 3. Rotate the voltage knob to change Voltage the F setting.

  • Page 99: Setting Power On Configuration Settings

    CONFIGURATION Setting Power On Configuration Settings The Power On configuration settings can only Background be changed during power up to prevent the configuration settings being inadvertently changed. Ensure the load is not connected.  Ensure the power supply is off. ...
  • Page 100 PSW Series User Manual 5. Press the Voltage knob to save the Voltage configuration setting. ConF will be displayed when successful. Cycle the power to save and exit the Exit configuration settings.

  • Page 101: Analog Control

    ANALOG CONTROL NALOG CONTROL The Analog Control chapter describes how to control the voltage or current output using an external voltage or resistance, monitor the voltage or current output as well as remotely turning off the output or shutting down the power supply.

  • Page 102: Analog Remote Control Overview

    PSW Series User Manual Analog Remote Control Overview The PSW power supply series have a number of analog control options. The Analog Control connectors are used to control output voltage and current using external voltage or resistance. The power supply output and power switch can also be controlled using external switches.
  • Page 103 ANALOG CONTROL D COM 2 Connected to the (–S) sense- terminal when remote sense is used. Connected to the negative output terminal when remote sense is not used. CURRENT SUM 3 Current sum output signal when used in parallel mode. EXT-V CV CONT 4 External voltage control of the voltage output.

  • Page 104: External Voltage Control Of Voltage Output

    PSW Series User Manual A COM 16 Analog signal common. Connected to the sense- terminal when remote sense is used. Connected to the negative output terminal when remote sense is not used. STATUS COM 17 Common for status signals 18, 19, 20, 21 and 22.
  • Page 105 ANALOG CONTROL When connecting the external voltage source to Connection the MIL connectors, use shielded or twisted paired wiring. EXT-V ＋ Analog connector － 2 core shielded wire or twisted Output pair Terminal Pin16 → EXT-V (-)  Pin4 → EXT-V (+) ...
  • Page 106 PSW Series User Manual 2. Set the F-90 power on Page 99 configuration setting to 1 (CV control – Ext voltage). Be sure to cycle the power after the power  on configuration has been set. 3. Press the Function key and confirm...

  • Page 107: External Voltage Control Of Current Output

    ANALOG CONTROL External Voltage Control of Current Output External voltage control of the current output is Background accomplished using the MIL-26 connector on the rear panel. A voltage of 0~10V is used to control the full scale current of the instrument, where: Output current = full scale current ×...
  • Page 108 PSW Series User Manual If the wire shield needs to be grounded at the Connection- alt. voltage source (EXT-V), then the shield cannot shielding also be grounded at the negative (-) terminal output of the PSW power supply. This would short the output.

  • Page 109: External Resistance Control Of Voltage Output

    ANALOG CONTROL The input impedance for external voltage control is Note 10kΩ. Use a stable voltage supply for the external voltage control. CV and CC Slew Rate Priority are disabled for V-I Note mode (F-03) when using external voltage control. See the normal function settings on page 89.
  • Page 110 PSW Series User Manual The Ext-R configuration is recommended for Note safety reasons. In the event that the cables become accidentaly disconnected, the voltage output will drop to zero. Under similar circumstances using Ext-R , an unexpected high voltage would be output.

  • Page 111: External Resistance Control Of Current Output

    ANALOG CONTROL 4. Press the Output key. The voltage Output can now be controlled with the External resistance. Ensure the resistor(s) and cables used exceed the Note isolation voltage of the power supply. For example: insulation tubes with a withstand voltage higher than the power supply can be used.
  • Page 112 PSW Series User Manual The Ext-R configuration is recommended for Note safety reasons. In the event that the cables become accidentaly disconnected, the current output will drop to zero. Under similar circumstances using Ext-R , an unexpected high current would be output.

  • Page 113: External Control Of Output

    ANALOG CONTROL 3. Press the Output key. The current Output can now be controlled with the External resistance. Ensure the resistor(s) and cables used exceed the Note isolation voltage of the power supply. For example: insulation tubes with a withstand voltage higher than the power supply can be used.
  • Page 114 PSW Series User Manual Switch Connection Analog connector 2 core shielded wire or twisted Output pair Terminal Pin2 → Switch  Pin24 → Switch  Wire shield → negative (-) output terminal  1. Connect the external switch according to the Steps connection diagrams above.
  • Page 115 ANALOG CONTROL When using a switch over long distances, please Note use a switch relay to extend the line from the coil side of the relay. Switch Relay Line Analog connector extention If a single switch control is to be used for multiple Output Terminal units, please isolate each instrument.

  • Page 116: External Control Of Shutdown

    PSW Series User Manual External control of Shutdown The output of the power supplies can be Background configured to shut down via an external switch. The ability to externally shut down the power supply must first be enabled in the power on configuration settings.
  • Page 117 ANALOG CONTROL When using a switch over long distances, please Note use a switch relay to extend the line from the coil side of the relay. Switch Relay Line Analog connector extention Output If a single switch control is to be used for multiple Terminal units, please isolate each instrument.

  • Page 118: Remote Monitoring

    PSW Series User Manual Remote Monitoring The PSW power supplies have remote monitoring support for current and voltage output. They also support monitoring of operation and alarm status. External monitoring of output voltage and current → from page  External monitoring of operation mode and alarm status → from ...
  • Page 119 ANALOG CONTROL VMON Connection Analog connector V MON → Output Terminal Pin16 → Neg (-)  Pin10 → Pos (+)  IMON Connection Analog connector I MON → Output Terminal Pin16 → Neg (-)  Pin11 → Pos (+)  The output impedance of the voltage (VMON) and Note current (IMON) monitor pins is 1kΩ.

  • Page 120: External Operation And Status Monitoring

    PSW Series User Manual External Operation and Status Monitoring The MIL 26 pin connector can also be used to Background monitor the status operation and alarm status of the instrument. The pins are isolated from the power supply internal circuitry by photo couplers. Status...
  • Page 121 ANALOG CONTROL Below are 4 example timing diagrams covering Timing diagrams a number fo scenarios. Note that pins 18~22 are all active low. The diagram below shows the timing diagram CV MODE: when the output is turned on when the PSW is Output turned on set to CV mode.
  • Page 122 PSW Series User Manual The diagram below shows the timing diagram CC MODE: Output turned on when the output is turned on when the PSW is set to CC mode. CV status CC status Output status The diagram below shows the output status CC MODE: lines when the output is turned off in CC mode.

  • Page 123: Communication Interface

    INTERFACE This chapter describes basic configuration of IEEE488.2 based remote control. For a command list, refer to the programming manual, downloadable from GW Instek website, www.gwinstek.com Interface Configuration ..........124 USB Remote Interface ..................124 Configure GPIB Interface ..................124 Configure Ethernet Connection ................

  • Page 124: Interface Configuration

    PSW Series User Manual Interface Configuration USB Remote Interface Type A, host PC side configuration connector Rear panel Type B, slave PSW side connector 1.1/2.0 (full speed/high speed) Speed CDC (communications device USB Class class) 1. Connect the USB cable to the rear Steps panel USB B port.
  • Page 125 COMMUNICATION INTERFACE Type A plug From computer Type B plug for PSW series GUG-001 4. Turn the PSW on. Page 97 5. Press the Function key to enter the Normal configuration settings. Set the following GPIB settings Set the rear panel USB port to...

  • Page 126: Configure Ethernet Connection

    The PSW series supports both DHCP connections so the instrument can be automatically connected to an existing network or alternatively, network settings can be manually configured.

  • Page 127: Sockets Server Configuration

    COMMUNICATION INTERFACE 2. Press the Function key to enter the Page 97 Normal configuration settings. Set the following LAN settings: F-36 = 1 Enable LAN F-37 = 1 Turn DHCP to enable F-59 = 1 Turn the web server on It may be necessary to cycle the power or refresh Note the web browser to connect to a network.

  • Page 128: Usb Remote Control Function Check

    PSW Series User Manual F-45 = 128 Subnet Mask part 3 of 4 F-46 = 0 Subnet Mask part 4 of 4 F-43 = 172 Gateway part 1 of 4 F-44 = 16 Gateway part 2 of 4 F-45 = 21...

  • Page 129: Web Server Remote Control Function Check

    For further details, please see the programming Note manual, available on the GW Instek web site @ www.gwinstek.com. Web Server Remote Control Function Check Enter the IP address of the power supply in a...
  • Page 130 PSW Series User Manual Explorer (MAX) program. Using Windows, check press: Start>All Programs>National Instruments>Measurement & Automation 2. From the Configuration panel access; My System>Devices and Interfaces>Network Devices 3. Press Add New Network Device>Visa TCP/IP Resource…...
  • Page 131 COMMUNICATION INTERFACE 4. Select Manual Entry of Raw Socket from the popup window. 5. Enter the IP address and the port number of the PSW. The port number is fixed at 2268. 6. Double click the Validate button.
  • Page 132 PSW Series User Manual 7. Next configure the Alias (name) of the PSW connection. In this example the Alias is: PSW_DC1 8. Click finish. 9. The IP address of the PSW will now appear under Network Devices in the configuration panel.
  • Page 133 COMMUNICATION INTERFACE 11. Under the Template > Property Node tabs, set Termination Char Enable from the Attribute Name list to VI_TRUE. 12. Under the Basic I/O >Write tabs, Enter the *IDN? query into the Buffer, if it is not already there.
  • Page 134 14. In the Basic I/O > Read tabs, the return parameter for the *IDN? query should be returned to the buffer area: GW-INSTEK,PSW-8013,,T1.12.20111013 For further details, please see the programming Note manual, available on the GW Instek web site @ www.gwinstek.com.

  • Page 135: Maintenance

    MAINTENANCE AINTENANCE The PSW power supply filters should be replaced on a periodic schedule to maintain performance and specification characteristics. Replacing the Dust Filter ..................136...
  • Page 136 Front panel filter (all models) 2. Pull the filter out from the bottom of the front panel. 3. Replace the filter with GW Instek part number 57RG-30B00101. 1. Lift the side panel up Side panel filters (Type II & Type...

  • Page 137: Faq

    • The power supply won’t let me change the mode (C.V. mode ↔ C.C. mode). • The OVP voltage is triggered earlier than expected. • Can I combine more than 1 cable together for the output wiring? • The accuracy does not match the specification. The power supply won’t let me change the mode (C.V.
  • Page 138 PSW Series User Manual The accuracy does not match the specification. Make sure the device is powered On for at least 30 minutes, within +20°C~+30°C. This is necessary to stabilize the unit to match the specification. For more information, contact your local dealer or GWInstek at...

  • Page 139: Appendix

    APPENDIX PPENDIX Firmware Update The PSW firmware can be upgraded using the Background USB A port on the front panel. Ensure the load is not connected.  Note Ensure the output is off.  1. Insert a USB Flash Drive into the USB port on front panel of the PSW.
  • Page 140 PSW Series User Manual 3. The display will show F-01 on the top and the configuration setting for F-01 on the bottom. 4. Rotate the voltage knob to change Voltage the F setting until to F-00 is shown. 5. The display will show F-00...
  • Page 141 APPENDIX 9. The display will show SF-2 on the top. 10. Use the current knob to set SF-2 to Current “1”. 11. Press the Voltage knob to copy the Voltage new firmware to the PSW. 12. During the update, the display will show the following progress bar.
  • Page 142 PSW Series User Manual 13. After the update has finished, SF- 2 ok will be displayed and the system will reboot automatically. 14. To update the tCmd.tst file, the update procedure MUST be performed again.

  • Page 143: Psw Default Settings

    APPENDIX PSW Default Settings The following default settings are the factory configuration settings for the power supply (Function settings/Test settings). For details on how to return to the factory default settings, see page Default Setting Initial Settings Output LOCK 0 (Disabled) Voltage Current Maximum...
  • Page 144 PSW Series User Manual Falling current slew rate F-07 72.00A/s (PSW 30-36) 144.0A/s (PSW 30-72) 216.0A/s (PSW 30-108) 27.00A/s (PSW 80-13.5) 54.00A/s (PSW 80-27) 81.00A/s (PSW 80-40.5) 14.40A/s (PSW 160-7.2) 28.80A/s (PSW 160-14.4) 43.20A/s (PSW 160-21.6) Internal resistance F-08 0.000Ω...

  • Page 145: Error Messages & Messages

    APPENDIX Error Messages & Messages The following error messages or messages may appear on the PSW screen during operation. Error Messages Description Err 001 USB Mass Storage is not present Err 002 No (such)file in USB mass storage Err 003 Empty memory location Err 004 File access error...

  • Page 146: Psw Specifications

    PSW Series User Manual PSW Specifications The specifications apply when the PSW is powered on for at least 30 minutes. PSW 30-36, PSW 80-13.5, PSW 160-7.2 Model PSW 30-36 PSW 80-13.5 PSW 160-7.2 DC Output Voltage 160V Ratings: Current 13.5A 7.2A...
  • Page 147 APPENDIX Temperature Coefficient: (after a 30 minute warm-up) Voltage 100ppm/˚C Current 200ppm/˚C Protection OVP setting 10% to 110% of rated output voltage Function range OVP accuracy ±(Rated output voltage x 2%) OCP setting 10% to 110% of rated output current range OCP accuracy ±(Rated output current x 2%) Activated by elevated internal temperatures...
  • Page 148 PSW Series User Manual AC Input: Nominal Input 100 - 240 VAC; 50/60Hz Input Input Range 85VAC ~ 265VAC Frequency 47Hz ~ 63Hz Hold up Time ＞20ms (at rated load) Input Current 5A@100VAC / 2.5A@200VAC Power (max) 500VA Power Factor 0.98...
  • Page 149 APPENDIX PSW 30-72, PSW 80-27, PSW 160-14.4 Model PSW 30-72 PSW 80-27 PSW 160-14.4 DC Output Voltage 160V Ratings: Current 14.4A Power 720W 720W 720W Load Effect: Voltage 0.05% of rating + 5mV Current 0.1% of rating + 5mA Source Effect: (change from 85-132 VAC input or 170-265 VAC input) Voltage 0.05% of rating + 3mV Current...
  • Page 150 PSW Series User Manual Protection OVP setting 10% to 110% of rated output voltage Function range OVP accuracy ±(Rated output voltage x 2%) OCP setting 10% to 110% of rated output current range OCP accuracy ±(Rated output current x 2%)
  • Page 151 APPENDIX General Weight Approx. 5kg Dimensions W×H×D = 142×124×350 mm Withstand Chassis and output terminal; chassis and AC input; Voltage AC input and output terminal: AC 1500V or DC2130V 1 minute. Insulation Chassis and output terminal; chassis and AC input; Resistance AC input and output terminal: 100MΩ...
  • Page 152 PSW Series User Manual PSW 30-108, PSW 80-40.5, PSW 160-21.6 Model PSW 30-108 PSW 80-40.5 PSW 160-21.6 DC Output Voltage 160V Ratings: Current 108A 40.5A 21.6A Power 1080W 1080W 1080W Load Effect: Voltage 0.05% of rating + 5mV Current 0.1% of rating + 5mA...
  • Page 153 APPENDIX Protection OVP setting 10% to 110% of rated output voltage Function range OVP accuracy ±(Rated output voltage x 2%) OCP setting 10% to 110% of rated output current range OCP accuracy ±(Rated output current x 2%) Activated by elevated internal temperatures Analog Programming and Monitoring EXT-V Control Accuracy &...
  • Page 154 PSW Series User Manual General Weight Approx. 7kg Dimensions W×H×D =214×124×350 mm Chassis and output terminal; chassis and AC input; Withstand AC input and output terminal: AC 1500V or Voltage DC2130V 1 minute. Chassis and output terminal; chassis and AC input;...

  • Page 155: Psw Dimensions

    APPENDIX PSW Dimensions Type I PSW 160-7.2/PSW 80-13.5/PSW 30-36 (mm) 47.5 39.5 30.5 14.5 33.8 333.3 70.8 332.5...
  • Page 156 PSW Series User Manual Type II PSW 160-14.4/PSW 80-27/PSW 30-72 (mm) 47.5 39.5 30.5 14.5 33.8 333.3 332.5 141.8 99.6...
  • Page 157 APPENDIX Type III PSW 160-21.6/PSW 80-40.5/PSW 30-108 (mm) 47.5 39.5 30.5 14.5 33.8 333.3 332.5 212.8 160.6...

  • Page 158: Declaration Of Conformity

    PSW Series User Manual Declaration of Conformity GOOD WILL INSTRUMENT CO., LTD. No. 7-1, Jhongsing Rd, Tucheng Dist., New Taipei City 236, Taiwan GOOD WILL INSTRUMENT (SUZHOU) CO., LTD. No. 69 Lushan Road, Suzhou New District Jiangsu, China. declare that the below mentioned product Type of Product: Multi-Range DC Power Supply Model Number: PSW 30-36, PSW 80-13.5, PSW 160-7.2, PSW 30-72,...

  • Page 159: Index

    INDEX NDEX Accessories ......... 12 CV mode Alarm operation ........51 Declaration of conformity ..158 description ........27 Analog connector Default settings ......143 pin assignment ......102 reset ..........45 Analog control Dimensions output control ......113 diagram ........157 overview ........
  • Page 160 PSW Series User Manual Model differences ...... 10 overview ........70 Service operation OCP level ........49 about disassembly ......6 Operating area description ..21 contact .......... 138 Operation considerations ..28 Slew rate floating output ......31 description ........25 inrush current .......
