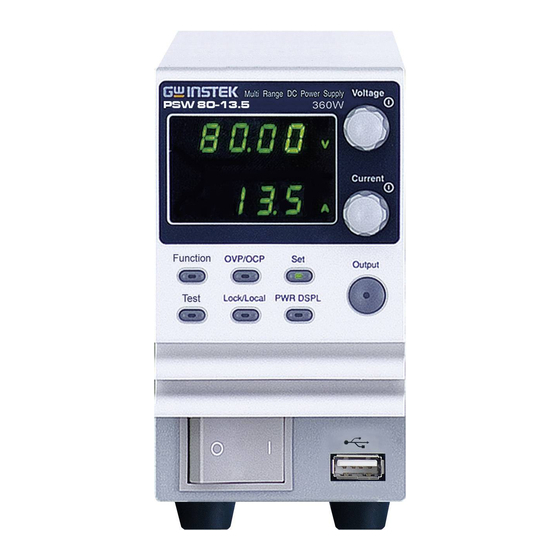

DC Power Supply

PSW Series
USER MANUAL
GW INSTEK PART NO. 82SW-80400M01
ISO-9001 CERTIFIED MANUFACTURER
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSW Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GW Instek PSW Series

Summary of Contents for GW Instek PSW Series

  • Page 1: Dc Power Supply

    99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com DC Power Supply PSW Series USER MANUAL GW INSTEK PART NO. 82SW-80400M01 ISO-9001 CERTIFIED MANUFACTURER...
  • Page 2 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company. The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.

  • Page 3: Table Of Contents

    SAFETY INSTRUCTIONS Table of Contents SAFETY INSTRUCTIONS ........... 5  GETTING STARTED ............9  PSW Series Overview ......10  Appearance .......... 14  Theory of Operation ......20  OPERATION ..............31  Set Up ..........32  Basic Operation ........42  Parallel / Series Operation ....53 ...
  • Page 4 PSW Series User Manual PSW Specifications ......118  PSW Dimensions ....... 127  Declaration of Conformity ....130  INDEX ................131 ...

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS AFETY INSTRUCTIONS This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to insure your safety and to keep the instrument in the best possible condition. Safety Symbols These safety symbols may appear in this manual or on the instrument.

  • Page 6: Safety Guidelines

    PSW Series User Manual Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Safety Guidelines Do not place any heavy object on the PSW.
  • Page 7 SAFETY INSTRUCTIONS Disconnect the power cord before cleaning. Cleaning the PSW  Use a soft cloth dampened in a solution of mild  detergent and water. Do not spray any liquid. Do not use chemicals containing harsh material  such as benzene, toluene, xylene, and acetone. Location: Indoor, no direct sunlight, dust free, Operation ...
  • Page 8 PSW Series User Manual Power cord for the United Kingdom When using the power supply in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED...

  • Page 9: Getting Started

    After going through the overview, please read the theory of operation to become familiar with the operating modes, protection modes and other safety considerations. PSW Series Overview ............10  Series lineup ......................10   Main Features ......................11  ...

  • Page 10: Psw Series Overview

    PSW Series User Manual PSW Series Overview Series lineup The PSW series consists of 6 models, divided into 3 different model types covering 3 power capacities: Type I (360 Watt), Type II (720 Watt) and Type III (1080 Watt). Model name...

  • Page 11: Main Features

    GETTING STARTED Main Features High performance/power Performance  Power efficient switching type power supply  Low impact on load devices  Fast transient recovery time of 1ms  Fast output response time  OVP, OCP and OTP protection Features  Adjustable voltage and current slew rates ...
  • Page 12 PSW Series User Manual 4320-91001101 Power cord (Type III) 63SC-XF100201 Output terminal cover: top 63SC-XF100301 Output terminal cover: bottom GTL-123 Test leads: 1x red, 1x black PSW-004 Basic Accessory Kit: M4 terminal screws and washers x2, M8 terminal bolts, nuts and washers x2,...

  • Page 13: Package Contents

    GETTING STARTED Package Contents Check the contents before using the PSW. Opening the box Main unit Power cord x1 (region Contents   dependent) (single unit) Output terminal cover  (top x1, bottom x1) Analog control  protection dummy x1 Test leads (red x1, ...

  • Page 14: Appearance

    PSW Series User Manual Appearance PSW Front Panel PSW 80-27, PSW 30-72 (720W) PSW 80-40.5, PSW 30-108 (1080W) PSW 80-13.5, PSW 30-36 (360W) Voltage Multi-Range DC Power Supply PSW 30-36 360W Current Function OVP/OCP Output Test Lock/Local PWR DSPL...
  • Page 15 GETTING STARTED The Function keys along with the Output key will Function Keys light up when a key is active. The Function key is used to configure the power supply. Set the over current or over voltage protection levels. Sets the current and voltage limits. Used to run customized scripts for testing.
  • Page 16 PSW Series User Manual Power bar Indicates the current power output as a percentage. Sets the voltage. Voltage Knob Sets the current. Current Knob Press to turn on the output. The Output Output key will light up when the output is active.

  • Page 17: Rear Panel

    GETTING STARTED Rear Panel PSW 80-27, PSW 30-72 (720W) PSW 80-40.5, PSW 30-108 (1080W) PSW 80-13.5, PSW 30-36 (360W) AC Input...
  • Page 18 PSW Series User Manual Standard 26 pin MIL connector Analog Control (OMRON XG4 IDC plug). Connector The analog control connector is used to monitor current and voltage output, machine status (OVP, OCP, OTP etc.), and for analog control of the current and voltage output.
  • Page 19 GETTING STARTED Type III: PSW 30-108/80-40.5 Line Voltage Input Voltage Input: 100~240 VAC  Line frequency: 50Hz/60 Hz  (Type III) (Automatically switchable)

  • Page 20: Theory Of Operation

    PSW Series User Manual Theory of Operation The theory of operation chapter describes the basic principles of operation, protection modes and important considerations that must be taken into account before use. Operating Area Description The PSW power supplies are regulated DC...
  • Page 21 GETTING STARTED effective output is actually limited to the power limit of the unit. In this case the output current and voltage then depend purely on the load value. Below is a comparison of the operating areas of each power supply. PSW 80V Series Operating Area 40.5 13.5...
  • Page 22 PSW Series User Manual CC and CV Mode When the power supply is operating in CC and CV mode constant current mode (CC) a constant current Description will be supplied to the load. When in constant current mode the voltage output can vary, whilst the current remains constant.
  • Page 23 GETTING STARTED Conversely the power supply will operate in CC mode when the load resistance is less than the critical resistance. In CC mode the current output is equal to I and the voltage output is less than V...

  • Page 24: Bleeder Control

    PSW Series User Manual Slew Rate The PSW has selectable slew rates for CC and Theory CV mode. This gives the PSW power supply the ability to limit the current/voltage draw of the power supply. Slew rate settings are divided into High Speed Priority and Slew Rate Priority.

  • Page 25: Internal Resistance

    GETTING STARTED may remain charged on the filter capacitors for some time and be potentially hazardous. In addition, bleed resistors also allow for smoother voltage regulation of the power supply as the bleed resistor acts as a minimum voltage load. The bleed resistance can be turned on or off using the configuration settings.
  • Page 26 PSW Series User Manual Alarms The PSW power supplies have a number of protection features. When one of the protection alarms are set, the ALM icon on the display will be lit. For details on how to set the protection modes, please see page 42.
  • Page 27 GETTING STARTED When the load has current peaks or is pulsed, it Pulsed or Peaked is possible for the maximum current to exceed loads the mean current value. The PSW power supply ammeter only indicates mean current values, which means for pulsed current loads, the actual current can exceed the indicated value.
  • Page 28 PSW Series User Manual The current output will decrease by the amount of Note current absorbed by the resistor. Ensure the resistor used can withstand the power capacity of the power supply/load. When the power supply is connected to a load...
  • Page 29 GETTING STARTED Grounding The output terminals of the PSW power supplies are isolated with respect to the protective grounding terminal. The insulation capacity of the load, the load cables and other connected devices must be taken into consideration when connected to the protective ground or when floating.
  • Page 30 PSW Series User Manual If the positive or negative terminal is connected Grounded output to the protective ground terminal, the terminal insulation capacity needed for the load and load cables is greatly reduced. The insulation capacity only needs to be greater than the maximum output voltage of the power supply with respect to ground.

  • Page 31: Operation

    OPERATION PERATION Set Up ................32 Line Voltage Connection – Type III Models ............32 Filter Installation ...................... 34 Power Up ........................35 Wire Gauge Considerations ..................36 Output Terminals ....................37 Using the Output Terminal Cover ................ 39 Using the Rack Mount Kit..................40 How to Use the Instrument ...................

  • Page 32: Set Up

    The Type III (PSW 30-108/PSW 80-40.5) models Background use a universal power input that can be used with 100 and 200 VAC systems. To connect or replace the power cord (GW Instek part number: 4320-91001101, use the procedure below: The following procedure should only be attempted Warning by competent persons.
  • Page 33 OPERATION 4. Slide the cover off the AC terminals. 5. Remove the AC power cord wires. 1. Connect the AC power Installation cord wires to the AC input terminals. White/Blue  Neutral  Green/Green-  yellowGND ( Black/Brown  Line ...

  • Page 34: Filter Installation

    PSW Series User Manual Filter Installation The PSW has a small filter (GW Instek part Background number, 57RG-30B00101) that must first be inserted under the control panel before operation. The small filter must be inserted for all model types (Type I/II/II).

  • Page 35: Power Up

    OPERATION Power Up 1. Type I or II: Connect the Steps power cord to the rear panel socket. Type III: Connect the Page 32 power cord to the universal power input. 2. Press the POWER key. If used for the first time, the default settings will appear on the display, otherwise The PSW recovers the state right before the power was last turned OFF.

  • Page 36: Wire Gauge Considerations

    PSW Series User Manual Wire Gauge Considerations Before connecting the output terminals to a Background load, the wire gauge of the cables should be considered. It is essential that the current capacity of the load cables is adequate. The rating of the cables must equal or exceed the maximum current rated output of the instrument.

  • Page 37: Output Terminals

    OPERATION Output Terminals Before connecting the output terminals to the Background load, first consider whether voltage sense will be used, the gauge of the cable wiring and the withstand voltage of the cables and load. The output terminals can be connected to load cables using M4 sized screws or M8 sized bolts.
  • Page 38 PSW Series User Manual 5. Choose a suitable crimp for the terminals. 6. If using voltage sense, remove the Page 49 sense terminal joining plates and connect sensing wires to the load(s). 7. Connect the positive load cable to the positive output terminal and the negative cable to the negative output terminal.

  • Page 39: Using The Output Terminal Cover

    OPERATION Using the Output Terminal Cover 1. Line-up the bottom cover with the notch in the Background output terminals. 2. Place the top terminal cover over the bottom cover. 3. Use your thumb to slide the terminal covers shut, as shown in the diagram below. 4.

  • Page 40: Using The Rack Mount Kit

    Reverse the procedure to remove the terminal Removal covers. Using the Rack Mount Kit The PSW series has an optional Rack Mount Background Kit (GW Instek part number: [JIS] GRA-410-J, [EIA] GRA-410-E[EIA]) that can be used to hold 6x PSW Type I models, 3x Type II models, 2x Type III models or a combination of all models (1x Type I, 1x Type II and 1x Type III).
  • Page 41 OPERATION 1. Repeatedly press the voltage knob until the last digit is highlighted. This will allow the voltage to be edited in 0.01 volt steps. 2. Turn the voltage knob till 0.05 volts is shown. → 3. Repeatedly press the voltage knob until the first digit is highlighted.

  • Page 42: Basic Operation

    PSW Series User Manual Basic Operation This section describes the basic operations required to operate the power supply. Setting OVP/OCP → from page 42  C.V. mode → from page 44  C.C. mode → from page 46  Display modes → page 48 ...
  • Page 43 OPERATION 1. Press the OVP/OCP key. The OVP/OCP key lights up. 2. The OVP setting will be displayed on the top and the OCP setting will be displayed on the bottom. 3. Use the voltage knob to set the OVP Level OVP level.

  • Page 44: Set To C.v. Mode

    PSW Series User Manual Set to C.V. Mode When setting the power supply to constant voltage mode, a current limit must also be set to determine the crossover point. When the current exceeds the crossover point, the mode switches to C.C.
  • Page 45 OPERATION 4. Use the Current knob to set the current limit (crossover point). 5. Use the Voltage knob to set the voltage. Notice the Set key becomes illuminated when Note setting the current or voltage. If the voltage or current knobs are unresponsive, press the Set key first.

  • Page 46: Set To C.c. Mode

    PSW Series User Manual Set to C.C. Mode When setting the power supply to constant current mode, a voltage limit must also be set to determine the crossover point. When the voltage exceeds the crossover point, the mode switches to C.V.
  • Page 47 OPERATION F-06 0.01A/s~72.00A/s (PSW 30-36) 0.01A/s~144.0A/s (PSW 30-72) F-07 0.01A/s~216.0A/s (PSW 30-108) 0.01A/s~27.00A/s (PSW 80-13.5) 0.01A/s~54.00A/s (PSW 80-27) 0.01A/s~81.00A/s (PSW 80-40.5) 4. Use the Voltage knob to set the voltage limit (crossover point). 5. Use the Current knob to set the current.

  • Page 48: Display Modes

    PSW Series User Manual Display Modes The PSW power supplies allow you to view the output in three different modes: voltage and current, voltage and power or current and power. 1. Press the PWR/DSPL key. The PWR DSPL key lights up.

  • Page 49: Panel Lock

    OPERATION Panel Lock The panel lock feature prevents settings from being changed accidentally. When activated, the Lock/Local key will become illuminated and all keys and knobs except the Lock/Local key and Output key (if active) will be disabled. If the instrument is remotely controlled via the USB/LAN interface, the panel lock is automatically enabled.
  • Page 50 PSW Series User Manual Ensure the output is off before connecting any WARNING sense cables. Use sense cables with a voltage rating exceeding the isolation voltage of the power supply. Never connect sensing cables when the output is on. Electric shock or damage to the power supply could result.
  • Page 51 OPERATION 1. Connect the Sense+ terminals to the positive Parallel PSW potential of the load. Connect the Sense- Units terminals to the negative potential of the load. Page 37 2. Operate the instrument as normal. Page 54 See the Parallel Operation chapter for details.
  • Page 52 PSW Series User Manual Page 37 2. Operate the instrument as normal. Page 60 See the Serial Operation chapter for details. To help to minimize the oscillation due to the Wire Shielding inductance and capacitance of the load cables, and Load line...

  • Page 53: Parallel / Series Operation

    Parallel / Series Operation This section describes the basic operations required to operate the power supply in series or parallel. Operating the PSW series in parallel increases the total power output of the power supply units. When used in series, the total output voltage of the power supplies can be increased.
  • Page 54 PSW Series User Manual Master-Slave Parallel Overview When connecting the PSW power supplies in Description parallel, up to 3 units can be used in parallel and all units must be of the same model. When the units are used in parallel, a number of precautions and limitations apply.
  • Page 55 OPERATION Model Single unit 2 units 3 units Output Voltage/ PSW 30-36 Output Current 108A PSW 80-13.5 13.5 40.5 PSW 30-72 144A 216A PSW 80-27 PSW 30-108 108A 216A 324A PSW 80-40.5 40.5A 161.5 Master-Slave Parallel Connection The Analog Control Connector is used for both Master-Slave Connector serial and parallel connections.
  • Page 56 PSW Series User Manual Master with 2 slave units: Master with 1 slave unit: 17 15 24 20 Master unit Slave Unit 1 I MON CURRENT SHARE OUTPUT ON STATUS OUT ON/OFF CONT ALM STATUS SHUTDOWN STATUS COM STATUS COM...
  • Page 57 OPERATION Parallel Output Connection 1. Ensure the power is off on all power supplies. Steps 2. Choose a master and a slave unit(s). 3. Connect the analog connectors for the master and slave unit as shown above. 4. Remove the Output Terminal Page 39 covers and the protection dummy plug from the analog control...
  • Page 58 PSW Series User Manual Master-Slave Parallel Operation Before using the power supplies in parallel, the Master-Slave master and slave units need to be configured. Configuration 1. Configure the OVP and OCP Page 42 settings for the master unit. 2. For each unit, hold the Function...
  • Page 59 OPERATION Only operate the power supplies in parallel if Master-Slave the units are configured correctly. Operation 1. Turn on the master and slave units. The slave unit(s) will show a blank display. Master unit Slave units 2. Operation of all units is controlled Page 42.
  • Page 60 PSW Series User Manual Master-Slave Series Overview When connecting PSW power supplies in Background series, up to 2 units can be used in series and all units must be of the same model. When the units are used in series, a number of precautions and limitations apply.
  • Page 61 OPERATION Voltage controlled remote control Voltage controlled remote control can only  be used with the master unit. Model Single unit 2 units Output Voltage/ PSW 30-36 Output Current PSW 80-13.5 160V 13.5 13.5A PSW 30-72 PSW 80-27 160V PSW 30-108 108A 108A PSW 80-40.5...
  • Page 62 PSW Series User Manual Series Output Connection Load Master unit Slave unit 1. Ensure the power is off on both power supplies. Steps 2. Choose a master and slave unit. 3. Connect the analog connectors for the master and slave unit as shown above.
  • Page 63 OPERATION Ensure load cables have sufficient Page 36 Note current capacity. Re-attach the protection dummy plug when not in use. Master-Slave Series Operation Before using the power supplies in series, the Master-Slave Configuration master and slave units need to be configured. 1.
  • Page 64 PSW Series User Manual 1. Turn on the master and slave unit. The slave unit will only show the voltage. Master unit Slave units 2. Operation of all units is controlled Page 42 via the master unit. Operation of the master unit is the same as for a single unit.

  • Page 65: Test Scripts

    OPERATION Test Scripts This section describes how to use the Test function to run, load and save test scripts for automated testing. The Test function is useful if you want to perform a number of tests automatically. The PSW test function can store ten test scripts in memory.

  • Page 66: Test Script Settings

    PSW Series User Manual Test Script File Format The test files are saved in *.tst file format. Description Each file is saved as tXXX.tst, where XXX is the save file number 001~010. Test Script Settings Runs the chosen test script from the internal Test Run memory.
  • Page 67 OPERATION Setting the Test Function Settings The test script settings (T-01~T-04) are set with Steps the Test key. 1. Press the Test key. The Test key will light up. 2. The display will show T-01 on the top and the memory no.
  • Page 68 PSW Series User Manual Press the Test key again to exit the Exit Test settings. The Test key light will turn off. Load Test Script from USB Before a test script can be run, it must first be Overview loaded into a one of the 10 memory save slots.
  • Page 69 OPERATION If the USB drive is not recognized, check to see Note that the function settings for F-20 = 1 (page 79). If not, reinsert the USB flash drive. 3. Configure T-02 (Test Recall) to Page 67 1~10 (save memory slot) T-02 range 1~10 (t001 ~t010) 4.
  • Page 70 PSW Series User Manual Error messages: If you try to run a test script from Note an empty memory location “Err 003” will be displayed on the display. When a script starts to run, there is no way to abort Note the script.
  • Page 71 OPERATION If the USB drive is not recognized, check to see Note that the function settings for F-20 = 1 (page 79). If not, reinsert the USB flash drive. 3. Configure T-03 (Recall Test) to Page 67 0~10 (save memory slot) T-03 range 1~10 4.
  • Page 72 PSW Series User Manual Error messages: If you try to remove a test script Note from an empty memory location “Err 003” will be displayed on the display.

  • Page 73: Configuration

    CONFIGURATION ONFIGURATION Configuration ..............74 Configuration Table ....................74 Normal Function Settings ..................77 USB/GPIB Settings ....................79 LAN Settings ......................80 Power On Configuration Settings ................. 82 Calibration ......................... 83...

  • Page 74: Configuration

    PSW Series User Manual Configuration Configuration of the PSW power supplies is divided into five different configuration settings: Normal Function, USB/GPIB, LAN, Power ON Configuration and Calibration Settings. Power ON Configuration differs from the other settings in that the settings used with Power ON Configuration settings can only be set during power up.
  • Page 75 CONFIGURATION 0.01A/s~72.00A/s (PSW 30-36) 0.01A/s~144.0A/s (PSW 30-72) 0.01A/s~216.0A/s (PSW 30-108) Falling current slew rate F-07 0.01A/s~27.00A/s (PSW 80-13.5) 0.01A/s~54.00A/s (PSW 80-27) 0.01A/s~81.00A/s (PSW 80-40.5) 0.000Ω~0.833Ω (PSW 30-36) 0.000Ω~0.417Ω (PSW 30-72) Internal resistance 0.000Ω~0.278Ω (PSW 30-108) F-08 setting 0.000Ω~5.926Ω (PSW 80-13.5) 0.000Ω~2.963Ω...
  • Page 76 PSW Series User Manual Gateway-3 F-49 0~255 Gateway-4 F-50 0~255 DNS address -1 F-51 0~255 DNS address -2 F-52 0~255 DNS address-3 F-53 0~255 DNS address-4 F-54 0~255 F-55 F-56 Sockets active F-57 0 = Disable, 1 = Enable F-58...

  • Page 77: Normal Function Settings

    CONFIGURATION Normal Function Settings Delays turning the output on for a designated Output ON Delay amount of time. The Delay indicator will light Time when the Delay time is not 0. F-01 0.00s~99.99s Delays turning the output off for a designated Output OFF amount of time.
  • Page 78 PSW Series User Manual F-03 0 = CV high speed priority 1 = CC high speed priority 2 = CV slew rate priority 3 = CC slew rate priority Sets the rising voltage slew rate. Only Rising Voltage applicable if V-I Mode is set to CV Slew Rate Slew Rate Priority.

  • Page 79: Usb/Gpib Settings

    CONFIGURATION Resistance F-08 0.000Ω~0.833Ω (PSW 30-36) Settings 0.000Ω ~0.417Ω (PSW 30-72) 0.000Ω ~0.278Ω (PSW 30-108) 0.000Ω ~5.926Ω (PSW 80-13.5) 0.000Ω ~2.963Ω (PSW 80-27) 0.000Ω ~1.975Ω (PSW 80-40.5) Bleeder control turns ON/OFF the bleeder Bleeder Control resistor. Bleeder resistors discharge the filter capacitors after power is turned off as a safety measure.

  • Page 80: Lan Settings

    PSW Series User Manual LAN Settings Displays the MAC address 1~6. This setting is MAC Address- not configurable. F-30~F-35 0x00~0xFF Turns Ethernet on or off. F-36 0 = Disable, 1 = Enable Turns DHCP on or off. DHCP F-37 0 = Disable, 1 = Enable Sets the default IP address.
  • Page 81 CONFIGURATION Turns a web password on/off. Web Password active F-60 0 = Disable, 1 = Enable Sets the Web password. Web Password F-61 0000 ~ 9999...

  • Page 82: Power On Configuration Settings

    PSW Series User Manual Power On Configuration Settings Sets the constant voltage (CV) control mode CV Control between local and external voltage/resistance control. For external voltage control, see page 90 (External Voltage Control of Voltage Output) and page 94 (External Resistance Control of Voltage Output).

  • Page 83: Calibration

    CONFIGURATION F-93 0 = Master/Local 1 = Master/Parallel1 2 = Master/Parallel2 3 = Slave/Parallel 4 = Slave/Series Sets the external logic as active high or low. External Out Logic F-94 0= High ON, 1 = Low ON Turns the power off if enabled when the Power Switch Trip protection settings are tripped.
  • Page 84 PSW Series User Manual 2. The display will show F-01 on the top and the configuration setting for F-01 on the bottom. 3. Rotate the voltage knob to change the F setting. F-00~ F-95 Range 4. Use the current knob to set the parameter for the chosen F setting.
  • Page 85 CONFIGURATION Setting Power On Configuration Settings The Power On configuration settings can only be changed during power up to prevent the configuration settings being inadvertently changed. Ensure the load is not connected.  Ensure the power supply is off.  1.
  • Page 86 PSW Series User Manual 5. Press the Voltage knob to save the configuration setting. ConF will be displayed when successful. Cycle the power to save and exit the Exit configuration settings.

  • Page 87: Analog Control

    ANALOG CONTROL NALOG CONTROL The Analog Control chapter describes how to control the voltage or current output using an external voltage or resistance, monitor the voltage or current output as well as remotely turning off the output or shutting down the power supply.

  • Page 88: Analog Remote Control Overview

    PSW Series User Manual Analog Remote Control Overview The PSW power supply series have a number of analog control options. The Analog Control connectors are used to control output voltage and current using external voltage or resistance. The power supply output and power switch can also be controlled using external switches.
  • Page 89 ANALOG CONTROL D COM 2 Connected to the (–S) sense- terminal when remote sense is used. Connected to the negative output terminal when remote sense is not used. CURRENT SUM 3 Current sum output signal when used in parallel mode. EXT-V CV CONT 4 External voltage control of the voltage output.

  • Page 90: External Voltage Control Of Voltage Output

    PSW Series User Manual A COM 16 Analog signal common. Connected to the sense- terminal when remote sense is used. Connected to the negative output terminal when remote sense is not used. STATUS COM 17 Common for status signals 18, 19, 20, 21 and 22.
  • Page 91 ANALOG CONTROL When connecting the external voltage source to Connection the MIL connectors, use shielded or twisted paired wiring. Pin16 → EXT-V (-)  Pin4 → EXT-V (+)  Wire shield → negative (-) output terminal  If the wire shield needs to be grounded at the Connection- alt.

  • Page 92: External Voltage Control Of Current Output

    PSW Series User Manual Page 85 2. Set the F-90 power on configuration setting to 1 (CV control – Ext voltage). Be sure to cycle the power after the power  on configuration has been set. 3. Press the Function key and confirm the new configuration settings (F- 90=1).
  • Page 93 ANALOG CONTROL When connecting the external voltage source to Connection the MIL connectors, use shielded or twisted paired wiring. Pin16 → EXT-V (-)  Pin5 → EXT-V (+)  Wire shield → negative (-) output terminal  If the wire shield needs to be grounded at the Connection- alt.

  • Page 94: External Resistance Control Of Voltage Output

    PSW Series User Manual Page 85 2. Set the F-91 power on configuration setting to 1 (CC control – Ext voltage). Be sure to cycle the power after the power  on configuration has been set. 3. Press the Function key and confirm the new configuration settings (F- 91=1).
  • Page 95 ANALOG CONTROL (Ext-R ) 10kΩ~0kΩ(10kΩ = 0). For 0kΩ~10kΩ: Output voltage = full scale voltage × (external resistance/10) For 10kΩ~0kΩ: Output voltage = full scale voltage × ([10-external resistance]/10) The Ext-R configuration is recommended for Note safety reasons. In the event that the cables become accidentaly disconnected, the voltage output will drop to zero.

  • Page 96: External Resistance Control Of Current Output

    PSW Series User Manual 3. Press the Function key and confirm the new configuration settings (F- 90=2 or 3). 4. Press the Output key. The voltage can now be controlled with the External resistance. Ensure the resistor(s) and cables used exceed the Note isolation voltage of the power supply.
  • Page 97 ANALOG CONTROL The Ext-R configuration is recommended for Note safety reasons. In the event that the cables become accidentaly disconnected, the current output will drop to zero. Under similar circumstances using Ext-R , an unexpected high current would be output. If swtiches are used to switch between fixed resistances, use switches that avoid creating open circuits.

  • Page 98: External Control Of Output

    PSW Series User Manual 3. Press the Output key. The current can now be controlled with the External resistance. Ensure the resistor(s) and cables used exceed the Note isolation voltage of the power supply. For example: insulation tubes with a withstand voltage higher than the power supply can be used.
  • Page 99 ANALOG CONTROL Connection Pin2 → Switch  Pin24 → Switch  Wire shield → negative (-) output terminal  1. Connect the external switch according to the Panel operation connection diagrams above. Set F-94 (External output logic) in Page 85 the power on configuration settings to 0 (High = On) or 1 (Low = On).
  • Page 100 PSW Series User Manual When using a switch over long distances, please Note use a switch relay to extend the line from the coil side of the relay. If a single switch control is to be used for multiple units, please isolate each instrument. This can be achieved by using a relay.

  • Page 101: External Control Of Shutdown

    ANALOG CONTROL External control of Shutdown The output of the power supplies can be Description configured to shut down via an external switch. The ability to externally shut down the power supply must first be enabled in the power on configuration settings.
  • Page 102 PSW Series User Manual When using a switch over long distances, please Note use a switch relay to extend the line from the coil side of the relay. If a single switch control is to be used for multiple units, please isolate each instrument. This can be achieved by using a relay.

  • Page 103: Remote Monitoring

    ANALOG CONTROL Remote Monitoring The PSW power supplies have remote monitoring support for current and voltage output. They also support monitoring of operation and alarm status. External monitoring of output voltage and current → from page  External monitoring of operation mode and alarm status → from ...
  • Page 104 PSW Series User Manual VMON Connection Analog connector V MON → Output Terminal Pin16 → Neg (-)  Pin10 → Pos (+)  IMON Connection Pin16 → Neg (-)  Pin11 → Pos (+)  The output impedance of the voltage (VMON) and Note current (IMON) monitor pins is 1kΩ.

  • Page 105: External Operation And Status Monitoring

    ANALOG CONTROL External Operation and Status Monitoring Background The MIL 26 pin connector can also be used to monitor the status operation and alarm status of the instrument. The pins are isolated from the power supply internal circuitry by photo couplers. Status Com (Pin 17) is a photo coupler emitter output, whilst pins 18~22 are photo coupler collector outputs.

  • Page 106: Communication Interface

    PSW Series User Manual OMMUNICATION INTERFACE This chapter describes basic configuration of IEEE488.2 based remote control. For a command list, refer to the programming manual, downloadable from GW Instek website, www.gwinstek.com Interface Configuration ..........107 USB Remote Interface ..................107 Configure GPIB Interface ..................

  • Page 107: Interface Configuration

    COMMUNICATION INTERFACE Interface Configuration USB Remote Interface Type A, host PC side configuration connector Rear panel Type B, slave PSW side connector 1.1/2.0 (full speed) Speed CDC (communications device USB Class class) GUG-001 USB Accessories GPIB to USB adapter 1. Connect the USB cable to the rear Panel operation panel USB B port.

  • Page 108: Configure The Ethernet Interface

    Ethernet can be configured for basic remote control or monitoring using a web server or a telnet connection. The PSW series supports DHCP connections so the instrument can be automatically connected to an existing network. Alternatively, network settings can also be manually configured.

  • Page 109: Usb Remote Control Function Check

    COMMUNICATION INTERFACE Use the Following configuration settings to use DHCP Dynamic Host Configuration Protocol. The Connection Example following settings will also automatically assign an IP address. 1. Press the Function key to enter the Page 77 Normal configuration settings. Set the following LAN settings: F-37 = 1 Turn DHCP to enable F-59 = 1...

  • Page 110: Web Server Remote Control Function Check

    For further details, please see the programming Note manual, available on the GW Instek web site @ www.gwinstek.com. Web Server Remote Control Function Check Enter the IP address of the power supply in a...

  • Page 111: Maintenance

    MAINTENANCE AINTENANCE The PSW power supply filters should be replaced on a periodic schedule to maintain performance and specification characteristics. Replacing the Dust Filter ..................112...
  • Page 112 Front panel filter (all models) 2. Pull the filter out from the bottom of the front panel. 3. Replace the filter with GW Instek part number 57RG-30B00101. 1. Lift the side panel up Side panel filters (Type II & Type...

  • Page 113: Faq

    • The power supply won’t let me change the mode (C.V. mode ↔ C.C. mode). • The OVP voltage is triggered earlier than expected. • Can I combine more than 1 cable together for the output wiring? • The accuracy does not match the specification. The power supply won’t let me change the mode (C.V.
  • Page 114 PSW Series User Manual The accuracy does not match the specification. Make sure the device is powered On for at least 30 minutes, within +20°C~+30°C. This is necessary to stabilize the unit to match the specification. For more information, contact your local dealer or GWInstek at...

  • Page 115: Appendix

    APPENDIX PPENDIX PSW Default Settings The following default settings are the factory configuration settings for the power supply (Function settings/Test settings). Normal Function Settings Setting Default Setting Output ON delay time F-01 0.00s Output OFF delay time F-02 0.00s V-I mode slew rate select F-03 0 = CV high speed priority 60V/s (PSW 30-XX) Rising voltage slew rate...
  • Page 116 PSW Series User Manual Rear panel USB F-21 0 = Absent Rear Panel USB Mode F-22 0 = Disable GPIB address F-23 LAN setting MAC Address-1 F-30 0x00~0xFF MAC Address-2 F-31 0x00~0xFF MAC Address-3 F-32 0x00~0xFF MAC Address-4 F-33 0x00~0xFF...

  • Page 117: Error Messages & Messages

    APPENDIX External Out Logic F-94 0= High ON Power Switch trip F-95 0 = Enable Calibration Calibration F-00 0000 Test Setting Test Run T-01 Test Save T-02 Test Recall T-03 Test Remove T-04 Error Messages & Messages The following error messages or messages may appear on the PSW screen during operation.

  • Page 118: Psw Specifications

    PSW Series User Manual PSW Specifications The specifications apply when the PSW is powered on for at least 30 minutes. PSW 30-36, PSW 80-13.5 Model PSW 30-36 PSW 80-13.5 DC Output Voltage Ratings: Current 13.5A Power 360W 360W Load Effect: Voltage 0.05% of rating + 5mV...
  • Page 119 APPENDIX Temperature Coefficient: (after a 30 minute warm-up) Voltage 100ppm/˚C Current 200ppm/˚C Temperature Drift: (over 8 hours, after a 30 minute warm-up, with constant line, load, and temperature) Voltage 15mV 40mV (0.05% of rated Vo) Current 18mA 6.75mA (0.05% of rated Io) Protection OVP setting...
  • Page 120 PSW Series User Manual AC Input: Nominal Input 100 - 240 VAC; 50/60Hz Input Input Range 85VAC ~ 265VAC Frequency 47Hz ~ 63Hz Hold up Time ＞20ms (at rated load) Input Current 5A@100VAC / 2.5A@200VAC Power (max) 500VA Power Factor 0.98...
  • Page 121 APPENDIX PSW 30-72, PSW 80-27 Model PSW 30-72 PSW 80-27 DC Output Voltage Ratings: Current Power 720W 720W Load Effect: Voltage 0.05% of rating + 5mV 0.05% of rating + 5mV Current 0.1% of rating + 5mA 0.1% of rating + 5mA Source Effect: (change from 85-132 VAC input or 170-265 VAC input) Voltage 0.05% of rating + 3mV...
  • Page 122 PSW Series User Manual Voltage 15mV 40mV (0.05% of rated Vo) Current 36mA 13.5mA (0.05% of rated Io) Protection OVP setting 10% to 110% of rated output voltage Function range OVP accuracy 1% OCP setting 10% to 110% of rated output current...
  • Page 123 APPENDIX Power (max) 1000VA Power Factor 0.98 (typ) Effidiency (typ) 75% Inrush Current ＜30Apeak General Weight Approx. 5kg Dimensions W×H×D = 142×124×350 mm...
  • Page 124 PSW Series User Manual PSW 30-108, PSW 80-40.5 Model PSW 30-108 PSW 80-40.5 DC Output Voltage Ratings: Current 108A 40.5A Power 1080W 1080W Load Effect: Voltage 0.05% of rating + 5mV 0.05% of rating + 5mV Current 0.1% of rating + 5mA 0.1% of rating + 5mA...
  • Page 125 APPENDIX Voltage 15mV 40mV (0.05% of rated Vo) Current 54mA 20.25mA (0.05% of rated Io) Protection OVP setting 10% to 110% of rated output voltage Function range OVP accuracy 1% OCP setting 10% to 110% of rated output current range OCP accuracy 1% Activated by elevated internal temperatures Analog Programming and Monitoring...
  • Page 126 PSW Series User Manual Power (max) 1500VA Power Factor 0.98 (typ) Effidiency (typ) 75% Inrush Current ＜45Apeak General Weight Approx. 7kg Dimensions W×H×D =214×124×350 mm...

  • Page 127: Psw Dimensions

    APPENDIX PSW Dimensions Type I PSW 80-13.5/PSW 30-36 (mm) 47.5 39.5 30.5 14.5 33.8 333.3 70.8 332.5...
  • Page 128 PSW Series User Manual Type II PSW 80-27/PSW 30-72 (mm) 47.5 39.5 30.5 14.5 33.8 333.3 332.5 141.8 99.6...
  • Page 129 APPENDIX Type III PSW 80-40.5/PSW 30-108 (mm) 47.5 39.5 30.5 14.5 33.8 333.3 332.5 212.8 160.6...

  • Page 130: Declaration Of Conformity

    PSW Series User Manual Declaration of Conformity GOOD WILL INSTRUMENT CO., LTD. No. 7-1, Jhongsing Rd, Tucheng Dist., New Taipei City 236, Taiwan GOOD WILL INSTRUMENT (SUZHOU) CO., LTD. No. 69 Lushan Road, Suzhou New District Jiangsu, China. declare that the below mentioned product Type of Product: Multi-Range DC Power Supply Model Number: PSW 30-36, PSW 80-13.5, PSW 30-72, PSW 80-27,...

  • Page 131: Index

    INDEX NDEX Accessories ......... 11 Default settings ......115 Alarm Dimensions description ........26 diagram ........129 Analog connector Display format ......117 pin assignment ......88 Display mode Analog control operation ........48 output control ....... 98 Disposal instructions ....7 overview ........
  • Page 132 PSW Series User Manual reverse current ......27 Service operation OVP level ........42 about disassembly ......6 contact .......... 114 Package contents ....... 13 Slew rate Panel lock ........49 description ........24 Parallel mode Specifications ......118 connection ........55 PSW 30-108 ........

This manual is also suitable for:

Psw 30-36Psw 80-13.5Psw 30-72Psw 80-27Psw 30-108Psw 80-40.5

Table of Contents
