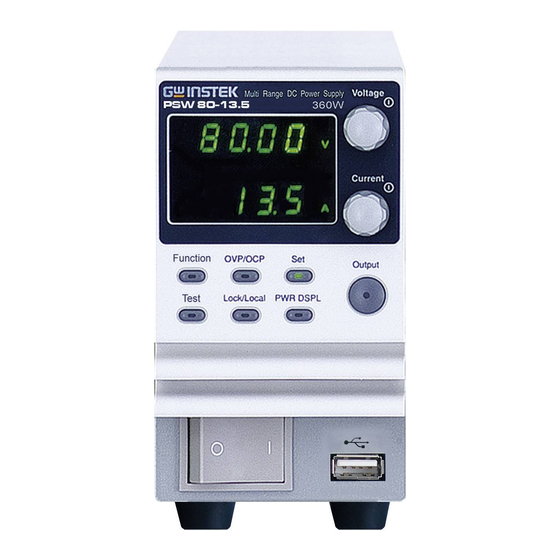

GW Instek PSW Series Programming Manual

Multi-range dc power supply
Hide thumbs Also See for PSW Series:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Multi-Range DC Power Supply
PSW Series
PROGRAMMING MANUAL
GW INSTEK PART NO. 82SW-80400E01
ISO-9001 CERTIFIED MANUFACTURER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSW Series and is the answer not in the manual?

Questions and answers

Related Manuals for GW Instek PSW Series

Summary of Contents for GW Instek PSW Series

  • Page 1 Multi-Range DC Power Supply PSW Series PROGRAMMING MANUAL GW INSTEK PART NO. 82SW-80400E01 ISO-9001 CERTIFIED MANUFACTURER...
  • Page 2 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company. The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents SAFETY INSTRUCTIONS ........... 4  GETTING STARTED ............8  PSW Series Overview ......9  Appearance .......... 11  Configuration Settings ......17  REMOTE CONTROL ............21  Interface Configuration ......22  Command Syntax ......... 26  Command List ........29 ...

  • Page 4: Safety Instructions

    PSW Series User Manual AFETY INSTRUCTIONS This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to insure your safety and to keep the instrument in the best possible condition.
  • Page 5 SAFETY INSTRUCTIONS Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Safety Guidelines Do not place any heavy object on the PSW. General  Guideline Avoid severe impact or rough handling that ...
  • Page 6 PSW Series User Manual Disconnect the power cord before cleaning. Cleaning the PSW  Use a soft cloth dampened in a solution of mild  detergent and water. Do not spray any liquid. Do not use chemicals containing harsh material ...
  • Page 7 SAFETY INSTRUCTIONS Power cord for the United Kingdom When using the power supply in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow:...

  • Page 8: Getting Started

    After going through the overview, please read the theory of operation to become familiar with the operating modes, protection modes and other safety considerations. PSW Series Overview ............9 Series lineup ................9 Main Features ............... 10 Appearance ..............11 PSW Front Panel ..............

  • Page 9: Psw Series Overview

    GETTING STARTED PSW Series Overview Series lineup The PSW series consists of 6 models, divided into 3 different model types covering 3 power capacities: Type I (360 Watt), Type II (720 Watt) and Type III (1080 Watt). Model name Type...

  • Page 10: Main Features

    PSW Series User Manual Main Features High performance/power Performance  Power efficient switching type power supply  Low impact on load devices  Fast transient recovery time of 1ms  Fast output response time  OVP, OCP and OTP protection Features ...

  • Page 11: Appearance

    GETTING STARTED Appearance PSW Front Panel PSW 80-27, PSW 30-72 (720W) PSW 80-40.5, PSW 30-108 (1080W) PSW 80-13.5, PSW 30-36 (360W) Voltage Multi-Range DC Power Supply PSW 30-36 360W Current Function OVP/OCP Output Test Lock/Local PWR DSPL...
  • Page 12 PSW Series User Manual The Function keys along with the Output key will Function Keys light up when a key is active. The Function key is used to configure the power supply. Set the over current or over voltage protection levels.
  • Page 13 GETTING STARTED Current Slew Rate Power bar Indicates the current power output as a percentage. Sets the voltage. Voltage Knob Voltage Sets the current. Current Knob Current Press to turn on the output. The Output Output key will light up when the output is active.

  • Page 14: Rear Panel

    PSW Series User Manual Rear Panel PSW 80-27, PSW 30-72 (720W) PSW 80-40.5, PSW 30-108 (1080W) PSW 80-13.5, PSW 30-36 (360W) AC Input SER.NO. LABEL 240V 47 63Hz 1500VA MAX.
  • Page 15 GETTING STARTED Standard 26 pin MIL connector Analog Control (OMRON XG4 IDC plug). Connector The analog control connector is used to monitor current and voltage output, machine status (OVP, OCP, OTP etc.), and for analog control of the current and voltage output. Use an OMRON XG5 IDC socket as the mating socket.
  • Page 16 PSW Series User Manual Type I: PSW 30-36/80-13.5 Line Voltage Input Type II: PSW 30-72/80-27 (Type I/TypeII) Voltage Input: 100~240 VAC  Line frequency: 50Hz/60 Hz  (Automatically switchable) Type III: PSW 30-108/80-40.5 Line Voltage Input Voltage Input: 100~240 VAC ...

  • Page 17: Configuration Settings

    GETTING STARTED Configuration Settings Setting Configuration Settings Background The normal configuration settings (F-01~F-61) are used to configure system settings. Use the following operation steps when configuring the interface settings used in the Remote Control chapter on page 18. Ensure the load is not connected. ...
  • Page 18 PSW Series User Manual 5. Press the Voltage knob to save the configuration setting. Conf will be displayed when successful. Exit Press the Function key again to exit the configuration settings. The function key light will turn off. Configuration Table Please use the configuration settings listed below when applying the configuration settings.
  • Page 19 GETTING STARTED 0.01A/s~72.00A/s (PSW 30-36) 0.1A/s~144.0A/s (PSW 30-72) 0.1A/s~216.0A/s (PSW 30-108) Falling current slew rate F-07 0.01A/s~27.00A/s (PSW 80-13.5) 0.01A/s~54.00A/s (PSW 80-27) 0.01A/s~81.00A/s (PSW 80-40.5) 0.000Ω~0.833Ω (PSW 30-36) 0.000Ω~0.417Ω (PSW 30-72) Internal resistance 0.000Ω~0.278Ω (PSW 30-108) F-08 setting 0.000Ω~5.926Ω (PSW 80-13.5) 0.000Ω~2.963Ω...
  • Page 20 PSW Series User Manual Gateway-3 F-49 0~255 Gateway-4 F-50 0~255 DNS address -1 F-51 0~255 DNS address -2 F-52 0~255 DNS address-3 F-53 0~255 DNS address-4 F-54 0~255 Sockets active F-57 0 = Disable, 1 = Enable Web Server active...

  • Page 21: Remote Control

    REMOTE CONTROL EMOTE CONTROL This chapter describes basic configuration of IEEE488.2 based remote control. For a command list, refer to the programming manual, downloadable from GW Instek website, www.gwinstek.com Interface Configuration ........... 22  Command Syntax ............26  Command List ..............29 ...

  • Page 22: Interface Configuration

    PSW Series User Manual Interface Configuration USB Remote Interface ............22 Configure GPIB Interface ............ 23 Configure the Ethernet Interface ........24 USB Remote Control Function Check ....... 25 Web Server Remote Control Function Check ....25 USB Remote Interface...
  • Page 23 3. Connect a GPIB cable from a GPIB controller to the GPIB port on the adapter. Type A plug From computer Type B plug for PSW series GUG-001 4. Turn the PSW on. 5. Press the Function key to enter the Page 17 Normal configuration settings.
  • Page 24 Ethernet can be configured for basic remote control or monitoring using a web server. The PSW series supports DHCP connections so the instrument can be automatically connected to an existing network. Alternatively, network settings can also be manually configured.
  • Page 25 REMOTE CONTROL USB Remote Control Function Check Invoke a terminal application such as Hyper Functionality check Terminal. To check the COM port No, see the Device Manager in the PC. For WinXP; Control panel → System → Hardware tab. Run this query command via the terminal after the instrument has been configured for USB remote control (page 22).

  • Page 26: Command Syntax

    PSW Series User Manual Command Syntax Partial compatibility IEEE488.2 Compatible Partial compatibility Standard SCPI, 1999 SCPI commands follow a tree-like structure, Command organized into nodes. Each level of the Structure command tree is a node. Each keyword in a SCPI command represents each node in the command tree.
  • Page 27 REMOTE CONTROL A query is a simple or Query compound command followed by a question mark (?). A parameter (data) is returned. meas:curr:dc? Example Two or more commands on Compound the same command line. Compound commands are separated with either a semi- colon (;) or a semi-colon and a colon (;:).
  • Page 28 PSW Series User Manual Commands and queries have two different Command Forms forms, long and short. The command syntax is written with the short form of the command in capitals and the remainder (long form) in lower case. The commands can be written in capitals or lower-case, just so long as the short or long forms are complete.

  • Page 29: Command List

    REMOTE CONTROL integers 0, 1, 2, 3 <NR1> decimal 0.1, 3.14, 8.5 <NR2> numbers floating point 4.5e-1, 8.25e+1 <NR3> any of NR1, 2, 3 1, 1.5, 4.5e-1 <NRf> Message Line feed code Terminator Command List Abort Commands ABORt ..................32  ...
  • Page 30 PSW Series User Manual STATus:OPERation[:EVENt] ..........39 Status STATus:OPERation:CONDition ........39 Commands STATus:OPERation:ENABle ..........39 STATus:OPERation:PTRansition ........40 STATus:OPERation:NTRansition ........40 STATus:QUEStionable[:EVENt] ........40 STATus:QUEStionable:CONDition ........41 STATus:QUEStionable:ENABle ........41 STATus:QUEStionable:PTRansition........41 STATus:QUEStionable:NTRansition ......... 41 STATus:PRESet ..............42 [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude] 43 Source [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude] ..
  • Page 31 REMOTE CONTROL SYSTem:COMMunicate:GPIB[:SELF]:ADDRess ...56   SYSTem:COMMunicate:LAN:IPADdress ......56   SYSTem:COMMunicate:LAN:GATEway ......56   SYSTem:COMMunicate:LAN:SMASk ....... 56   SYSTem:COMMunicate:LAN:MAC ........57   SYSTem:COMMunicate:LAN:DHCP ........ 57   SYSTem:COMMunicate:LAN:DNS ........57   SYSTem:COMMunicate:USB:FRONt:STATe ....58   SYSTem:COMMunicate:USB:REAR:STATe ....58   SYSTem:ERRor ..............58  ...

  • Page 32: Apply Commands Apply

    PSW Series User Manual Abort Commands ABORt ..................32 ABORt The ABORt command will cancel any triggered Description actions. Syntax ABORt APPLy Commands APPLy ..................32 APPLy Query The APPLy command is used to set both the Description voltage and current. The voltage and current will be output as soon as the function is executed if the programmed values are within the accepted range.

  • Page 33: Display Display:menu[:Name]

    REMOTE CONTROL Maxium value for the present range. Return parameter <NRf> Returns the voltage and current. Example APPL 5.05,1.1 Sets the voltage and current to 5.05V and 1.1A. Query Example APPL? +5.050, +1.100 Returns voltage (5.05V) and current (1.1A) setting. Display Commands DISPlay:MENU[:NAME] ............33  ...

  • Page 34: Commands Display[:Window]:Text:clear

    PSW Series User Manual DISPlay[:WINDow]:TEXT:CLEar Clears the text on the main screen from the Description DISPlay[:WINDow]:TEXT[:DATA] command . Syntax DISPlay[:WINDow]:TEXT:CLEar DISPlay[:WINDow]:TEXT[:DATA] Query Sets or queries the data text that will be written to Description the display. Writing to the display will overwrite data that is currently on the screen.

  • Page 35: Initiate Initiate[:Immediate]:Name

    REMOTE CONTROL Turns blink ON <NR1>Turns blink OFF Return parameter 0 <NR1>Turns blink ON Example DISP:BLIN 1 Turns blink ON. Initiate Commands INITiate[:IMMediate]:NAME ..........35   INITiate[:IMMediate]:NAME The INITiate command starts the TRANsient or Description OUTPut trigger. Syntax INITiate[:IMMediate]:NAME {TRANsient|OUTPut} Starts the TRANsient trigger. Parameter TRANSient Starts the OUTPut trigger.

  • Page 36: Commands Measure[:Scalar]:Voltage[:Dc]

    PSW Series User Manual MEASure[:SCALar]:VOLTage[:DC] Query Takes a measurement and returns the average Description output voltage. Syntax MEASure[:SCALar]:VOLTage[:DC]? Returns the voltage in volts. Return <NRf> MEASure[:SCALar]:POWer[:DC] Query Takes a measurement and returns the average Description output power. Syntax MEASure[:SCALar]:POWer[:DC]? Returns the power measured in watts.

  • Page 37: Output:delay:off

    REMOTE CONTROL OUTPut:DELay:OFF Query Sets the Delay Time in seconds for turning the Description output off. The delay is set to 0.000 by default. Syntax OUTPut:DELay:OFF <NRf> Return Syntax OUTPut:DELay:OFF? 0.00~99.99 seconds, where 0=no delay. Parameter <NRf> Returns the delay off time in seconds until the Return parameter <NRf>...

  • Page 38: Output[:State]:Triggered

    PSW Series User Manual Turns the output on. Returns output status of the instrument. Return parameter <NR1> OUTPut[:STATe]:TRIGgered Query Turns the output on or off when a software trigger Description is generated. Syntax OUTPut[:STATe]:TRIGgered { OFF | ON | 0 | 1 }...

  • Page 39: Status Status:operation[:Event]

    REMOTE CONTROL Status Commands STATus:OPERation[:EVENt] ..........39   STATus:OPERation:CONDition ........39   STATus:OPERation:ENABle ..........39   STATus:OPERation:PTRansition ........40   STATus:OPERation:NTRansition ........40   STATus:QUEStionable[:EVENt] ........40   STATus:QUEStionable:CONDition ........41   STATus:QUEStionable:ENABle ........41   STATus:QUEStionable:PTRansition ........41   STATus:QUEStionable:NTRansition ......... 41  ...

  • Page 40: Status:operation:ptransition

    PSW Series User Manual Syntax STATus:OPERation:ENABle <NRf> Query Syntax STATus:OPERation:ENABle? 0~32767 Parameter <NRf> 0~32767 Return parameter <NR1> STATus:OPERation:PTRansition Query Sets or queries the bit sum of the positive Description transition filter of the Operation Status register. Syntax STATus:OPERation:PTRansition <NRf> STATus:OPERation:PTRansition?

  • Page 41: Status:questionable:condition

    REMOTE CONTROL STATus:QUEStionable:CONDition Query Queries the status (bit sum) of the Questionable Description Status register. This query will not clear the register. Query Syntax STATus:QUEStionable:CONDition? 0~32767 Parameter <NRf> 0~32767 Return parameter <NR1> STATus:QUEStionable:ENABle Query Sets or queries the bit sum of the Questionable Description Status Enable register.

  • Page 42: Status:preset

    PSW Series User Manual 0~32767 Parameter <NRf> 0~32767 Return parameter <NR1> STATus:PRESet This command resets the ENABle register, the Description PTRansistion filter and NTRansistion filter on the Operation Status and Questionable Status Registers. The registers/filters will be reset to a default value.
  • Page 43 REMOTE CONTROL Source Commands [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude] 43   [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude] .. 44   [SOURce:]CURRent:PROTection[:LEVel] ....... 44   [SOURce:]CURRent:SLEW:RISing ........45   [SOURce:]CURRent:SLEW:FALLing ........ 45   [SOURce:]RESistance[:LEVel][:IMMediate] [:AMPLitude] ................46   [SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude] 46   [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude] . 47   [SOURce:]VOLTage:PROTection[:LEVel] ....... 47   [SOURce:]VOLTage:SLEW:RISing ........47  ...

  • Page 44: Source [Source:]Current[:Level][:Immediate][:Amplitude] 43 Commands [Source:]Current[:Level]:Triggered[:Amplitude]

    PSW Series User Manual [SOURce:]CURRent[:LEVel]:TRIGgered [:AMPLitude] Query Sets or queries the current level in amps when a Description software trigger has been generated. Syntax [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude] {<NRf>|MIN|MAX} Query Syntax [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude]? {<NRf>|MIN|MAX} 0%~105% of the rated current output in amps. Parameter/Return <NRf>...

  • Page 45: [Source:]Current:slew:rising

    REMOTE CONTROL [SOURce:]CURRent:SLEW:RISing Query Sets or queries the rising current slew rate. This is Description only applicable for CC slew rate priority mode. Syntax [SOURce:]CURRent:SLEW:RISing {<NRf>|MIN|MAX} Query Syntax [SOURce:]CURRent:SLEW:RISing? {MIN|MAX} 0.01A/s~200% (PSW 30-36) Parameter/Return <NRf> 0.1A/s~200% (PSW 30-72) 0.1A/s~200% (PSW 30-108) 0.01A/s~200% (PSW 80-13.5) 0.01A/s~200% (PSW 80-27) 0.01A/s~200% (PSW 80-40.5)

  • Page 46: [Source:]Resistance[:Level][:Immediate] [:Amplitude]

    PSW Series User Manual [SOURce:]RESistance[:LEVel][:IMMediate] [:AMPLitude] Query Sets or queries the internal resistance in ohms. Description Syntax [SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude] {<NRf>|MIN|DEF|MAX|?} Query Syntax [SOURce:]RESistance[:LEVel][:IMMediate][:AMPLitude] ? {MIN|MAX} Resistance in ohms: Parameter/Return <NRf> 0.000Ω~0.833Ω (PSW 30-36) 0.000Ω~0.417Ω (PSW 30-72) 0.000Ω~0.278Ω (PSW 30-108) 0.000Ω~5.926Ω (PSW 80-13.5) 0.000Ω~2.963Ω...

  • Page 47: [Source:]Voltage[:Level]:Triggered[:Amplitude]

    REMOTE CONTROL [SOURce:]VOLTage[:LEVel]:TRIGgered [:AMPLitude] Query Sets or queries the voltage level in volts when a Description software trigger has been generated. Syntax [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude] {<NRf>|MIN|MAX} Query Syntax [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude]? {<NRf>|MIN|MAX} 0%~105% of the rated voltage output in volts. Parameter/Return <NRf> Minimum current level. Maximum current level.

  • Page 48: [Source:]Voltage:slew:falling

    PSW Series User Manual Syntax [SOURce:]VOLTage:SLEW:RISing {<NRf>|MIN|MAX} Query Syntax [SOURce:]VOLTage:SLEW:RISing? {MIN|MAX} 0.01V/s--200% (PSW 30-XX) Parameter/Return <NRf> 0.1V/s--200% (PSW 80-XX) Minimum rising voltage slew rate. Maximum rising voltage slew rate. Example SOUR:VOLT:SLEW:RIS MAX Sets the rising voltage slew rate to its maximum.

  • Page 49: Commands Trigger:transient:source

    REMOTE CONTROL Syntax TRIGger:TRANsient[:IMMediate] TRIGger:TRANsient:SOURce Query Sets or queries the trigger source for the transient Description system. Syntax TRIGger:TRANsient:SOURce {BUS | IMMediate} Query Syntax TRIGger:TRANsient:SOURce? Internal software trigger. Waits for the Parameter/Return BUS *TRG (or IEEE 488.1 “get” group execute trigger) command to start the trigger.
  • Page 50 PSW Series User Manual Example TRIG:OUTP:SOUR BUS Sets the trigger source of the output system as BUS.

  • Page 51: System System:configure:beeper:state

    REMOTE CONTROL System Function Command SYSTem:CONFigure:BEEPer:STATe .......51   SYSTem:CONFigure:BLEeder:STATe ......52   SYSTem:CONFigure:BTRip[:IMMediate] ......52   SYSTem:CONFigure:BTRip:PROTection ......52   SYSTem:CONFigure:CURRent:CONTrol ......53   SYSTem:CONFigure:VOLTage:CONTrol ....... 53   SYSTem:CONFigure:MSLave ..........53   SYSTem:CONFigure:OUTPut:EXTernal:MODE ... 54   SYSTem:CONFigure:OUTPut:PON[:STATe] ....54   SYSTem:COMMunicate:ENABle ........

  • Page 52: Commands System:configure:bleeder:state

    PSW Series User Manual SYSTem:CONFigure:BLEeder:STATe Query Sets or queries the status of the bleeder resistor. Description Syntax SYSTem:CONFigure:BLEeder[:STATe] {OFF|ON|0|1} Query Syntax SYSTem:CONFigure:BLEeder[:STATe]? <NR1> Turns the bleeder resistor off. Parameter Turns the bleeder resistor off. <NR1> Turns the bleeder resistor on.

  • Page 53: System:configure:current:control

    REMOTE CONTROL SYSTem:CONFigure:CURRent:CONTrol Query Sets or queries the CC control mode (local control Description (panel), external voltage control, external resistance control). This setting is applied only after the unit is reset. Syntax SYSTem:CONFigure:CURRent:CONTrol { 0 | 1 | 2 | 3 } Query Syntax SYSTem:CONFigure:CURRent:CONTrol? Description...

  • Page 54: System:configure:output:external:mode

    PSW Series User Manual Syntax SYSTem:CONFigure:MSLave { 0 | 1 | 2 | 3 | 4 } Query Syntax SYSTem:CONFigure:MSLave? Parameter/Return <NR1> Description Master/Local Master/Parallel 1 (2 units) Master/Parallel 2 (3 units) Slave/Parallel Slave/Series SYSTem:CONFigure:OUTPut:EXTernal: MODE Query Sets the external logic as active high or active low.

  • Page 55: System:communicate:enable

    REMOTE CONTROL Output off at power up Parameter Output off at power up Output on at power up Output on at power up Output off at power up Return Parameter 0 Output on at power up SYSTem:COMMunicate:ENABle Query Enables/Disables LAN, GPIB or USB remote Description interfaces as well as remote services (Sockets, Web Server).

  • Page 56: System:communicate:gpib[:Self]:Address

    PSW Series User Manual SYSTem:COMMunicate:GPIB[:SELF]:ADDR Query Sets or queries the GPIB address. Description Syntax SYSTem:COMMunicate:GPIB[:SELF]:ADDRess <NR1> Query Syntax SYSTem:COMMunicate:GPIB[:SELF]:ADDRess? 0~30 Parameter/Return <NR1> Example SYST:COMM:GPIB:SELF:ADDR 15 Sets the GPIB address to 15. SYSTem:COMMunicate:LAN:IPADdress Query Sets or queries LAN IP address. Description Syntax SYSTem:COMMunicate:LAN:IPADdress <string>...

  • Page 57: System:communicate:lan:mac

    REMOTE CONTROL Syntax SYSTem:COMMunicate:LAN:SMASk <string> Query Syntax SYSTem:COMMunicate:LAN:SMASk? Subnet mask in string format ( “mask”) Parameter/Return <string> Applicable ASCII characters: 20H to 7EH Example SYST:COMM:LAN:SMASk “255.255.0.0” Sets the LAN mask to 255.255.0.0. SYSTem:COMMunicate:LAN:MAC Query Returns the unit MAC address as a string. The Description MAC address cannot be changed.

  • Page 58: System:communicate:usb:front:state

    PSW Series User Manual DNS in string format ( “mask”) Parameter/Return <string> Applicable ASCII characters: 20H to 7EH Example SYST:COMM:LAN:DNS “172.16.1.252” Sets the DNS to 172.16.1.252. SYSTem:COMMunicate:USB:FRONt:STATe Query Queries the front panel USB-A port state. Description Query Syntax SYSTem:COMMunicate:USB:FRONt:STATe? <NR1>Absent Return parameter 0 <NR1>Mass Storage...

  • Page 59: System:version

    REMOTE CONTROL Syntax SYSTem:KLOCk { OFF | ON | 0 | 1} Query Syntax SYSTem:KLOCk? Panel keys unlocked Parameter Panel keys unlocked Panel keys locked Panel keys locked <boolean>Panel keys unlocked Return parameter 0 <Boolean>Panel keys locked SYSTem:VERSion Query Returns the version of the SCPI specifications that Description the unit complies with.

  • Page 60: Cls

    PSW Series User Manual *CLS The *CLS command clears the Standard Event Description Status, Operation Status and Questionable Status registers. The corresponding Enable registers in each of the above registers are not cleared. If a <NL> newline code immediately precedes a *CLS command, the Error Que and the MAV bit in the Status Byte Register is also cleared.

  • Page 61: Opc

    REMOTE CONTROL Returns the instrument identification as a Return parameter <string> string in the following format: GW-INSTEK,PSW-3036,TW123456,01.00.20110101 Manufacturer: GW-INSTEK Model number : PSW-3036 Serial number : TW123456 Firmware version : 01.00.20110101 *OPC Query The *OPC command sets the OPC bit (bit0) of the Description Standard Event Status Register when all current commands have been processed.

  • Page 62: Stb

    PSW Series User Manual 0~255 Parameter <NR1> Returns the bit sum of the Service Request Return parameter <NR1> Enable register. *STB Query Queries the bit sum of the Status Byte register with Description MSS (Master summary Status) bit replacing the RQS bit (bit 6).

  • Page 63: Status Register Overview

    Overview status of the power supply. The status registers maintain the status of the protection conditions, operation conditions and instrument errors. The PSW Series have a number of register groups: Questionable Status Register Group  Standard Event Status Register Group ...
  • Page 64 PSW Series User Manual The Status Registers...
  • Page 65 REMOTE CONTROL Questionable Status Register Group The Questionable Status Register Group Overview indicates if any protection modes or limits have been tripped. Bit Summary Event Bit # Weight OV (Over-Voltage) Over voltage protection has been tripped OC (Over-Current) Over current protection has been tripped POW (AC Power Off) AC power switch is off...
  • Page 66 PSW Series User Manual OT (Over Temperature) Over temperature protection has been tripped VL (Voltage Limit) Voltage limit has been reached CL (Current Limit) Current limit has been reached SD (Shutdown Alarm) 2048 PL (Power-Limit) 4096 The Questionable Status Condition Register...
  • Page 67 REMOTE CONTROL Operation Status Register Group The Operation Status Register Group indicates Overview the operating status of the power supply. Bit Summary Event Bit # Weight CAL (Calibration mode) Indicates if the PSW is in calibration mode. WTG (Waiting for trigger) Indicates if the PSW is waiting for a trigger.
  • Page 68 PSW Series User Manual CC (Constant current mode) 1024 Indicates if the PSW is in CC mode. OND (Output ON Delay) 2048 Indicates if Output ON delay time is active OFD (Output OFF Delay) 4096 Indicates if Output OFF delay...
  • Page 69 REMOTE CONTROL The Enable register determines which Enable Register registered Events in the Event Register will be used to set the OPER bit in the Status Byte Register.
  • Page 70 PSW Series User Manual Standard Event Status Register Group The Standard Event Status Register Group Overview indicates if any errors have occurred. The bits of the Event register are set by the error event queue. Bit Summary Event Bit #...
  • Page 71 REMOTE CONTROL EXE (Execution Error) The EXE bit indicates an execution error due to one of the following: illegal command parameter, parameter out of range, invalid parameter, the command didn’t execute due to an overriding operation condition. CME (Command Error) The CME bit is set when a syntax error has occurred.
  • Page 72 PSW Series User Manual Status Byte Register & Service Request Enable Register The Status Byte register consolidates the status Overview events of all the status registers. The Status Byte register can be read with the *STB? query or a serial poll and can be cleared with the *CLS command.
  • Page 73 REMOTE CONTROL QUES (Questionable Status Register) The summary bit for the Questionable Status Register group. MAV (Message Available) This is set when there is data in the Output Queue waiting to be read. (ESB) Event Summary Bit. The ESB is the summary bit for the Standard Event Status Register group.
  • Page 74 PSW Series User Manual Any bits set in the Status byte register acts as a Status Byte summary register for all the three other status Register registers and indicates if there is a service request, an error in the Error Queue or data in the Output Queue.

  • Page 75: Error List

    REMOTE CONTROL Error List Command Errors ..............75   Execution Errors ..............79   Device Specific Errors ............81   Query Errors ................82   Command Errors Overview An <error/event number> in the range [ -199 , - 100 ] indicates that an IEEE 488.2 syntax error has been detected by the instrument’s parser.
  • Page 76 PSW Series User Manual Error Code Description This is the generic syntax error for devices that -100 Command Error cannot detect more specific errors. This code indicates only that a Command Error as defined in IEEE 488.2,11.5.1.1.4 has occurred. An unrecognized command or data type was -102 Syntax error encountered;...
  • Page 77 REMOTE CONTROL The header contains more that twelve -112 Program mnemonic too characters (see IEEE 488.2, 7.6.1.4.1). long The header is syntactically correct, but it is -113 Undefined header undefined for this specific device; for example, *XYZ is not defined for any device. The value of a numeric suffix attached to a -114 Header suffix out of range...
  • Page 78 PSW Series User Manual Either the character data element contains an -141 Invalid character data invalid character or the particular element received is not valid for the header. A legal character data element was encountered -148 Character data not allowed where prohibited by the device.
  • Page 79 REMOTE CONTROL Execution Errors Overview An <error/event number> in the range [ -299 , - 200 ] indicates that an error has been detected by the instrument’s execution control block. The occurrence of any error in this class shall cause the execution error bit (bit 4) in the event status register (IEEE 488.2, section 11.5.1) to be set.
  • Page 80 PSW Series User Manual Indicates that a command is not executable -201 Invalid while in local while the device is in local due to a hard local control (see IEEE 488.2, 5.6.1.5); for example, a device with a rotary switch receives a message...
  • Page 81 REMOTE CONTROL Indicates that a legal program data element was -222 Data out of range parsed but could not be executed because the interpreted value was outside the legal range as defined by the device (see IEEE 488.2, 11.5.1.1.5.). Used where exact value, from a list of possibles, -224 Illegal was expected.
  • Page 82 PSW Series User Manual or query errors; see the other error definitions in this section. Error Code Description Indicates that some error, termed “system -310 System error error” by the device, has occurred. This code is device-dependent. Indicates that the firmware detected a fault -320 Storage fault when using data storage.
  • Page 83 REMOTE CONTROL Error Code Description This is the generic query error for devices that -400 Query error cannot detect more specific errors. This code indicates only that a Query Error as defined in IEEE 488.2, 11.5.1.1.7 and 6.3 has occurred.

  • Page 84: Appendix

    PSW Series User Manual PPENDIX PSW Default Settings The following default settings are the factory configuration settings for the power supply (Function settings/Test settings). Normal Function Settings Setting Default Setting Output ON delay time F-01 0.00s Output OFF delay time F-02 0.00s...
  • Page 85 APPENDIX Rear panel USB State F-21 0 = Absent Rear Panel USB Mode F-22 2 = USB CDC GPIB address F-23 LAN setting MAC Address-1 F-30 0x00~0xFF MAC Address-2 F-31 0x00~0xFF MAC Address-3 F-32 0x00~0xFF MAC Address-4 F-33 0x00~0xFF MAC Address-5 F-34 0x00~0xFF MAC Address-6...

  • Page 86: Error Messages & Messages

    PSW Series User Manual Test Setting Test Run T-01 Test Load T-02 Test Export T-03 Test Remove T-04 Error Messages & Messages The following error messages or messages may appear on the PSW screen during operation. Error Messages Description Err 001...

  • Page 87: Index

    INDEX NDEX Caution symbol ......4 Messages ........86 Cleaning the instrument ..... 6 Model differences ......9 Configuration Power on/off normal function settings safety instruction ......5 operation ........17 Rear panel diagram ....14 table ..........18 Remote control ......21 Default settings ......
