SAFETY INSTRUCTIONS AFETY INSTRUCTIONS This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to ensure your safety and to keep the instrument in the best possible condition. Safety Symbols These safety symbols may appear in this manual or on the instrument.
Page 6 GPT-10000 Series User Manual Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Safety Guidelines Do not place any heavy object on the General ...
Page 7 SAFETY INSTRUCTIONS (Measurement categories) EN 61010-1:2010 specifies the measurement categories and their requirements as follows. The GPT-10000 does not fall under category II, III or IV.  Measurement category IV is for measurement performed at the source of low-voltage installation. ...
Page 8 GPT-10000 Series User Manual (Pollution Degree) EN 61010-1:2010 specifies the pollution degrees and their requirements as follows. The GPT-10000 falls under degree 2. Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.
Page 9: Getting Started
/ rear panel introduction. After going through the overview, please read the safety considerations in the Set Up chapter. GPT-10000 Series Overview ..........10 Series lineup ............10 Lineup Overview ..........11 Main Features ............11 Accessories............
Page 10: Gpt-10000 Series Overview
AC withstanding voltage and insulation resistance tester for specific applications. The GPT-10000 Series can store up to 100 manual tests, as well as run up to 10 manual tests sequentially as an automatic test, allowing the safety analyzers to accommodate any number of safety standards, including IEC, EN, UL, CSA, GB, JIS and others.
Page 11: Lineup Overview
GETTING STARTED Lineup Overview Model name CONT  GPT-12001     GPT-12002     GPT-12003      GPT-12004 *  GPT-15001   * GPT-15002    * GPT-15003    ...
Page 12: Accessories
GPT-10000 Series User Manual Ramp up time control Features  Ramp down time control  Safety discharge  100 test conditions (MANU mode)  100 automatic tests (AUTO mode)  Over temperature, voltage and current  protection Pass, Fail, Test, High Voltage and Ready ...
Page 13 GETTING STARTED Interlock key Optional Part number Description Accessories GHT-205 High Voltage Test Probe (except GPT-15012) GHT-113 High Voltage Test Pistol (except GPT-15012) GTL-232 RS232C cable GTL-248 GPIB cable GTL-246 USB cable (A to B type) GRA-440 Rack Adapter Panel (19”, 4U) (GPT-12000/15000 only) Options Part number...
Page 14: Package Contents
GPT-10000 Series User Manual Package Contents Check the contents before using the GPT-10000 series. Opening the box GPT-10000 unit GHT-115 test leads x1 Contents   (single unit) Quick Start Guide GTL-215 GB test leads   x1 (GPT-12004/GPT- User manual CD ...
Page 15: Front Panel Overview
GETTING STARTED Front Panel Overview GPT-12001/12002/12003/12004/15001/15002/15003/15004/15012 Description Item STOP Button START Button POWER Switch Test Function Keys (Green Zone) Display Mode Keys (AUTO, MANUAL, SYSTEM in Red Zone) Soft Keys (Blue Zone) USB A-Type Host Port PASS/FAIL Indicators REMOTE Terminal Scroll Wheel HIGH VOLTAGE Indicator HIGH VOLTAGE Output Terminal...
Page 16 GPT-10000 Series User Manual The STOP button is used to STOP button stop/cancel tests. The STOP button will also put the safety analyzer in the READY status to begin testing. The START button is used to start tests. START button...
Page 17 GETTING STARTED It can connect with USB flash drive USB Host Port for data and log import/export and for firmware update. Also, it is able to connect with USB disk for screenshot hardcopy and barcode scanner for convenient tests. The PASS and FAIL indicators Pass/Fail light up upon a PASS or FAIL test indicators...
Page 18 GPT-10000 Series User Manual USE EXTREME CAUTION. WARNING Do not touch the HIGH VOLTAGE terminal during testing. The RETURN terminal is used RETURN for ACW, DCW, IR and CONT terminal tests. The OUTPUT terminal (red) OUTPUT and All models and RETURN terminal (black)
Page 19: Rear Panel Overview
GETTING STARTED Rear Panel Overview GPT-12001/12002/12003/12004/15001/15002/15003/15004/15012 Description Item HIGH VOLTAGE Output Terminal HIGH VOLTAGE Indicator SENSE H & Output Terminal SENSE L & RETURN Terminal SOURCE H (GPT-12004/GPT-15004 only) SOURCE L (GPT-12004/GPT-15004 only) RS-232 Port USB B-Type Interface Port Signal I/O Port GPIB Port/Ethernet LAN Port (Optional) AC Mains Input (Power Cord Socket) HIGH VOLTAGE pilot lamp...
Page 20 GPT-10000 Series User Manual The SIGNAL I/O port is used to SIGNAL I/O port monitor the tester status (PASS, FAIL, TEST) and input (START/ STOP signals). It is also used with the Interlock key. The USB B-Type port is used for USB B-Type port remote control.
Page 21 GETTING STARTED The HIGH VOLTAGE HIGH VOLTAGE terminal output is used for output terminal outputting the testing voltage in ACW, DCW and IR tests. The terminal is recessed for safety and used in conjunction with the RETURN terminal. USE EXTREME CAUTION. Do not touch the WARNING HIGH VOLTAGE terminal during testing.
Page 22: Set Up
GPT-10000 Series User Manual Set Up Tilting the Stand Place the unit on a flat surface horizontally. Horizontal position Gently pull the 2 stands out from the bottom and Tilt stand the unit will be placed in the tilt stand position.
Page 23: Line Voltage Connection And Power Up
GETTING STARTED Line Voltage Connection and Power Up The GPT-10000 accepts line voltages of Background 100 - 240V at 50Hz or 60Hz. 1. Connect the power cord to Steps the AC Mains Input socket on the rear panel. 2. If the power cord does not have an earth ground, ensure the ground terminal is connected to an...
Page 24: Installing The Optional Lan/Gpib Card
GPT-10000 Series User Manual Installing the Optional LAN/GPIB Card The optional LAN/GPIB is a user-installable Background option. Follow the instructions below to install the GPIB card. Before installing optional GPIB/LAN card ensure the WARNING GPT-10000 is turned off and disconnected from power.
Page 25: Workplace Precautions
GETTING STARTED Workplace Precautions The GPT-10000 is a high voltage instrument Background that outputs dangerous voltages. The following section describes precautions and procedures that must be followed to ensure a safe work environment. The GPT-10000 generates voltages in excess of WARNING 5kVAC or 6kVDC -12kVDC.
Page 26: Operating Precautions
GPT-10000 Series User Manual Operating Precautions The GPT-10000 is a high voltage instrument Background that outputs dangerous voltages. The following section describes precautions and procedures that must be followed to ensure that the tester is operated in a safe manner.
Page 27 GETTING STARTED 5. Ensure the earth ground of the line voltage is properly grounded. 6. Only connect the test leads to the HIGH VOLTAGE/SOURCE H/SENSE H terminals before the start of a test. Keep the test leads disconnected at all other times. 7.
Page 28: Basic Safety Checks
GPT-10000 Series User Manual Basic Safety Checks The GPT-10000 is a high voltage device and as Background such, daily safety checks should be made to ensure safe operation. 1. Ensure all test leads are not broken and are free from defects such as cracks or splitting.
Page 29: Operation
OPERATION PERATION Menu Tree..............31 Menu Tree Overview ..........32 Test Lead Connection ............. 36 ACW, DCW, IR Connection ........36 GB Connection ............ 38 CONT Connection ..........39 Manual Tests ..............40 Setting the Test Function ........41 Choose/Recall a Manual Test Number ....42 Creating a MANU Test File Name ......
Page 30 GPT-10000 Series User Manual Setting the Grounding Mode ....... 74 Setting Contact Check – GPT-12XXX/15XXX ..81 Setting Contact Check – GPT-15012 ..... 83 Setting ACW & DCW Mode Filter ......86 Setting IR Mode Filter .......... 88 Screenshot Hardcopy ........... 90 Running a MANU Test .........
Page 31: Menu Tree
OPERATION Menu Tree This section describes the overall structure of the operation statuses and modes for the GPT-10000 safety analyzers. The testers have two main testing modes (MANU, AUTO), one system mode (SYSTEM) and 5 main operation statuses (READY, TEST, PASS, FAIL and STOP).
Page 32: Menu Tree Overview
GPT-10000 Series User Manual Menu Tree Overview MANU mode is used to create and/or execute a MANU Mode single test. Only under MANU mode can parameters be edited for each manual test. MANU mode AUTO mode indicates that the tester is...
Page 33 OPERATION System mode covers the Display Set, Buzzer, SYSTEM Mode Interface, Control, System Time, Data Initialize, Information, Statistics, USB Disk and CONTACT CHK settings. These settings are system-wide and applied to both MANU and AUTO tests. SYSTEM mode When the tester is in READY status of MANU READY Status or AUTO test, it is ready to begin testing.
Page 34 GPT-10000 Series User Manual TEST status is active when a MANU test or TEST Status AUTO test is running. Pressing STOP will (Orange Color) cancel the MANU test or the remaining steps in an AUTO test instantly. The TEST status in AUTO test is identical with that of MANU test.
Page 35 OPERATION When a MANU test result is beyond the range FAIL Status of HI and LOW sets, the FAIL status is shown (RED Color) on display. For AUTO test, the FAIL status is shown when any of the test steps fails, even only one of them.
Page 36: Test Lead Connection
GPT-10000 Series User Manual Test Lead Connection This section describes how to connect the GPT-10000 to a DUT for withstanding, insulation resistance, ground bond as well as continuity testing. ACW, DCW, IR Connection ACW, DCW and IR tests use the HIGH...
Page 37 OPERATION HIGH VOLTAGE Terminal RETURN Terminal...
Page 38: Gb Connection
GPT-10000 Series User Manual GB Connection GB tests use the SENSE H/L and SOURCE H/L Background terminals with the GTL-215 test leads. GB Connection GPT-10000 Source H Sense H Source L Sense L 1. Turn the power off on the safety analyzer.
Page 39: Cont Connection
OPERATION CONT Connection CONT tests use the OUTPUT and RETURN Background terminals with the GTL-115 test leads. CONT GPT-10000 Connection Output Return terminal 1. Turn the power off on the safety analyzer. Steps 2. Connect the OUTPUT test lead (white) to the OUTPUT terminal.
Page 40: Manual Tests
GPT-10000 Series User Manual Manual Tests This section describes how to create, edit and run a single ACW, DCW, IR, GB and CONT manual tests. Each Manual setting described in this chapter only applies to the selected manual test – no other manual tests are affected.
Page 41: Setting The Test Function
OPERATION Setting the Test Function There are five test functions, AC Withstand, DC Background Withstand, Insulation Resistance, Ground Bond and Continuity tests. 1. If the tester is in AUTO or SYSTEM Steps mode, press the MANUAL key to put the tester into MANU mode. 2.
Page 42: Choose/Recall A Manual Test Number
GPT-10000 Series User Manual Choose/Recall a Manual Test Number ACW, DCW, IR, GB and CONT tests can only Background be created and edited in the MANU mode. MANU number 001 to 100 can be saved and thus be loaded when editing/creating a MANU test or AUTO test.
Page 43: Creating A Manu Test File Name
OPERATION Creating a MANU Test File Name Each manual test can have a user-defined name Background (default: MANU_NAME) up to 10 characters long. See the available list of characters below. Character List 0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K W X Y Z a b c d e f g h i j k...
Page 44: Setting The Upper And Lower Limits
GPT-10000 Series User Manual Setting the Upper and Lower Limits There is both a LOW and HI judgment setting. Background When the measured value is below the LOW SET setting, the test will be judged as FAIL. When the value exceeds the HI SET setting the test will be judged as FAIL.
Page 45 OPERATION 3. Press the UP / DOWN arrow soft- keys to bring the cursor to the LOW SET setting. LOW SET cursor 4. Use the scroll wheel to set the LOW SET limit. 000µA~41.99mA (GPT-12XXX) ACW (LOW) 000µA~109.9mA (GPT-15XXX) 000µA~10.99mA (12XXX/15012) DCW (LOW) 001µA~20.99mA (GPT-15XXX) 000.1MΩ~49.99GΩ...
Page 46 GPT-10000 Series User Manual The LOW SET setting is limited by the HI SET Note setting. The LOW SET limit cannot be greater than the HI SET limit. When setting the current, be aware that a maximum of 200VA can be set for ACW and 50W for DCW, respectively in terms of GPT-12XXX series.
Page 47: Setting The Test Time
OPERATION Setting the Test Time This setting is used to set the test time for a test. Background The test time determines how long the test voltage or current is applied to the DUT. This test time does not include RAMP UP time or RAMP DOWN time (note: GB and CONT do not have RAMP UP or RAMP DOWN).
Page 48 GPT-10000 Series User Manual 2. Use the scroll wheel to set the TEST TIMER value. OFF, 000.3s~999.9s OFF, 000.3s~999.9s 000.3s~999.9s 000.3s~999.9s CONT 000.3s~999.9s With the ACW test function, when the test current Note is beyond 30mA, the Ramp Up Time + Test Time cannot exceed 240 seconds.
Page 49: Setting The Ramp Up Time
OPERATION Setting the Ramp Up Time The Ramp Up time is the total time taken for Background the tester to reach the test voltage level. The Ramp Up time can be set from 000.1 to 999.9 seconds. The Ramp Up time is only applicable for ACW, DCW and IR tests.
Page 50 GPT-10000 Series User Manual After pressing START to begin a test with set Ramp Time RAMP TIME, a section at the lower right corner Duration Indicator of display shows the counting duration of RAMP TIME, which will run to the set value followed by the test time.
Page 51: Setting The Ramp Down Time
OPERATION Setting the Ramp Down Time The Ramp Down time is the time taken for Background tester to gradually lower down ouput test voltage from the set highest level to zero volt. The Ramp Down time can be set from 000.0 to 999.9 seconds.
Page 52 GPT-10000 Series User Manual 000.0s~999.9s 000.0s~999.9s 000.0s~999.9s After the set TEST TIME is fully completed, a Ramp Down section at the lower right corner of display Duration Indicator shows the counting duration of RAMP DOWN, which will run to the set value by user. See the screenshot shown below.
Page 53: Setting The Test Voltage Or Test Current
OPERATION Setting the Test Voltage or Test Current The test voltage can be set from 0.050kV to Background 5.1kV for ACW, 0.050kV to 6.1kV-12.1kV for DCW and 0.050 to 5kV for IR (50V steps*). For GB tests the test current can be set from 3A to 33A.
Page 54 GPT-10000 Series User Manual At least 0.3 seconds is needed to reach a set voltage of 50V/10mA. At least 0.3 seconds is needed to reach a set voltage of 50V/2mA. Test current for CONT is fixed at 100mA When setting the current, be aware that a maximum...
Page 55: Setting The Test Frequency
OPERATION Setting the Test Frequency A test frequency of 60Hz or 50Hz can be set, Background regardless of the input line voltage. The test frequency setting only applies to ACW and GB tests. The test frequency can only be set for ACW or GB Note tests.
Page 56: Setting A Reference Value
GPT-10000 Series User Manual Setting a Reference Value The REF VALUE acts as an offset. The REF Background VALUE is subtracted from the measured current (ACW, DCW) or measured resistance (IR, GB, CONT). 1. Press the PAGE soft-key to move to...
Page 57: Setting An Initial Voltage
OPERATION 000uA~ 41.99mA (GPT-12XXX) *HI SET + REF value ≤ 42.00mA 000uA~ 109.9mA (GPT-15XXX) *HI SET+REF value ≦ 110.0mA 000uA~ 10.99mA (GPT-12XXX/15012) *HI SET + REF value ≤ 11.00mA 000uA~ 20.99mA (GPT-15XXX) *HI SET+REF value ≦ 21.00mA 000.0MΩ~50.00GΩ 000.0mΩ~650.0mΩ *ISET x (HI SET + REF value) is no greater than 7.2V 00.00Ω~80.00Ω...
Page 58 GPT-10000 Series User Manual It is easy to set a preferred percentage of the test voltage in the INIT VOLTAGE setting and the starting test voltage will commence from the value corresponding to the set percentage relative to the target test voltage.
Page 59: Setting The Wait Time
OPERATION Setting the Wait Time The Wait Time refers to the pending time Background before FAIL judgment appears. By default, FAIL judgment appears when test has reached 0.3 second at the earliest manner. However, when user sets 1.0 second for Wait Time on the tester with 0.5 second of Ramp Up time and 1.0 second of Test Time, the FAIL judgment will be shown when Test Time has reached 0.5 second.
Page 60 GPT-10000 Series User Manual 3. Use the scroll wheel to set the WAIT TIME value. 000.0s~999.9s 000.0s~999.9s 000.0s~999.9s Wait Time While the WAIT TIME is set, the indicator of WAIT Indicator TIME will be shown on the display in the set duration during a test progress for clear identification for user.
Page 61: Setting The Arc Function
OPERATION Setting the ARC Function ARC detection, otherwise known as flashover Background detection, detects fast voltage or current transients that are not normally detected. Arcing is usually an indicator of poor withstanding insulation, electrode gaps or other insulating problems that cause temporary spikes in current or voltage during ACW and DCW testing.
Page 62 GPT-10000 Series User Manual 3. If the ARC MODE was set to either ON & CONT, or ON & STOP, the ARC current level can be edited. Press the DOWN arrow soft-key to bring the cursor to the ARC SET setting field.
Page 63 OPERATION 6. Press the UP / DOWN arrow soft- keys to bring the cursor to the ARC SPEED setting field. ARC SPEED cursor 7. Use the scroll wheel to select the ARC SPEED modes. FAST Threshold for the ARC SPEED narrowest width of detected arc, which is the most...
Page 64: Setting Max Hold
GPT-10000 Series User Manual Setting MAX HOLD The MAX HOLD setting will hold the Background maximum current measured in the ACW and DCW tests or the maximum resistance measured in the IR and GB tests. For instance, when running an IR test with 120...
Page 65: Setting Pass Hold
OPERATION 3. Use the scroll wheel to set MAX HOLD. OFF, ON MAX HOLD Setting PASS HOLD The PASS HOLD setting refers to the holding Background duration after PASS judgment is shown on the display. When the PASS HOLD setting is set, a PASS judgment is held until the set duration is fully reached.
Page 66: Setting Ir Mode
GPT-10000 Series User Manual PASS HOLD cursor 3. Use the scroll wheel to set PASS HOLD duration. 000.0s ~ 999.9s, ON PASS HOLD  The STOP key can be pressed at any time in Note the set duration of PASS HOLD to promptly halt the set PASS HOLD duration.
Page 67 OPERATION second of test time at the earliest manner, regardless of the set test time. The TIMER mode will run a test in a full course completely in accordance with the set test time, whether the final judgment is PASS or FAIL. If the DUT is under the situation of abnormal Note measurement, e.g., short circuit, the FAIL...
Page 68: Setting Gnd Offset
GPT-10000 Series User Manual Setting GND OFFSET The GND OFFSET is used to determine the Background offset value of the tester. When a GND OFFSET is performed, the offest value is automatically stored in memory. GND OFFSET setting is only applicable to IR test.
Page 69: Setting Gb Contact
OPERATION Setting GB Contact Basically, GB test has no ramp up time and thus Background starts from the set test time by user directly. However, due to some cases where a buffer time before test time is in fact required for GB test, e.g., in conveyor where DUTs are tested for GB by batches and certain buffer duration needed for test leads or jigs connecting with...
Page 70 GPT-10000 Series User Manual GB CONTACT After every parameter including GB CONTACT is Duration well set, press START to begin the GB test. A Indicator section at the lower right corner of display shows the counting duration of GB CONTACT, which will run to the set value followed by the test time.
Page 71: Zero Check For The Test Leads
OPERATION Zero Check for the Test Leads The Zeroing function is used to determine the Background resistance of the test leads for GB and CONT tests. When a ZERO CHECK is performed, the reference is automatically set to the measured resistance of the test leads.
Page 72 GPT-10000 Series User Manual ZERO CHECK cursor ZERO CHECK indicator 4. Press the START button to perform the zero check. The resistance of the test leads, after the ZERO CHECK has finished, will be added into the REF VALUE field as the display shown below.
Page 73 OPERATION FAIL – GBI LOW If SOURCE H/L terminals are open or poorly connected, the FAIL – GBI LOW status will appear on the screen. Please re-check the connection of SOURCE H/L terminals again. FAIL – GBI LOW status REF VALUE = 0 Press STOP button to exit and the resistance of test leads were not properly added into the REF VALUE,...
Page 74: Setting The Grounding Mode
GPT-10000 Series User Manual Setting the Grounding Mode When GROUND MODE is set to ON, the GPT- Background 10000 grounds the return terminal to the ground. This mode is best for DUTs that are grounded to an earth ground by their chassis, fixtures or operation environment.
Page 75 OPERATION ACW/DCW, GROUND MODE ON, DUT grounded ACW/DCW, GROUND MODE ON, DUT floating ACW/DCW, GROUND MODE OFF, DUT floating If the current value, which results from comparison Note between I1 and I2 current, is above 3mA, once user unexpectedly touches the DUT, the GFCI, Ground Fault Circuit Interrupter, function activates and output will be stopped immediately so that protection mechanism will be well triggered at once.
Page 76 GPT-10000 Series User Manual IR, GROUND MODE ON, DUT grounded IR, GROUND MODE ON, DUT floating IR, GROUND MODE OFF, DUT floating...
Page 77 OPERATION GB, GROUND MODE ON, DUT grounded GB, GROUND MODE ON, DUT floating GB, GROUND MODE OFF, DUT floating...
Page 78 GPT-10000 Series User Manual Cont., GROUND MODE ON, DUT grounded Cont., GROUND MODE ON, DUT floating In terms of Continuity test, it is compulsory to Note ground the DUT and thus GROUND MODE is ON. When GROUND MODE is set to OFF, the DUT,...
Page 79 OPERATION 1. Press the PAGE soft-key to move to Steps the 2/3 page where GROUND MODE setting appears for ACW and DCW. As for IR and GB, the GROUND MODE setting shows in the 1/2 page. 2. Press the UP / DOWN arrow soft- keys to bring the cursor to the GROUND MODE setting.
Page 80 GPT-10000 Series User Manual Under the IR test mode, when GROUND MODE is Note ON but test time is se t < 0.5s, the error message “TEST TIMR<0.5s” will be shown, by which user is not able to start the IR test mode unless the test time is reset to >...
Page 81: Setting Contact Check - Gpt-12Xxx/15Xxx
OPERATION Setting Contact Check – GPT-12XXX/15XXX The CONTACT CHK function is used to Background determine if open circuit or short circuit occurs between the test leads and DUT under the ACW, DCW and IR tests. Before activating this function, it is first required to define a reference value along with relevant thresholds, for which refer to page 177.
Page 82 GPT-10000 Series User Manual 3. After pressing the START button, the GPT-10000 unit will perform the CONTACT CHK before running a MANU test. If the measured current is lower than the reference value by user-defined percentage, the “OPEN” status appears on the screen. While the...
Page 83: Setting Contact Check - Gpt-15012
OPERATION Setting Contact Check – GPT-15012 The CONTACT CHK function is used to Background determine if open circuit occurs between the test leads and GPT-15012 under the DCW test. 1. Press the PAGE soft-key to move to Step the 3/3 page where CONTACT CHK setting appears for ACW, DCW and IR tests.
Page 84 GPT-10000 Series User Manual LOW LIMIT Setting Low Limit settings 10% ~ 90% 4. Press the UP/DOWN arrow soft- keys to move the cursor to the Learning setting followed by pressing the START button to obtain the current reference value.
Page 85 OPERATION OPEN Status OPEN Status detected  Changes in CONTACT CHK setting are saved Note instantly.  Prior to RUN the Learning process, be sure to well set up test leads connection between the GPT-15012 unit and the DUT.  When reference value, for example, is defined as 40uA, and Low limits is set 40%, the OPEN status will be triggered when measured value is...
Page 86: Setting Acw & Dcw Mode Filter
GPT-10000 Series User Manual Setting ACW & DCW Mode Filter Generally, the filter function is available for Background ACW, DCW and IR tests but the core mechanism varies by different test modes. In terms of ACW/DCW test, it is suggested to enable Filter On for certain applications.
Page 87 OPERATION FILTER Setting ON 4. Press the START button to perform ACW/DCW mode test with the filter setting ON.
Page 88: Setting Ir Mode Filter
GPT-10000 Series User Manual Setting IR Mode Filter The filter function of IR test is used to average Background tests when unstable resistance issue occurs under capacitive load test. Filter setting is Not available for GB test mode. Note 1. Press the PAGE soft-key to move to...
Page 89 OPERATION 4. Press the START button to perform the test with IR mode filter. The corresponding waveforms of each option are illustrated below. LEVEL 1 LEVEL 2...
Page 90: Screenshot Hardcopy
GPT-10000 Series User Manual Screenshot Hardcopy When connecting a USB disk to the USB host Background port on the front panel, it is available to execute hardcopy function, which allows user to capture screenshots from unit. The saved filename to USB disk will be in .bmp format with serial number from 01 ~ 99 (LCDGET01.bmp ~ LCDGET99.bmp) within...
Page 91 OPERATION Upper Limit of When the filename upper limit LCDGET99.bmp is Filename reached while doing hardcopy action, an error message will be shown on the display. No USB Disk When no USB disk is connected with unit while doing hardcopy action, an error message will be shown on the display as follows.
Page 92: Running A Manu Test
GPT-10000 Series User Manual Running a MANU Test A test can be run when the tester is in READY Background status. The tester cannot start to run a test under the Note following conditions: A protection setting has been tripped; when a ...
Page 93 OPERATION READY status 2. Press the START button when the tester is in the READY status. The manual test starts accordingly and the tester goes into the TEST status. TEST status 3. The test will start by showing the ongoing ramp up time followed by the ongoing test time and the ongoing ramp down time.
Page 94 GPT-10000 Series User Manual RAMP UP TIME Ongoing RAMP UP TIME TEST TIME Ongoing TEST TIME RAMP DOWN TIME Ongoing RAMP DOWN TIME RAMP DOWN time only appears when user Note has activated it. See page 51 for details.
Page 95 OPERATION Measured Current ACW Example Test Voltage DCW Example Test Voltage Measured Current IR Example Measured Resistance Test Voltage...
Page 96 GPT-10000 Series User Manual Measured Resistance GB Example Test Current CONT Example Test Current Measured Resistance 1. To stop the test at any time when it Stop the Test is running, press the STOP button. The test will stop immediately.
Page 97: Pass / Fail Manu Test
OPERATION PASS / FAIL MANU Test If the test is allowed to run to completion (the Background test is not stopped or a protection setting is not tripped) then the tester will judge the test as either PASS or FAIL. The test will be judged PASS when: Note The HI SET and LO SET limits have not been...
Page 98 GPT-10000 Series User Manual 2. The tester will immediately restore back to the READY status after PASS judgment. However, if the PASS HOLD is activated, PASS judgment will persist until the set duration of PASS HOLD is fully met. Refer to page 65 for details.
Page 99 OPERATION IR PASS Timing START TEST PASS Output V time RAMP TEST TIME RAMP DOWN & DISCHARGE GB PASS Timing START TEST PASS Output I time Contact RAMP Test Time 0.1s 0.1s Time CONT PASS Timing START TEST PASS Output I time Test Time 1.
Page 100 GPT-10000 Series User Manual FAIL Judgment 2. The FAIL judgment will be held on the display until the STOP button is pressed. Pressing the STOP button will return the tester back to the READY status. FAIL Timing The timing diagrams below show the ACW, DCW,...
Page 101 OPERATION DCW FAIL Timing START TEST FAIL Output V time RAMP TEST TIME DISCHARGE IR FAIL Timing START TEST FAIL Output V time RAMP TEST TIME DISCHARGE GB FAIL Timing START TEST FAIL Output I time Contact RAMP Test Time 0.1s 0.1s Time CONT FAIL...
Page 102: Special Manu Test Mode (000)
GPT-10000 Series User Manual Special MANU Test Mode (000) When MANU number 000 is selected, the Special Test Mode Overview special test mode is activated. Under the special test mode, the voltage can be changed during a test in real time (ACW, DCW only). The test function can also be changed when in READY status, unlike under normal operation.
Page 103 OPERATION 3. Set all the necessary parameters for Pages 43 ~ a test and save. Note: A different test setup can be saved for each test function (ACW, DCW, IR, GB and CONT). Below is an example of ACW function in special manual mode.
Page 104: Sweep Function
GPT-10000 Series User Manual Sweep Function The GPT-10000 Series has access to the sweep Sweep Function Overview mode function, which creates a graph of one of the ACW, DCW, IR, GB or CONT tests in either Manual test or the special MANU mode. The graph will plot the output voltage, current or resistance versus time.
Page 105 OPERATION 1. When a test has finished, press Steps of View the corresponding button, e.g., Sweep Graph DCW button for DCW test, to view the result of the sweep in an intuitive graph. Graph Test Items: TEST GREEN BLUE Measured voltage Measured current Measured voltage Measured current Measured voltage Measured resistance Measured current Measured resistance...
Page 106 GPT-10000 Series User Manual 2. Use the scroll wheel to move the cursor on the time axis (red highlight in x-axis). The measured values on the green and blue lines at that particular point in time are shown within the table below (orange highlight).
Page 107: Automatic Tests
OPERATION Automatic Tests This section describes how to create, edit and run automatic tests. Automatic tests allow you to link up to 10 different MANU tests and run them sequentially within a single AUTO test. Each stored MANU test is used as a test step when creating an AUTO test. In addition, up to 5 groups of AUTO test can be interconnected together to present an ever-advanced AUTO tests.
Page 108: Choose/Recall An Auto Test
GPT-10000 Series User Manual Choose/Recall an AUTO Test The tester must first be put into AUTO mode to Background create or run automatic tests. Up to 100 automatic tests can be saved or recalled. 1. If the tester is in MANU or...
Page 109: Creating An Auto Test File Name
OPERATION Creating an AUTO Test File Name Each automatic test can have a user-defined test Background file name (Default: AUTO_NAME) up to 10 characters long. See the character list below for the allowed characters. Character List 0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K W X Y Z a b c d e f g h i j k...
Page 110: Adding A Step To The Auto Test
GPT-10000 Series User Manual 4. The AUTO test file name is set when the current AUTO test is saved or when the cursor is moved to another setting. Adding a Step to the AUTO Test Up to 10 MANU tests (steps) can be added to Background an automatic (AUTO) test.
Page 111 OPERATION 3. Further press the DOWN arrow key followed by using the scroll wheel to choose another MANU STEP number to add to the automatic test. MANU STEP number cursor (2nd) 4. Repeat the previous steps for any other MANU tests that you wish to add to the automatic test.
Page 112: Continuous Auto Tests
GPT-10000 Series User Manual Continuous AUTO Tests As mentioned previously, up to 10 MANU Background steps can be grouped to form an AUTO test and user can designate each step from MANU step number 1 to 100 for an AUTO test. However, it is available to interconnect different AUTO tests together to present a series of AUTO tests.
Page 113 OPERATION 3. Repeat the step 1 to form another group of AUTO-002 test as the following display shown. AUTO-002 comprising 3 MANU steps 4. After the previous steps, return to the AUTO-001 test page followed by pressing START button for automatic test.
Page 114: Auto Test Page Editing
GPT-10000 Series User Manual AUTO Test Page Editing The AUTO test page contains each added Background MANU step (up to 10 steps) in order on the list along with the corresponding settings including Test Mode, Test V/I Setting, HI & LOW Settings as well as Step Hold action, respectively.
Page 115 OPERATION The gray-out MANU STEP When the AUTO test is run next time, the Note grayed-out steps will be simply skipped. 1. Press the UP / DOWN arrow soft- Delete a MANU keys to bring the cursor to the target STEP MANU STEP on list.
Page 116 GPT-10000 Series User Manual The designated MENU STEP is removed 1. Press the UP / DOWN arrow soft- Step Hold keys to bring the cursor to the target Editing MANU STEP on list. Target MANU STEP cursor 2. Press the STEP HOLD soft-key to bring the cursor to the STEP HOLD setting field.
Page 117 OPERATION STEP HOLD cursor 3. Use the scroll wheel to choose the options from STEP HOLD setting as listed below. P.H/F.H Step which is judged PASS will be held until START button pressed by user for next step. Step which is judged FAIL will be held until START button pressed by user for next step.
Page 118 GPT-10000 Series User Manual P.C/F.S The AUTO test will automatically continue when the step is judged PASS. The AUTO test will be immediately stopped when step is judged FAIL. P.C/F.C The AUTO test will automatically continue when the step is judged PASS.
Page 119 OPERATION It indicates that MANU steps set with the options PREVOLTAGE P.C/F.C P.C/F.S ) within an AUTO test will be executed in a continuous manner without voltage zeroing. See the conditions below: The PREVOLTAGE of P.C/F.C and P.C/F.S options apply to ACW, DCW and IR test modes only.
Page 120: Running An Automatic Test
GPT-10000 Series User Manual Running an Automatic Test An automatic test can be run when the tester is Background in READY status. The tester cannot start to run an AUTO test Note under the following conditions: Any protection modes have been tripped.
Page 121 OPERATION 2. Press the START button when the tester is in the READY status. The AUTO test starts automatically and the display changes to each MANU TEST in sequence. 3. Each test will start by showing the ongoing ramp up time followed by the ongoing test time and the ongoing ramp down time.
Page 122 GPT-10000 Series User Manual 1. If P.H (Pass Hold) or F.H (Fail Hold) is set for a PASS & FAIL MANU STEP, then the tester will “hold” the HOLD testing when a PASS or FAIL judgment for that particular MANU STEP occurs. See page 117 for more details.
Page 123 OPERATION When in HOLD status, only the START and STOP Note buttons can be pressed, all other keys are disabled. 1. If F.S (Fail Stop) is set for a MANU STEP, then FAIL STOP the tester will “Stop” the whole AUTO test immediately when a FAIL judgment for that particular MANU STEP occurs.
Page 124 GPT-10000 Series User Manual Return to Restore to READY status READY status When in FAIL status, only the STOP button can be Note pressed, all other keys are disabled. 1. To stop the AUTO test at any time Stop a...
Page 125 OPERATION AUTO test stops The exact stopped MANU STEP 2. To put the tester back into READY status, press the STOP button again. Restore to READY status 3. Or press the START button to restart the AUTO TEST again directly. When in STOP status, only the START and STOP Note buttons can be pressed, all other keys are disabled.
Page 126: Automatic Test Results
GPT-10000 Series User Manual Automatic Test Results If all the test steps are allowed to run to Background completion (the AUTO test is not stopped or a protection setting is not tripped) then the tester will judge each step as either PASS or FAIL.
Page 127 OPERATION Each MANU STEP must be passed PASS Judgment to present a PASS judgment on an AUTO TEST. (Excluding skipped MANU STEPs in gray color). When all the tests have been judged as PASS, the PASS indicator will be lit green and the buzzer will sound accordingly.
Page 128 GPT-10000 Series User Manual STOP Result Once a MANU STEP is stopped, the AUTO TEST will be presented STOP in its result. In other words, if a MANU STEP is stopped, the entire AUTO TEST is in STOP result, neither PASS nor FAIL judgment.
Page 129 OPERATION 1. When an AUTO TEST is finished, the detailed Steps of test results along with values of each MANU Viewing Results STEP will be presented within the resultant table. The Read Data1 indicates the actual test V/I. The Read Data2 refers to the measured I/R.
Page 130 GPT-10000 Series User Manual 1. The PASS/FAIL/STOP results will be held on Return to the screen until the STOP button is pressed. Ready Status 2. To put the tester back into READY status, simply press the STOP button (twice for a FAIL result).
Page 131 OPERATION Test Result of Page 2/2 Multiple Pages indicator - 2/2 2. The test results in multiple pages of continuous AUTO TEST are almost identical with that of single AUTO TEST. Refer to page 126 to 129 for details on checking test results. PASS Timing Diagram START...
Page 132: System Settings
GPT-10000 Series User Manual System Settings The System settings are system-wide settings that apply to both MANU tests and AUTO tests. The System menu includes the following settings: Display Set settings → from page 133.  Buzzer Settings → from page135.
Page 133 OPERATION Display Set Setting The Display Set page includes both brightness Description level and language settings. 1. Press the SYSTEM button on the Steps front panel when the tester is under READY status in either MANU or AUTO test. 2. The SYSTEM page will be shown where DISPLAY SET is on top of the left-side list.
Page 134 GPT-10000 Series User Manual 4. Press the UP/DOWN arrow soft- keys to move the cursor to the Language setting followed by using the scroll wheel to set the options of Language setting. English Language options 繁體中文 (Traditional Chinese) 简体中文 (Simplified Chinese) 5.
Page 135 OPERATION Buzzer Settings The Buzzer settings allow you to set the volume Description of buzzer sound for PASS/FAIL judgments. Also, it is available to set Key Sound for buttons being pressed. 1. Press the SYSTEM button on the Steps front panel when the tester is under READY status in either MANU or AUTO test.
Page 136 GPT-10000 Series User Manual 1 bar (low) ~ 3 bars (high) Buzzer Volume 4. Press the UP/DOWN arrow soft- keys to move the cursor to the Key Sound setting followed by using the scroll wheel to set the Key Sound setting.
Page 137 OPERATION Interface Settings The interface settings allows user to choose the Description remote interface configuration. USB, RS232, LAN (optional) and GPIB (optional) can be selected. 1. Press the SYSTEM button on the Steps front panel when the tester is under READY status in either MANU or AUTO test.
Page 138 GPT-10000 Series User Manual 4. When RS-232 is selected, press the UP/DOWN arrow soft-keys to move the cursor to the Baud Rate setting followed by using the scroll wheel to set the Baud Rate setting. Baud Rate Setting 9600, 19200, 38400,...
Page 139 OPERATION 00~31 Address Setting for GPIB 7. When LAN is selected, press the UP/DOWN arrow soft-keys to move the cursor to the DHCP setting, which assigns IP address related settings automatically, followed by using the scroll wheel to turn on or off the setting. ON, OFF DHCP Setting for LAN It is required to update firmware up to version 1.06...
Page 140 GPT-10000 Series User Manual 00000 - 65000 Socket Port Setting for LAN When OFF is selected for DHCP setting, press the UP/DOWN arrow soft-keys to move the cursor to the IP Address, Subnet Mask and Gatway settings individually followed by using the scroll wheel and right, left arrow soft-keys to manually define each setting.
Page 141 OPERATION When pressing the SACN soft-key, the unit will scan the LAN card setting thoroughly. In fact, the unit automatically scans at once every time when Interface is changed to LAN setting. If LAN card with network setting is scanned properly, the “LAN LINK”...
Page 142 GPT-10000 Series User Manual LINK icon in MANU LAN LINK icon LAN LINK icon LINK icon in AUTO When LAN setting is Not scanned properly and Interface is set as LAN, the “LAN OPEN” icon shows as the following figures.
Page 143 OPERATION Ensure the baud rate settings or GPIB address Note matches the host machine. The changes in INTERFACE setting are saved Note instantly.
Page 144 GPT-10000 Series User Manual Control Settings The Control settings include 7 options: Control Description By, Double Action, Key Lock, Interlock, Start Click For 1 Second, Power GND Check and Barcode Function Setting.  Control By is used to determine how a test is started.
Page 145 Barcode Function Setting is a feature which facilitates fast yet convenient MANU and AUTO tests for, in particular, assembly line application. It enables GPT-10000 series, with additional barcode scanner plugged in, to scan barcodes and edit into a list for prompt utilization in diversified tests.
Page 146 GPT-10000 Series User Manual Control By Front Panel settings Remote SIGNAL IO When SIGNAL IO is selected, press the PIN SET soft-key to enter the specific setting page. The setting page is divided into 2 sections; the upper is for output...
Page 147 OPERATION SIGNAL IO Output PINs (green zone) SIGNAL IO Selection for AUTO Test (blue zone) Press the UP/DOWN arrow soft- keys to move the cursor to target PINs (1~5) followed by using the scroll wheel to select the following 6 options for each pin. PINs READY, TEST, PASS, FAIL, Settings...
Page 148 GPT-10000 Series User Manual 1 signal It means one signal output of TEST for each PIN will be delivered to each step step with continuous counters within each interval between each step, which is particularly practical for certain applications. Further press the UP/DOWN arrow soft-keys to move the cursor to the PASS &...
Page 149 OPERATION Press the UP/DOWN arrow soft- keys to move the cursor to the Double Action setting followed by using the scroll wheel to set the Double Action setting. Double Action settings ON, OFF Press the UP/DOWN arrow soft- keys to move the cursor to the Key Lock setting followed by using the scroll wheel to set the Key Lock setting.
Page 150 GPT-10000 Series User Manual 4. Press the UP/DOWN arrow soft- keys to move the cursor to the Interlock setting followed by using the scroll wheel to set the Interlock setting. Interlock settings ON, OFF 5. Press the UP/DOWN arrow soft-...
Page 151 OPERATION Power GND Check settings ON, OFF When Power GND Check setting is ON but the instrument doesn’t connect to earth ground, the prompt message will appear in either MANU or AUTO mode as the figures below shown. MANU MODE POWER GND FAIL Message AUTO GND FAIL Message...
Page 152 GPT-10000 Series User Manual The barcode setting page is composed of a table with several columns and rows. First use the scroll wheel to choose PAGE number. 001~010 PAGE # BAR PAGE number cursor BAR setting indicator Press the DOWN arrow key to bring the cursor to the PAGE table.
Page 153 OPERATION  Use an USB virtual com port-compatible Note barcode scanner, which plugs into the USB Host Port on the front panel of GPT-10000 series, for ideal function result.  The length limit of barcode to be scanned is within 15 characters, which means up to 15 characters is displayed in BARCODE column for each barcode.
Page 154 GPT-10000 Series User Manual Use the LEFT/RIGHT arrow soft- keys to move the cursor to the TEST NUM followed by using the scroll wheel to determine the number of selected test mode. Refer to page 42 & 108 for test number creation.
Page 155 OPERATION 3 scanned barcodes with varied Example of settings in PAGE-001 table multiple scanned barcodes with complete settings If you want to delete a scanned Delete scanned barcode, use the UP/DOWN arrow barcode from list soft-keys to move the cursor to the row of target barcode followed by using the LEFT arrow soft-key to move the cursor to the BARCODE...
Page 156 GPT-10000 Series User Manual Barcode Repeat message When registered barcodes number reach the Barcode data full maximum 100, a warning message “DATA FULL” appears on the top bar with a warning sound composed of a short beep followed by a long beep indicating no available space for new barcode to be imported.
Page 157 OPERATION Press the EXIT soft-key to exit from the CONTROL page. The changes in CONTROL setting are saved Note instantly. The Double Action setting is ignored when the Note GPT-10000 is being controlled remotely via the USB, RS232 or GPIB interface. A beeper sounds twice when an unregistered Note barcode is scanned.
Page 158 GPT-10000 Series User Manual Time Setting The date and time for tester system can be Description edited under this section. The button cell battery used for system date & time has the lifecycle of approximate 2 years in general. Hence, it is suggested to replace with new battery of the type of CR-2032 every 2 years.
Page 159 OPERATION Year setting 2000 ~ 2099 Month setting 01 ~ 12 Date setting 01 ~ 31 Hours setting 00 ~ 23 Minutes setting 00 ~ 59 Seconds setting 00 ~ 59 4. Press the UP/DOWN arrow soft- keys to move the cursor to the Cal Alert setting followed by using the scroll wheel to turn On or Off the Cal Alert setting, which indicates if...
Page 160 GPT-10000 Series User Manual When Cal Alert is turned on and the system time is beyond either Cal Date or Cal Due setting, the display will be shown as follows. MANU Display AUTO Display 5. Press the UP/DOWN arrow soft-...
Page 161 OPERATION 6. Press the UP/DOWN arrow soft- keys to move the cursor to the Cal Due setting followed by using the scroll wheel to set the Cal Due setting, which indicates next due date for calibration. Cal Due 2000 ~ 2099 01 ~ 12 01 ~ 31 7.
Page 162 GPT-10000 Series User Manual 8. Press the UP/DOWN arrow soft- keys to move the cursor to the Cal Protection setting followed by using the scroll wheel to set the Cal Protection setting, which indicates if the output protection setting is turned on of off when due date of calibration expires.
Page 163 OPERATION Data Initialize Settings The settings of AUTO test, MANU test and Description SYSTEM saved by user can be initialized within this section. 1. Press the SYSTEM button on the Steps front panel when the tester is under READY status in either MANU or AUTO test.
Page 164 GPT-10000 Series User Manual Right arrow soft-key The status bar of Manu Data Init consists of 3 bars, Note which indicate the initializing action will not be implemented until 3 bars are fully achieved. After the initializing, the “OK” message appears.
Page 165 OPERATION 5. Press the UP/DOWN arrow soft- keys to move the cursor to the System Data Init setting followed by pressing the right arrow soft-key for consecutive 3 times to initialize the System Data settings. Right arrow soft-key 6. Press the EXIT soft-key to exit from the DATA INIT page.
Page 166 GPT-10000 Series User Manual Information Section The Information section here discloses some Description basic information including model name, firmware version and the available functions. 1. Press the SYSTEM button on the Steps front panel when the tester is under READY status in either MANU or AUTO test.
Page 167 OPERATION Statistics Settings This section allows user to have a Description comprehensive overview of not only total test counts including PASS and FAIL amounts, individually, but also the respective counts of each test mode. More than that, user is able to view those data from an intuitive histogram.
Page 168 GPT-10000 Series User Manual 3. Press the ENTER soft-key to enter the statistics table. It is available to press the DATA INIT soft-key to initialize the accumulated statistics. DATA INIT soft-key After pressing the DATA INIT soft-key, all the statistics...
Page 169 OPERATION 5. The distributions of PASS and FAIL statistics are well illustrated in the histogram with table display in which the upper side reads the individual PASS and FAIL amounts for test function. The mid and lower side depicts FAIL amounts in the far-right red strip with number below, whilst the PASS amounts are described in strips of different colors with numbers below...
Page 170 GPT-10000 Series User Manual 2. The SYSTEM page will be shown. Press the UP/DOWN arrow soft- keys to move the cursor to the USB DISK setting. 3. Press the ENTER soft-key to enter the USB Disk Auto Data Save setting followed by using the scroll...
Page 171 OPERATION Use the scroll wheel to scroll through the available characters. Press the LEFT / RIGHT arrow soft- keys to move the cursor to the next character and finish the naming. 5. Press the UP/DOWN arrow soft- keys to move the cursor to the Internal Memory SAVE setting followed by using the scroll wheel to turn on or off the setting, which...
Page 172 GPT-10000 Series User Manual Only when “Internal Memory SAVE” is enabled can Note test data be stored into the internal memory amount. Press the SAVE USB soft-key to save test data into the inserted USB disk. The saved data will be named xxxxxxxx.txt within the directory...
Page 173 OPERATION If there is no test data available in internal memory (Amount: 00000), even though USB disk is inserted, prompt message “NO TEST DATA” pops up. Press the CLEAR DATA soft-key to clear the internal memory amount. NO TEST DATA Warning If there is no test data available (Amount: 00000), prompt message “NO TEST DATA”...
Page 174 GPT-10000 Series User Manual DATA Data Full Message FULL AUTO Test 7. Press the UP/DOWN arrow soft- keys to move the cursor to the Setting Data Save setting, which allows user to save individual data including MANUDATA, AUTODATA and SYSDATA or All data into the USB disk.
Page 175 OPERATION NO USB DISK Warning If USB disk is Not properly inserted into GPT-10000 series, prompt message “NO USB DISK” pops up. 8. Press the UP/DOWN arrow soft- keys to move the cursor to the Setting Data Load setting, which allows user to load individual data including MANUDATA, AUTODAT A and SYSDATA or All...
Page 176 GPT-10000 Series User Manual If there is no desired data in the USB disk, the prompt message “OPEN XXXXDATA.TXT ERROR” pops up. 9. Press the EXIT soft-key to exit from the USB DISK page.  Note The changes in USB DISK setting are saved instantly.
Page 177 OPERATION Contact Check Settings The CONTACT CHK function is used to Background determine if open circuit or short circuit occurs between the test leads and GPT-12XXX/GPT- 15XXX under the ACW, DCW and IR tests, and between the test leads and GPT-15012 under the DCW test.
Page 178 GPT-10000 Series User Manual Hi Limit settings OFF, 110% ~ 500% 4. Press the UP/DOWN arrow soft- keys to move the cursor to the Low Limit setting followed by using scroll wheel to determine an exact scale of Low Limit threshold that triggers the OPEN status warning.
Page 179 OPERATION  Prior to RUN the Learning process, be sure to Note well set up test leads connection between the GPT-10000 unit and the DUT.  When reference value, for example, is defined as 40uA, and Hi and Low limits are set 400% and 40%, respectively, the OPEN status will be triggered when measured value is less than 16uA.
Page 180: External Control
GPT-10000 Series User Manual XTERNAL CONTROL The External Control chapter covers the REMOTE terminal and the SIGNAL I/O port. External Control Overview ..........181 Remote Terminal Overview ........ 181 Remote Controller Operation ......182 SIGNAL I/O Overview ........183 Using the SIGNAL I/O to Start/Stop Tests ..185...
Page 181: External Control Overview
EXTERNAL CONTROL External Control Overview The External Control section describes the front panel REMOTE terminal connection and the rear panel SIGNAL I/O port. Remote Terminal Overview The REMOTE terminal connector is a standard Overview 5-pin DIN terminal suitable for a remote controller.
Page 182: Remote Controller Operation
GPT-10000 Series User Manual Remote Controller Operation The GPT-10000 accepts external remote Description controllers with a START and STOP button. To use the REMOTE terminal, the GPT-10000 must first be configured to accept a remote controller. Operating a remote controller is the same as operating the START and STOP buttons on the front panel.
Page 183: Signal I/O Overview
EXTERNAL CONTROL SIGNAL I/O Overview The SIGNAL I/O port can be used to remotely Overview start/stop tests and monitor the test status of the instrument. The SIGNAL I/O port is also used for the interlock function. Refer to page 186 for details. The SIGNAL I/O port basically uses a DB-15 pin female connector.
Page 184 GPT-10000 Series User Manual Input Connection PIN 5 INPUT_COM PIN 3 INPUT_START PIN 4 INPUT_STOP Output PIN 7 OUTPUT 1 Connection PIN 8 OUTPUT 2 PIN 9 OUTPUT 3 PIN 10 OUTPUT 4 PIN 11 OUTPUT 5 PIN 15 OUTPUT COM...
Page 185: Using The Signal I/O To Start/Stop Tests
EXTERNAL CONTROL Using the SIGNAL I/O to Start/Stop Tests To use the SIGNAL I/O port the CONTROL Background settings have to be set to SIGNAL IO in the SYSTEM mode. 1. Set the CONTROL option to Panel operation Page 143 SIGNAL IO in the SYSTEM mode.
Page 186: Using The Interlock Key
GPT-10000 Series User Manual Using the Interlock Key When the INTERLOCK function is set to ON, Background tests are only allowed to start when both Interlock pins on the signal I/O port are shorted. Using the Interlock key will short the INTERLOCK1 and INTERLOCK2 pins on the signal I/O port.
Page 187: Remote Control
REMOTE CONTROL EMOTE CONTROL This chapter describes basic configuration of IEEE488.2 based remote control. The remote interface supports USB, RS232 and GPIB. Interface Configuration ..........188 USB Remote Interface ........188 RS232 Remote Interface ........188 LAN Remote Interface ........189 GPIB Remote Interface ........
Page 188: Interface Configuration
GPT-10000 Series User Manual Interface Configuration USB Remote Interface Type A, host PC side Configuration connector Rear panel Type B GPT-10000 side connector CDC (communications device USB Class class) (VCP, Virtual Com Port) 1. Connect the USB cable to the rear Panel operation panel USB B-Type port.
Page 189: Lan Remote Interface
REMOTE CONTROL Stop bit None Flow control 1: No connection Pin Assignment 1 2 3 4 5 2: RxD (Receive Data) 6 7 8 9 3: TxD (Transmit Data) 4: No connection 5: GND 6-9: No connection Tester Connection DB9 Pin Signal Signal DB9Pin...
Page 190: Gpib Remote Interface
GPT-10000 Series User Manual 1. Connect the RJ-45 cable to the Panel operation rear panel LAN port. 2. Set the Interface to LAN from the Page 137 SYSTEM mode. GPIB Remote Interface 0-31 GPIB Address Configuration GPIB 1. Connect the GPIB cable to the Panel operation rear panel GPIB port.
Page 191: Usb/Rs232/Lan/Gpib Remote Control Function Check
REMOTE CONTROL USB/RS232/LAN/GPIB Remote Control Function Check Invoke a terminal application such as Functionality RealTerm. check To check COM port number and other settings, see the Device Manager in PC. For WinXP; Control panel → System → Hardware tab. Run this query command via the terminal after the instrument has been configured for USB, RS-232 or GPIB remote control.
Page 192: Return To Panel Control
GPT-10000 Series User Manual When an incorrect command is sent to the Err Display tester, the Err indicator will be displayed on the screen indicating there is an error in command. Err indicator Return to Panel Control When the instrument is remotely controlled all Background panel keys except the STOP button are disabled.
Page 193: Command Syntax
REMOTE CONTROL Command Syntax Partial compatibility IEEE488.2 Compatible Partial compatibility Standard SCPI, 1999 SCPI commands follow a tree-like structure, Command organized into nodes. Each level of the Structure command tree is a node. Each keyword in an SCPI command represents each node in the command tree.
Page 194 GPT-10000 Series User Manual A query is a simple or Query compound command followed by a question mark (?). A parameter (data) is returned. MANU:ACW:VOLTage? Example Commands and queries have two different Command Forms forms, long and short. The command syntax is...
Page 195 REMOTE CONTROL floating point 4.5e-1, 8.25e+1 <NR3> any of NR1, 2, 3 1, 1.5, 4.5e-1 <NRf> ASCII text TEST_NAME <string> string Carriage Return, Line feed code, Message CR, LF, Terminator Carriage Return + Line feed code CR+LF There is an interval, which is 100ms at least, Note between each command communication.
Page 196: Command List
GPT-10000 Series User Manual Command List System Commands SYSTem:LCD:BRIGhtness ..............200 SYSTem:BUZZer:VOLume ..............201 SYSTem:BUZZer:KEYSound ..............201 SYSTem:TIMe ..................201 SYSTem:STATistics ................202 SYSTem:ANALysis ................202 SYSTem:USBDisk:AUTosave ............... 203 SYSTem:USBDisk:AMOunt ..............203 SYSTem:USBDisk:FILename ..............204 SYSTem:INTernal:SAVe ................ 204 SYSTem:CONTact:HILimit ..............204 SYSTem:CONTact:LOWLimit ..............
Page 197 REMOTE CONTROL MANU:INITial ..................217 MANU:NAME ..................218 MANU:RTIMe ..................218 MANU:EDIT:MODE ................219 MANU:ACW:VOLTage.................219 MANU:ACW:CHISet ................220 MANU:ACW:CLOSet ................221 MANU:ACW:FILTer ................221 MANU:ACW:TTIMe ................222 MANU:ACW:ARCFunction ..............222 MANU:ACW:ARCCurrent ..............223 MANU:ACW:ARCSpeed ..............223 MANU:ACW:FREQuency ..............224 MANU:ACW:WAITtime ...............224 MANU:ACW:RAMPdown ..............225 MANU:ACW:GROundmode..............225 MANU:ACW:MAXHold ...............225 MANU:ACW:PASShold ................226 MANU:ACW:REF ..................227 MANU:ACW:INITvoltage ..............227 MANU:ACW:CONTact .................228 MANU:DCW:VOLTage.................228 MANU:DCW:CHISet ................229...
Page 198 GPT-10000 Series User Manual MANU:IR:VOLTage ................237 MANU:IR:RHISet ................... 237 MANU:IR:RLOSet .................. 238 MANU:IR:TTIMe ................... 238 MANU:IR:WAITtime................239 MANU:IR:RAMPdown ................. 239 MANU:IR:GROundmode ..............239 MANU:IR:MAXHold ................240 MANU:IR:PASShold ................240 MANU:IR:REF ..................241 MANU:IR:MODE ................... 241 MANU:IR:CONTact ................242 MANU:IR:FILTer ................... 242 MANU:IR:GNDoffset ................
Page 199 REMOTE CONTROL AUTO:EDIT:DEL ..................254 AUTO:TEST:RETurn ................254 AUTO:EDIT:SHOW ................255 Sweep Commands SWEEP:DATA:STATus .................256 SWEEP:DATA:SHOW ................256 SWEEP:GRAPh:SHOW .................257 Common Commands *CLS ......................258 *IDN ......................258 *SRE ......................259 Remote Commands *RMToff ....................259 Special Functions INTerlock:PIN ..................260...
Page 200: System:lcd:brightness
GPT-10000 Series User Manual System Commands SYSTem:LCD:BRIGhtness ..............200 SYSTem:BUZZer:VOLume ..............201 SYSTem:BUZZer:KEYSound ..............201 SYSTem:TIMe ..................201 SYSTem:STATistics ................202 SYSTem:ANALysis ................202 SYSTem:USBDisk:AUTosave ............... 203 SYSTem:USBDisk:AMOunt ..............203 SYSTem:USBDisk:FILename ..............204 SYSTem:INTernal:SAVe ................ 204 SYSTem:CONTact:HILimit ..............204 SYSTem:CONTact:LOWLimit .............. 205 SYSTem:CONTact:LEARning ..............
Page 201: System:buzzer:volume
REMOTE CONTROL SYSTem:BUZZer:VOLume Query Sets buzzer volume from 1(low) to 3(high). Description Syntax SYSTem:BUZZer:VOLume <NR1> Query Syntax SYSTem:BUZZer:VOLume 1 (low) ~ 3 (high) Parameter/ <NR1> Return parameter Example SYST:BUZZ:VOLUME 3 Sets the buzzer volume to the highest 3. SYSTem:BUZZer:KEYSound Query Turns the buzzer on or off for key sound.
Page 202: System:statistics
GPT-10000 Series User Manual SYSTem:STATistics Query Queries the latest statistics of PASS and FAIL. Description Query Syntax SYSTem:STATistics? Return parameter <string> Returns the latest statistics of all the function tests with counts of PASS and FAIL judgments respectively. Query Example SYST:STAT? >TOTAL AMOUNT=00071...
Page 203: System:usbdisk:autosave
REMOTE CONTROL SYSTem:USBDisk:AUTosave Query Sets or returns the USB disk auto data save on or off. Description Syntax SYSTem:USBDisk:AUTosave {ON |OFF} Query Syntax SYSTem:USBDisk:AUTosave? Turns the USB disk auto save on. Parameter Turns the USB disk auto save off. USB disk auto save on. Return parameter ON USB disk auto save off.
Page 204: System:usbdisk:filename
GPT-10000 Series User Manual SYSTem:USBDisk:FILename Query Sets or returns the data file name to be saved into Description the inserted USB disk. Note only alphanumeric characters (A-Z, a-z, 0-9) and the “_” underscore character can be used to set the file name.
Page 205: System:contact:lowlimit
REMOTE CONTROL 110% ~ 500% Return parameter <value> The threshold of Hi Limit scale is disabled. Example SYST:CONT:HILIMIT 200% Sets the threshold of Hi Limit scale as 200% to the reference value. SYSTem:CONTact:LOWLimit Query Sets or returns the threshold of Low Limit scale for Description contact check function.
Page 206: System:error
GPT-10000 Series User Manual SYSTem:ERRor Query Returns error code of the previous error. See the Description error code table below for details. Query Syntax SYSTem:ERRor ? Returns an error string that includes Return parameter <string> an error code and an error description.
Page 207: System:control:interlock
REMOTE CONTROL 45,Setting Over 200W 46,CONT Setting Over 8V 47,Auto Step Add Full 48,This Is The Last Step 49,Learning less than 30uA 50,USB DISK BUSY 51,Filter Setting Error 70,Read Buffer Error 71,Send Buffer Error Example SYST:ERR ? >0,No Error Returns “0,No Error” as the error message. SYSTem:CONTrol:INTerlock Query Returns the status of interlock setting.
Page 208: System:cal:date
GPT-10000 Series User Manual SYSTem:CAL:DATe Query Sets or returns the calibration date. Description Syntax SYSTem:CAL:DATe {TYY_MM_DD} Query Syntax SYSTem:CAL:DATe? Year (YY)_Month (MM)_Day (DD) TYY_MM_DD Parameter/ <string> Return parameter Returns the calibration date as a string Example SYST:CAL:DATE T21_06_01 Sets the calibration date as 2021-06-01.
Page 209: System:cal:protection
REMOTE CONTROL Example SYST:ALERT:DATE T21_06_01 Sets the pre-alert date as 2021-06-01. SYSTem:CAL:PROTection Query Sets or returns the calibration output protection for Description calibration due date. Syntax SYSTem:CAL:PROTection {ON |OFF} Query Syntax SYSTem:CAL:PROTection? Turns the calibration protection on. Parameter Turns the calibration protection off. Calibration protection on.
Page 210: Function Commands
GPT-10000 Series User Manual Function Commands FUNCtion:TEST ..................210 MEASure<x> ..................211 MAIN:FUNCtion ..................214 TESTok:RETurn ..................214 FUNCtion:TEST Query Turns the currently selected test (output) on or off. Description When HOLD is displayed on the screen during AUTO tests, use the FUNCtion:TEST command to move on to the next step.
Page 211: Measure
REMOTE CONTROL MEASure<x> Query Returns the test parameters & results of the tester Description in either MANU or AUTO mode. MANU mode: Returns the test parameters & results of a MANU test. AUTO mode: Returns the test parameters & results of the selected step (1-50) of the AUTO test.

Page 212 GPT-10000 Series User Manual Status - HFAIL Applied Function: ACW, DCW, IR, GB, CON Description: Read Data > HI SET Status – LFAIL Applied Function: ACW, DCW, IR, GB, CON Description: Read Data < LOW SET Status - VOVER Applied Function: ACW, DCW, IR, GB, CON Description: ACW, DCW, IR: Read V >...
Page 213 REMOTE CONTROL Status - I LOW Applied Function: GB Description: Read I < I SET 90% Status - ARC Applied Function: ACW, DCW Description: Read T > ARC Set Current Status - GFAIL Applied Function: ACW, DCW, IR Description: GFCI ERROR Status - OPEN Applied Function: ACW, DCW, IR Description:...
Page 214: Main:function
GPT-10000 Series User Manual Example MEAS? (in MANU mode) > CON,FAIL ,100.0mA,99.99 ohm,T=000.1s Returns the test result of the current MANU test. Example MEAS21? (in AUTO mode) > DCW,FAIL ,0.004kV, 000.0 uA ,T=000.3s Returns the step 21 of the current AUTO test result.
Page 215: Manual Commands
REMOTE CONTROL Manual Commands MANU:STEP ...................217 MANU:INITial ..................217 MANU:NAME ..................218 MANU:RTIMe ..................218 MANU:EDIT:MODE ................219 MANU:ACW:VOLTage.................219 MANU:ACW:CHISet ................220 MANU:ACW:CLOSet ................221 MANU:ACW:FILTer ................221 MANU:ACW:TTIMe ................222 MANU:ACW:ARCFunction ..............222 MANU:ACW:ARCCurrent ..............223 MANU:ACW:ARCSpeed ..............223 MANU:ACW:FREQuency ..............224 MANU:ACW:WAITtime ...............224 MANU:ACW:RAMPdown ..............225 MANU:ACW:GROundmode..............225 MANU:ACW:MAXHold ...............225 MANU:ACW:PASShold ................226 MANU:ACW:REF ..................227 MANU:ACW:INITvoltage ..............227 MANU:ACW:CONTact .................228...
Page 216 GPT-10000 Series User Manual MANU:DCW:INITvoltage ..............234 MANU:DCW:CONTact ................. 235 MANU:DCW:FILTer ................235 MANU:DCW:LEARNING ..............236 MANU:DCW:LCURrent ............... 236 MANU:DCW:LOWLimit ..............237 MANU:IR:VOLTage ................237 MANU:IR:RHISet ................... 237 MANU:IR:RLOSet .................. 238 MANU:IR:TTIMe ................... 238 MANU:IR:WAITtime................239 MANU:IR:RAMPdown ................. 239 MANU:IR:GROundmode ..............239 MANU:IR:MAXHold ................
Page 217: Manu:step
REMOTE CONTROL MANU:STEP Query Sets the MANU test number. Description Syntax MANU:STEP <NR1> Query Syntax MANU:STEP? 0~100 Parameter/ <NR1> Return parameter Example MANU:STEP 100 Sets the manual test number to 100. MANU:INITial Query Loads the initial (default) settings for the selected Description MANU test number.
Page 218: Manu:name
GPT-10000 Series User Manual MANU:NAME Query Sets or returns the test name for the selected Description manual test. The test must be in MANU mode before this command can be used. Note only alphanumeric characters (A-Z, a-z, 0-9) and the “_” underscore character can be used to set the MANU test name.
Page 219: Manu:edit:mode
REMOTE CONTROL Example MANU:RTIM 0.5 Sets the ramp time to half a second. MANU:EDIT:MODE Query Sets or returns the mode (ACW, DCW, IR, GB, Description CONT) of the selected manual test. Syntax MANU:EDIT:MODE {ACW|DCW|IR|GB|CONT} Query Syntax MANU:EDIT:MODE? AC Withstand mode Parameter/ Return parameter DC Withstand mode...
Page 220: Manu:acw:chiset
GPT-10000 Series User Manual MANU:ACW:CHISet Query Sets or returns the ACW HI SET current value in Description milliamps. The test must first be in ACW mode before this command can be used. Note: An “Err” message will be shown on display if the Ramp Time + Test Time is >...
Page 221: Manu:acw:closet
REMOTE CONTROL MANU:ACW:CLOSet Query Sets or returns the ACW LOW SET current value Description in milliamps. The LOW SET value must be less than the HI SET value. The test must first be in ACW mode before this command can be used. The LOW SET range must use the HI SET range.
Page 222: Manu:acw:ttime
GPT-10000 Series User Manual It actually turns Off the hardware Cutoff Parameter/ function and instead turns On the Return parameter software judgment function. It remains the hardware Cutoff function On. Example MANU:ACW:FILT ON Turns On the software judgment function. MANU:ACW:TTIMe Query Sets or returns the ACW test time in seconds.
Page 223: Manu:acw:arccurrent
REMOTE CONTROL Syntax MANU:ACW:ARCFunction {OFF|ON_CONT|ON_STOP} Query Syntax MANU:ACW:ARCFunction? ARC function off Parameter/ ARC function ON & CONT Return parameter ON_CONT ARC function ON & STOP ON_STOP Example MANU:ACW:ARCF OFF Sets the ACW ARC function off. MANU:ACW:ARCCurrent Query Sets or returns the ACW ARC current value in mA. Description ARC must be enabled before the ARC current can be set.
Page 224: Manu:acw:frequency
GPT-10000 Series User Manual Example MANU:ACW:ARCS SLOW Sets the ACW ARC speed slow. MANU:ACW:FREQuency Query Sets or returns the ACW test frequency in Hz. The Description test must first be in ACW mode before this command can be used. Syntax...
Page 225: Manu:acw:rampdown
REMOTE CONTROL MANU:ACW:RAMPdown Query Sets or returns the ACW Ramp Down Time in Description seconds. The test must first be in ACW mode before this command can be used. Syntax MANU:ACW:RAMPdown <NR2> Query Syntax MANU:ACW:RAMPdown? 0 ~ 999.9 seconds Parameter/ <NR2>...
Page 226: Manu:acw:passhold
GPT-10000 Series User Manual Example MANU:ACW:MAXH OFF Sets the ACW MAX Hold off. MANU:ACW:PASShold Query Sets or returns the duration of ACW PASS Hold in Description seconds. The test must first be in ACW mode before this command can be used.
Page 227: Manu:acw:ref
REMOTE CONTROL MANU:ACW:REF Query Sets or returns the ACW reference value in uA or Description mA. The test must first be in ACW mode before this command can be used. The ACW reference value shares the identical limit of HI SET value, which is 42mA at the maximum. For instance, when HI SET value is set 10mA, the reference value can therefore be set up to 32mA.
Page 228: Manu:acw:contact
GPT-10000 Series User Manual Example MANU:ACW:INIT 87 Sets the ACW Initial Voltage to 87%. MANU:ACW:CONTact Query Sets or returns the CONTACT CHK function on or off. Description Note: An “Err” message will be shown on display if the learned reference value is less than 30uA. An “LEARNING <...
Page 229: Manu:dcw:chiset
REMOTE CONTROL 0.050 ~ 6.100 (kV), 12.1(kV) for 15012 Parameter/ <NR2> Return parameter Example MANU:DCW:VOLT 6 Sets the DCW voltage to 6 kV. MANU:DCW:CHISet Query Sets or returns the DCW HI SET current value in Description milliamps. The test must first be in DCW mode before this command can be used.
Page 230: Manu:dcw:ttime
GPT-10000 Series User Manual outside the HI SET range are ignored and will not be used. For example: HI SET value: 10.99 LOW SET value: 11.00  error Syntax MANU:DCW:CLOSet<NR2> Query Syntax MANU:DCW:CLOSet? 0.000 ~ 10.99 (mA) [GPT-12XXX/15012] Parameter/ <NR2>...
Page 231: Manu:dcw:arcfunction
REMOTE CONTROL MANU:DCW:ARCFunction Query Sets or returns the DCW ARC function. The test Description must first be in DCW mode before this command can be used. Note that this command is only workable when ARC SET>HI SET. Syntax MANU:DCW:ARCFunction {OFF|ON_CONT|ON_STOP} Query Syntax MANU:DCW:ARCFunction? ARC function off...
Page 232: Manu:dcw:waittime
GPT-10000 Series User Manual Syntax MANU:DCW:ARCSpeed {FAST|NORMAL|SLOW} Query Syntax MANU:DCW:ARCSpeed? ARC speed fast Parameter/ FAST ARC speed normal Return parameter NORMAL ARC speed slow SLOW Example MANU:DCW:ARCS SLOW Sets the DCW ARC speed slow. MANU:DCW:WAITtime Query Sets or returns the DCW wait time in seconds. The...
Page 233: Manu:dcw:groundmode
REMOTE CONTROL MANU:DCW:GROundmode Query Sets or returns the DCW Ground Mode. The test Description must first be in DCW mode before this command can be used. Syntax MANU:DCW:GROundmode {ON|OFF} Query Syntax MANU:DCW:GROundmode? DCW Ground Mode ON Parameter/ DCW Ground Mode OFF Return parameter Example MANU:DCW:GRO OFF...
Page 234: Manu:dcw:ref
GPT-10000 Series User Manual Example MANU:DCW:PASS 999.9 Sets the DCW PASS Hold time to 999.9 seconds. MANU:DCW:REF Query Sets or returns the DCW reference value in uA or Description mA. The test must first be in DCW mode before this command can be used.
Page 235: Manu:dcw:contact
REMOTE CONTROL 0 ~ 99% Parameter/ <NR1> Return parameter Example MANU:DCW:INIT 87 Sets the DCW Initial Voltage to 87%. MANU:DCW:CONTact Query Sets or returns the CONTACT CHK function on or off. Description Note: An “Err” message will be shown on display if the learned reference value is less than 30uA.
Page 236: Manu:dcw:learning
GPT-10000 Series User Manual It actually turns Off the hardware Cutoff Parameter/ function and instead turns On the Return parameter software judgment function. It remains the hardware Cutoff function On. Example MANU:DCW:FILT ON Turns On the software judgment function. MANU:DCW:LEARNING...
Page 237: Manu:dcw:lowlimit
REMOTE CONTROL MANU:DCW:LOWLimit Query Sets or returns the threshold of Low Limit scale for Description contact check function in the specific GPT-15012 unit. Syntax MANU:DCW:LOWLimit {value} Query Syntax MANU:DCW:LOWLimit ? 5% ~ 95% Parameter <value> 5% ~ 95% Return parameter <value> Example MANU:DCW:LOWL 80% Sets the threshold of Low Limit scale as 80% to the...
Page 238: Manu:ir:rloset
GPT-10000 Series User Manual 000.2M ~ 999.9M (Ω) Parameter/ <NR2> 1.000G ~ 9.999G (Ω) Return parameter 10.00G ~ 50.00G (Ω) Sets the HI SET value to OFF. NULL Example MANU:IR:RHIS 10M Sets the IR HI SET resistance to 10 MΩ.
Page 239: Manu:ir:waittime
REMOTE CONTROL MANU:IR:WAITtime Query Sets or returns the IR wait time in seconds. The Description test must first be in IR mode before this command can be used. Syntax MANU:IR:WAITtime <NR2> Query Syntax MANU:IR:WAITtime? 0 ~ 999.9 seconds Parameter/ <NR2> Return parameter Example MANU:IR:WAIT 10.1...
Page 240: Manu:ir:maxhold
GPT-10000 Series User Manual Example MANU:IR:GRO OFF Sets the IR Ground Mode off. MANU:IR:MAXHold Query Sets or returns the IR MAX Hold. The test must Description first be in IR mode before this command can be used. Syntax MANU:IR:MAXHold {ON|OFF}...
Page 241: Manu:ir:ref
REMOTE CONTROL MANU:IR:REF Query Sets or returns the IR reference value in MΩ or GΩ. Description The test must first be in IR mode before this command can be used. Syntax MANU:IR:REF <NR2> Query Syntax MANU:IR:REF? 000.0M ~ 999.9M (Ω) Parameter/ <NR2>...
Page 242: Manu:ir:contact
GPT-10000 Series User Manual MANU:IR:CONTact Query Sets or returns the CONTACT CHK function on or off. Description Note: An “Err” message will be shown on display if the learned reference value is less than 30uA. An “LEARNING < 30uA” message will be returned after using the query command “SYSTem:ERRor ?”...
Page 243: Manu:ir:gndoffset
REMOTE CONTROL Example MANU:IR:FILT OFF Sets the FILTER off in IR test. MANU:IR:GNDoffset Query Sets or returns the GND Offset function for IR test. Description Syntax MANU:IR:GNDoffset {ON | OFF} Query Syntax MANU:IR:GNDoffset? GDN Offest in IR test On Parameter/ GDN Offest in IR test Off Return parameter Example...
Page 244: Manu:gb:rloset
GPT-10000 Series User Manual Example MANU:GB:RHIS 100.0 Sets the GB HI SET value to 100mΩ. If the GB current x (HI SET resistance + REF) > 7.2V, Note an “Err” message will be shown on display. And an “GBV > 7.2V” message will be returned after using the query command “SYSTem:ERRor ?”...
Page 245: Manu:gb:frequency
REMOTE CONTROL MANU:GB:FREQuency Query Sets or returns the GB test frequency in Hz. The Description test must first be in GB mode before this command can be used. Syntax MANU:GB:FREQuency {50|60} Query Syntax MANU:GB:FREQuency? 50 Hz Parameter/ Return parameter 60 Hz Example MANU:GB:FREQ 50 Sets the GB test frequency to 50Hz.
Page 246: Manu:gb:maxhold
GPT-10000 Series User Manual Example MANU:GB:GRO OFF Sets the GB Ground Mode off. MANU:GB:MAXHold Query Sets or returns the GB MAX Hold. The test must Description first be in GB mode before this command can be used. Syntax MANU:GB:MAXHold {ON|OFF}...
Page 247: Manu:gb:ref
REMOTE CONTROL MANU:GB:REF Query Sets or returns the GB reference value in mΩ. The Description test must first be in GB mode before this command can be used. Beware that when ISET x (HIEST + REF) is greater than 7.2V, an “Err” message will be shown on display. And an “GBV >...
Page 248: Manu:continuity:rhiset
GPT-10000 Series User Manual MANU:CONTinuity:RHISet Query Sets or returns the CONT HI SET resistance value Description in Ω. The test must first be in CONT mode before this command can be used. Syntax MANU:CONTinuity:RHISet <NR2> Query Syntax MANU:CONTinuity:RHISet? 00.01 ~ 80.00 Ω...
Page 249: Manu:continuity:ttime
REMOTE CONTROL MANU:CONTinuity:TTIMe Query Sets or returns the CONT test time in seconds. The Description test must first be in CONT mode before this command can be used. Syntax MANU:CONTinuity:TTIMe <NR2> Query Syntax MANU:CONTinuity:TTIMe? 0.3 ~ 999.9 seconds Parameter <NR2> 0.3 ~ 999.9 seconds Return parameter <NR2>...
Page 250: Manu:continuity:ref
GPT-10000 Series User Manual MANU:CONTinuity:REF Query Sets or returns the CONT reference value in Ω. The Description test must first be in CONT mode before this command can be used. Note: when HI SET+REF VALUE is over 80 Ω, an “Err”...
Page 251: Auto Commands
REMOTE CONTROL Auto Commands AUTO:STEP ....................251 AUTO:NAME ..................251 AUTO:EDIT:ADD ..................252 AUTO<x>:EDIT:HOLD .................253 AUTO<x>:EDIT:SKIP ................253 AUTO:EDIT:DEL ..................254 AUTO:TEST:RETurn ................254 AUTO:EDIT:SHOW ................255 AUTO:STEP Query Sets or queries the AUTO number (automatic test Description number). Syntax AUTO:STEP <NR1> Query Syntax AUTO:STEP? 1~100 Parameter/ <NR1>...
Page 252: Auto:edit:add
GPT-10000 Series User Manual 10 character string. Parameter/ <”string”> Return parameter Example AUTO:NAME “program1” Sets the AUTO name to “program1”. AUTO:EDIT:ADD Query Add the selected MANU test to the current AUTO Description number. Syntax AUTO:EDIT:ADD {<NR1>|CON} 1~100 Parameter/ <NR1> Continuous step...
Page 253: Auto:Edit:hold
REMOTE CONTROL AUTO<x>:EDIT:HOLD Query Sets or returns the actions for STEP HOLD of each Description MANU STEP in AUTO test. Syntax AUTO<x>:EDIT:HOLD {PH_FH|PH_FS|PH_FC |PC_FH|PC_FS|PC_FC|PC_FC_PREVOLT| Query Syntax PC_FS_PREVOLT} AUTO<x>:EDIT:HOLD? MAMU step 1 ~ 10 Parameter/ <x> Return parameter Sets Pass Hold & Fail Hold action PH_FH Sets Pass Hold &...
Page 254: Auto:edit:del
GPT-10000 Series User Manual AUTO:EDIT:DEL Query Deletes the designated MANU STEP within the Description current AUTO test. Syntax AUTO:EDIT:DEL {<NR1>|ALL} <NR1> Deletes selected MANU STEP from 1 – 10 Parameter Deletes all the MANU STEPs Example AUTO:EDIT:DEL 3 Deletes the MANU STEP 3 from the current AUTO test.
Page 255: Auto:edit:show
REMOTE CONTROL AUTO:EDIT:SHOW Query Returns all the information of the current AUTO Description test page. Query Syntax AUTO:EDIT:SHOW? The returned strings will be shown in the Return parameter String way almost identical to the contents displayed on an AUTO test page. Example AUTO:EDIT:SHOW? >AUTO-001 AUTO_NAME...
Page 256: Sweep Commands
GPT-10000 Series User Manual Sweep Commands SWEEP:DATA:STATus ................. 256 SWEEP:DATA:SHOW ................256 SWEEP:GRAPh:SHOW ................. 257 SWEEP:DATA:STATus Query Returns the basic status of get data. Description Query Syntax SWEEP:DATA:STA? The returned string will be in the format Return parameter <String> below:...
Page 257: Sweep:graph:show
REMOTE CONTROL SWEEP:GRAPh:SHOW Query Displays or turns off Sweep graph on LCD screen. Description Also Returns if Sweep graph is shown on LCD. Syntax SWEEP:GRAPh:SHOW {ON|OFF} Query Syntax SWEEP:GRAPh:SHOW? To enable Sweep graph on LCD Parameter/ Return parameter To disable Sweep graph on LCD Returns if Sweep graph is shown on LCD Example SWEEP:GRAP:SHOW?
Page 258: Common Commands
GPT-10000 Series User Manual Common Commands *CLS......................258 *IDN ......................258 *SRE ......................259 *CLS The *CLS command clears the internal registers Description and error message, if any. Syntax *CLS *IDN Query Queries the model number, serial number, and Description firmware version of the tester.
Page 259: Sre
REMOTE CONTROL *SRE Query AUTO MODE only. Use this command to get Description measurement step number at the current point in time during AUTO MODE testing. Query Syntax *SRE? 00~50 Return parameter <NR1> Example *SRE? >5 The current test step is number 5. This indicates that steps 1~4 have already been completed and the results for those steps can now be retrieved.
Page 260: Special Functions
GPT-10000 Series User Manual Special Functions INTerlock:PIN..................260 INTerlock:PIN Query Queries if the physical interlock pin is shorted or not. Description INTerlock:PIN? Query Syntax Return parameter <string> Returns: “PIN OFF”: Interlock pin is Not shorted. “PIN ON” Interlock pin is shorted.
Page 261: Error Messages
REMOTE CONTROL Error Messages The possible error messages returned from Background SYST:ERR? query are well listed below. Error Error Code No Error Command Error Value Setting Error String Setting Error Query Error MODE Error TIME Error DC Over 50W (GPT-12XXX) DC Over 100W (GPT-15XXX) DC Over 120W (GPT-15012) GBV >...
Page 262 GPT-10000 Series User Manual Learning less than 30uA USB DISK BUSY Filter Setting Error Read Buffer Error Send Buffer Error...
Page 263: Faq
• The tester will not turn on. • The panel keys are not working. • The measured value of IR, GB or Continuity test does not match the specification. • When I press the START button the tester will not start testing? The tester will not turn on? Ensure the power cord is connected.
Page 264 GPT-10000 Series User Manual tester to match the specification. After warm-up, please proceed to Zero Check procedure. Refer to page 71 for details. The measured value of Continuity test does not match the specification? Make sure the tester is powered on for warm-up of at least 30 minutes, within +15°C~+35°C.
Page 265 When I press the START button the tester will not start testing? The tester must first be in the READY status before a test can be started. Ensure the tester displays READY before pressing the START button, page 92 (manual test), 120 (automatic test). If Double Action is enabled, the START button must be pressed within 0.5 seconds after the STOP button is pressed, otherwise the tester will not start testing.
Page 266: Appendix
GPT-10000 Series User Manual PPENDIX Fuse Replacement 1. Turn the instrument Steps off. 2. Remove the power cord. 3. Remove the fuse socket using a flat screwdriver. 4. Replace the fuse in the fuse holder. GPT-12000/GPT-15012 GPT-15000 Fuse Rating T 4A, 250V...
Page 267: Tester Errors
APPENDIX Tester Errors The following test error messages highlighted in red may appear on the GPT-10000 display when completing a running test. Test Error Description HI FAIL Test result is beyond the HI SET value LOW FAIL Test result is below the LOW SET value V OVER Measured voltage is beyond the set value by 1.1 times V LOW...
Page 268 GPT-10000 Series User Manual HISET >= ARC Set value of HI SET is greater than or equal to ARC SET value LOW SET ERROR Setting error in LOW SET TEST TIME ERROR Setting error in TEST TIME RAMP TIME ERROR...
Page 269 APPENDIX TIME OVER 240s TIME OVER 240s is displayed when, under (GPT-15XXX) ACW test mode, HI SET is greater than 80mA and the RAMP TIME plus the TEST TIME setting is > 240 seconds. TEST TIME<0.5s TEST TIME<0.5s is displayed when test time, under IR test mode with Ground mode ON, is below 0.5 second.
Page 270: Factory Default Parameters
GPT-10000 Series User Manual Factory Default Parameters DISPLAY SET Brightness Language ENGLISH BUZZER Volume Key Sound INTERFACE Interface RS-232 Baud Rate 9600 CONTROL Control By Front Panel SIGNAL IO --> OUT1:READY OUT2:TEST OUT3:PASS OUT4:FAIL OUT5:FAIL_H Double Action Key Lock Interlock...
Page 271 APPENDIX STATISTICS TOTAL AMOUNT = PASS AMOUNT = FAIL AMOUNT = ACW PASS DATA ACW FAIL DATA DCW PASS DATA DCW FAIL DATA IR PASS DATA IR FAIL DATA GB PASS DATA GB FAIL DATA CONT PASS DATA CONT FAIL DATA USB DISK USB Disk Auto Data Save File Name...
Page 272: Gpt-10000 Specifications
GPT-10000 Series User Manual GPT-10000 Specifications The specifications apply when the GPT-10000 is powered on for at least 30 minutes at 15˚C~35˚C. Specifications General DISPLAY 7” color LCD MEMORY AUTO/MANU mode 100 memory blocks total POWER SOURCE AC 100V~240V ± 10%, 50Hz/60Hz...
Page 273 APPENDIX Environment Range Temperature Humidity ≤70% (No Warranty 15˚C ~ 35˚C condensation) ≤70% (No Operation 0˚C ~ 40˚C condensation) ≤85% (No Storage -10˚C ~ 70˚C condensation) Installation Location Indoors at an amplitude of up to 2000m.
Page 274 GPT-10000 Series User Manual AC Withstanding Voltage Output Voltage Range 0.050kV~ 5.000kV Output Voltage Resolution  (1% of setting +5V) with no load Output Voltage Accuracy Maximum Rated Load(Table1) GPT-15XXX 500VA (5kV/100mA) GPT-12XXX 200VA (5kV/40mA) Maximum Rated Current GPT-15XXX 100mA 0.001mA~10mA(0.05kVV0.5kV)
Page 275 APPENDIX DC Withstanding Voltage Output Voltage Range 0.050kV~ 6.000kV¹ (0.050kV~12kV for GPT-15012) Output Voltage Resolution Output Voltage Accuracy ±(1% of setting +5V) With no load Maximum Rated Load GPT-15XXX 100W(5kV/20mA) GPT-15012 120W (12kV/10mA) GPT-12XXX 50W(5kV/10mA) Maximum Rated Current GPT-15XXX 20mA 0.001mA~2mA(0.05kVV0.5kV) 0.001mA~20mA(0.5kVV6kV) GPT-15012...
Page 276 GPT-10000 Series User Manual Maximum Capacitive Load DC 1µF Mode ¹ At least ramp 0.3 seconds is needed to reach a set voltage of 50V/2mA.
Page 277 APPENDIX Insulation Resistance Test Output Voltage 50V-5000V Output Voltage Resolution Output Voltage Accuracy ±(1% of setting +5V) with no load Resistance Measurement 0.1MΩ~50GΩ Range Test Voltage Measurement Range Accuracy 0.1MΩ~1MΩ 5% of reading + 3 count 50VV450V 1.1MΩ~50MΩ 5% of reading + 1 count 50.1MΩ~2GΩ...
Page 278 GPT-10000 Series User Manual WAIT TIME 0.0~999.9s TIMER (Test Time) 0.3s~999.9s TIMER Accuracy +/-(100ppm+20ms) ON/OFF NOTE: It is required to implement GND OFFSET action when IR Ground Mode is On. When IR Ground Mode is On, 50V~1200V the maximum 30Gohm,1250V~5000V the maximum 10Gohm measurement range is guaranteed.
Page 279 APPENDIX Interface REMOTE (Remote terminal) SIGNAL IO RS232 USB (Device) Yes (USB 2.0) Rear Output USB (Host) for data output port Yes (USB 2.0) GPIB Yes (Optional) Yes (Optional) Barcode Reader USB port Yes (USB-VCP) Table 1: Output Limitation in Withstanding Voltage Testing Function Upper Current Pause...
Page 280 GPT-10000 Series User Manual Table 2: GPT-10000 capacitive load table Test Condition Maximum Test Voltage HI-SET RAMP Time Capacitive Load Current ↗ 1.000kV I≧10.00mA T≧1.0S 4.7µF 2.000kV I≧7.00mA 1.65µF T≧1.0S 3.000kV I≧8.00mA T≧1.0S 1.32µF 4.000kV I≧11.00mA T≧1.0S 1.32µF 5.000kV I≧7.00mA T≧1.0S...
Page 281: Gpt-15001/15002/15003 Dimensions
APPENDIX GPT-15001/15002/15003 Dimensions...
Page 282: Gpt-15012 Dimensions
GPT-10000 Series User Manual GPT-15012 Dimensions...
Page 283: Gpt-15004 Dimensions
APPENDIX GPT-15004 Dimensions...
Page 284: Gpt-12001/12002/12003 Dimensions
GPT-10000 Series User Manual GPT-12001/12002/12003 Dimensions...
Page 285: Gpt-12004 Dimensions
APPENDIX GPT-12004 Dimensions...
Page 286: Certificate Of Compliance
GPT-10000 Series User Manual Certificate Of Compliance GOOD WILL INSTRUMENT CO., LTD. declare that the CE marking mentioned product satisfies all the technical relations application to the product within the scope of council: Directive: EMC; LVD; WEEE; RoHS The product is in conformity with the following standards or other normative documents: ◎...
Page 287: Index
INDEX NDEX Accessories ......... 12 results ..........98 running a test ........ 93 Automatic test special mode ....... 103, 105 add test ........111 test filename ........43 load ..........109 test frequency ....... 55 page view ......113, 115 test function ........
Page 288 GPT-10000 Series User Manual start control145, 159, 164, 167, 168, 170 Workplace precautions ..... 25 USB ..........138 Zeroing68, 70, 72, 82, 84, 87, 89, 91, 178 Warning symbol ......5...

This manual is also suitable for:

Gpt-12001 Gpt-12002 Gpt-12003 Gpt-12004 Gpt-15001 Gpt-15002 ... Show all

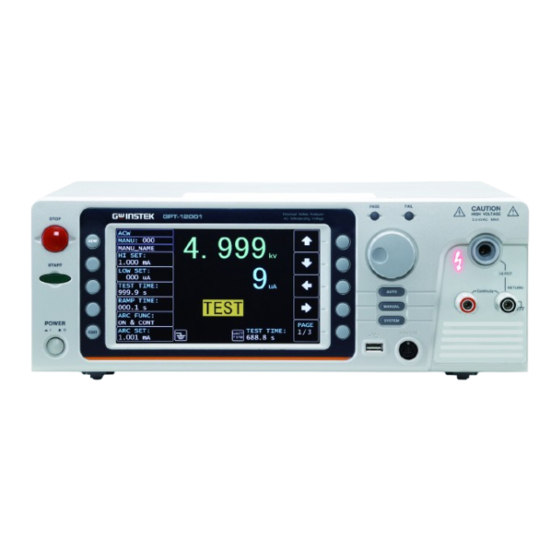

GW Instek GPT-10000 Series User Manual

Table of Contents

Etting Started

Peration

Xternal Control

Emote Control

Command List

Function Commands

Manual Commands

Auto Commands

Sweep Commands

Common Commands

Remote Commands

Special Functions

Appendix

Quick Links

Chapters

Need help?

Questions and answers

Related Manuals for GW Instek GPT-10000 Series

Summary of Contents for GW Instek GPT-10000 Series
