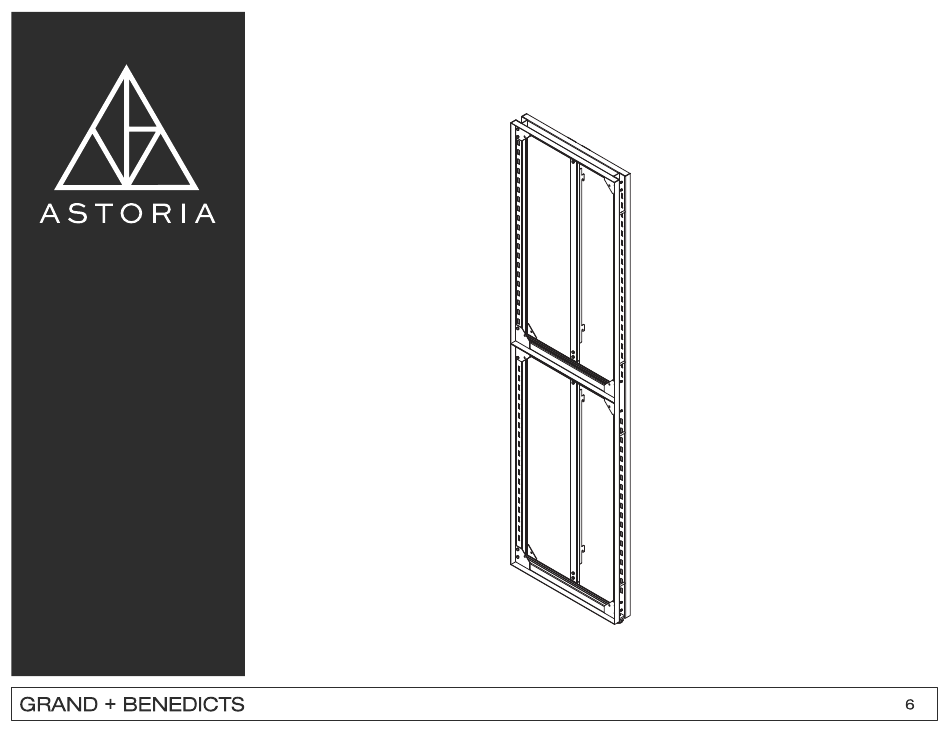

- Page 1 FREESTANDING WALL END CAP :: 257-W-FS-EC-24 ASSEMBLY INSTRUCTIONS 503.232.1988 | grand-benedicts.com PAGE 1 of...
-
Page 2: Part List
FREESTANDING WALL END CAP :: 257-W-FS-EC-24 PART LIST: 1X. LEFT UPRIGHT 1X. RIGHT UPRIGHT 2X. CENTER UPRIGHT 1X. BOTTOM RAIL 1X. CENTER RAIL A 1X. CENTER RAIL B 1X. TOP RAIL A W/LEVELER W/LEVELER 1X. OPEN END WRENCH 1X. OPEN END WRENCH 1X. -
Page 3: Start Here
Orienting Uprights for Astoria Wall End Cap START HERE Figure 1 1. Identify the bottom of the Left and Right Uprights by OFFSET locating hole for attaching UPRIGHT LIP levelers. This indicates the bottom of these uprights. Figure 2 See Figure 1. 2. - Page 4 FREESTANDING WALL END CAP :: 257-W-FS-EC-24 STEP 1: CONNECT TOP RAIL B, CENTER RAIL B STEP 2: CONNECT CENTER UPRIGHT ASSEMBLY & BOTTOM RAIL TO CENTER UPRIGHT WITH LEFT AND RIGHT UPRIGHTS SECURED BY THE TOP RAIL A AND CENTER RAIL A. LEFT UPRIGHT TOP RAIL B HOOKS SHOULD...
- Page 5 FREESTANDING WALL END CAP :: 257-W-FS-EC-24 STEP 3: USE ENDCAP HOOKS TO HANG ON THE EDGE OF FREESTANDING WALL FINISHED ASSEMBLY HEX BOLT 3/8"-16 X 0.75" 503.232.1988 | grand-benedicts.com PAGE...
- Page 6 FREESTANDING WALL END CAP :: 257-W-FS-EC-24 WITH OPTIONAL CROSS BRACES WITH OPTIONAL BACK PANELS CROSS-BRACES NEED TO BE MOUNTED TO THE INSIDE OF CHAM- FERED CORNER TO INSTALL, SLIDE UP AND THEN DOWN INTO FRAME CORNERS CROSS BRACES FINISHED ASSEMBLY FINISHED ASSEMBLY Please note, due to a design limitation, cross-braces cannot be used in combination with...
