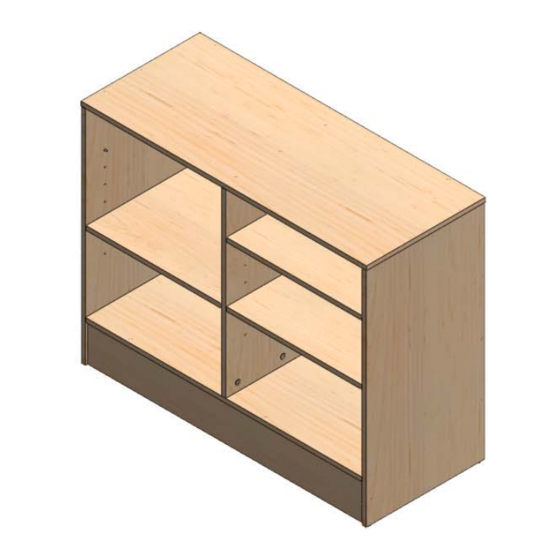

ASSEMBLY INSTRUCTIONS - 260 - EC - WC4 - ( 4' WRAP COUNTER )
CAMLOCK ( X54 )
WOOD DOWEL ( X34 )
SHELF PIN ( X12 )
PVC STICKER ( X32 )
B. KICK PANEL ( X2 )
A. BOTTOM PANEL ( X1 )
C. DIVIDER PANEL ( X1 )
D. BACK PANEL ( X1 )
E. LEFT SIDE PANEL ( X1 )
F. RIGHT SIDE PANEL ( X1 )
G. TOP PANEL ( X1 )
H. SHELF ( X3 )
GRAND + BENEDICTS | 800-547-7005 | www.grand-benedicts.com
PAGE: 1 OF 3
Advertisement
Table of Contents
Related Manuals for GRAND + BENEDICTS 260-EC-WC4
Summary of Contents for GRAND + BENEDICTS 260-EC-WC4
- Page 1 D. BACK PANEL ( X1 ) E. LEFT SIDE PANEL ( X1 ) F. RIGHT SIDE PANEL ( X1 ) G. TOP PANEL ( X1 ) H. SHELF ( X3 ) GRAND + BENEDICTS | 800-547-7005 | www.grand-benedicts.com PAGE: 1 OF 3...
- Page 2 SCREW THE BOLTS OF CAMLOCK & INSERT WOOD DOWELS IN BASE, ATTACH DIVIDER PANEL & BACK PANEL ON BASE BY CAMLOCKS; DIVIDER PANEL (X1) BACK PANEL (X1) WOOD DOWEL (X6) CAMLOCK (X11) GRAND + BENEDICTS | 800-547-7005 | www.grand-benedicts.com PAGE: 2 OF 3...
- Page 3 CONNECT TOP PANELS BY CAMLOCKS; PVC STICKERS (X32) TOP PANEL (X1) WOOD DOWEL (X8) CAMLOCK (X13) STEP 6: INSERT SHELF PINS IN POSITION; SIT SHELVES ON SHELF PIN; SHELF PIN (X12) SHELF (X3) GRAND + BENEDICTS | 800-547-7005 | www.grand-benedicts.com PAGE: 3 OF 3...
