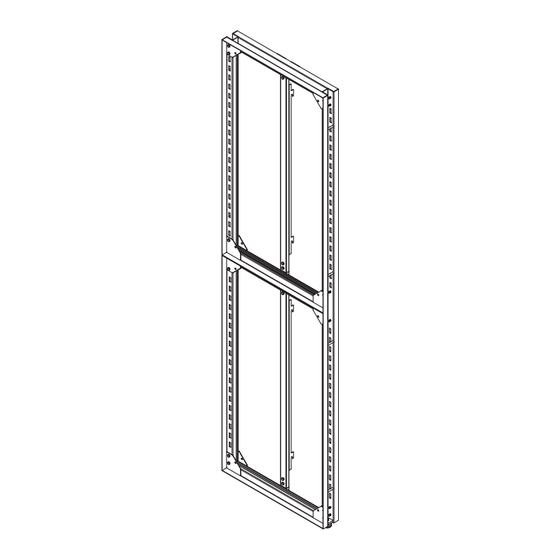

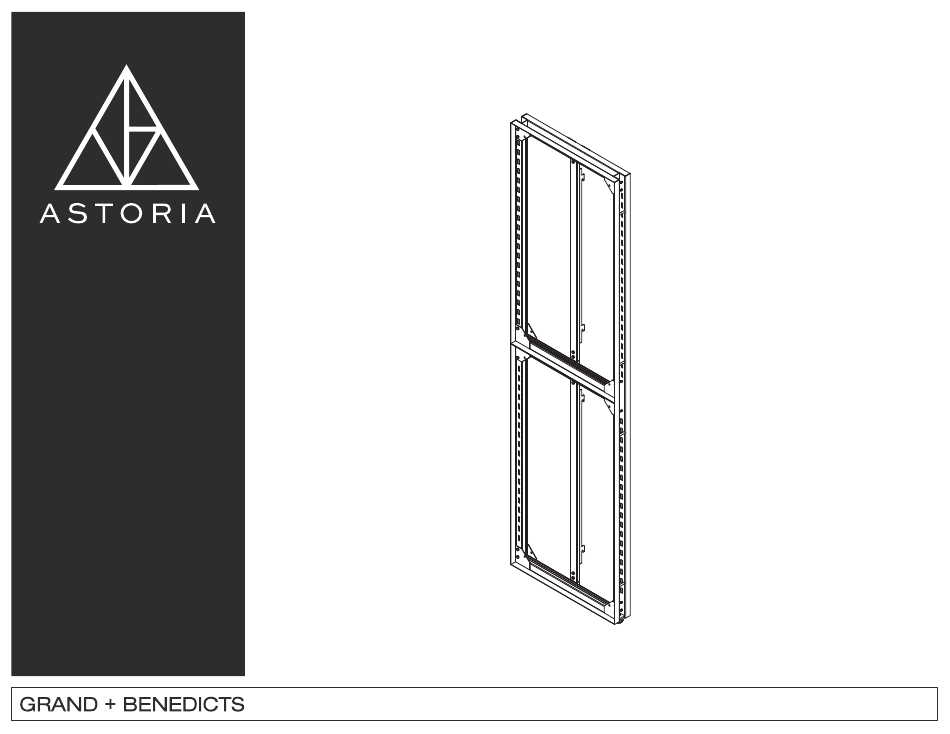

- Page 1 FREESTANDING WALL END CAP :: 257-W-FS-EC-24 ASSEMBLY INSTRUCTIONS 503.232.1988 | grand-benedicts.com PAGE 1 of 5...
- Page 2 FREESTANDING WALL END CAP :: 257-W-FS-EC-24 PART LIST: 1X. LEFT UPRIGHT 1X. RIGHT UPRIGHT 2X. CENTER UPRIGHT 1X. BOTTOM RAIL 1X. CENTER RAIL A 1X. CENTER RAIL B 1X. TOP RAIL A W/LEVELER W/LEVELER 1X. OPEN END WRENCH 1X. OPEN END WRENCH 1X.
- Page 3 FREESTANDING WALL END CAP :: 257-W-FS-EC-24 STEP 1: CONNECT TOP RAIL B, CENTER RAIL B STEP 2: CONNECT CENTER UPRIGHT ASSEMBLY & BOTTOM RAIL TO CENTER UPRIGHT WITH LEFT AND RIGHT UPRIGHTS SECURED BY THE TOP RAIL A AND CENTER RAIL A. LEFT UPRIGHT TOP RAIL B TOP RAIL A...
- Page 4 FREESTANDING WALL END CAP :: 257-W-FS-EC-24 STEP 3: USE ENDCAP HOOKS TO HANG ON THE EDGE OF FREESTANDING WALL FINISHED ASSEMBLY HEX BOLT 3/8"-16 X 0.75" 503.232.1988 | grand-benedicts.com PAGE 4 of 5...
- Page 5 FREESTANDING WALL END CAP :: 257-W-FS-EC-24 OPTIONAL CROSS BRACES W/ OPTIONAL BACK PANELS TO INSTALL, SLIDE UP AND THEN DOWN INTO FRAME CORNERS CROSS BRACES FINISHED ASSEMBLY FINISHED ASSEMBLY HEX BOLT 1/4"-20 X 0.75" 503.232.1988 | grand-benedicts.com PAGE 5 of 5...
