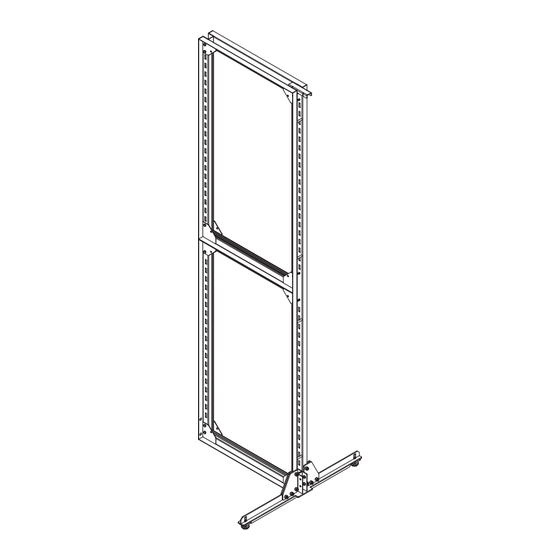

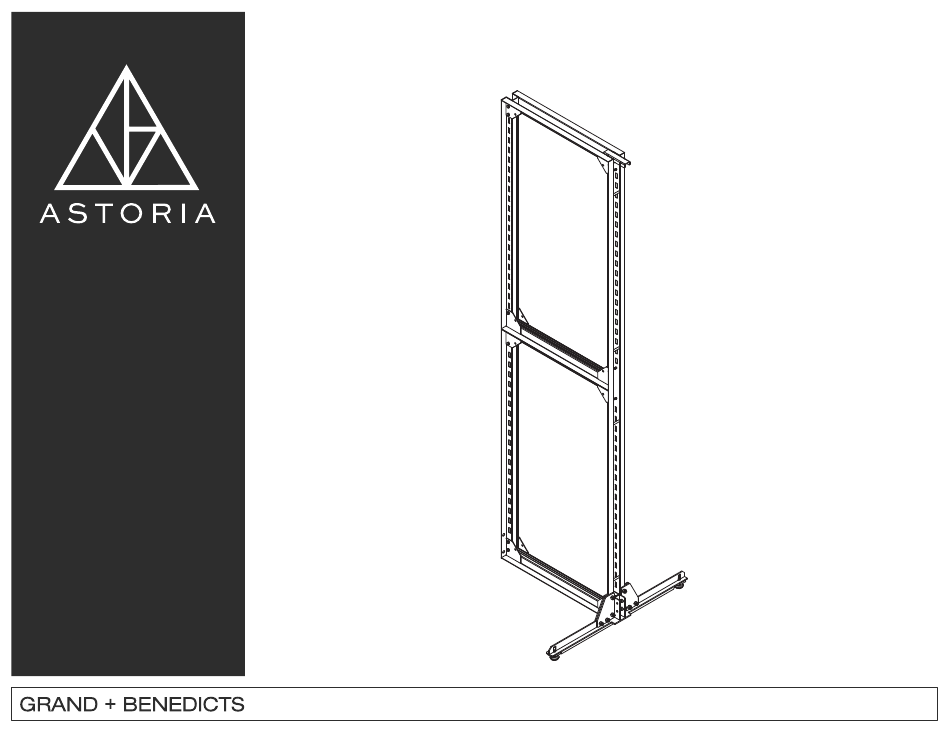

- Page 1 FREESTANDING WALL ADD ON 2FT :: 257-W-DSFS-2-AO ASSEMBLY INSTRUCTIONS 503.232.1988 | grand-benedicts.com PAGE 1 of 5...
- Page 2 FREESTANDING WALL ADD ON 2FT :: 257-W-DSFS-2-AO PART LIST: 1X.CENTER LEG 1X. BOTTOM RAIL 2X. CENTER RAIL A 2X. TOP RAIL A 1X. LEFT UPRIGHT 1X. RIGHT UPRIGHT 1X. BRACKET FREESTANDING WALL 24X. HEX BOLT 8X. HEX BOLT 1X. OPEN END WRENCH 1X.
- Page 3 FREESTANDING WALL ADD ON 2FT :: 257-W-DSFS-2-AO STEP 1: CONNECT LEGS TO UPRIGHTS LEFT UPRIGHT ASSEMBLED UPRIGHTS, READY FOR STEP 3 RIGHT UPRIGHT NOTE: Add-on units include a Center Leg that goes in the middle of the Starter Unit and Add-on Units. To connect the Add-on Unit to the Starter Unit, replace one of the Regular Legs with a Center Leg...
- Page 4 FREESTANDING WALL ADD ON 2FT :: 257-W-DSFS-2-AO STEP 2: CONNECT THE STARTER & ADD ON WITH TOP & CENTER RAILS STEP 2A: Connect Top Rails, Center Rails and TOP RAIL A Bottom Rails to all Uprights. BRACKET STEP 2B: Connect starter and Add-On with Bracket BRACKET CONNECTS MULTIPLE FRAMES TOP RAIL A...
- Page 5 FREESTANDING WALL ADD ON 2FT :: 257-W-DSFS-2-AO STEP 3: W/ OPTIONAL CROSS BRACES STEP 3: W/ OPTIONAL BACK PANELS CROSS BRACES FINISHED ASSEMBLY TO INSTALL, SLIDE UP AND THEN DOWN HEX BOLT 1/4"-20 X 0.75" INTO FRAME CORNERS 503.232.1988 | grand-benedicts.com PAGE 5 of 5...
