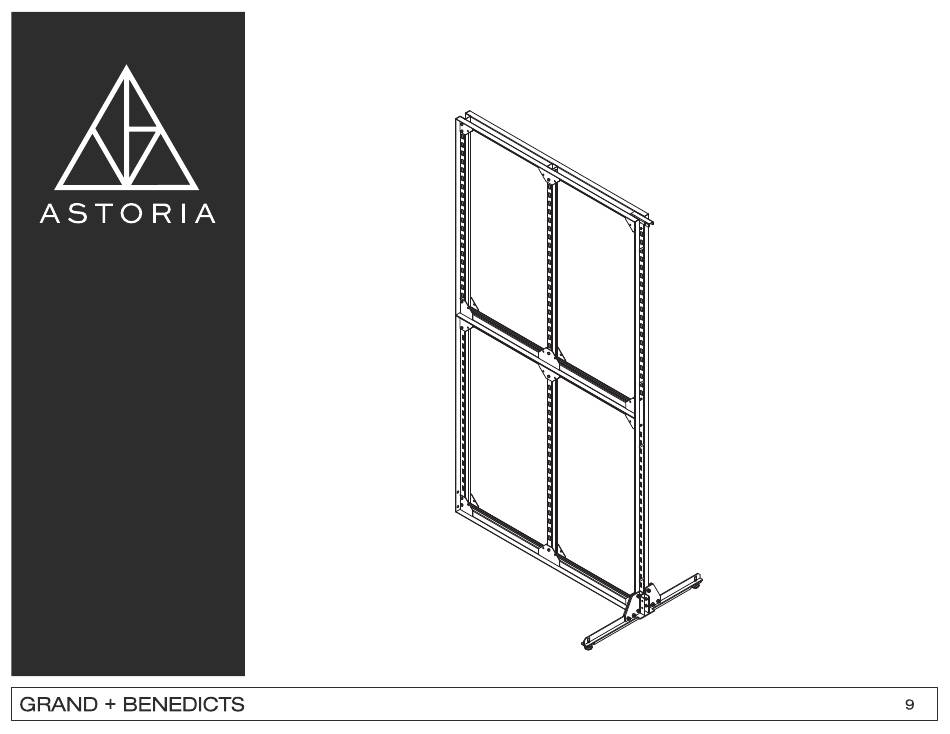

- Page 1 FREESTANDING WALL ADD ON 4FT :: 257-W-DSFS-4-AO ASSEMBLY INSTRUCTIONS 503.232.1988 | grand-benedicts.com PAGE 1 of...
-
Page 2: Part List
FREESTANDING WALL ADD ON 4FT :: 257-W-DSFS-4-AO PART LIST: 1X.CENTER LEG 2X. CENTER RAIL 2X. TOP RAIL 1X. RIGHT 1X. CENTER 1X. BOTTOM RAIL 1X. LEFT 4X. LEG BRACKET FREESTANDING WALL UPRIGHT UPRIGHT UPRIGHT 1X. BRACKET 32X. HEX BOLT 1X. OPEN END WRENCH 1X. -
Page 3: Start Here
Orienting Uprights for Astoria Freestanding Wall System START HERE Figure 1 1. Identify the bottom of the Left and Right uprights by OFFSET locating the flange with two UPRIGHT LIP large holes at the base. This indicates the bottom of these uprights. - Page 4 Assembling Freestanding Walls Using Starter and Add-On Unit STARTER START HERE UPRIGHT COMBINED LEFT AND 1. Assemble starter units and add-on RIGHT UPRIGHT units at the same time. ADD-ON UPRIGHT 3. When combining Starter and Add-on unit you will need to swap a leg. 4.
- Page 5 FREESTANDING WALL ADD ON 4FT :: 257-W-DSFS-4-AO STEP 1: ASSEMBLE CENTER UPRIGHTS CENTER UPRIGHT BOTTOM RAIL ASSEMBLED CENTER UPRIGHT X2 HEX BOLT 1/4"-20 X 0.625" 503.232.1988 | grand-benedicts.com PAGE...
- Page 6 FREESTANDING WALL ADD ON 4FT :: 257-W-DSFS-4-AO STEP 2: CONNECT LEGS TO UPRIGHTS ASSEMBLED UPRIGHTS, LEFT UPRIGHT READY FOR STEP 3 RIGHT UPRIGHT NOTE: Add-on units include a Center Leg should be placed BETWEEN the Starter Unit and Add-on Units. To connect the Add-on Unit to the Starter Unit, replace one of the Regular Legs with a Center Leg and move the...
- Page 7 FREESTANDING WALL ADD ON 4FT :: 257-W-DSFS-4-AO STEP 3: CONNECT TOP & CENTER RAILS TO THE TWO CENTER UPRIGHTS Connect the Top Rails and Center Rails to Center Uprights using HEX BOLT 1/4"-20 X 0.625" TOP RAILS CENTER RAILS PLEASE NOTE, BACK PANEL CHANNEL IS FACING UP ASSEMBLED CENTER FRAMES...
- Page 8 FREESTANDING WALL ADD ON 4FT :: 257-W-DSFS-4-AO STEP 4: CONNECT CENTER UPRIGHTS TO LEFT & RIGHT UPRIGHTS STEP 4A: Connect Legs to Center & Top Rails using STEP 4B: INSTALL CONNECTOR BRACKET HEX BOLT 1/4"-20 X 0.625" AFTER INSERTING BACK PANELS BRACKET CONNECTS MULTIPLE FRAMES FREESTANDING WALL...
- Page 9 FREESTANDING WALL ADD ON 4FT :: 257-W-DSFS-4-AO STEP 4: W/ STEP 3: OPTIONAL CROSS BRACES W/ OPTIONAL BACK PANELS CROSS-BRACES Please note, due to a design limita- NEED TO BE tion, cross-braces cannot be used in MOUNTED TO combination with back panels. This THE INSIDE OF issue will be resolved in the next CHAMFERED...
