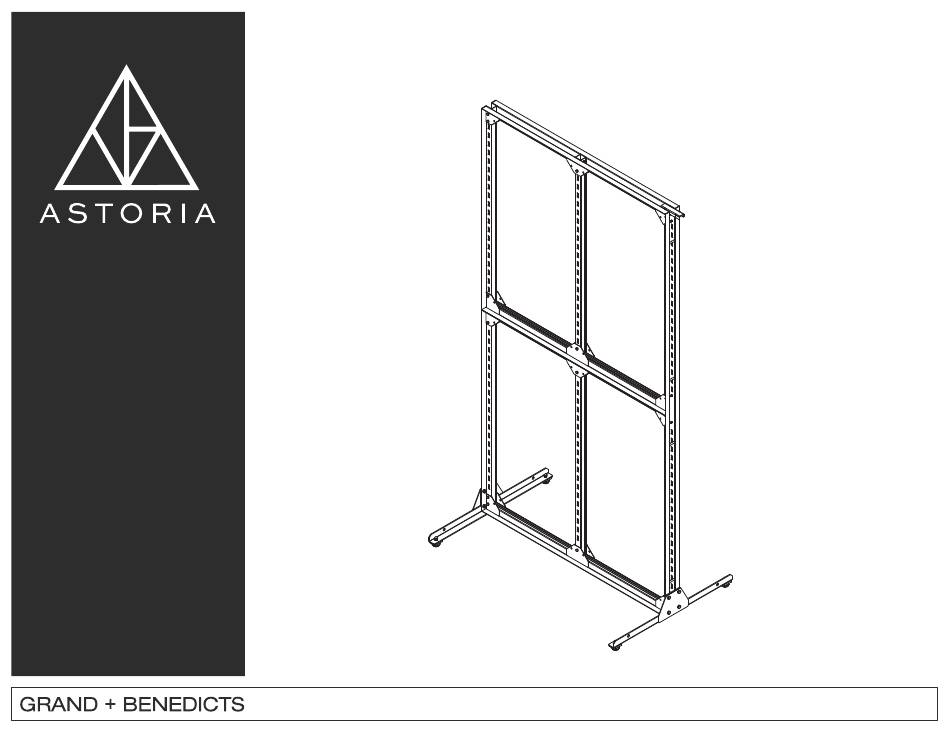

- Page 1 FREESTANDING WALL 4FT :: 257-W-DSFS-4 ASSEMBLY INSTRUCTIONS 503.232.1988 | grand-benedicts.com PAGE 1 of 7...
-
Page 2: Part List
FREESTANDING WALL 4FT :: 257-W-DSFS-4 PART LIST: 2X. 32IN LEG 1X. BOTTOM RAIL 2X. CENTER RAIL 2X. TOP RAIL 1X. LEFT 1X. RIGHT 1X. CENTER W/LEVELER UPRIGHT UPRIGHT UPRIGHT 1X. BRACKET 32X. HEX BOLT 8X. HEX BOLT 1X. OPEN END WRENCH 1X. -
Page 3: Start Here
Orienting Uprights for Astoria Freestanding Wall System START HERE Figure 1 1. Identify the bottom of the Left and Right uprights by OFFSET locating the flange with two UPRIGHT LIP large holes at the base. This indicates the bottom of these uprights. - Page 4 FREESTANDING WALL 4FT :: 257-W-DSFS-4 : CONNECT LEGS TO UPRIGHTS : CONNECT BOTTOM RAIL TO CENTER UPRIGHT LEFT UPRIGHT RIGHT UPRIGHT CENTER UPRIGHT 32IN LEG BOTTOM RAIL HEX BOLT 3/8"-16 X 0.75" HEX BOLT 1/4"-20 X 0.625" HEX NUTS 3/8-16 503.232.1988 | grand-benedicts.com PAGE 4 of 7...
- Page 5 FREESTANDING WALL 4FT :: 257-W-DSFS-4 STEP 3: CONNECT TOP RAILS & CENTER STEP 4: CONNECT LEFT & RIGHT UPRIGHTS TO RAILS TO CENTER UPRIGHT THE CENTER UPRIGHT ASSEMBLY USING HEX BOLTS LEFT UPRIGHT CENTER UPRIGHT ASSEMBLY TOP RAILS RIGHT UPRIGHT PLEASE NOTE, BACK PANEL CHANNEL IS FACING UP...
- Page 6 FREESTANDING WALL 4FT :: 257-W-DSFS-4 COMPLETED FIXTURE 503.232.1988 | grand-benedicts.com PAGE 6 of 7...
- Page 7 FREESTANDING WALL 4FT :: 257-W-DSFS-4 OPTIONAL CROSS BRACES W/ OPTIONAL BACK PANELS CROSS BRACES TO INSTALL, SLIDE UP AND THEN DOWN INTO FRAME CORNERS HEX BOLT 1/4"-20 X 0.75" 503.232.1988 | grand-benedicts.com PAGE 7 of 7...
