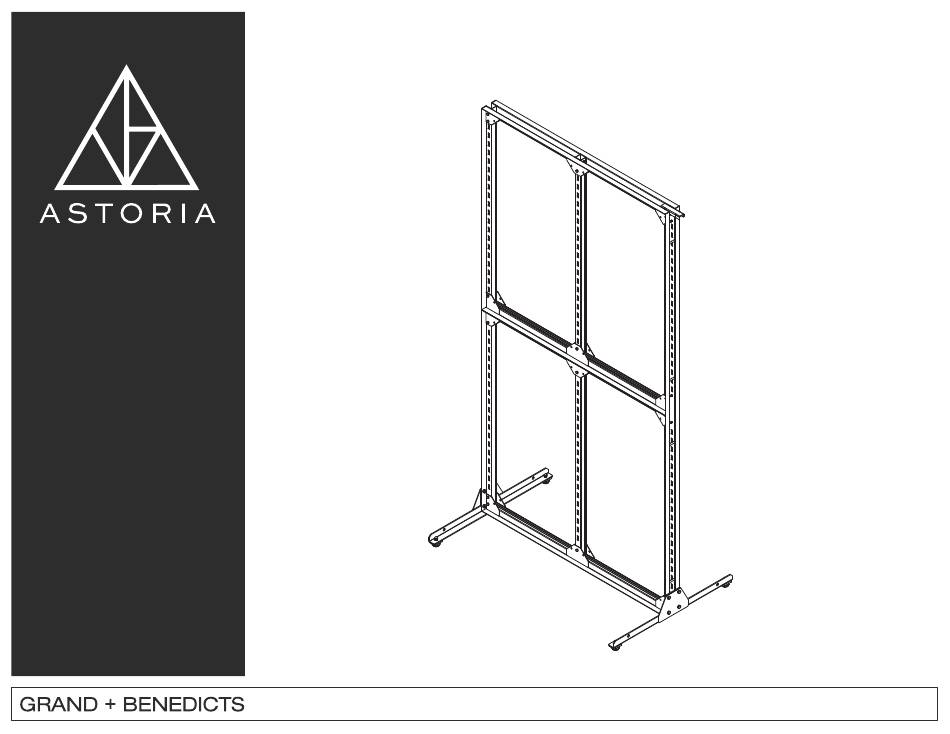

- Page 1 FREESTANDING WALL 4FT :: 257-W-DSFS-4 ASSEMBLY INSTRUCTIONS 503.232.1988 | grand-benedicts.com PAGE 1 of 6...
- Page 2 FREESTANDING WALL 4FT :: 257-W-DSFS-4 PART LIST: 2X. 32IN LEG 1X. BOTTOM RAIL 2X. CENTER RAIL 2X. TOP RAIL 1X. LEFT 1X. RIGHT 1X. CENTER W/LEVELER UPRIGHT UPRIGHT UPRIGHT 1X. BRACKET 32X. HEX BOLT 8X. HEX BOLT 1X. OPEN END WRENCH 1X.
- Page 3 FREESTANDING WALL 4FT :: 257-W-DSFS-4 : CONNECT LEGS TO UPRIGHTS : CONNECT BOTTOM RAIL TO CENTER UPRIGHT LEFT UPRIGHT RIGHT UPRIGHT CENTER UPRIGHT 32IN LEG BOTTOM RAIL HEX BOLT 3/8"-16 X 0.75" HEX BOLT 1/4"-20 X 0.625" HEX NUTS 3/8-16 503.232.1988 | grand-benedicts.com PAGE 3 of 6...
- Page 4 FREESTANDING WALL 4FT :: 257-W-DSFS-4 STEP 3: CONNECT TOP RAILS & CENTER STEP 4: CONNECT LEFT & RIGHT UPRIGHTS TO RAILS TO CENTER UPRIGHT THE CENTER UPRIGHT ASSEMBLY USING HEX BOLTS LEFT UPRIGHT CENTER UPRIGHT ASSEMBLY TOP RAILS RIGHT UPRIGHT CENTER RAILS CENTER UPRIGHT HEX BOLT...

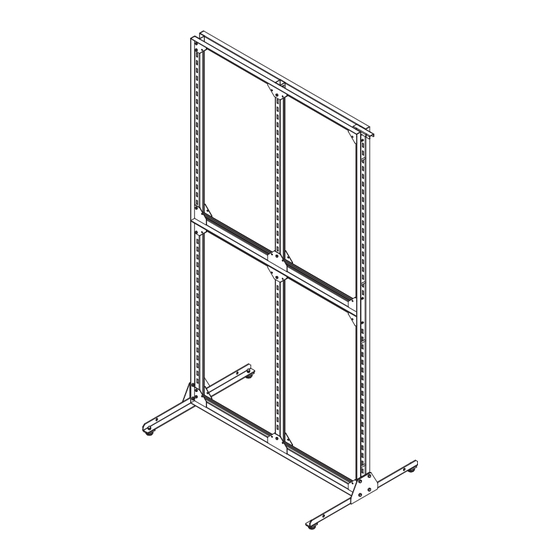

- Page 5 FREESTANDING WALL 4FT :: 257-W-DSFS-4 COMPLETED FIXTURE 503.232.1988 | grand-benedicts.com PAGE 5 of 6...
- Page 6 FREESTANDING WALL 4FT :: 257-W-DSFS-4 OPTIONAL CROSS BRACES W/ OPTIONAL BACK PANELS CROSS BRACES TO INSTALL, SLIDE UP AND THEN DOWN INTO FRAME CORNERS HEX BOLT 1/4"-20 X 0.75" 503.232.1988 | grand-benedicts.com PAGE 6 of 6...
