Summary of Contents for GRAND + BENEDICTS ASTORIA 257-W-2

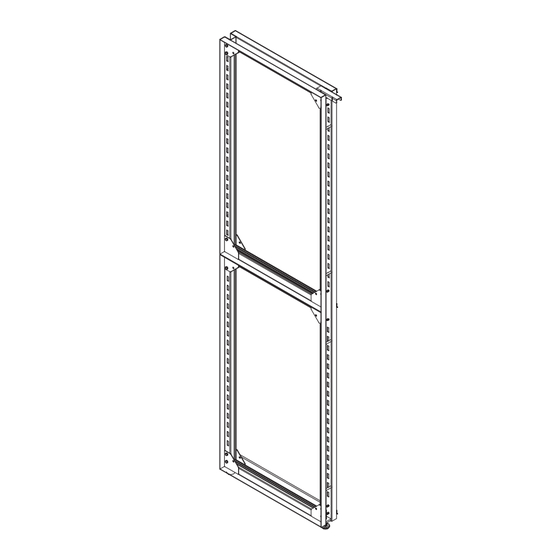

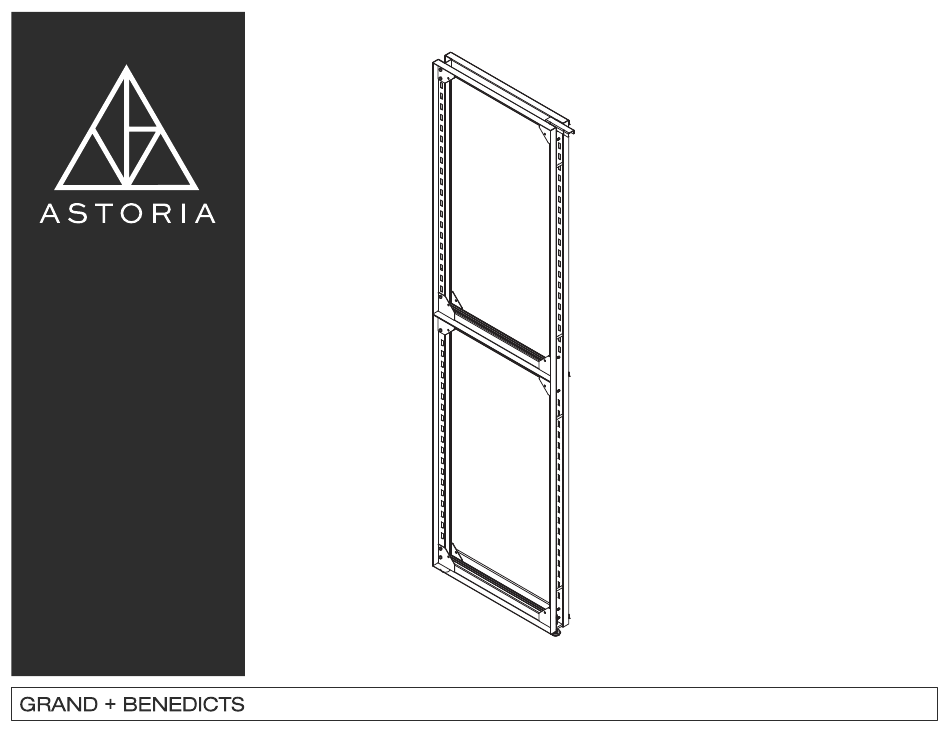

- Page 1 2FT WALL :: 257-W-2 ASSEMBLY INSTRUCTIONS 503.232.1988 | grand-benedicts.com PAGE 1 of 6...
- Page 2 2FT WALL :: 257-W-2 PART LIST: 1X. CENTER RAIL A 1X. RIGHT UPRIGHT 1X. BOTTOM RAIL 1X. LEFT UPRIGHT 1X. CENTER RAIL B W/LEVELER W/LEVELER 1X. OPEN END WRENCH 24X. HEX BOLT 1/4"-20 X 0.625" 1X. TOP RAIL B 1X. TOP RAIL A FOR HEX BOLT 1/4-20 UNC 503.232.1988 | grand-benedicts.com PAGE 2 of 6...
- Page 3 2FT WALL :: 257-W-2 STEP 1: COMPLETED FRAME LEFT UPRIGHT TOP RAILS A&B RIGHT UPRIGHT CENTER RAILS A&B BOTTOM RAIL HEX BOLT 1/4"-20 X 0.625" 503.232.1988 | grand-benedicts.com PAGE 3 of 6...
- Page 4 2FT WALL :: 257-W-2 STEP 2: MOUNT WALL CLEATS STEP 3: HANG WALL FRAMES WALL CLEAT BRACKET CONNECTS MULTIPLE FRAMES 2 FT WALL FRAME BRACKET CONNECTS MULTIPLE FRAMES FRAMES HANG ON CLEATS WALL CLEATS CAN BE CUT DOWN TO FIT YOUR SPACE 503.232.1988 | grand-benedicts.com PAGE 4 of 6...
- Page 5 2FT WALL :: 257-W-2 STEP 3: W/ OPTIONAL CROSS BRACES CROSS BRACES COMPLETED WALL MOUNT CROSS BRACES WITH HEX BOLT 1/4"-20 X 0.75" 503.232.1988 | grand-benedicts.com PAGE 5 of 6...
- Page 6 2FT WALL :: 257-W-2 STEP 3: W/ OPTIONAL BACK PANELS TO INSTALL, SLIDE UP AND THEN DOWN INTO FRAME CORNERS OPTIONAL BACK PANELS COMPLETED WALL 503.232.1988 | grand-benedicts.com PAGE 6 of 6...
