- Page 1 FREESTANDING WALL 2FT :: 257-W-DSFS-2 ASSEMBLY INSTRUCTIONS 503.232.1988 | grand-benedicts.com PAGE 1 of...
-
Page 2: Part List
FREESTANDING WALL 2FT :: 257-W-DSFS-2 PART LIST: 2X. 32IN LEG 2X. CENTER RAIL A 2X. TOP RAIL A 1X. LEFT UPRIGHT 1X. RIGHT UPRIGHT 1X. BOTTOM RAIL W/LEVELER 1X. OPEN END WRENCH 1X. OPEN END WRENCH 24X. HEX BOLT 1/4"-20 X 0.625" 8X. -
Page 3: Start Here
Orienting Uprights for Astoria Freestanding Wall System START HERE Figure 1 1. Identify the bottom of the Left and Right uprights by OFFSET locating the flange with two UPRIGHT LIP large holes at the base. This indicates the bottom of these uprights. - Page 4 FREESTANDING WALL 2FT :: 257-W-DSFS-2 STEP 1: CONNECT LEGS TO UPRIGHTS STEP 2: CONNECT TOP RAILS, CENTER RAILS & BOTTOM RAIL TO UPRIGHTS. TOP RAIL A LEFT UPRIGHT RIGHT UPRIGHT PLEASE NOTE, BACK PANEL CHANNEL IS FACING UP CENTER RAIL A 32IN LEG BOTTOM RAIL HEX BOLT 3/8"-16 X 0.75"...

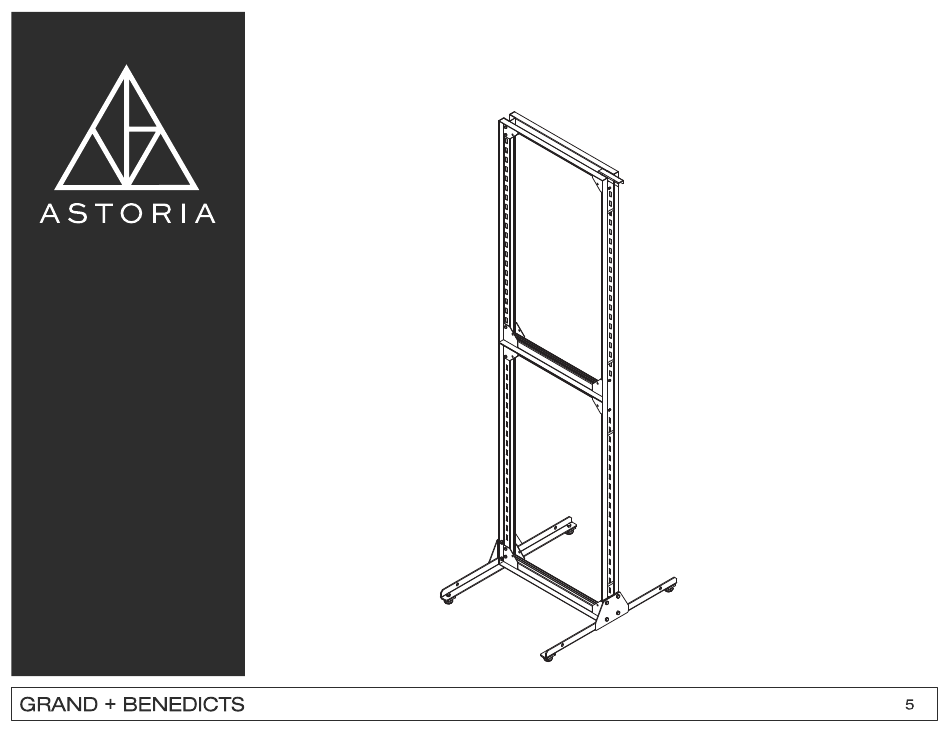

- Page 5 FREESTANDING WALL 2FT :: 257-W-DSFS-2 WITH OPTIONAL CROSS BRACES WITH OPTIONAL BACK PANELS Please note, due to a design limitation, cross-braces cannot be used in CROSS-BRACES NEED combination with back panels. This issue will be resolved in the next TO BE MOUNTED TO THE version.
