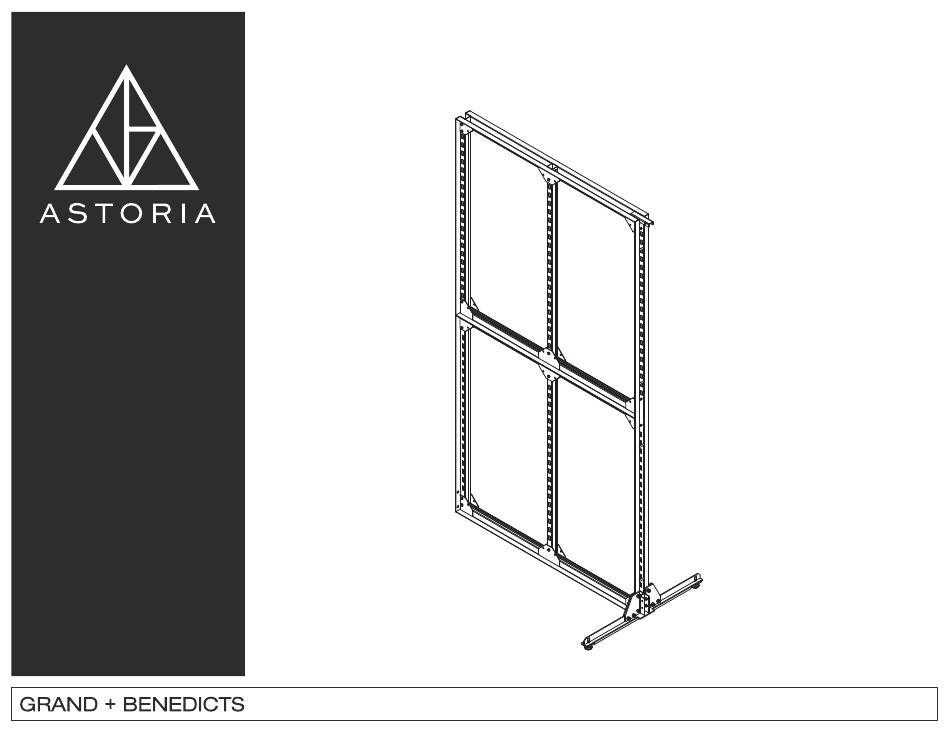

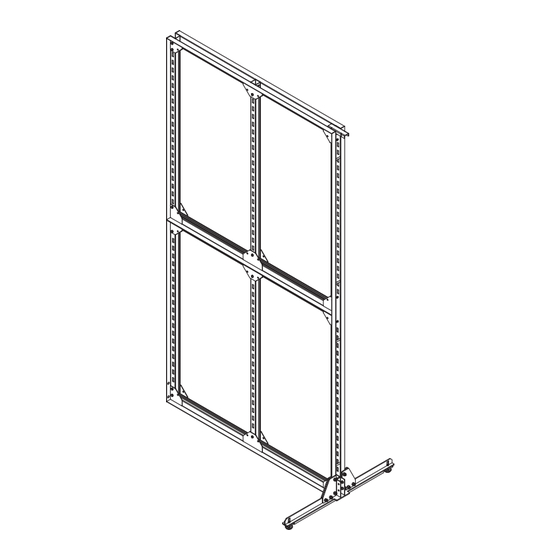

- Page 1 FREESTANDING WALL ADD ON 4FT :: 257-W-DSFS-4-AO ASSEMBLY INSTRUCTIONS 503.232.1988 | grand-benedicts.com PAGE 1 of 7...
- Page 2 FREESTANDING WALL ADD ON 4FT :: 257-W-DSFS-4-AO PART LIST: 1X.CENTER LEG 2X. CENTER RAIL 2X. TOP RAIL 1X. RIGHT 1X. CENTER 1X. BOTTOM RAIL 1X. LEFT 4X. LEG BRACKET FREESTANDING WALL UPRIGHT UPRIGHT UPRIGHT 1X. BRACKET 32X. HEX BOLT 1X. OPEN END WRENCH 1X.
- Page 3 FREESTANDING WALL ADD ON 4FT :: 257-W-DSFS-4-AO STEP 1: ASSEMBLE CENTER UPRIGHTS CENTER UPRIGHT BOTTOM RAIL ASSEMBLED CENTER UPRIGHT X2 HEX BOLT 1/4"-20 X 0.625" 503.232.1988 | grand-benedicts.com PAGE 3 of 7...
- Page 4 FREESTANDING WALL ADD ON 4FT :: 257-W-DSFS-4-AO STEP 2: CONNECT LEGS TO UPRIGHTS ASSEMBLED UPRIGHTS, LEFT UPRIGHT READY FOR STEP 3 RIGHT UPRIGHT NOTE: Add-on units include a Center Leg should be placed BETWEEN the Starter Unit and Add-on Units. To connect the Add-on Unit to the Starter Unit, replace one of the Regular Legs with a Center Leg and move the...
- Page 5 FREESTANDING WALL ADD ON 4FT :: 257-W-DSFS-4-AO STEP 3: CONNECT TOP & CENTER RAILS TO THE TWO CENTER UPRIGHTS Connect the Top Rails and Center Rails to Center Uprights using HEX BOLT 1/4"-20 X 0.625" TOP RAILS CENTER RAILS ASSEMBLED CENTER FRAMES 503.232.1988 | grand-benedicts.com PAGE 5 of 7...
- Page 6 FREESTANDING WALL ADD ON 4FT :: 257-W-DSFS-4-AO STEP 4: CONNECT CENTER UPRIGHTS TO LEFT & RIGHT UPRIGHTS STEP 4A: Connect Legs to Center & Top Rails using STEP 4B: Connect completed HEX BOLT 1/4"-20 X 0.625" Wall Add-on to Wall Starter unit using Bracket BRACKET CONNECTS MULTIPLE FRAMES...
- Page 7 FREESTANDING WALL ADD ON 4FT :: 257-W-DSFS-4-AO STEP 4: W/ STEP 3: OPTIONAL CROSS BRACES W/ OPTIONAL BACK PANELS CROSS BRACES TO INSTALL, SLIDE UP AND THEN DOWN INTO FRAME CORNERS HEX BOLT 1/4"-20 X 0.75" 503.232.1988 | grand-benedicts.com PAGE 7 of 7...
