Hearth & Home MSFR-36-BK Installation Instructions

Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
WARNING! Risk of Fire! Combustible materials MUST
NOT overlap or be placed behind a decorative front.
CAUTION! Do not install damaged components.

INSTALLATION

The installation process is identical for the ST-DV36IN

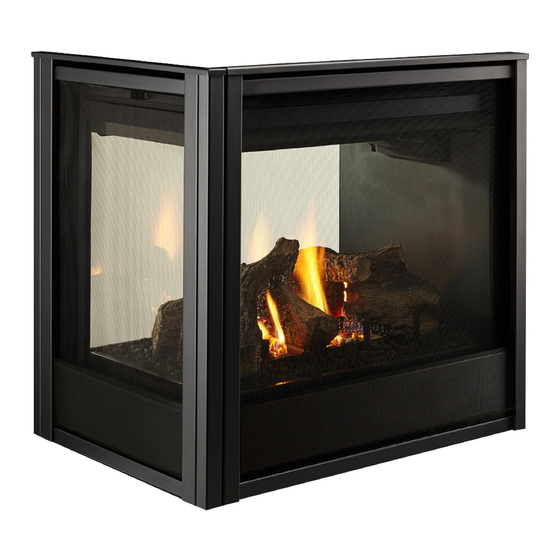

and the PIER-DV36IN. Figures show the PIER-DV36IN.
1. Remove end panel and decorative front components
from packaging.
2. Install 4 shoulder bolts on each side of appliance. See
Figure 1. Shoulder bolts are supplied with decorative
fronts.
3. Install vanity panel by placing it inside the appliance
with the front of the panel resting on the bottom lip of the
appliance to conceal the components. See Figure 2.
Hearth & Home Technologies • MSFR-36-BK Decorative Front / MSEP-36-BK End Panel Instructions • 2658-912 Rev. B • 4/22
MSFR-36-BK Decorative Front
MSEP-36-BK End Panel
Models: PIER-DV36IN / ST-DV36IN
Installation Instructions
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
SHOULDER BOLT
LOCATIONS
SHOULDER BOLT
LOCATIONS
Figure 1 Install Shoulder Bolts
1
