Hearth & Home ST36-CFP Installation Instructions

Models: MEZZO36/48/60/72ST-B, CRAVE4836/6048/7260/8472ST-B, ECHEL36/48STIN,
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts or Abrasions. Wear protective
gloves and safety glasses during installation.
KIT COMPONENTS
• (1) Right Front Panel
• (1) Left Front Panel
• (1) Right Back Panel
• (1) Left Back Panel
Note: Only for use when CFT fronts are used
on both sides of the appliance.
For Appliances: 48, 60 and 72 in.
RIGHT FRONT
LEFT FRONT
RIGHT BACK
LEFT BACK

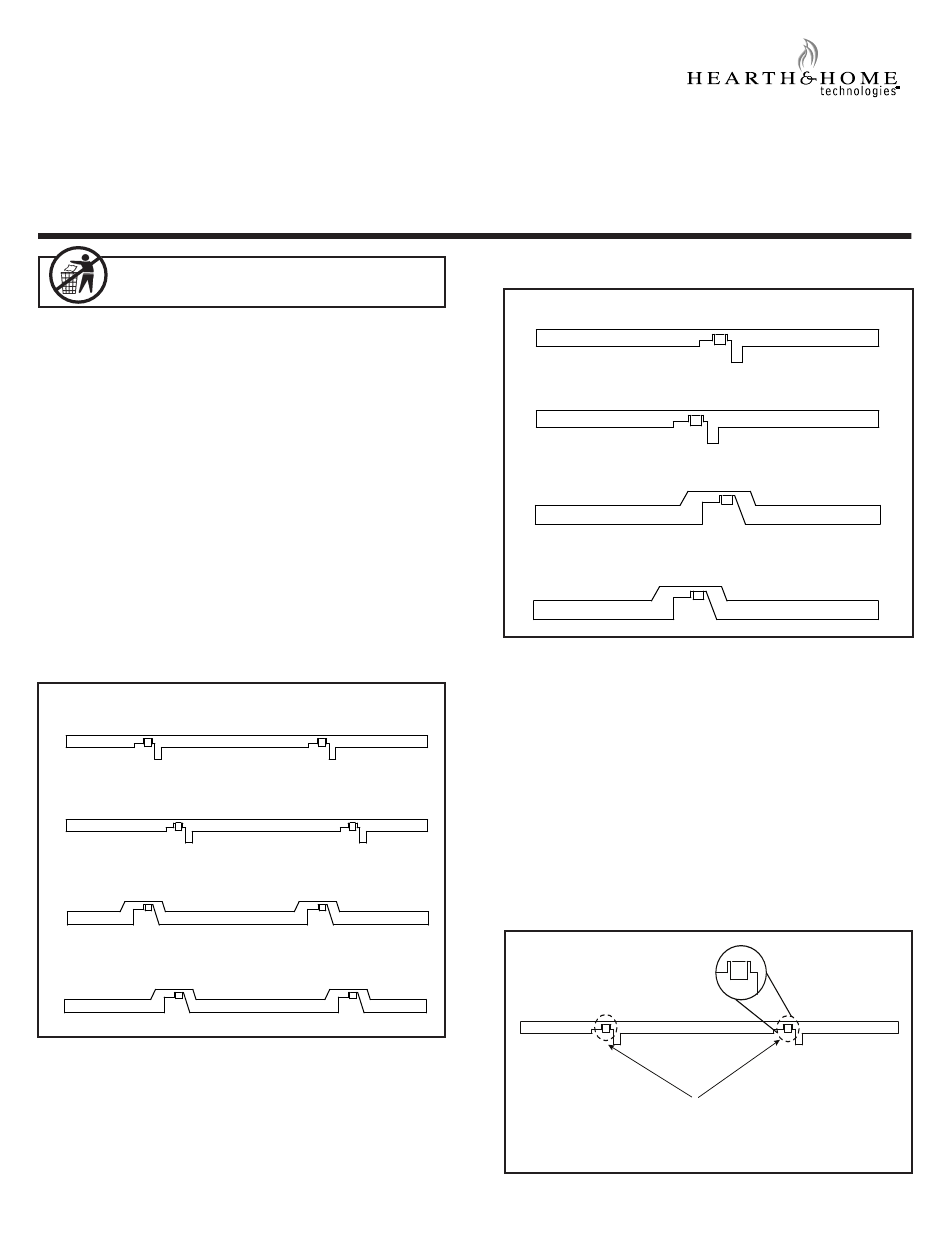

Figure 1. 48, 60, 72 in. Panel Identification
Hearth & Home Technologies • CFP Panel Installation Instructions • 2313-930 Rev. C • 6/18
ST36-CFP, ST48-CFP, ST60-CFP, ST72-CFP
MEZZO36/48/60/72ST, CRAVE4836/6048/7260/8472ST
Panel Installation Instructions
For Appliances: 36 in.
RIGHT FRONT
LEFT FRONT
RIGHT BACK
LEFT BACK
Figure 2. 36 in. Panel Identification
Instructions
1. Remove door from the front side of the appliance.
Set door aside in a safe location, preferably a soft
surface such as carpet or cardboard.
Note: The front side of the appliance is where the con-
trols are located.
2. Locate the Right Front panel. See Figure 1 or 2 (de-
pending on the appliance).
3. Bend the two short tabs outward 45 degrees. See
Figure 3 & 4.
RIGHT FRONT
BEND TABS 45 DEGREES
Note: Example is 48, 60, 72 Panel
Figure 3. Bend the Tabs 45 degrees
1
