Signal Logic/Timing

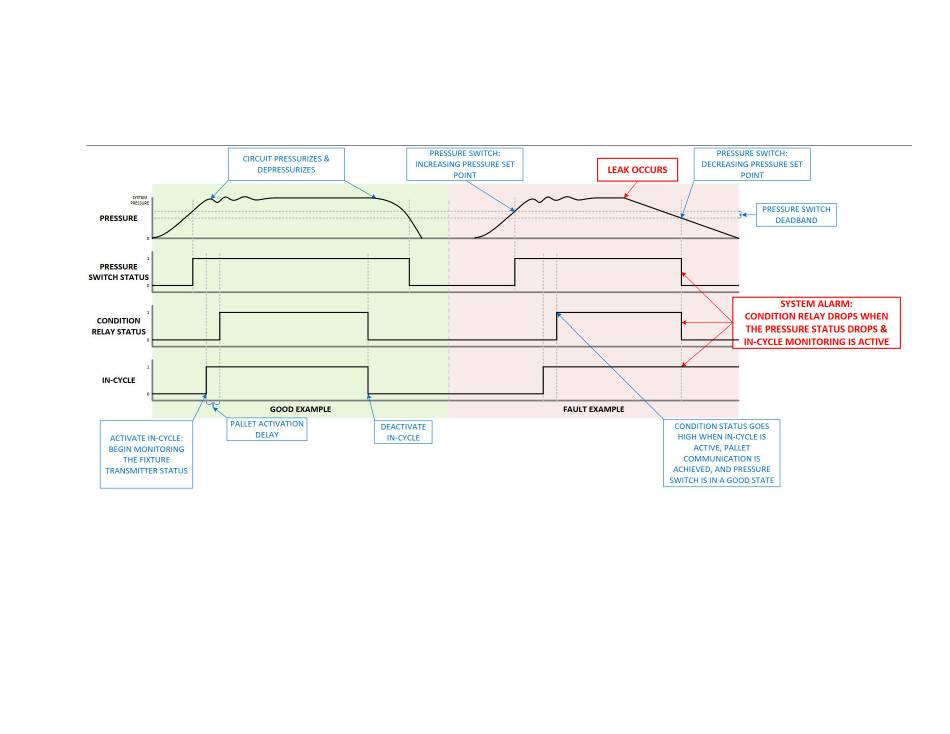

Figure 67: SIGNAL LOGIC
PL3309 REV. A
IAW ECN-5581
PAGE 38 of 44
© Copyright 2025 by Vektek, LLC
@ Copyright 1986-2025 by Vektek LLC****
**********
****See Vektek.com>Products>Maintenance
